Smart Touch Panel Gateway

Table of Contents

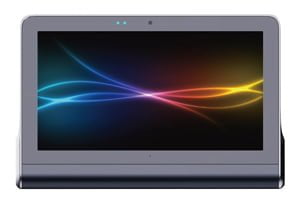

120 gateway 1

Model List

Model USB Wi-Fi 2.4G Wi-Fi 5G Bluetooth 5.2 Zigbee 3.0 4G
DSGW-120-1
DSGW-120-2
DSGW-120-3
DSGW-120-4

1. Introduction

1.1 Purpose& Description
The Smart Gateway with Panel Control is the gateway of the smart home system, connects multiple devices, and builds a stable and secure home network. It offers more convenience, better security and high efficiency to the user. This smart device with one USB Port and one Network Port supports multiple wireless protocols such as Wi-Fi, zigbee3.0, BLE and 4G. Besides, it can be compatible with a variety of different type of devices that using different protocols and support touch screen interface that provides many of the same easy-to-use keypad functions available on the control pane.
1.2 Product Feature Summary
  • OS: Android 6.0
  • Processor: RK3288 Quad-core Cortex-A17
  • Screen: 8 inches IPS touch screen, 1920*1080P
  • RAM: LPDDR3 2GB
  • eMMC: 8GB
  • Support IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol
  • Support Bluetooth 5.2, ZigBee3.0, Z-Wave
  • Support 4G LTE
  • One WAN/LAN variable network port
  • Support Li Battery backup
  • USB port

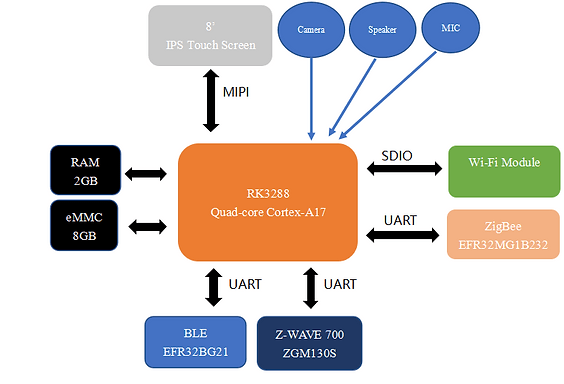

1.3 Hardware Block Diagram
Hardware block diagram

2. Mechanical

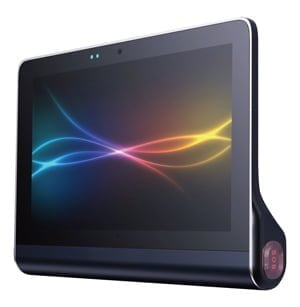

120 gateway s

3. Specifications

Power Adapter DC/AC/ 12V/2A, Support POE supply
Interface WLAN/LAN port, USB port
SIM slot 1
Camera 3 million pixels
SD Card 1
Speaker 1
Microphone 1
RTC Real Time Clock operated from on board
Li battery 4100mAH
Reset Button The reset button is the hole button, After pressing the reset button for more than 5 seconds, the Gateway will be restored to the factory settings.
Power switch On/Off
Temper protected Temper Button
Cooling Heat dissipation sillicone/aluminum
Installation method Wall mounted and table top
Storage Temperature -40℃~85℃
Operating Temperature -20℃~65℃
Operating humidity 5~95%
3.2 Performance Requirement
Wi-Fi Performance ●IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
●Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
●Sensitivity:
HT40 MCS7: [email protected]% PER(MCS7) / 2.4GHz band
HT20 MCS7: [email protected]% PER(MCS7) / 2.4GHz band
●Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
●Wireless Security: WPA/WPA2, WEP, TKIP, and AES
●Working mode: Bridge、Gateway、AP Client
●Range: 50 meters minimum, open field
●Transmit Power: 17dBm
●Highest Transmission Rate: 300Mbps
●Frequency offset: +/- 50KHZ
●Frequency Range (MHz): 2412.0~2483.5
●Low Frequency (MHz): 2400
●High Frequency(MHz): 2483.5
●E.i.r.p(Equivalent Isotopically Radiated power)(mW)<100mW
●Bandwidth(MHz): 20MHz/40MHz
●Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
Zigbee Performance ●Range: 100 meters minimum, open field
●TX Power: 17.5dBm
●Highest Transmission Rate: 300Mbps
●Frequency offset: +/-20KHZ
●Receiving Sensibility:-94dBm
●Frequency Range (MHz):2401.0~2483.5
●Low Frequency (MHz):2400
●High Frequency (MHz):2483.5
●E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
●Bandwidth (MHz):5MHz
●Modulation: OQPSK
Bluetooth Performance ●Bluetooth Protocol: Bluetooth 5.2
●TX Power: 19.5dBm
●Range: 150 meters minimum, open filed
●Receiving Sensibility: [email protected]%BER
●Frequency offset: +/-20KHZ
Z-Wave Performance ●TX Power: 19.5dBm
●RX Sensitivity: @100kbps-97.5dBm
●Range: 100 meters minimum, open filed
●Default Frequency: 916MHz(Different country with different frequency)
LTE Cat M1 ●Operation Frequency Band: 850/900/1800/1900MHz
●Global: LTE:FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
●North America: LTE TDD:B2/B4/B12/B13, LTE TDD:B39(for cat:M1 only)
Ethernet ●10/100Mbps

4. QA Requirements

4.1 Quality and Testing Information
Information Description Standard(Yes)Custom(No)
ESD Testing YES
RF Antenna Analysis YES
Environment Testing YES
Reliability Testing YES
Certification FCC,CE,RoHs
