Wi-Fi Repeater Product Specification

It’s a 300Mbps / 1200Mbps Wi-Fi range extender. It can boost your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity.
Table of Contents

Product Name: Wi-Fi repeater

Model Name : DSGW-071/DSGW-072

DM 20220708143148 002

US

DM 20220708143148 004

UK

DM 20220708143148 002
AU
DM 20220708143148 005

EU

DM 20220708143148 007

US

DM 20220708143148 009

UK

DM 20220708143148 008

AU

DM 20220708143148 010

EU

Model list
Model Country Wi-Fi 2.4G(300Mbps) Wi-Fi 2.4G/5G(1200Mpbs)
DSGW-071-US US
DSGW-072-US
DSGW-071-UK UK
DSGW-072-UK
DSGW-071-AU AU
DSGW-072-AU
DSGW-071-EU EU
DSGW-072-EU

1. Introduction

1.1 Purpose& Description

It’s a 300Mbps / 1200Mbps Wi-Fi range extender. It can boost your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity. It can work with any router. It also supports AP mode which creates a new Wi-Fi access point.

1.2 Product Feature Summary

Support 100-240V AC power supply
Support IEEE802.11ac, IEEE802.11a ,IEEE802.11n,IEEE802.11g,IEEE 802.11b Protocol;
Up to 1200Mbps data rate
Support AP mode
Support WPS
Support the fast Ethernet
Support the MIMO technology
Set the power schedule for the range extender for power-saving
RoHS compliance(Lead-free)
FCC,CE compliance

1.3 Hardware block diagram

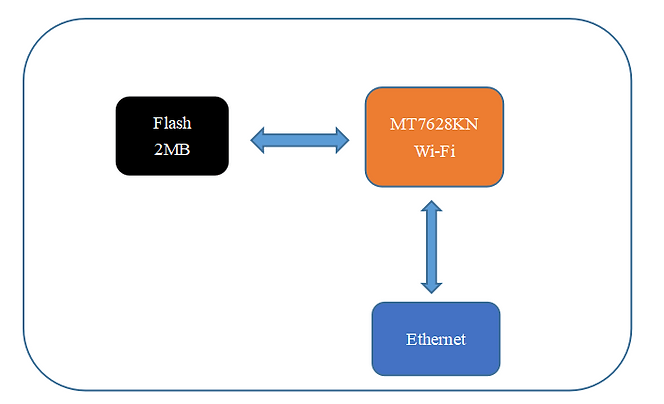

DSGW-071 Hardware solution
DM 20220708143148 011

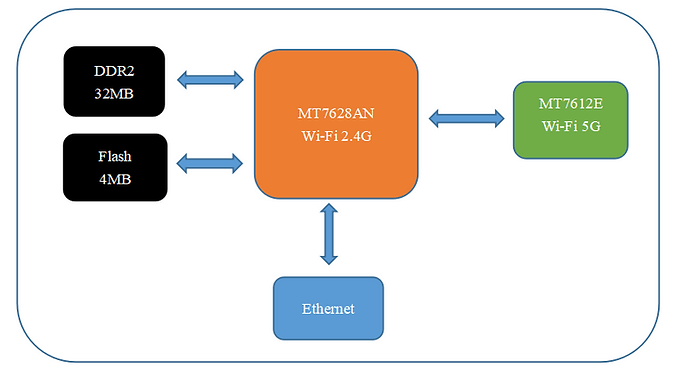

DSGW-072 Hardware solution
DM 20220708143148 017

2. Mechanical Requirement

2.1 Drawings

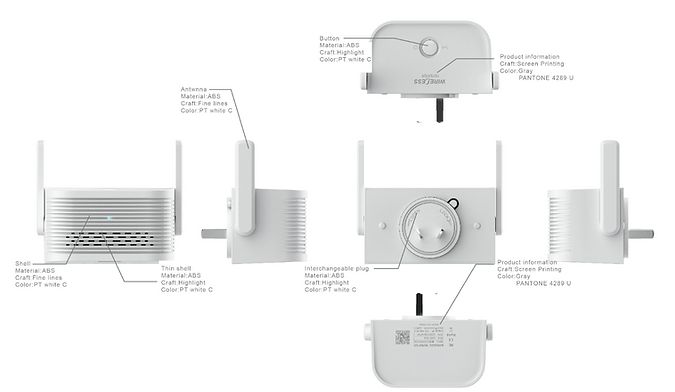

DM 20220708143148 012

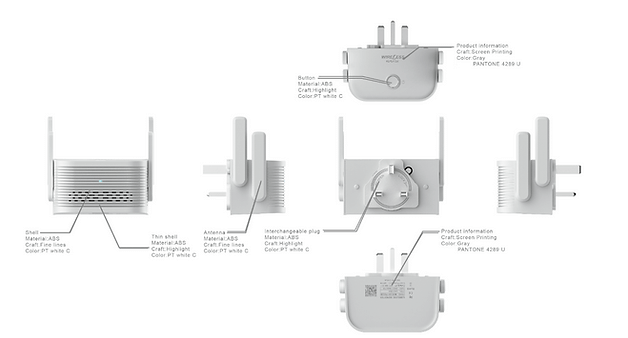

DM 20220708143148 013
2.2 Size

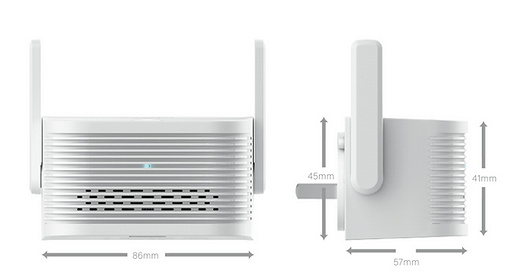

DM 20220708143148 014

DSGW-071

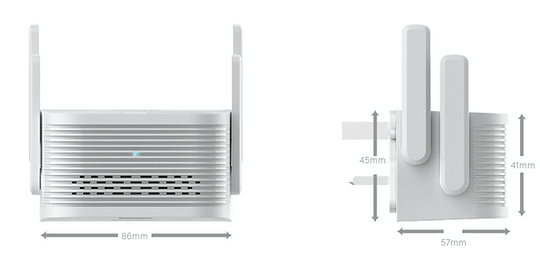

DM 20220708143148 015

DSGW-072

2.3 Plug accessories
Plug accessories EU

EU

Plug accessories US

US

Plug accessories UK

UK

Plug accessories AU

AU

3. Specifications

Technical Specification
Model DSGW-071 DSGW-072
Power Input:100V~240V AC/50~60HZ
Plug Type EU, UK, US, AU
Interface 1x10x100M Ethernet Port(RJ45)
Indicator LEDs Two-color LED
Button WPS and Reset function
Power Consumption 3W 7.5W
Antenna 2 x external 4 x external
Performance Requirement
Model DSGW-071 DSGW-072
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac
Frequency 2.4~2.4835GHz 2.4G&5G
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps
Reception Sensitivity 270M: <-68dBm@10% PER
130M: <-68dBm@10% PER
108M: <-68dBm@10% PER
54M: <-68dBm@10% PER
11M: <-68dBm@8% PER
6M: <-68dBm@10% PER
1M: <-68dBm@8% PER
5GHz:
11a 6Mbps:-91dBm@10% PER
11a 54Mbps: -74dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -63dBm@10% PER
11ac HT80 mcs9: -59dBm@10% PER
2.4GHz
11g 54M: -79dBm@10% PER
11n HT20 mcs7: -77dBm@10% PER
11n HT40 mcs7: -74dBm@10% PER
Wireless Modes Range Extender/Access Point Range Extender/Access Point
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Security 64/128-bit WEP
WPA-PSK/WPA2-PSK
64/128-bit WEP
WPA-PSK/WPA2-PSK
Transmission Power <20dBm <17dBm(2.4GHz)
<17dBm(5GHZ)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

4. QA Requirements

4.1 Quality Information
Quality &Testing Information
Information Description Standard(Yes) custom(No)
ESD Testing Yes
RF Antenna Analysis Yes
Environmental Testing Yes
Reliability Testing Yes
Certification FCC,CE, RoHS

5. Software function

5.1 New and Intuitive design (GUI)

With the all-new and intuitive design, users can find every setting much more easily and see what’s happening on their network through a vivid network map. Monitoring and controlling network status have never been easier.

They are including:
Internet setting
Wireless Setting
Guest Network
Parental control
QoS Setting
Power schedule

5.2 WPS button

Press the WPS button with in 3s , the repeater open the WPS function.

5.3 Reset

Press the WPS button in 10s, the repeater reset.

5.4 LED indication

The RED LED is flash, it indicates the repeater has not connected to the router.

The RED LED is lighting, it indicates the Wi-Fi signal is not good.

The GREEN LED is lighting, it indicates the Wi-Fi signal is better.
