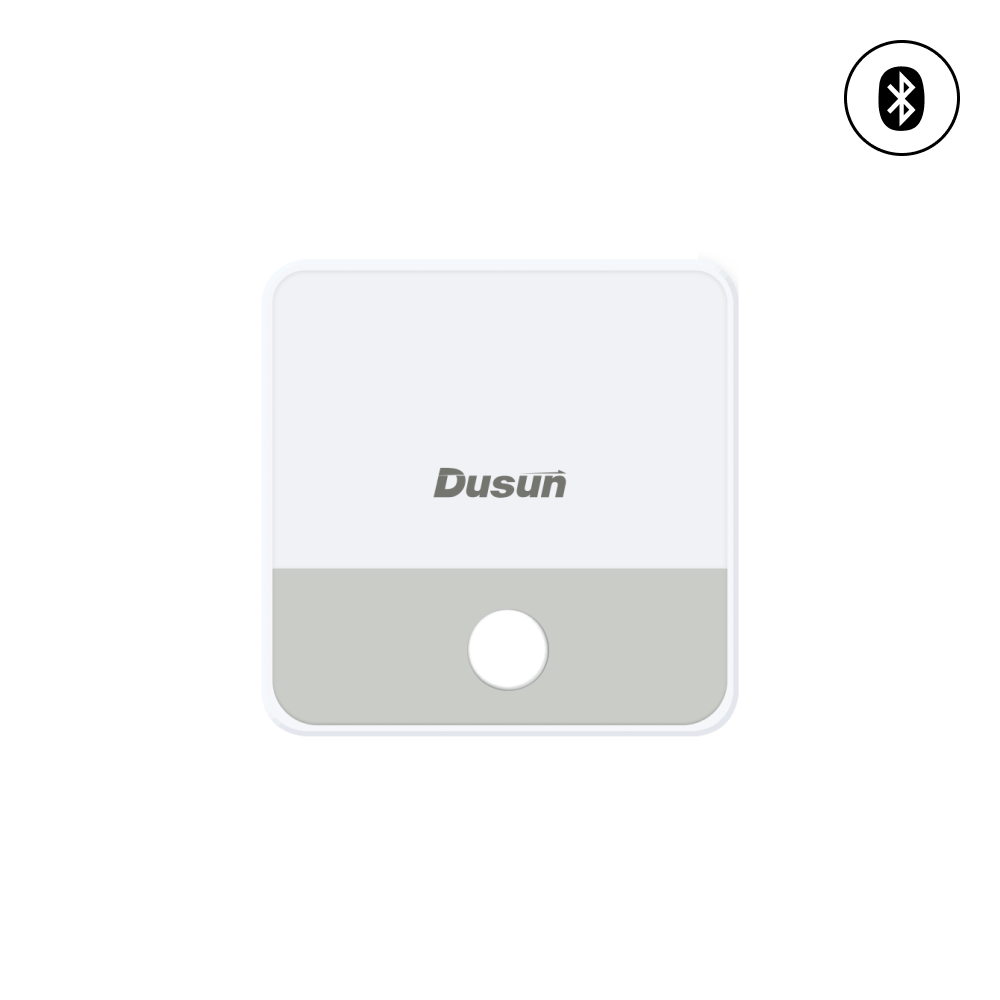

DSGW-030-2 Bluetooth over WiFi Bridge Gateway Hub

Model: DSGW-030-2 Category:

DSGW-030-2 is a Bluetooth WiFi bridge that frees users from Bluetooth limited-range restrictions, allowing them to access the BLE device through the Internet and from anywhere in the place where WiFi exists.

  • Operating System (OS): Linux@ OpenWrt
  • Processor: MTK7688 (MIPS24KEc at 580MHz)
  • RAM: 64MB Available Space: 16MB (Development space for the user)
  • Flash Storage: 16MB
  • Supports IEEE802.11n, IEEE802.11g, IEEE 802.11b protocols
  • Supports Bluetooth 5.2, Wi-Fi 2.4G


Quick View of DSGW-030-2 BLE WiFi Hub Controller

DSGW-030-2 is a Bluetooth WiFi bridge that frees users from Bluetooth limited-range restrictions, allowing them to access the BLE device through the Internet and from anywhere in the place where WiFi exists.

DSGW-030-2 is a BLE WiFi gateway as well. It consists of MTK7688 WiFi-capable processor, and integrates Bluetooth 5.2 module (ERF32BG21) together, converting BLE data into the format understandable by WiFi network, bridging the gap between BLE and the Internet.

As a wireless WiFi Bluetooth hub, DSGW-030-2 reduces the need for costly or maintenance-intensive cabling, and allows users to control Bluetooth devices over WiFi from wherever they are, through mobile APPs or their own user consoles.

Hardware Overview of DSGW-030-2 BLE 5.2 to Ethernet/Wi-Fi Gateway

dsgw 030 ble
dsgw 030 hardware behind new

Dimension and Package of Programmable BLE 5.2 to Wi-Fi / Ethernet Gateway

dimension DSGW-030 Smart Home Automation Gateway
dsgw 030 package
Package List

Specification of DSGW-030-2 Bluetooth WiFi Bridge Gateways

CPU MT7688
System OpenWRT
Flash 16MB
Programming Language ava, Python, Node.js, C, C++
Downlink Network Connectivity Ble 5.2
Uplink Network Connectivity Wi-Fi 2.4G, Ethernet
Interface 1 x RJ45, 10/100 Mbps WAN/LAN variable
Access Devices Up to 100
Wireless Distance Wi-Fi<100m; Zigbee<200m; Bluetooth<20m; Z-Wave<100m
Power Adapter Input:100V~240V/50-60HZ ouput:5V/2A
Indicator LED Three ( Green ;Yellow; Red )
Installation Flat, Ceiling
Weight TBD
Operating Temperature 0℃~40℃
Operating humidity 10%~90%
IP Rating IP 22
Bluetooth Performance Bluetooth Protocol: Bluetooth 5.2
TX Power: 19.5 dBm
Range: 150 meters minimum, open filed
Receiving Sensibility: -80dBm @0.1%BER
Frequency offset: +/-20 KHZ
Wi-Fi Performance ●IEEE wireless LAN standard: IEEE802.11n; IEEE802.11g; IEEE 802.11b
●Data Rate:
IEEE 802.11b Standard Mode: 1, 2, 5.5, 11Mbps
IEEE 802.11g Standard Mode: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
●Sensitivity: HT40 MCS7: -70dBm@10% PER (MCS7) /2.4GHz band HT20 MCS7: -71dBm@10% PER (MCS7) /2.4GHz band
●Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
●Wireless Security: WPA/WPA2, WEP, TKIP, and AES
●Working mode: Bridge, Gateway, AP Client
●Range: 50 meters minimum, open field
●Transmit Power: 17dBm
●Highest Transmission Rate: 300Mbps
●Frequency offset: +/- 50KHZ
●Frequency Range (MHz): 2412.0~2483.5
●Low Frequency (MHz): 2400
●High Frequency (MHz): 2483.5
●E.i.r.p (Equivalent Isotopically Radiated power) (mW) < 100mW
●Bandwidth (MHz): 20MHz/40MHz

Applications of DSGW-030-2 Bluetooth WiFi Bridges

Developer Documents of DSGW-030-2 BLE WiFi Bridge

Model List

Category A ( In Stock)
Feature RAM Flash Wi-Fi 2.4G Bluetooth 5.2 Zigbee3.0 Z-Wave
DSGW-030-2 64MB 16MB

Reasons to Require BLE WiFi Bridges to Control Bluetooth Devices over WiFi

TCP/IP protocols are the foundation of many IoT systems in use today, however Bluetooth LE and TCP/IP cannot communicate with one another directly. While WiFi can connect the devices to the Internet.

If you want to access real-time BLE device data anywhere with Internet, you need a Bluetooth WiFi gateway with an API, translating WiFi-conveyed requests using a TCP/IP-based protocol, into Bluetooth requests and sent to connected Bluetooth devices.

ble wi fi bridges

Importance of Bluetooth WiFi Gateway in Bluetooth IoT Solutions

Many industrial and enterprise solutions, such as asset tracking, indoor positioning, industrial automation sensors, smart home automation, etc., use Bluetooth IoT soluitions, which lower overall deployment and maintenance costs because BLE-enabled smart devices can run for years on just a small cell battery thanks to BLE’s incredibly low power consumption.

Other BLE advantages over other wireless protocols including:

  • cross-platform interoperability;
  • reduce time and cost for both development and deployment by standardized application development architecture;
  • 128-bit AES data encryption, some government-grade security is possible;
  • proven and ubiquitous Bluetooth ecosystem for quickly developing innovative business modes.
bluetooth gateway diagram

In a typical Bluetooth IoT solution, there are three layers always stayed consistent: perception layer, network layer and appplication layer.

The above mentioned BLE sensors and beacons are on perception layer to gather data; the network layer uses Bluetooth gateways to link the numerous BLE smart gadgets, transfer the large volumes of data to the back-end clouds or data center via high bandwidth WiFi or Ethernet; in application layer, data transmitted to and saved in the cloud may be visualized on dashboards or user consoles for further decision making.

IoT architecture will vary amongst various IoT projects, but you will always need to be able to manage a lot of data. In order to facilitate communication with sensors via low power networks and transfer the data to the internet, a BLE WiFi hub will serve as an intermediary between the Internet of Things and the business data center.

How to Use DSGW-030-2 BLE to WiFi Hub to Manage BLE Devices?

1.DSGW-030-2 gateway Bluetooth WiFi supports iBeacon, Eddystone, BLE sensor, and SIG mesh function. Users are allowed to choose BLE devices types they want to connect inDSGW-030-2 configuration page.

choose ble devices

2.Users can use Bluetooth scan mode (both Generic and Long Range) to start scanning process, all nearby BLE beacon data (MAC address, deviec type, RSSI and major, minor value) can be viewed and filtered for further configuration.


3.The lightweight MQTT is preset in our LuCi page, BLE beacon message can be uploaded to the MQTT Broker automatically, and you can set intervals. You can know more details about BLE2MQTT knowledge here, and get a demo using Paho MQTT client example here.


FAQs of DSGW-030-2 Bluetooth to WiFi Hub

What is Bluetooth Access Point? Can DSGW-030-2 be a Bluetooth AP?

Yes, of course. You can see DSGW-030-2 as a Bluetooth access point to support making connection to multiple devices simultaneously to read/write GATT characteristics, and is able to support multiple bluetooth clients at once.

The Bluetooth access point is a device that is positioned inside the local area network that enables BLE-enabled devices to connect wirelessly to a local network (LAN) and the Internet.

What is Bluetooth router hub? Can DSGW-030-2 serve as Bluetooth Router?

Yes, DSGW-030-2 can server as a Bluetooth router hub. A Bluetooth router is a device that routes data packets between various Bluetooth-enabled devices using Bluetooth technology. In the meanwhile, Bluetooth routers increase the connection and range of Bluetooth devices within a constrained region.

You can even use it as a Bluetooth range extender, especially in areas where there are barriers or other interferences that can reduce the Bluetooth signal’s strength.

I want to remotely manage my Bluetooth-based LiFePO4 battery management system, can DSGW-030-2 do it?

Yes, DSGW-030-2 can carry out device-to-cloud communication, data gathering and processing, remote control and management, and security enhancement in an IoT remote management solution. You are able to connect to the BMS without physically going to the remote location to “see” the Bluetooth signal from the BMS.

I want to use ESP32 to build my Bluetooth WiFi bridge gateway, do you have such product?

Yes. Dusun IoT has DSGW-092 ESP32 BLE WiFi gateway. Welcome to order. If it does not fit your requirement, you can view this ESP32 IoT guideline to choose the finest ESP32 development boards.

I want to have a WiFi Zigbee Bluetooth gateway, which can control Zigbee, Bluetooth, WiFi devices together. Do you have such products?

Yes, Dusun IoT is an expert in multi-protocol gateways. We have a wide range of multi-connectivity gateways for selection.

DSGW-030-2 is one of the model of DSGW-030 Zigbee Bluetooth WiFi gateways. You can view its introduction and make further decisions.

How to optimize WiFi Bluetooth coexistence for my Bluetooth WiFi bridge gateway?

The IEEE 802.15.2 standard tackles the issue of WLAN and WPAN network cohabitation. Coexistence without direct interaction between ZigBee/Thread, BLE, and Wi-Fi radios can be improved using four methods, according to the standards and protocols: frequency separation, operating Wi-Fi with 20MHz bandwidth, increasing antenna isolation, and using ZigBee/Thread/Bluetooth retry mechanisms. Please read this article for a more complete explanation: How to manage coexistence between multiple 2.4 GHz wireless protocols?
