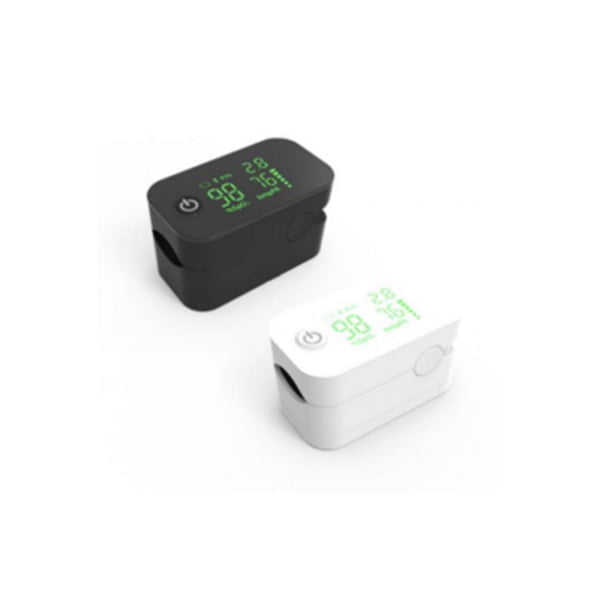

Fingertip Pulse Oximeter

Category:
  • Pulse rate measuring
  • Guaranteed accuracy
  • Monitoring person’s blood oxygen level(SPO2), pulse rate(PR), and perfusion index(PI)
  • Adjustable brightness
  • HD large screen and unique soft silicon housing provide clear and comfortable measurement
  • Alarm function. The auditory alarm can be set to warn you when your SpO2 and Pulse Rate are beyond set limits

1. Introduction

The finger pulse oximeter is a lightweight, portable device used for measuring both heart rate and blood oxygen levels or SpO2. Simply place your finger inside the antimicrobial vinyl sensor and have these vital measurements instantly displayed on a vibrant LED screen. Features a battery-saving automatic power-off function and a heart rate bar graph.

2. Mechanical Requirement

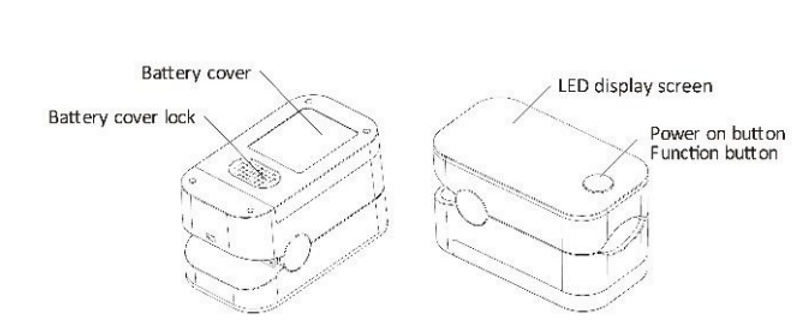

2.1 Drawings

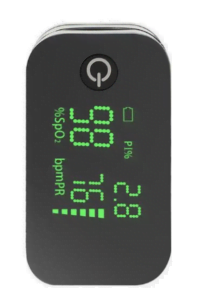

Finger oximeter 1 1

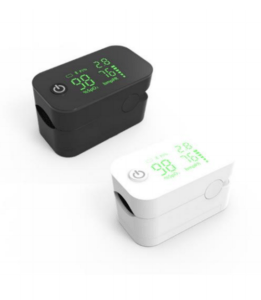

Finger oximeter 2 1

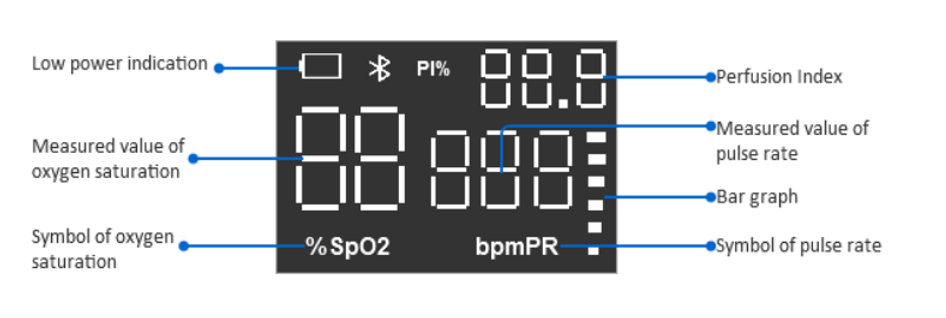

2.2 Schematic Diagram of Display

Finger oximeter 4 1

3. Specifications

Category Specifications
Protocol Bluetooth4.0
Display
HD LED Screen
Accuracy SpO2: 70%~99%, ±2%

Pulse Rate: 35bpm~250bpm, ±2bpm

Perfusion Index: 0.3%~20%
Battery AAA X2
Dimensions 58.2 x 32.2 x 32.0mm
Weight 51.5 g
Bluetooth Performance TX Power: 19.5dBm

Bluetooth: 19.5dBm

Range: 150 meters minimum, open filed

Receiving Sensibility: [email protected]%BER

Frequency offset: +/-20KHZ

Frequency Range (MHz):2401.0~2483.5

Low Frequency (MHz):2400

High Frequency (MHz):2483.5

E.i.r.p (Equivalent Isotopically Radiated power)

(mW)<10mW

Bandwidth (MHz):2MHz

Modulation: GFSK
Indication Low battery
Application Range Adult, Adolescent, Child
Certification CE,FDA

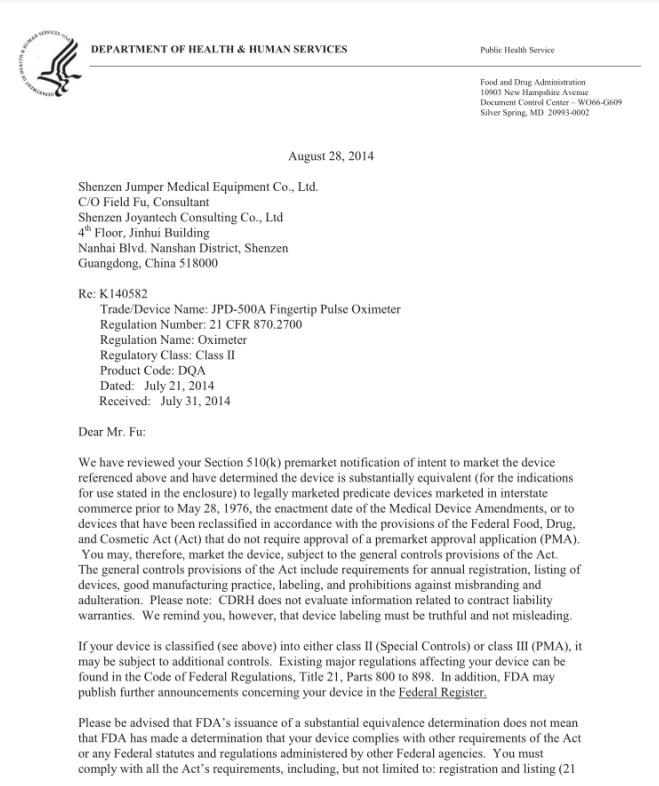

4. Certification

Finger oximeter 5 1
