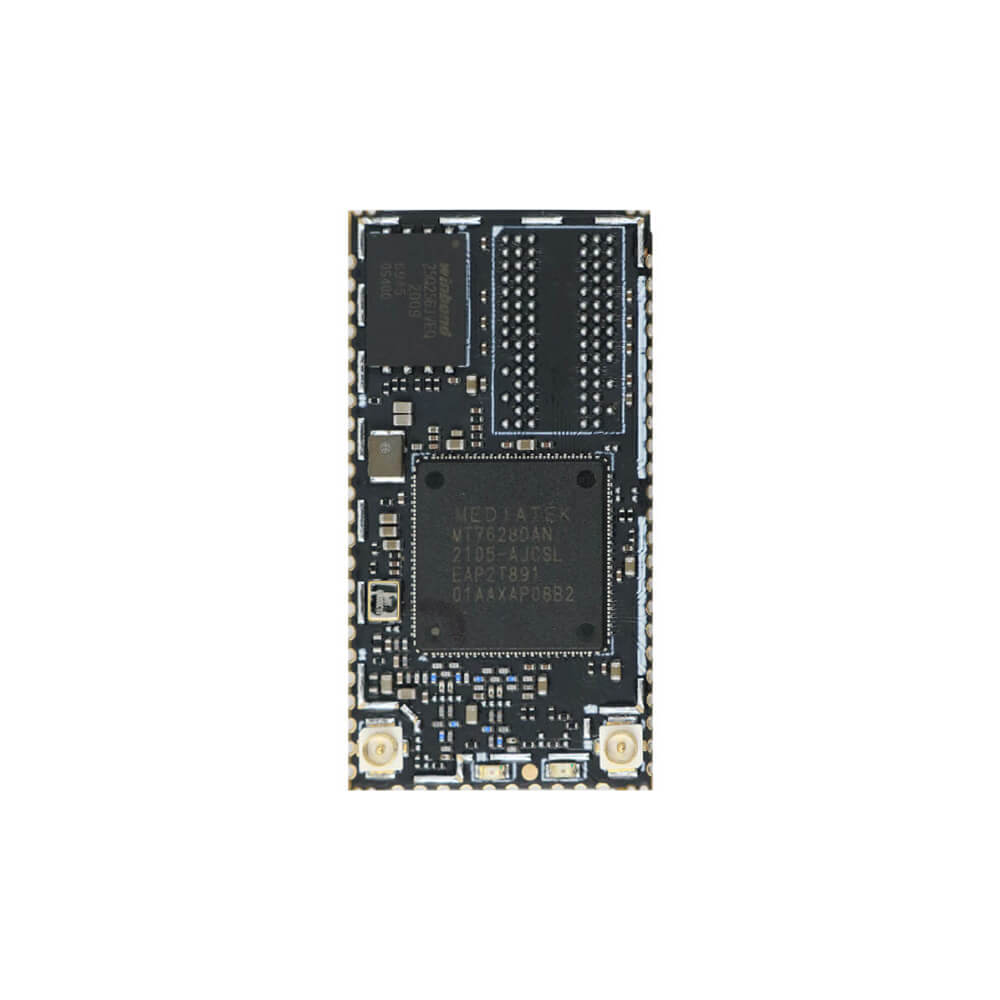

Quick View of DSOM-080M
The DSOM-080M is an advanced System-on-Module (SoM) developed by Dusun, specifically designed to seamlessly integrate into a wide range of Internet of Things (IoT) applications.
Powered by the highly efficient MT7628 chipset, this compact module offers exceptional performance and versatility, making it an ideal choice for developers looking to create innovative and efficient IoT solutions. Equipped with a powerful 580 MHz MIPS 24KEc CPU, the DSOM-080M delivers robust processing capabilities, enabling it to handle complex tasks and data-intensive applications with ease. Its comprehensive connectivity options, including 2.4 GHz Wi-Fi, Ethernet, and UART, ensure seamless integration into various IoT ecosystems, allowing for efficient data transfer and communication.
This module provides access to all the interfaces of MT7628AN, supports Linux and OpenWrt operating systems, and allows for custom development. With its rich interfaces and powerful processors, it can be widely used in smart devices or cloud service applications.
The DSOM-080M System on Module offers a wide range of development documents and software resources that are both free and open-source. This convenience enables developers to enhance their development efficiency and shorten the development cycle.
System Block Diagram of DSOM-080M System on Module
Dimensions of DSOM-080M MediaTek MT7628 SOM
Parameters of DSOM-080M SOM
| Mode | DSOM-080M |
| Man chip | MT7628AN |
| Kernel | MIPS24KEc |
| Frequency | 575/580MHz |
| RAM | DDR2 128MB, Optional 64MB |
| Flash | 16MB, Optional 32MB |
| Temperature | Working Temperature：-20℃~55℃
Storage Temperature：-40℃~85℃ |
| Humidity | 10~95% (Non-condensing) |
| Atmospheric pressure | 76Kpa ~106Kpa |
| Dimension | 18.7mm x 35.2mm x 2.8mm |
| Wi-Fi | 2 x IPEX Antenna (IEEE 802.11b/g/n) |
| Ethernet | 1 x WAN+4 x LAN(10M/100M) |
| UART | 2 x UART, With transparent transmission function |
| SDIO | 3 x SDIO interfaces |
| SPI | 1 x SPI interfaces |
| I2C | 1 x I2C interfaces |
| I2S | 1 x I2S interfaces |
| PWM | 1 x PWM interfaces |
| GPIO | Up to 8 GPIO interfaces |
| USB2.0 | 1 x USB 2.0 interfaces |
System on Module Application
Developer Resources of DSOM-080M
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | DSOM-080M Smart Programmable Module SDK Quick Start Guide v1.0.pdf | V1.0 |
| [Hardware Quickstart] | MT7628_Datasheet.pdf | V1.1 |
| [SDK] | DSOM-080M_sdk_AV1.0.0.0.tar.gz | V1.0.0.0 |
| [Firmware] | DSOM-080M_img_AV1.0.0.0.bin | V1.0.0.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Schematic] | node-red | |
| [Hardware Developmemt Guide] | MT7628AN Development Board Hardware Manual-V1.0 | |
Model List
| Model | DDR | Flash |
|---|---|---|
| DSOM-080M-Z | 64Mb | 32Mb |
| DSOM-080M-C | 128Mb | 32Mb |
