System On Modules

Bring Complex Products to the Market Faster.

We offer highly integrated, production-ready Systems on Modules (SOMs) for swift development and faster time-to-market. Our comprehensive suite of tools and resources promotes design scalability and ease of maintenance, helping you reduce time-to-market, development costs, and design risks.

RK 1
RockChip Serials >>>
NXP 1
NXP Serials >>>
MTK 1
MTK Serials >>>

System on Modules and Development Board

Dusun offers a wide range of Systems on Modules based on ARM processors, from the Cortex-A7 to the more powerful Cortex-A72 cores. You can choose from the table below, organized by ARM processor suppliers such as Rockchip, NXP and MTK. We welcome bespoke design services, allowing modifications to our existing hardware with the flexibility to either reduce or add components and functionality. We can also offer a completely bespoke solution to meet a customer’s requirements, including a turnkey design.

Besides, a dedicated development board for each System on Module providing a comprehensive development platform for evaluation and application development are available. It provides a great showcase of the SoM connectivity features and performance.

RockChip System on Module Serials

cpu
Single ARM Cortex A53
ram
2GB
dimension
44mm*44mm*3.0mm
otr
0 °C ~80 °C Industrial
os 1
Android, Debian

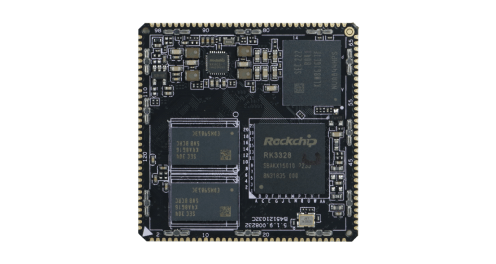

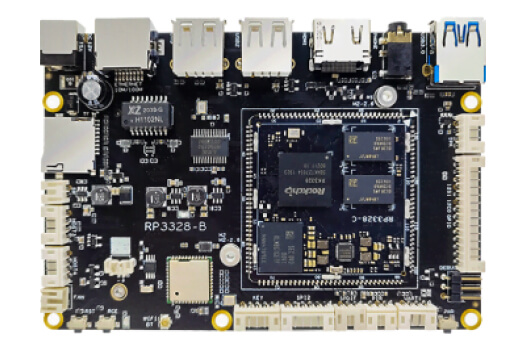

Rk3328
Development Boards
Based on DSOM-010R
  • 1 x USB Type-C DRP, 2 x USB2.0 HOST, Gigabit Ethernet, LCD, Camera, Micro SD Card Slot
  • Linux 5.4.31
  • Optional 7-inch LCD Module, Camera Module, RGB-to-HDMI Module, WiFi/BT Module and RPI Module
cpu
Quad-Core ARM Cortex A35
ram
512 MB
dimension
45mm*40.2mm*3.35mm
otr
-10°C ~60 °C Industrial
os 1
Buildroot, Linux + MiniGUI/QT, ROS
3308
Development Boards
Based on DSOM-050R
  • 1 x USB Type-C DRP, 2 x USB2.0 HOST, Gigabit Ethernet, LCD, Camera, Micro SD Card Slot
  • Linux 5.4.31
  • Optional 7-inch LCD Module, Camera Module, RGB-to-HDMI Module, WiFi/BT Module and RPI Module
cpu

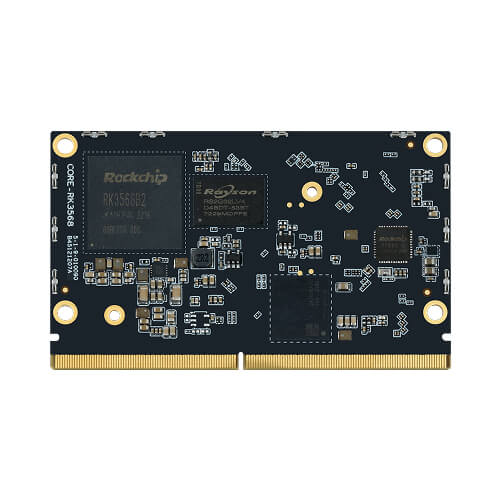

Quad-Core ARM Cortex A55
ram
Up to 8GB
dimension
82mm×50.5mm
otr
-20 °C ~60 °C Industrial
os 1
Android/Debain
Rk3568
Development Boards
Based on DSOM-110R
  • 1 x USB Type-C DRP, 2 x USB2.0 HOST, Gigabit Ethernet, LCD, Camera, Micro SD Card Slot
  • Linux 5.4.31
  • Optional 7-inch LCD Module, Camera Module, RGB-to-HDMI Module, WiFi/BT Module and RPI Module
cpu
Quad-Core ARM Cortex A35
ram
2GB
dimension
45mm*45mm*2.6mm
otr
-20 °C ~85 °C Industrial
os 1
Android/Debian
PX30K

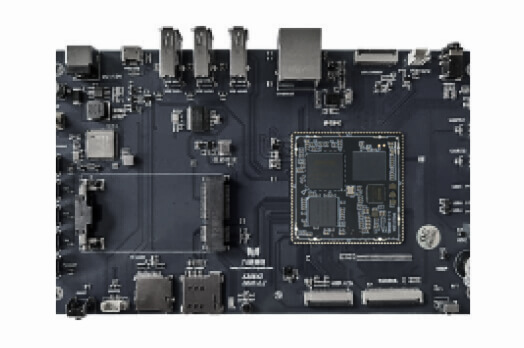

Development Boards

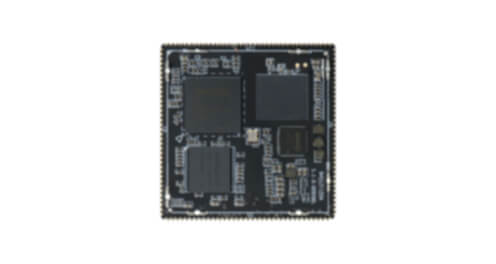

Based on DSOM-020R
  • 1 x USB Type-C DRP, 2 x USB2.0 HOST, Gigabit Ethernet, LCD, Camera, Micro SD Card Slot
  • Linux 5.4.31
  • Optional 7-inch LCD Module, Camera Module, RGB-to-HDMI Module, WiFi/BT Module and RPI Module

NXP System on Module Serials

cpu
Single ARM Cortex A7
ram
512MB
dimension
38MM X 38MM
otr
-40˚C ~ +85˚C Industrial
os 1
Linux( Debian, Ubuntu, .etc.)
i
Development Boards

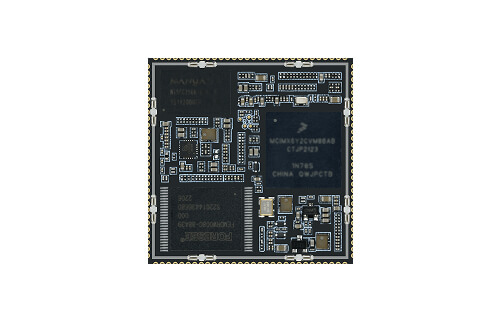

Based on DSOM-060N
  • 4 x USB Host, 1 x USB Device, CAN, RS485, RS232, Audio In/Out, RTC
  • 2 x Gigabit Ethernet
  • TF Card Slot
  • Supports HDMI and LCD Display
  • Optional LCD, WiFi, Camera, GPS and GPRS Modules

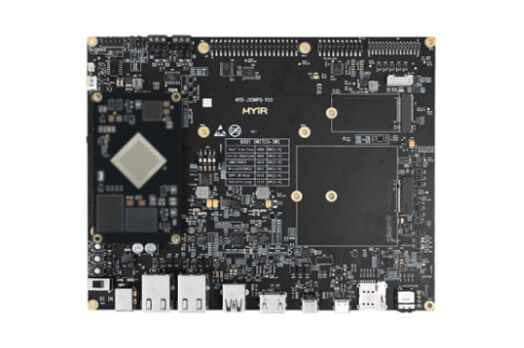

cpu
Quad-Core ARM Cortex A53
ram
Up to 4GB
dimension
60MM X 49MM
otr
-40˚C ~ +85˚C Industrial
os 1
Linux, Ubuntu
Coming

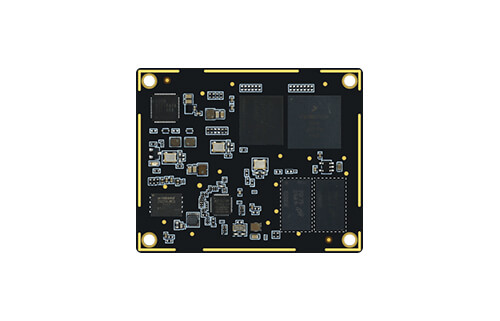

Based on DSOM-070N
  • 4 x USB Host, 1 x USB Device, CAN, RS485, RS232, Audio In/Out, RTC
  • 2 x Gigabit Ethernet
  • TF Card Slot
  • Supports HDMI and LCD Display
  • Optional LCD, WiFi, Camera, GPS and GPRS Modules

MTK System on Module Serials

cpu
MIPS 1004Kc(800MHz)
ram
Up to 512MB
dimension
38mm × 38mm
otr
0˚C ~ +85˚C Industrial
os 1
OpenWrt

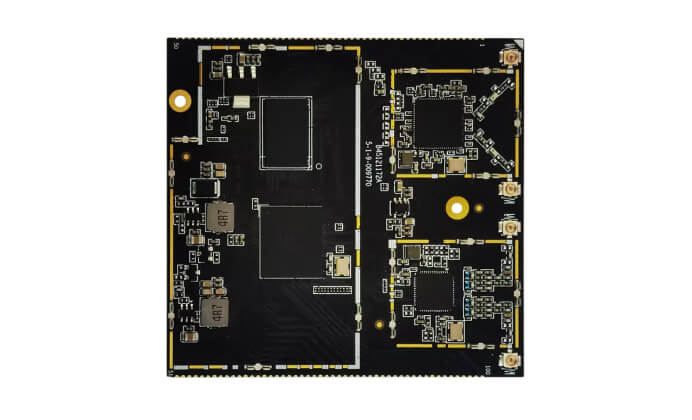

MT7621

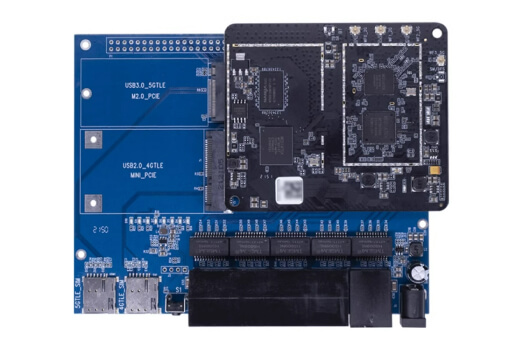

Development Boards
Based on DSOM-090M
  • UARTs, 2 x USB 2.0 Host, 1 x Micro USB Host/Device port, 1 x USB 2.0 Host from one 4-pin 2.0mm pitch header connector
  • Gigabit Ethernet, WiFi/BT, 4G LTE, NVMe PCIe M.2 2280 SSD Interface
  • Camera Interface (MIPI-CSI), LVDS, MIPI-DSI, Audio Input/Output, TF Card Slot
  • Optional MIPI Camera Module
  • Supports Running Yocto Linux, Ubuntu Linux, Android
cpu
MIPS24KEc
ram
128MB
dimension
18.7mm*35.2mm*2.8mm
otr
-20℃~55℃ Industrial
os 1
Linux / OpenWrt

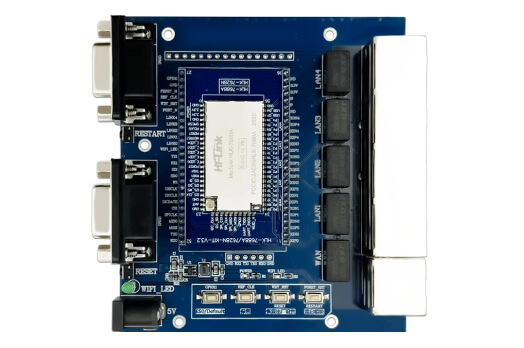

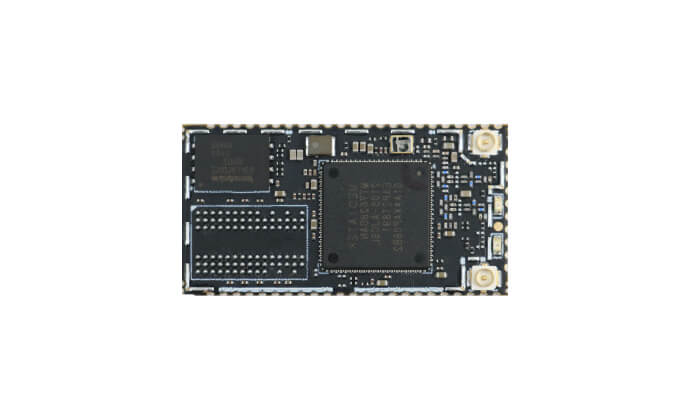

MT7628AN
Development Boards
Based on DSOM-080M
  • UARTs, 2 x USB 2.0 Host, 1 x Micro USB Host/Device port, 1 x USB 2.0 Host from one 4-pin 2.0mm pitch header connector
  • Gigabit Ethernet, WiFi/BT, 4G LTE, NVMe PCIe M.2 2280 SSD Interface
  • Camera Interface (MIPI-CSI), LVDS, MIPI-DSI, Audio Input/Output, TF Card Slot
  • Optional MIPI Camera Module
  • Supports Running Yocto Linux, Ubuntu Linux, Android

1v1 ODM Services to Address All Complex Requests

odm custom design
Custom Design (RF Antenna/ PCB/ Structure/ Software)
odm fae
Technical FAE Support
odm ipd
IPD Project Management
odm prototype
Prototype Manufacturing
odm design
Manufacturing Procedure Design and Optimization
odm testing

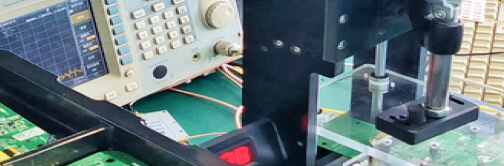

Testing Use Case Design and Scene Building
odm supply
Supply Chain Management

Features

With Ready-To-Use OS and Popular Developments Environments

Industrial Reliability

Industrial Reliability​

Dusun employs exclusively industrial-grade components in the manufacturing of its SOMs. These are engineered to ensure an extended lifespan, even under harsh outdoor conditions.​

Off the Shelf Carrier Boards

Off-the Shelf Carrier Boards

Ready-to-use carrier board as a complete reference platform for evaluation, development, and even early production. The carrier board provides a demonstration platform for the related System on Module rich connectivity options, performance, and feature set.

Flexible Connectivity

Flexible Connectivity

Dusun SOMs feature diverse connectivity options for various applications and use cases, including dual-band Wi-Fi, Bluetooth/BLE, LTE wireless connectivity, and Ethernet.

Get Started with Hardware​

Developer resources and documentations

RK Family

spec icon
SoM

  • Datasheet
  • Quick Start Guide

tools
Carrier Board

  • Datasheet
  • Schematics
  • DXF Files

third party software
OS Support

  • Linux
  • FreeRTOS

NXP Family

spec icon
SoM

  • Datasheet
  • Quick Start Guide

tools
Carrier Board

  • Datasheet
  • Schematics
  • DXF Files

third party software
OS Support

  • Linux
  • FreeRTOS

MTK Family

spec icon
SoM

  • Datasheet
  • Quick Start Guide

tools
Carrier Board

  • Datasheet
  • Schematics
  • DXF Files

third party software
OS Support

  • Linux
  • FreeRTOS

Technical Support

Free and industry-leading support via multiple channels

Dusun offers industry-leading support through various technical support channels. You can reach out to our engineers via email or phone, or you can participate in our active community forums where our specialists are ready to address your queries. Please don’t hesitate to communicate with us in your preferred language.

Developer Center
Developer Center
Community
Community
Customer Support
Customer Support

Applications

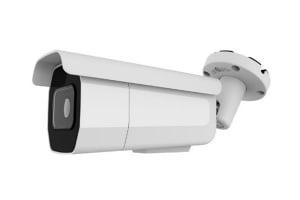

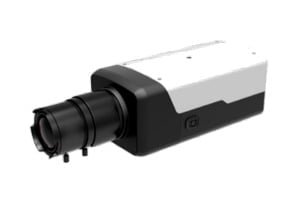

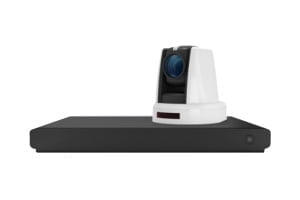

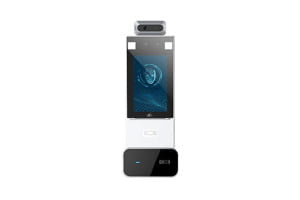

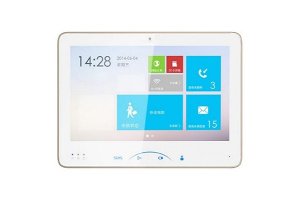

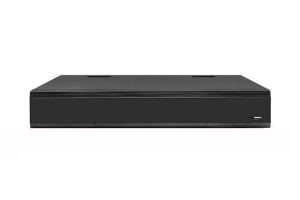

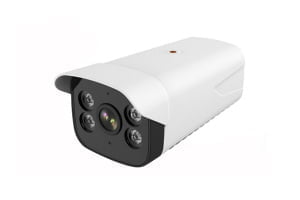

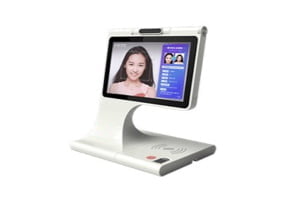

smart camera operator ipc face body camera 4k recording broadcasting machine face access control building intercom intelligent nvr identity authentication machine

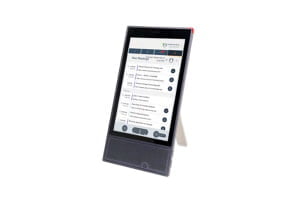

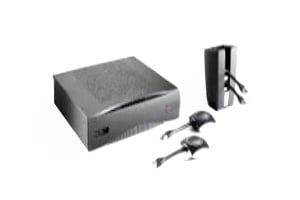

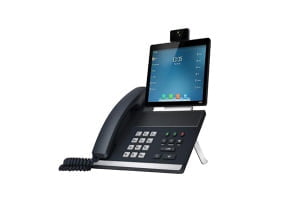

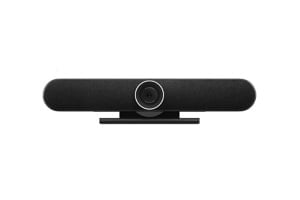

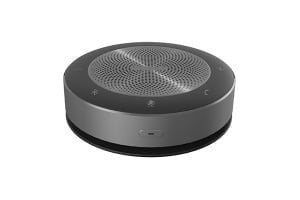

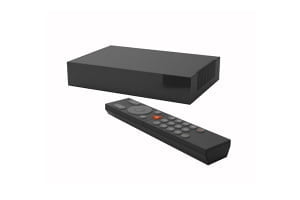

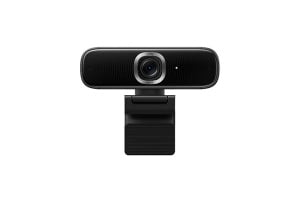

ip phone ip phone 2 wireless omnidirectional mic conference camera conference camera 2 conference system conference system 2

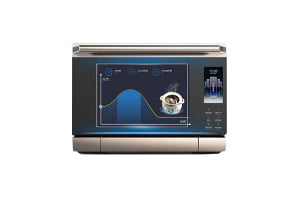

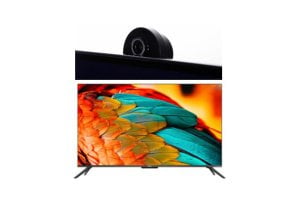

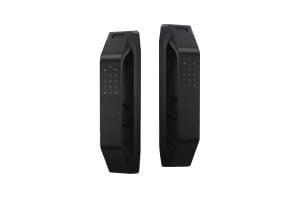

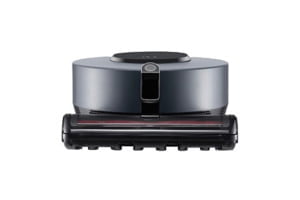

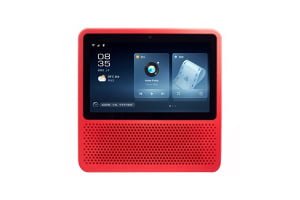

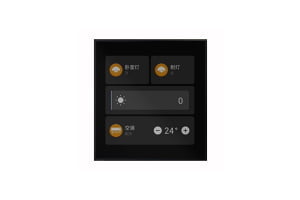

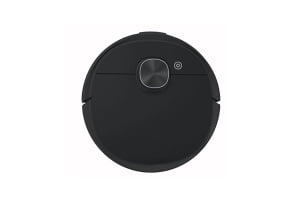

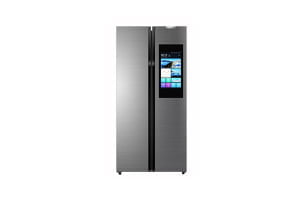

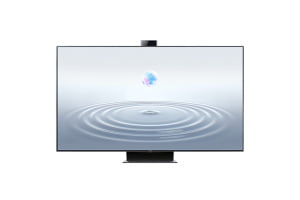

television face lock intelligent central control micro steaming baking machine robot vacuum cleaner smart refrigerator smart speaker smart screen camera robot vacuum cleaner 2

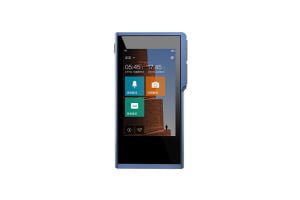

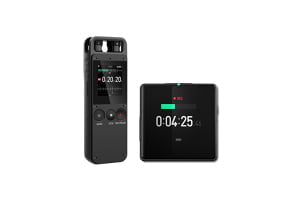

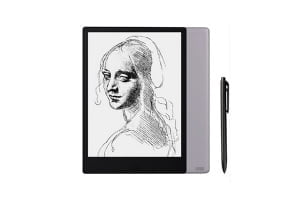

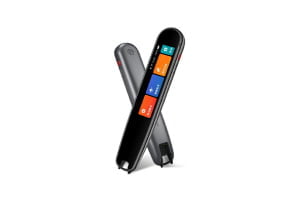

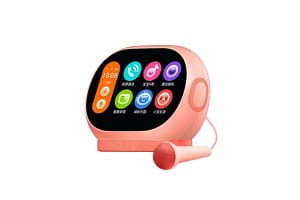

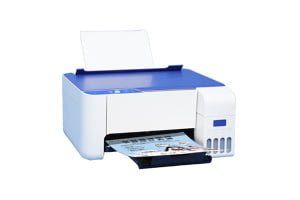

recording device electronic book dictionary pen chromebook plus translator treasure story machine for children smart printer

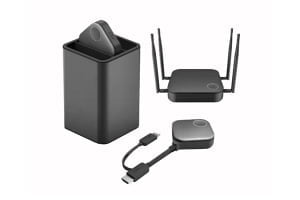

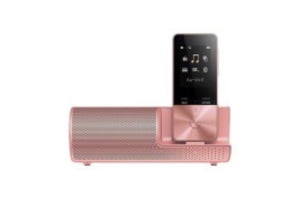

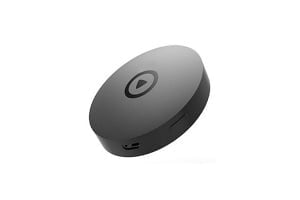

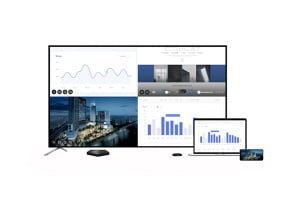

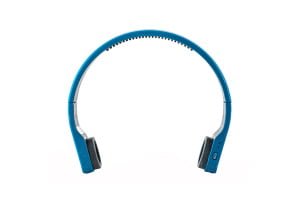

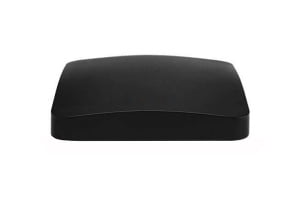

wireless screen projector 3d audio headphones hifi player screen transfer box throw box tv set top box 4k 4g web box

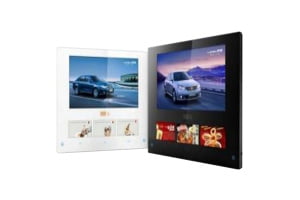

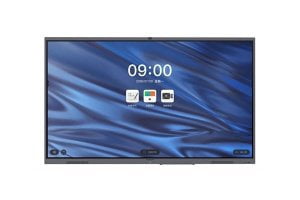

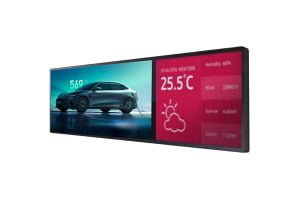

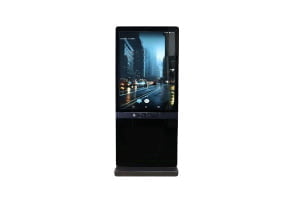

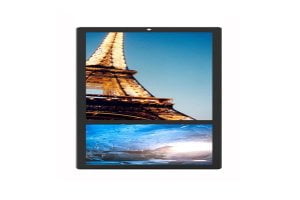

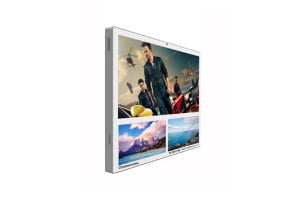

display screen giant advertising machine advertising machine media multi screen advertising machine media advertising machine karaoke entertainment machine

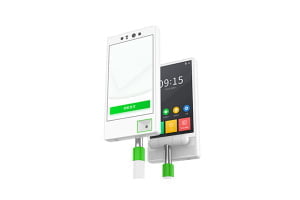

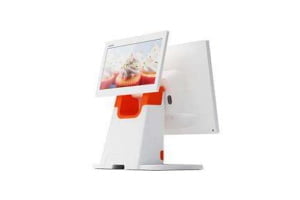

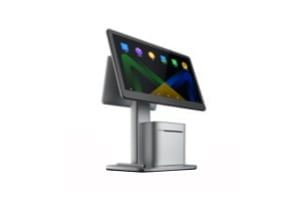

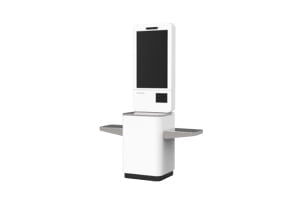

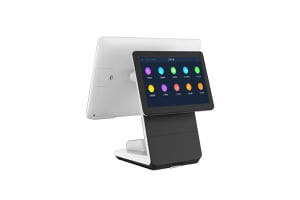

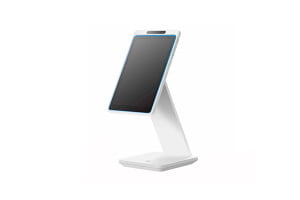

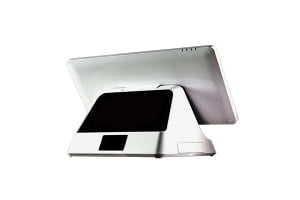

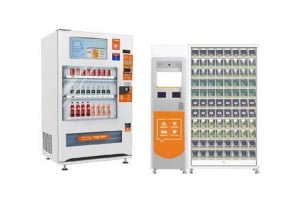

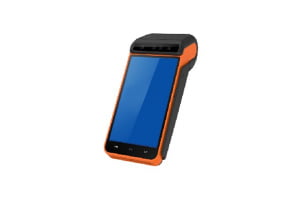

intelligent pos intelligent pos machine intelligent pos machine 2 smart cash register cash register pos swipe face and pay vending machine 3d face pos touch screen payment device 2 touch screen payment device

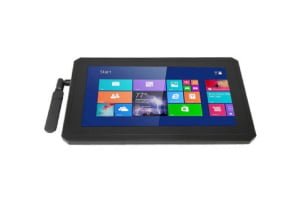

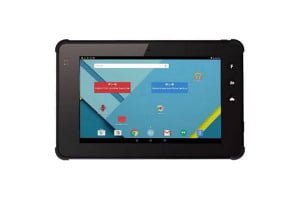

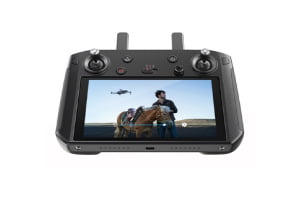

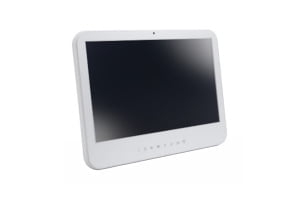

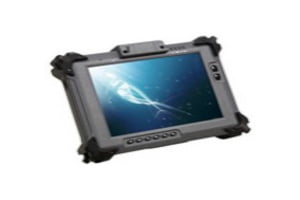

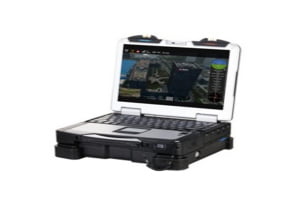

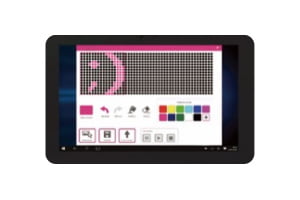

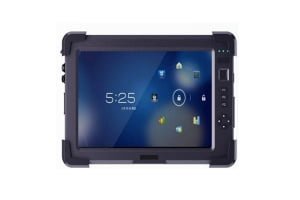

drone control console drone controller industrial computer industrial flat plate industrial flat plate 2 industrial flat plate 3 medical aio medical tablet

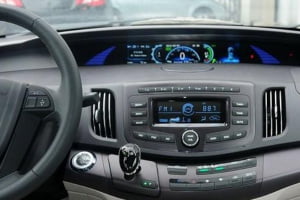

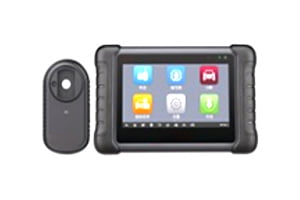

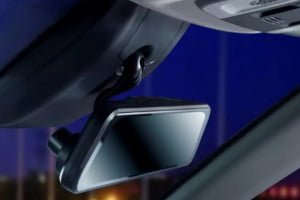

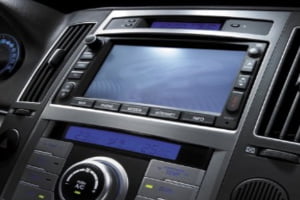

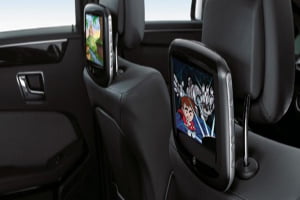

automobile central control 2 automobile central control streaming rearview mirror smart rearview mirror car headrest display vehicle detection box

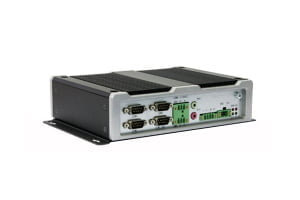

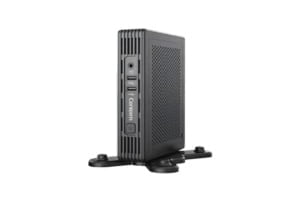

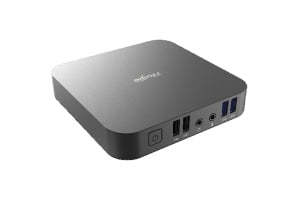

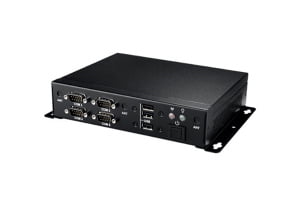

terminal box cloud terminal 2 cloud terminal industrial control box 2 industrial control box
