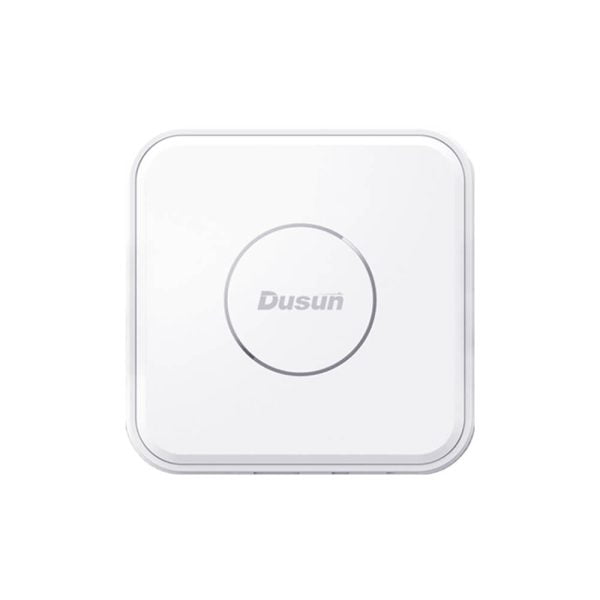

DSGW-210E Enocean Gateway (BLE 5/Zigbee/Matter to LTE/Ethernet Avaliable)

Model: DSGW-210E Category:

DSGW-210E EnOcean gateway uses TCM310 chipset and supports 868MHz and 902MHz, along with BLE 5/Zigbee/Matter/LTE/Ethernet options to offers dependable connectivity for a variety of EnOcean IoT devices in smart home and building, energy monitoring, and smart manufacturing. USB dongle supported. Perfect as Raspberry Pi home automation alternative.

DSGW-210E EnOcean gateway works perfectly with openHAB (pre-install OpenHAB by default) and allow users to reprogram and install their own software on it. What makes DSGW-210E EnOcean gateway stand out in the market is its ultra-long battery life (6000mAh and can last for12hours) and edge computing capability for complicated scenarios.

Highlights of DSGW-210E Smart EnOcean Gateway

  • Uplink data transfer: LTE cat1/LTE catM1 and Ethernet;
  • Downlink device connectivity: EnOcean/BLE 5/Matter/Zigbee;
  • CPU: Quad-core Cortex A53;
  • Storage: RAM 1GB; eMMC 8GB;
  • Backup Li Battery: 6000mAh (last 12 hours);
  • Support 5V USB type-c power supply;
  • One WAN/LAN variable network port;
  • RGBs indicator ring;
  • Support USB2.0.

Parameters of DSGW-210E EnOcean USB Gateway

Power SupplyUSB type-C 5V/3A
Reset buttonThe reset button is hole button, After pressing the reset button for more than 5
seconds, the Locator will be restored to the factory settings.
ButtonSoftware custom button
Network InterfaceRJ45
USBUSB2.0
SD cardUp to 128GB SD card
Indicator LEDsRGB indicator ring
Li battery6000mAh (last 12 hours)
Wireless protocolEnOcean
AntennaExternal antenna (SMA connector)
Installation methodFlat,Ceiling,DIN
RTCReal Time Clock operated from on board battery
Operating Temperature-10℃~60℃
Storage Temperature-40℃~85℃
Operating humidity10%~90%
IP ratingIP22
CoolingHeat dissipation silicone/aluminum
Current[email protected]

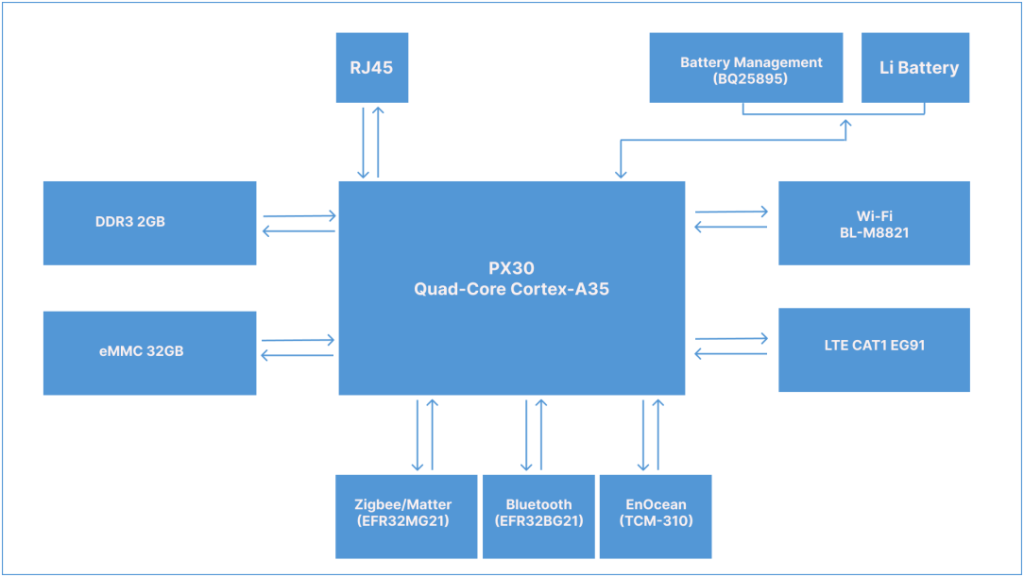

Block Diagram of DSGW-210E EnOcean Zigbee Gateway

210e 1

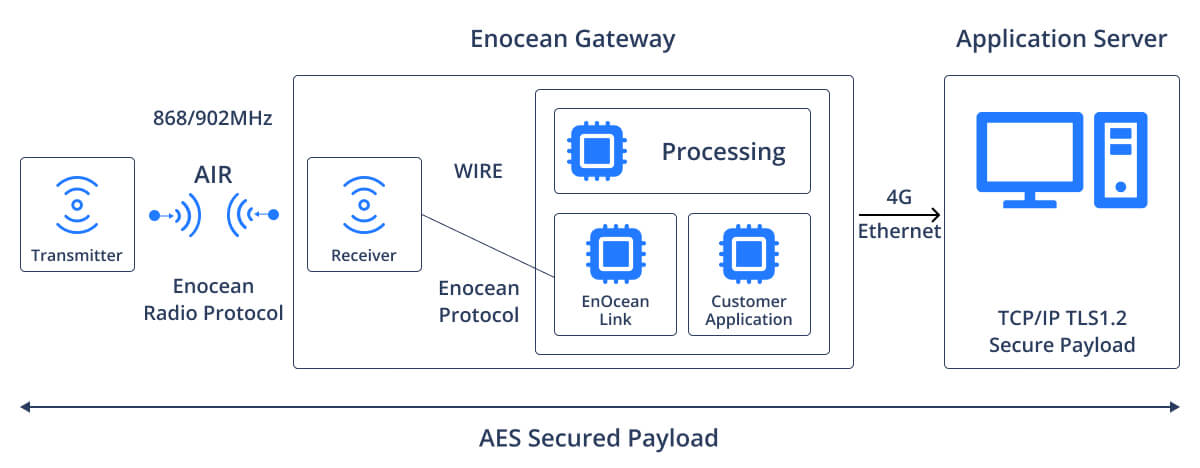

How Does DSGW-210E Gateway EnOcean Work?

The DSGW-210E gateway creates a connection between networks or systems and EnOcean wireless devices. It translates the word of switches, lights, and blinds into the word of people, user interfaces, and cloud applications in smart home scenarios. In other words, in order to provide remote network control, it translates EnOcean-Radio Communication (Energy Harvesting Wireless Technology) into various IP-worlds via Wi-Fi, LTE 4G, or Ethernet ports.

In addition to connectivity alone, an EnOcean Gateway can include capabilities like data logging, data analytics, and system integration. Regarding security, it uses the EnOcean wireless radio protocol to receive signals from sensors that are secure AES-128 bit encrypted.

how it works

Use Cases of DSGW-210E EnOcean Gateway?

energy management monitoring

Energy Consumption Monitoring

iot plc controller

IoT PLC Controller

smart home

Smart Home Automation

building automation

Building Automation

FAQs of DSGW-210E EnOcean Gateway?

EnOcean is redefining IoT protocols using minimal quantities of energy based on concepts of natural energy gathering working principle. For instance, wireless EnOcean sensors in a smart house can use energy from motion, light, and temperature variations to reduce the power consumption. With the EnOcean protocol, one bit of data may be safely transmitted up to 100 feet indoors in about 0.12 Ws. smart home gadgets without maintenance are made possible by this approach.
Ultra-low Power: the minimum telegram length sent is only about one millisecond at a data rate of 125kbit/s. The telegrams are repeated several times within 40 milliseconds.
Short-range Transmission: the radio range is up to 300 metres in open space and about 30 metres in buildings.<brLow-cost maintenance: license-free 868 MHz and 902 MHz frequency bands with 1% duty cycle. Less interference, long battery life.
data from: EnOcean Alliance
EnOcean is a very well-liked choice for manufacturers of IoT devices due to its high interoperability (open industry standard), connectivity, range, and security.

The EnOcean technology primarily draws its power from motion, light, and temperature variations. An electro-dynamic energy converter uses kinetic motion to complete the process. Heat can be used as an energy source when a Peltier element and DC/DC converter are used together. These meager energy harvests are sufficient for wireless signal transmission and reception as well as the operation of several maintenance-free sensor solutions.

868 MHz for the European Union according to CE/RED regulations and the UK according to UK/CA regulation.

Short range with an indoor range of 30 to 100 feet in line of sight. EnOcean Wireless Standard operates at frequencies below 1GHz. Compared to 2.4 GHz transmissions, these waves will reflect less within a building and will go deeper. IoT devices can benefit especially from this. The 868 MHz frequency, one of the bands used by EnOcean, typically offers more dependable signal delivery.

DSGW-210E is pre-installed OpenHAB for automatically scanning your network for known devices and allow you to easily set them up. You can seek for more info at OpenHAB official website for EnOcean Binding.

Yes, it is possible to flash your software on the gateway. Our DSGW-210E EnOcean gateway is a edge computing gateway with robust CPU and sfficient storage to enable users in-stall their software in it.

Additional information

Chip

RK3328

CPU

Cortex-A53

CPU Architecture

ARM

Protocol

BLE, Bluetooth, GPS, LoRa, LTE, Sub-G, Wi-Fi, Zigbee

DDR

DDR3, DDR4

Interface

GPIOPin, M.2 SATA3.0, Micro HDMI, Mipi camera, MIPI-DSI, PCIe, SD card, SIM card, TF card, Type-C, USB2.0, USB3.0

OS

Android, Buildroot+QT, Ubuntu

RAM

32GB

Storage

16GB, 32GB, 64GB, 128G

Compatibility

Home Assistant

Application

Edge Computing, Smart Apartment, Smart Home
