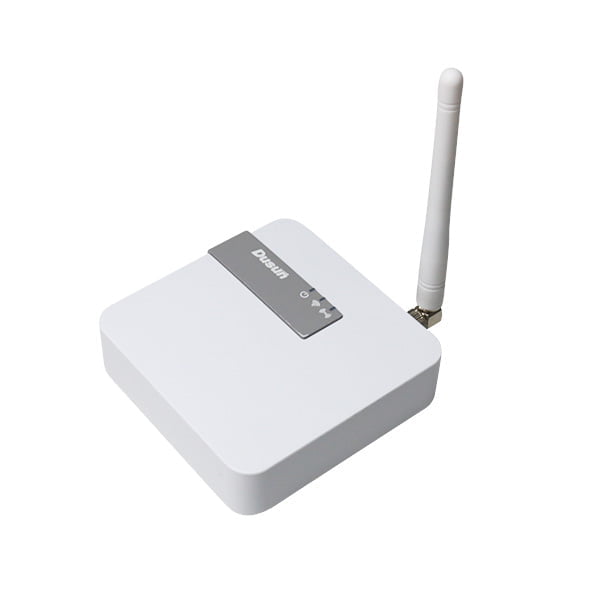

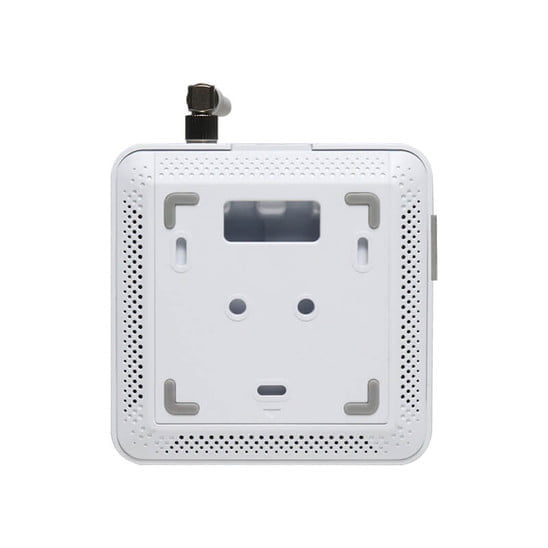

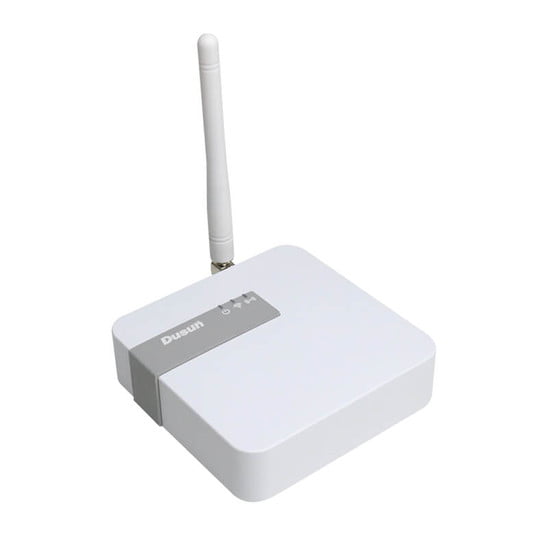

Indoor LoRaWAN Gateway Lite

Model: DSGW-090B-helium Category: Tag
  • 5V/2A type-C Power supply
  • Support IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol
  • As a Lora Gateway, it is built base on the LoRa Concentrator Engine: Semtech SX1302
  • TX power up to 27dBm, RX sensitivity down to -125dBm @SF7, RX sensitivity down to -139dBm @SF12, BW125kHz
  • Build-in ECC608 crypto chip for high security authentication and reliable Helium network connectivity
  • LoRa Frequency band support: CN470, RU864, IN865, EU868, US915, AU915, KR920, AS923
  • Support BLE5.0
  • One WAN/LAN variable network port
  • FCC, CE Certification

Dusun Hotspots Distribution

helium dusun gateway map

Frequency variants

Frequency Country
915MHz Australia,New Zealand
868MHz Europa
915MHz USA
864MHz Russia
920MHz South Korea
864MHz India
923MHz Thailand

Max TX Power within the Certification Standards

Brand Standard Value Dusun B** N** P** R** S**
Maximum
Transmit
Power
27.00dBm
(923.3- 927.5)
LoRaWAN
26.78 dBm
(923.3- 927.5)
11.28dBm
(904- 926)
17.50 dBm
(923.3- 927.5)
23.45 dBm
(903- 927.5)
13.39dBm
(923.3- 927.5)
25.2 dBm
(903- 927.5)
Deviation 0.22 15.72 9.5 3.55 13.61 1.8
21.00dBm
(902.3 - 914.9)
Helium PoC
22.10 dBm
(902.3- 914.9)
11.78dBm
(902.3- 915.1)
/ 23.84 dBm
(902.3- 927.7)
/ 25.1dBm
(902.3- 914.9)
Deviation 1.1 9.22 / 2.84 / 4.1
FCCID /
2AUXBDSGW-210B 2A** 2A** 2A** 2A** Z4**

Solution

090 solution

FAQ

Rockchip’s 3328, its performance is enough for HNT.

We don’t have a TTL interface, but we can provide SSH.
