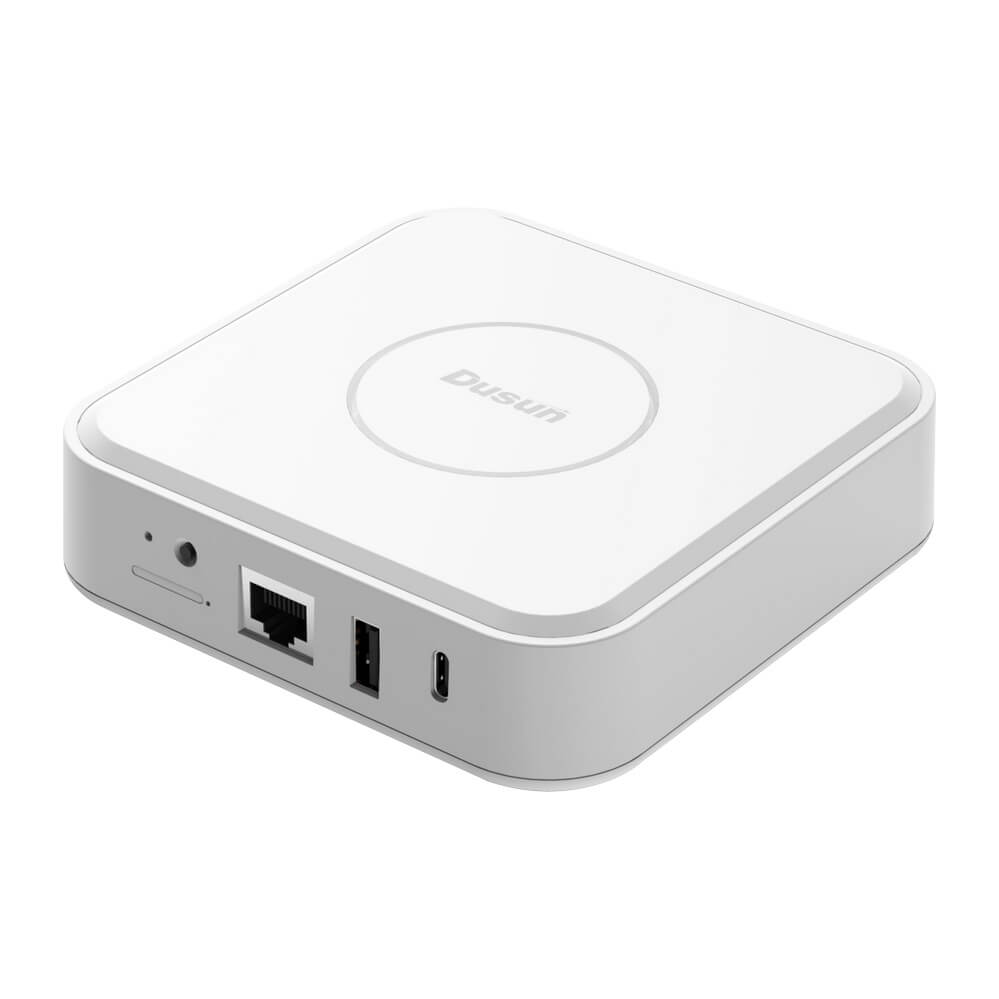

Overview of DSGW-210 Home Assistant Bluetooth/Zigbee/Z-Wave Gateway
DSGW-210 Home Assistant Bluetooth Gateway is an upgrade version of DSGW-210 HA Home Assistant Zigbee Z-Wave gateway, with additional BLE functionality, as well as support for Wi-Fi 2.4G/5G, 4G LTE CatM1 and Ethernet connectivity, enabling IoT remote monitoring function. Moreover, it has a Li battery for power backup, ensuring uninterrupted device operation during sudden power outages.
Both versions are built upon DSGW-210 IoT gateway hardware and come pre-installed Home Assistant software (Supervised on Linux Debian 12). They inherit the numerous advantages of the DSGW-210, a star product at Dusun IoT, including a modular design, support for multiple wireless modules and rich network options, robust computing power, strong scalability, etc.
Rest assured, we are here to provide technical assistance in realizing your IoT solution. Our development support, comprehensive documentation, and dedicated FAE teams are available to assist you throughout the process. Our capabilities are exemplified by the successful LED growing light controller case we have previously worked on.
Features of DSGW-210 Home Assistant Bluetooth/Zigbee/Z-Wave Gateway
Run Home Assistant Smoothly
Featuring a potent RK3328 quad-core Cortex-A53 processor, 2GB RAM, and 32GB eMMC, DSGW-210 HA can run Home Assistant and add-ons smoothly. It can also integrate thousands of devices while efficiently managing extensive automation tasks.
BLE and Multiprotocol Support
With Built-in BLE, Zigbee and Z-Wave modules on it, along with support for dual-band Wi-Fi, 4G LTE and Ethernet connectivity, You can use this devices to connect a diversity of smart devices. It supports MQTT as well.
Add-On Development Support
For customers interested in tailored add-ons, our FAE engineers are also available for consultation or when any support needed.
Compatibility with Official HA App
DSGW-210 HA is compatible with the Home Assistant App, allowing you to control your devices and receive notifications from anywhere at any time.
Lighting Control and More
You can use Home Assistant Bluetooth Gateway to explore endless possibilities in various applications, like BLE-mesh-enabled smart lighting control, energy monitoring and management via smart sockets, smart access control via locks, etc. Let your creativity guide you in harnessing the power of our Home Assistant Bluetooth Gateway.
Compatible with Various Ecosystem Brands
Benefiting from integration with over 1000 devices and services, DSGW-210 HA can control devices from different ecosystems within the same case.
Inner Board and Packaging Info
Hardware Parameters
| CPU | Quad-core Cortex A53 |
| RAM | 2GB |
| eMMC | 32GB/64GB |
| OS | Debian11 |
| Power Supply | USB Type-C 5V/3A |
| Reset button | The reset button is a hole button, After pressing the reset button for more than 5 seconds, the Locator will be restored to the factory settings. |
| Switch | On/Off power |
| Network Interface | WAN/LAN variable. |
| USB | USB2.0 |
| SIM card | Micro SIM card |
| TF card | Up to 128GB TF card |
| Wireless protocol | Zigbee,Z-WAVE |
| Antenna | Zigbee PCB Antenna；Z-WAVE FPC Antenna |
| Installation method | Flat, Ceiling, DIN |
| RTC | Real-Time Clock operated from an onboard battery |
| IP rating | IP22 |
| Cooling | Heat dissipation silicone/aluminum |
| Current | 500mA@5V |
Use Cases of DSGW-210 HA Home Assistant Zigbee Z-Wave Ethernet Gateway
Developer Resources of DSGW-210 HA Home Assistant Zigbee Z-Wave Ethernet Gateway
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-210 Smart Programmable Gateway Quick Start Guide | V2.0 |
| [Firmware packaging] | DSGW-210-HA_image_RV2.0.18 | V2.0.18 |
| [Zigbee module firmware] | DSGW-210-Zigbee-MG1B_image_RV8 Version：ezsp ver 0x08 | V ezsp ver 0x08 |
| [Ble module firmware] | DSI-0177-AMBER-BLE-MESH_AV1.1.1 Version：2.13.9.65534.1 | V 2.13 |
| [Z-wave module firmware] | DSGW-210 Python Development Guide V1.0 | V Z-Wave 7.18 |
| Tools | ||
|---|---|---|
| [Burning tool] | AndroidTool_Release | |
| [Upgrade_tool] | DriverAssitant_v4.91 | V4.9.1 |
| Third-Party Software | ||
|---|---|---|
| [Z-waveJS] | zwaveJs v1.1 | |
| [Openz-wave] | OpenZwave Developer Tutorual | |
| [BLE-Mesh] | BLE-Mesh API | |
DSGW-210 HA Model List
Category A ( In Stock,)
| Feature | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee 3.0 | Z-Wave | LTE CatM1 | LTE Cat1 | Li Battery | LTE Cat4 |
|---|---|---|---|---|---|---|---|---|
| DSGW-210-F-1-HA | ● | ● | ● | ● | ● | ● |
FAQs of DSGW-210 Home Assistant Bluetooth/Zigbee/Z-Wave Gateway
What is the most effective solution to create a BLE network using Home Assistant Bluetooth Gateway?
You could use BLE protocol to communicate with BLE end devices, and make Home Assistant Bluetooth Gateway and HA server running on the same network via wired or wireless connection. The advantage of this way lies flexibility in installation. You can select the installation based on your needs, allowing for optimal performance.
Do you have ESP32 BLE gateway with Home Assistant pre-installed?
No, our DSGW-092 ESP32 gateway runs FreeRTOS and is designed for entry-level smart building and smart healthcare devices.
Do you have Tuya Bluetooth gateway with Home Assistant pre-installed?
No, we have a wide range Tuya Zigbee gateway and devices. But do not make BLE integration yet.
What is BLE gateway?
A BLE (Bluetooth Low Energy) gateway is a device that acts as a bridge between Bluetooth devices and the cloud. Its main purpose is to facilitate the transmission of data from Bluetooth devices to a cloud server. By serving as an intermediary, the gateway enables Bluetooth devices to communicate with and send their data to the cloud, where it can be processed, analyzed, and utilized for various applications.
