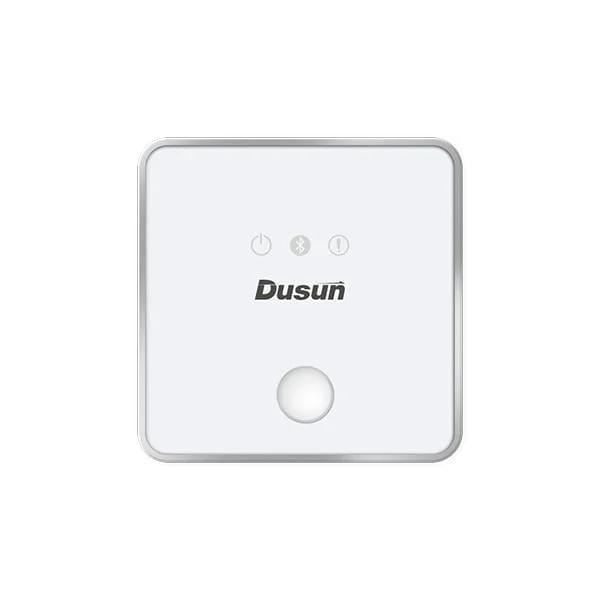

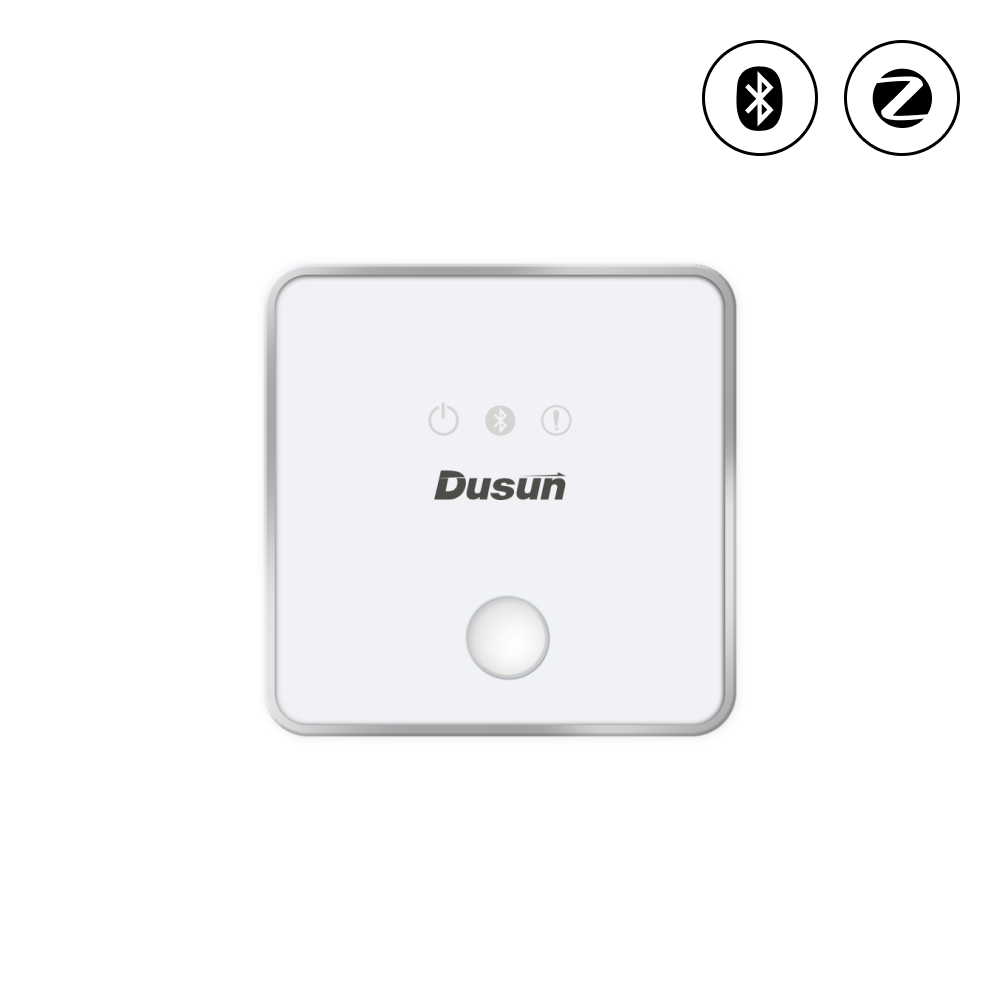

Overview of DSGW-030-4 Zigbee Bluetooth Gateway Hub
DSGW-030-4 is a Zigbee BLE gateway hub crafted to elevate customers’ connected living experience. Developed with a powerful Wi-Fi enabled 580MHz frequency MT7688 processor at its core, this hub fully supports IEEE 802.11 (b/g/n) standards for seamless wireless connectivity and is purpose-built for smart home IoT gateway applications.
With the DSGW-030-4 Zigbee Bluetooth hub features versatility by employing both Zigbee 3.0 and Bluetooth 5.2 technologies. It enables seamless connection and control of a diverse range of smart home gadgets, from intelligent security systems and interactive appliances to smart lighting solutions, synchronizing all elements of your smart home ecosystem.
The DSGW-030-4 Zigbee Bluetooth gateway is outfitted with ALINK’s SDK integration, providing smooth interoperability with Ali IoT’s cloud services in addition to its excellent connectivity choices. Users are now able to easily manage and control their smart home devices remotely, from any location, at any time, thanks to this connection.
The DSGW-030-4 WiFi Zigbee Bluetooth gateway is completely programmable to leverage the potential of customisatio. Users can adapt automation scenarios and custom rules to suit their unique tastes and preferences.
Features of DSGW-030-4 Zigbee BLE Gateway
Tmall Genie Voice Control
Waking up Tmall Genie by voice to control intelligent devices in your home
More Equipment More Imagination
Whether it’s a Wi-Fi smart device, a Zigbee, or a Bluetooth smart device all can be linked on the ALINK Smart Gateway
Internet Of Things Platform
The IoT platform provides SDKs for device-side development that have encapsulated the protocols for device-side interaction with the IoT platform. You can use the device-side SDKs directly for development.

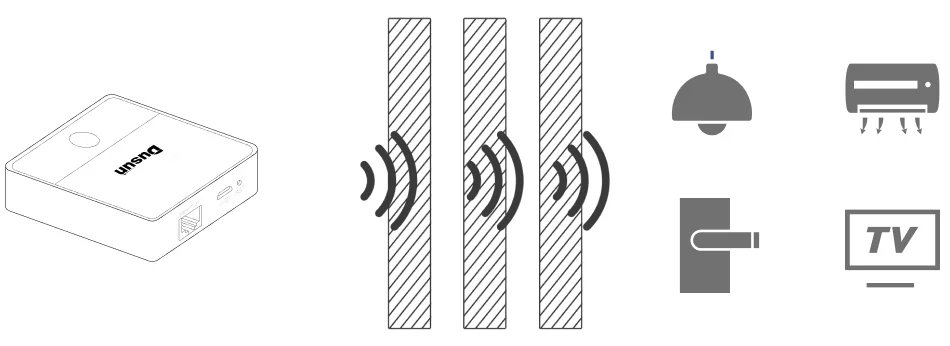

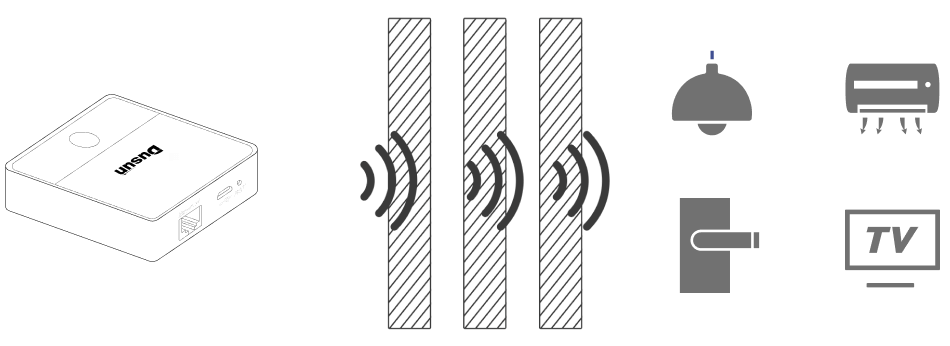

Stable Zigbee Signal Wider Coverage
Built-in dual antennas for a stronger signal, better wall penetration, and wide coverage
Zigbee 3.0
Faster device response and smoother control
Higher security / High compatibility / The network is more stable / Low power consumption
75M Signal Coverage Excellent Performance
The wireless distance can reach 75 meters (open), and the Zigbee signal has strong penetration stability

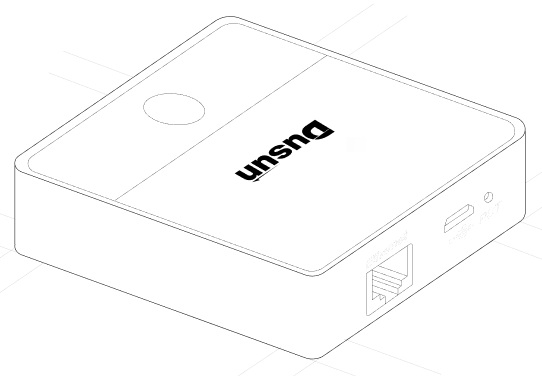

Hardware Overview of DSGW-030-4 Zigbee Bluetooth Hub Gateway
Block Diagram of DSGW-030-4 IoT Hub Zigbee Bluetooth Connectivity

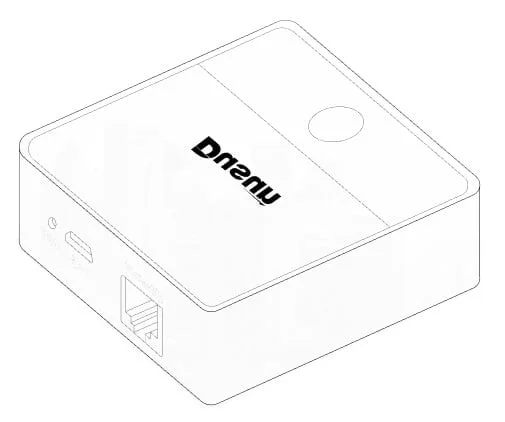

Dimension and Package of DSGW-030-4 Gateway Zigbee Bluetooth Connectivity
Parameter of DSGW-030-4 Wi-Fi Zigbee Bluetooth Gateway
| CPU | MT7688 |
| System | OpenWRT |
| RAM | 64MB |
| Flash | 16MB |
| Interface | 1 * 10/100 Mbps WLAN/LAN variable port 1 * Micro USB port |
| Indicator LEDs | • The Zigbee/BLE LED flashes when a signal is received. • The Network LED indicates RED when no establishing a network connection. • The Network LED indicates GREE when a network connection is established. |
| Power Supply | • Input:100V~240V AC/50~60HZ • Output:5V/1A, Micro USB |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| Installation | Flat, Ceiling |
| Weight | TBD |
| Operating Temperature | 0℃~40℃ |
| Operating humidity | 10%~90% |
| IP Rating | IP 22 |
Application of DSGW-030-4 Zigbee Bluetooth Gateway Hub
Use Cases of DSGW-030-4 Zigbee Bluetooth Gateway Hub
Kitchen Automation
Home Energy Monitoring
Home Health Monitoring
Developer Documents of of DSGW-030-4 Zigbee Bluetooth Gateway Hub
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-030 Smart Programmable Gateway SDK Quick Start Guide v1.0.pdf | V1.0 |
| [SDK] | DSGW-030_sdk_AV4.8.314.4296608 | V4.8.314.4296608 |
| [Firmware packaging] | DSGW-030_AV4.8.308.4145708.tar.zip | V4.8.308.4145708 |
| [Zigbee module firmware] | DSI-0134-Amber-Zigbee_RV6 Version：ezsp ver 0x06 | V ezsp ver 0x06 |
| [Ble module firmware] | DSI-0177-Amber-BLE-NCP_AV3.2.4.0129 Version：3.2.4.297 | V 3.2.4.297 |
| [Z-Wave module firmware] | ZGM130S_Zwave_image_RV7.18.zip | V 7.18 |
| Third-Party Software | ||
|---|---|---|
| [Openz-wave] | OpenZwave Developer Tutorual | |
| [Bluefi] | Bluefi Developer DSGWBeacon Bluetooth packet info Bluefi Reference Bluetooth broadcast packet | |
Connectivity Model List of of DSGW-030-4 Zigbee Bluetooth Gateway Hub
| Feature | RAM | Flash | Wi-Fi 2.4G | Bluetooth 5.2 | Zigbee3.0 | Z-Wave |
|---|---|---|---|---|---|---|
| DSGW-030-4 | 64MB | 16MB | ● | ● | ● |
Up to 32 stable sub-devices directly connected to one gateway
Connection Hub

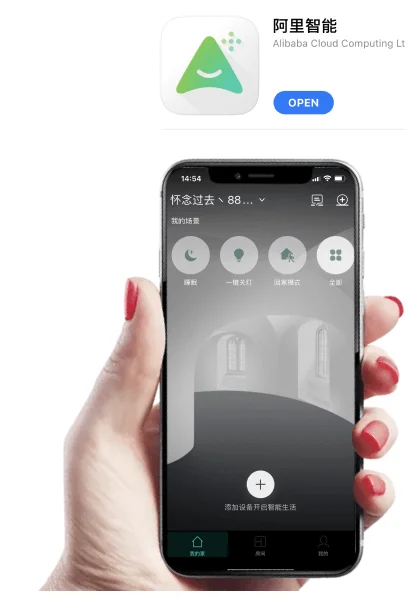

You can connect your devices via the
Ali Smart App for intelligent scenarios
FAQs of DSGW-030-4 Zigbee Bluetooth Gateway
What is a Bluetooth IoT Gateway?
Bluetooth IoT gateway bridge the data of non-IP BLE beacons/sensors to the cloud servers via WiFi. It facilitates BLE end device status reporting at fixed terminal, maybe every 15-20 minutes. When using BLuetooth IoT gateway, most home automation execution is completed on Cloud, and and the latency is the drawback.
What is a BLE Mesh Gateway?
Typically, BLE mesh gateways are utilized with smart IoT devices that have to be controlled remotely. Along with status monitoring, these devices need to be remotely operated, like lights, switches, blinds, and other fixtures. Bluetooth mesh gateway uses two-way communication as opposed to the one-way Bluetooth IoT gateway discussed above.
How does a two-way communication BLE gateway (Cloud-managed) work?
If the execution requirements are satisfied, it will report status to the cloud server; The server will process the execution and then deliver commands to the downlink BLE mesh devices. When the Internet is unreliable, the automation will fail. Explore more on What is a Bluetooth gateway.
What is the difference between standard Bluetooth gateway and BLE mesh gateway?
While Bluetooth mesh devices will only appear under one BLE mesh gateway, regular Bluetooth devices can appear under many Bluetooth gateways. In addition, it is also possible to utilize a Bluetooth mesh gateway as a Bluetooth gateway. But a Bluetooth gateway cannot be used as a BLE mesh gateway.
Does Zigbee Devices need a gateway?
Zigbee utilizes two-way communication, just as the Bluetooth mesh that was stated earlier. But we have to say Zigbee does a fantastic job with real-time responses and offers a wonderful experience for short commands. To ensure that Zigbee home automation executed when the external network is disconnected, you must also set up a dedicated local Zigbee hub to use.
What is a Zigbee gateway?
Zigbee hub (it can also be called as Zigbee MQTT gateway) can report the status of sub Zigbee device to the cloud via WiFi or the gateway itself to judge whether it can be processed directly. When a command can be processed, it is transmitted to the sub Zigbee devices. When a command cannot be processed, it is forwarded to the server, which will processes it and then sends the command back to the sub Zigbee devices. Explore best Zigbee gateway hub here.
