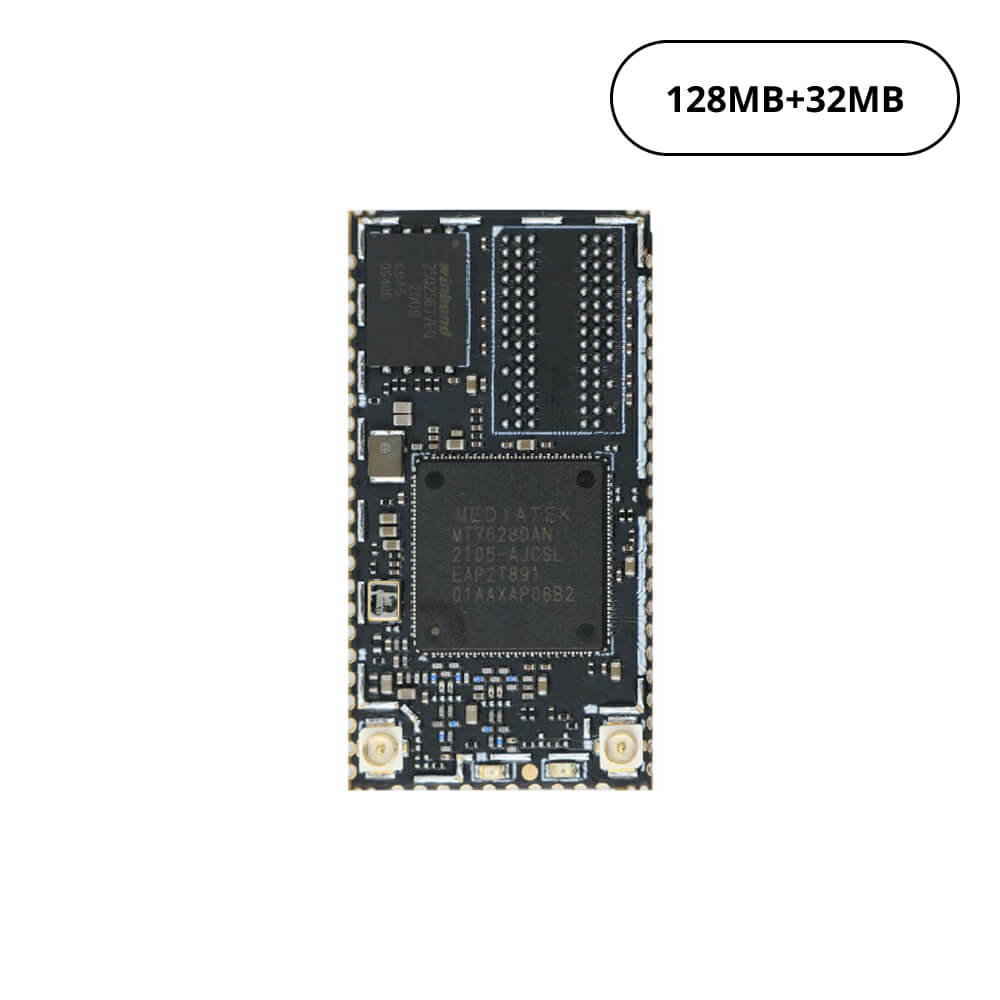

DSOM-080M-C MT7628 System on Module

Model: DSOM-080M-C Category:

DSOM-080M-C System on Module is a low-cost and low-power 300M IoT module based on MediaTek MT7628AN as the core.

  • Super data processing capability, with an MCU main frequency of up to 580MHz
  • 300M wireless rate; Support for 802.11b/g/n mode; 20/40 channel bandwidth
  • Support for AP, STA, and AP/STA mixed mode
  • Support for up to 5 10/100M adaptive network ports
  • Multiple interfaces: SPI/SD-XC/eMMC
  • Rich peripheral interfaces: SPI, I2C, I2S, PCM, UART, JTAG, GPIO
  • Widely used in the Internet of Things
  • Support for multiple encryption methods: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
  • Support for multiple systems: Linux 2.6.36 SDK, OpenWrt 3.10

Quick View of DSOM-080M-C MT7628 System on Module

The DSOM-080M-C is an upgraded version of the DSOM-080M, specifically designed to provide developers with even more resources to handle complex tasks and data-intensive applications. This enhanced System-on-Module (SoM) features an increased RAM configuration, offering higher computational power and multitasking capabilities.

The DSOM-080M-C retains all the features and connectivity options of its predecessor, including the powerful MT7628 chipset, 2.4 GHz Wi-Fi, Ethernet, UART, and a rich set of peripherals. This ensures seamless integration into existing IoT ecosystems and allows for easy expansion and customization.

By incorporating a larger RAM capacity, the DSOM-080M-C enables developers to efficiently process and manipulate larger datasets, run more demanding algorithms, and execute multiple tasks simultaneously. This enhanced performance is particularly beneficial for applications that require real-time data processing, machine learning, or AI-driven functionalities. With its compact form factor and low power consumption, the DSOM-080M-C remains an ideal choice for space-constrained applications that demand high computational power.

The DSOM-080M-C System on Module offers a wide range of development documents and software resources that are both free and open-source. This convenience enables developers to enhance their development efficiency and shorten the development cycle.

System Block Diagram of DSOM-080M-C MT7628 System on Module

Main Chip Block Diagram
mt7628nn mt7628an mt7628dan
System on Module Block Diagram
Interface diagram

Dimensions of DSOM-080M-C MediaTek MT7628 SOM

Module Dimensions
dsom-080m module dimensions
Suggested Package Dimensions
Suggested Package Dimensions

Parameters of DSOM-080M-C SOM

Man chipMT7628AN
TemperatureWorking Temperature:-20℃~55℃
Storage Temperature:-40℃~85℃
Humidity10~95% (Non-condensing)
Atmospheric pressure76Kpa ~106Kpa
Dimension18.7mm x 35.2mm x 2.8mm
Wi-Fi2 x IPEX Antenna (IEEE 802.11b/g/n)
Ethernet1 x WAN+4 x LAN(10M/100M)
UART2 x UART, With transparent transmission function
SDIO3 x SDIO interfaces
SPI1 x SPI interfaces
I2C1 x I2C interfaces
I2S1 x I2S interfaces
PWM1 x PWM interfaces
GPIOUp to 8 GPIO interfaces
USB2.01 x USB 2.0 interfaces

System on Module Application

industrial embedded computer
Industrial-embedded Linux computer
home appliances
Home Appliances
smart home
Home Automation – Smart Home
iot gateways
IoT gateways

Developer Resources of DSOM-080M-C MediaTek MT7628 SOM

Coreboard Development
[Software Quickstart]DSOM-080M Smart Programmable Module SDK Quick Start Guide v1.0.pdfV1.0
[Hardware Quickstart] MT7628_Datasheet.pdfV1.1
[SDK] DSOM-080M_sdk_AV1.0.0.0.tar.gzV1.0.0.0
[Firmware] DSOM-080M_img_AV1.0.0.0.binV1.0.0.0
Carrier Board Development
[Carrier Board Schematic] node-red
[Hardware Developmemt Guide]MT7628AN Development Board Hardware Manual-V1.0

Model List

Category A ( In Stock)

Additional information

Product Type


Chip Platform


CPU Name






System support


Operating Temperature
