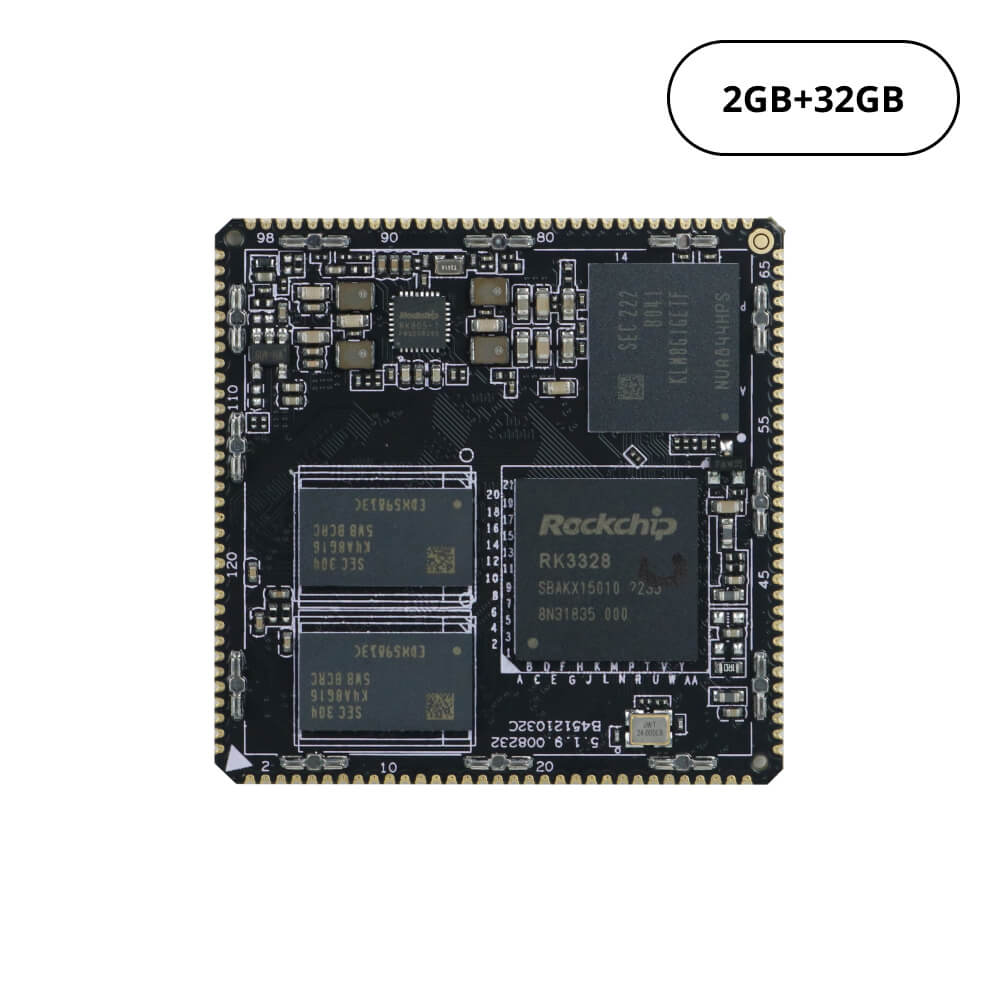

Quick View of DSOM-010R-N RK3328 SoM (2GB RAM & 32GB eMMC)
DSOM-010R-N RK3328 SoM (2GB RAM+32GB eMMC) enjoys high performance with built-in multiple powerful embedded hardware engines. A Quad-Core ARM Cortex-A35 processor running at up to 1.5GHz offers excellent performance for high-end feature-rich applications. A built-in Mali450GPU fully compatible with OpenGLES1.1/2.0 to give excellent graphics processing capabilities. It supports multi-format (VC-1, MPEG-1/2/4, VP8) 1080P video decoding, and 4K VP9 and 4K 10bits H265/H264 decoding at up to 60fps, maximizing smart display performance and creating a fluid video playback experience.
With high-performance memory interface (eMMC 5.1), and up to 32GB storage, it can offer storage solutions requiring a huge capacity and great performance. DSOM-010R-N has been used to develop a Home Assistant pre-installed Zigbee gateway. If you are interested, welcome to explore it.
Hardware Structure of DSOM-010R-N RK3328 SoM (2GB RAM & 32GB eMMC)
Dimensions of DSOM-010R-N RK3328 SoM (2GB RAM & 32GB eMMC)
Parameters of DSOM-010R-N RK3328 SoM (2GB RAM & 32GB eMMC)
| CPU | Quad-Core ARM® Cortex-A53 64-bit processor, Frequency up to 1.5GHz |
| GPU | ARM Mali-450 MP2 Quad-Core GPU Support OpenGL ES1.1/2.0, OpenVG1.1 Frequency up to 500 MHz |
| VPU | Support 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265) 1080P video coding, support H.264/H.265 Video postprocessor: de-interlacing, denoising, edge/detail/color optimization |
| RAM | 2GB |
| Storage | eMMC 32GB |
| Power Management | RK805-1 |
| Operating Voltage | Typical voltage 5V/2A |
| OS | Android, Debian |
| Temperature | Operating Temperature: 0 °C ~80 °C |
| Storage Temperature: -40 °C ~85 °C | |
| Humidity | 10~95% (Non-condensing) |
| Barometric Pressure | 76Kpa ~106Kpa |
| Size | 44mm x 44mm x 3.0mm |
Use Cases of DSOM-010R-N RK3328 SoM (2GB RAM & 32GB eMMC)
Developer Resources of DSOM-010R-N RK3328 SoM (2GB RAM & 32GB eMMC)
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | DSOM-010R Smart Programmable Module SDK Quick Start Guide v1.1.pdf | V 1.1 |
| [Hardware Quickstart] | RK3328 datasheet & TRM | |
| [SDK] | DSOM-010R_sdk-debian_AV1.0.0.tar.gz | V 1.0.0 |
| [Firmware] | DSOM-010R-RK3328_Debian-img-AV1.0.0.0.rar | V 1.0.0.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Datasheet] | DSOM-010R Key Components of Development Board Manual.rar | |
| [Carrier Board Schematic] | DSOM-010R RK3328 Carrier Board Schematic.pdf | |
| [Hardware Developmemt Guide] | DSOM-010R RK3328 Development Board Hardware Manual V1.1 | V1.1 |
| Tools | ||
|---|---|---|
| [Flash Tool] | AndroidTool_Release | |
| [Driver Assistant] | DriverAssitant_v4.9.1 | V4.9.1 |
