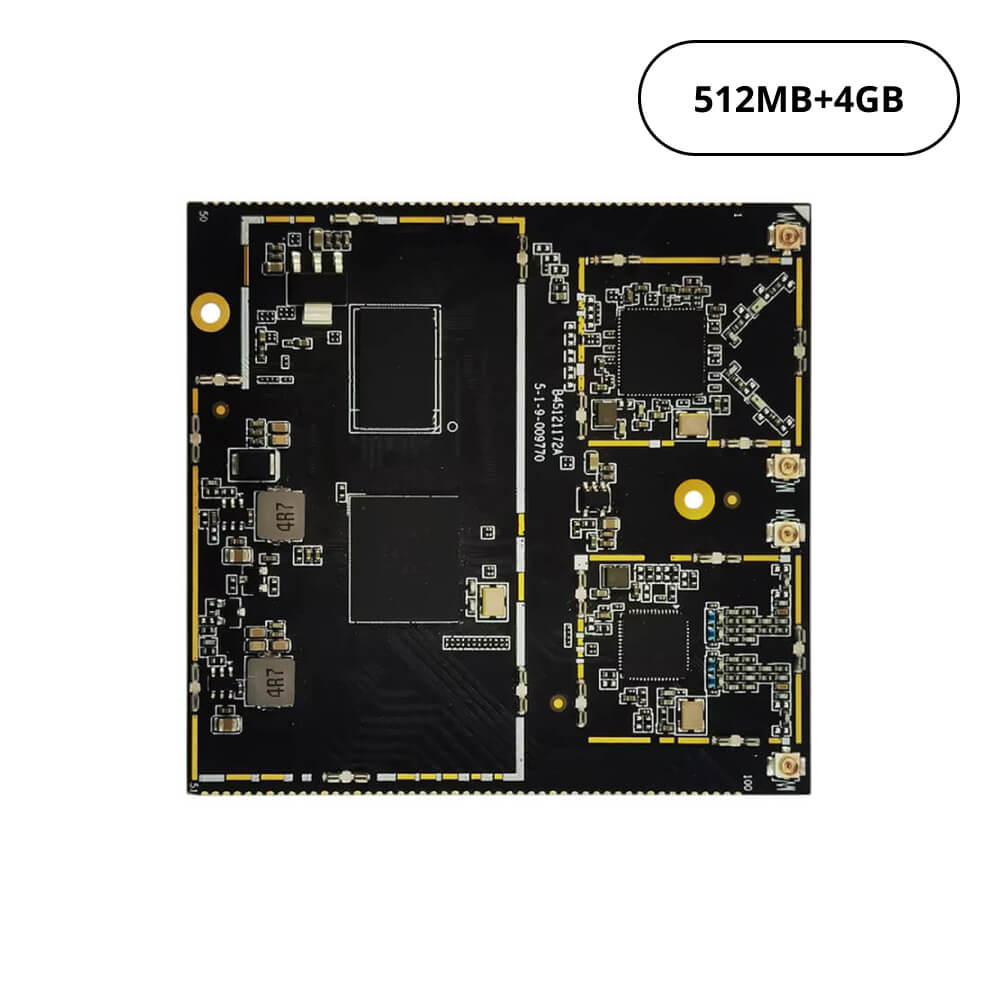

Quick View of DSOM-090M-I SoM
The DSOM-090M-I is an advanced System-on-Module (SoM) developed by Dusun, featuring the powerful MT7621A processor from MTK. With its dual-core MIPS1004Kc running at a maximum clock speed of 880MHz, this module is designed to excel in various applications, including internet service routers, wireless routers, home security gateways, NAS services, and switch control processors. Its high-performance capabilities and extensive connectivity options make it an ideal choice for developers seeking to create innovative IoT solutions.
The MT7621 System on Module is a versatile and powerful platform for developing networking and security solutions. The dual-core architecture enables efficient multitasking and handling of complex network traffic. It can be customized and configured to meet the specific needs of a wide range of applications, from small home networks to large enterprise deployments.
The main difference between the DSOM-090M-I and DSOM-090M-J lies in the storage capacity of the eMMC (embedded MultiMediaCard) used. The DSOM-090M-I is equipped with a 4GB eMMC, while the DSOM-090M-J features an 8GB eMMC. The SOM-090M-I with a 4GB eMMC may be a more cost-effective option compared to the DSOM-090M-J with an 8GB eMMC. If the application does not require a large amount of storage space, opting for the 4GB eMMC variant can help save costs.
Main chip block diagram of DSOM-090M-I MediaTek MT7621 SOM
Product Dimensions of DSOM-090M-I MediaTek MT7621 SOM
Parameters and Interfaces of DSOM-090M-I MediaTek MT7621 SOM
| CPU | MIPS 1004Kc(800MHz), I-Cache, D-Cache 32KB, 32KB, L2 Cache 256KB |
| RAM | DDR3L 512MB |
| Memory | eMMC 4GB |
| Wireless Standard | IEEE 802.11 a/b/g/n/ac |
| Operating Frequency | 2.4 GHz ~ 2.4835 GHz or 5.18GHz ~ 5.825GHz |
| Modulation | IEEE 802.11b： CCK， DQPSK， DBPSK 80211g/a: 64-QAM,16-QAM, QPSK, BPSK 802.11n: 64-QAM,16-QAM, QPSK, BPSK 802.11ac: 256-QAM,64-QAM,16-QAM, QPSK, BPSK |
| Wireless Transmit Rate | 802.11b: 1,2,5.5,11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0~7, HT20 reach up to 72.2Mbps, HT40 reaches up to 150Mbps, HT40 reach up to 300Mbps (2T2R) 802.11ac: VHT20 reach up to 173.3Mbps, VHT40 reach up to 400Mbps VHT80 reaches up to 866.7Mbps |
| Wireless Encryption | WEP/ TKIP/ WPA/ WPA2 |
| Operation Voltage | DC12V/1.5 ( Recommend) |
| OS | OpenWRT |
| Temperature | Operating Temperature: 0° C ~85 °C |
| Storage Temperature: -40 °C ~85 °C | |
| Humidity | 10~90%(Non-condensing) |
| Barometric Pressure | 76Kpa ~ 106Kpa |
| Size | 38mm × 38mm |
| PCB Dimension | 65mm x 69mm x 2.5mm |
System on Module Application
Developer Resources of DSOM-090M-I
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | DSOM-090M SDK Quick Start Guide V1.1.pdf | V1.1 |
| [Hardware Quickstart] | DSOM-090M MT7621 Key Components of Core Board Manual | |
| [SDK] | openwrt_MT7621.tar.gz | |
| [Firmware] | DSOM-090M_img-MT7621_AV1.0.0.bin | V1.0.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Datasheet] | DSOM-090M MT7621 Key Components of Development Board Manual | |
| [Carrier Board Schematic] | DSOM-090M MT7621 Carrier Board Schematic | |
| [Hardware Developmemt Guide] | DSOM-090M MTK7621 Development Board Hardware Manual V1.1 | |
| Tools | ||
|---|---|---|
| [Flash Tool] | tftp_server.rar | |
Model List
| Product Model | RAM | eMMC |
|---|---|---|
| DSOM-090M-I | 512 MB | 4 GB |
