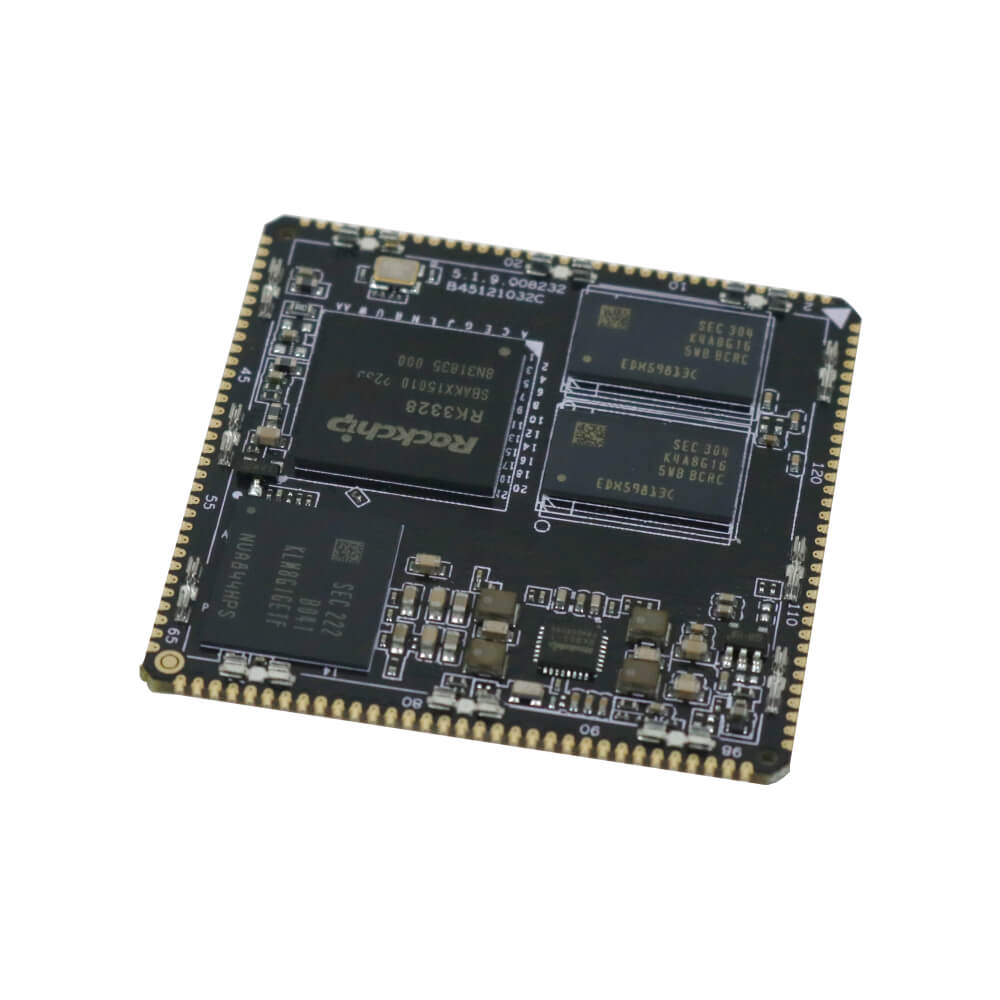

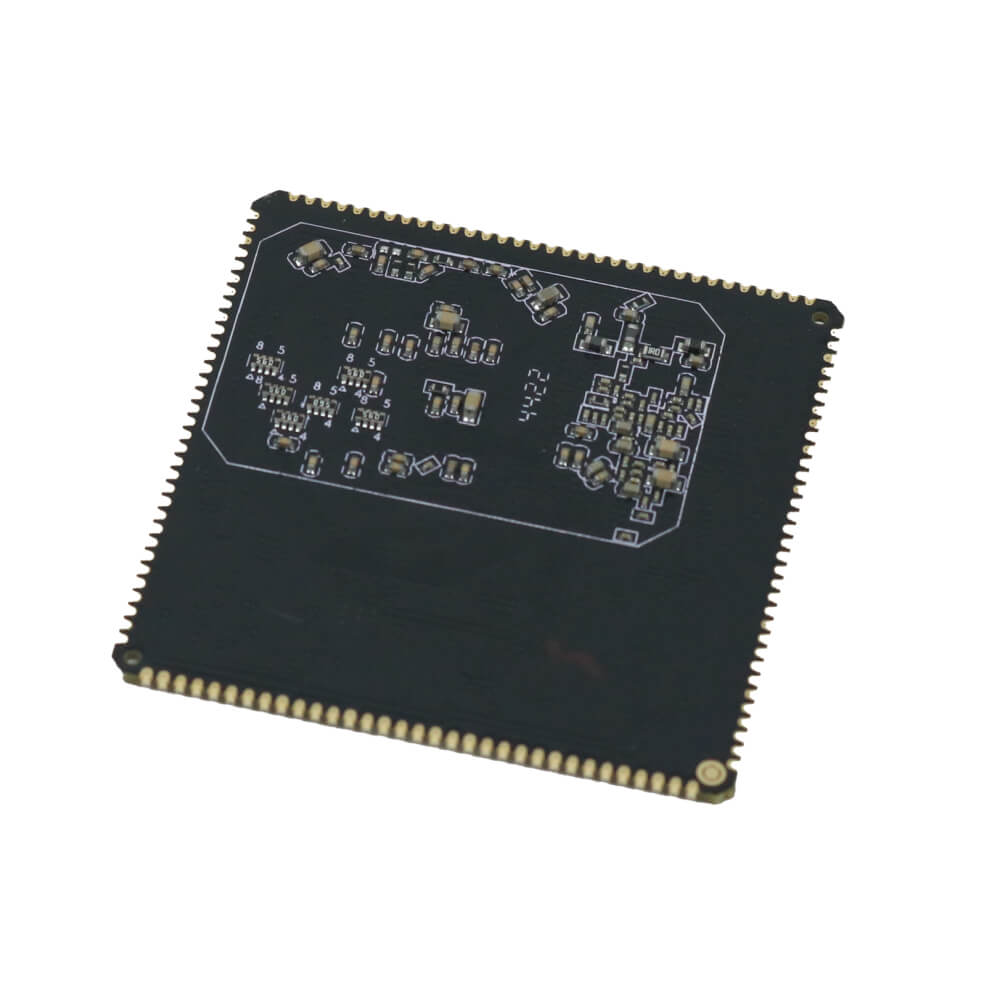

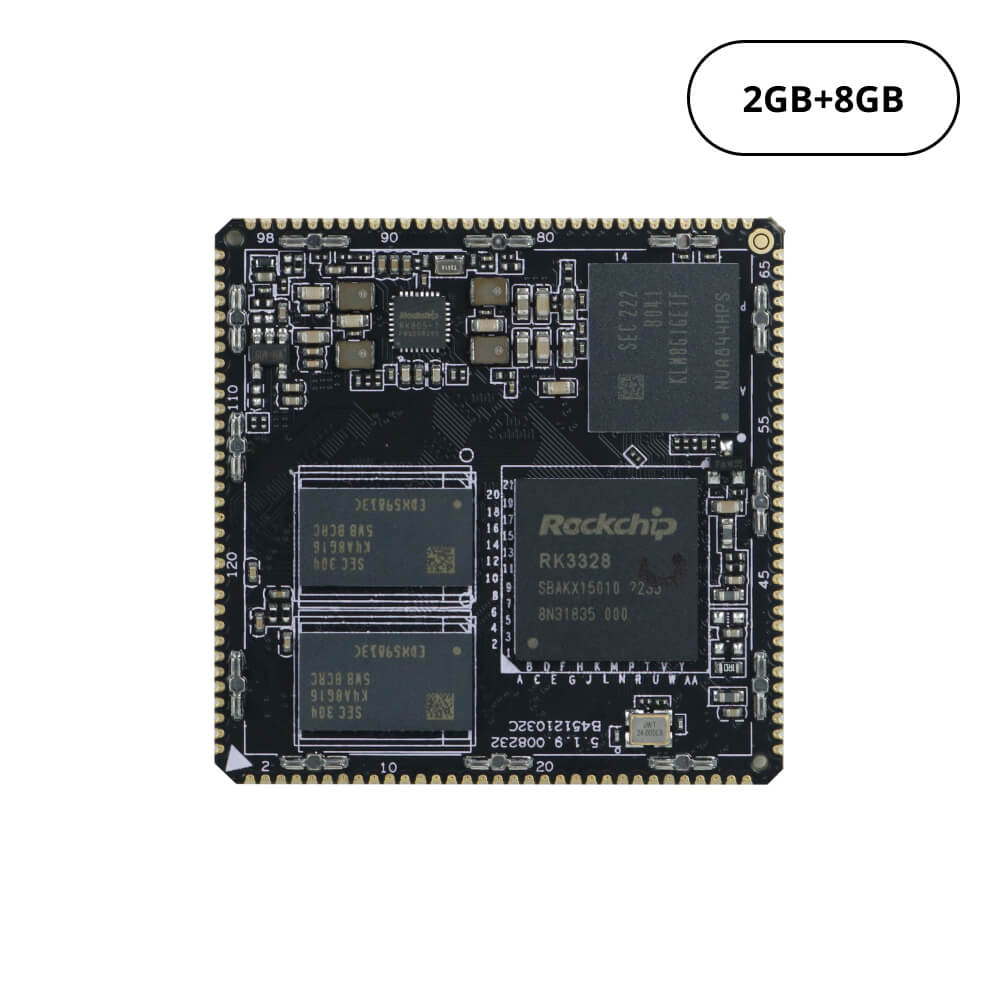

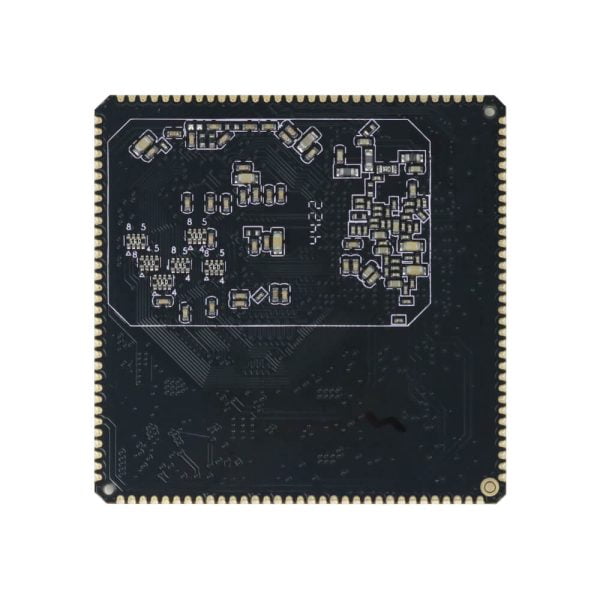

Quick View of DSOM-010R-L RK3328 SoM (2GB RAM & 8GB eMMC)
The DSOM-010R-L is a remarkable Rockchip RK3328 SoM with 2GB of RAM and 8GB of eMMC storage, combining exceptional hard decoding and image processing capabilities within a compact 44mm x 44mm form factor. With 132 PIN stamp holes, it provides a wide array of interfaces for crafting diverse human-machine interaction and home automation devices.
Operating under both Android and Debian operating systems, this SoM empowers developers to create diverse applications. Additionally, the USB interface allows for hassle-free local firmware upgrades, ensuring your device stays up-to-date. RK805-1 PMU ensures stable and reliable operation. The DSOM-010R-L SoM can be used to develop home IoT hub.
Hardware Structure of DSOM-010R-L RK3328 SoM (2GB RAM & 8GB eMMC)
Main Chip Block Diagram
Core Board Block Diagram
Dimensions of DSOM-010R-L RK3328 SoM (2GB RAM & 8GB eMMC)
Parameters of DSOM-010R-L RK3328 SoM (2GB RAM & 8GB eMMC)
| CPU | Quad-Core ARM® Cortex-A53 64-bit processor, Frequency up to 1.5GHz |
| GPU | ARM Mali-450 MP2 Quad-Core GPU Support OpenGL ES1.1/2.0, OpenVG1.1 Frequency up to 500 MHz |
| VPU | Support 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265) 1080P video coding, support H.264/H.265 Video postprocessor: de-interlacing, denoising, edge/detail/color optimization |
| RAM | 2GB |
| Storage | eMMC 8GB |
| Power Management | RK805-1 |
| Operating Voltage | Typical voltage 5V/2A |
| OS | Android, Debian |
| Temperature | Operating Temperature: 0 °C ~80 °C |
| Storage Temperature: -40 °C ~85 °C | |
| Humidity | 10~95% (Non-condensing) |
| Barometric Pressure | 76Kpa ~106Kpa |
| Size | 44mm x 44mm x 3.0mm |
Use Cases of DSOM-010R-L RK3328 SoM (2GB RAM & 8GB eMMC)
IoT gateways
Robotics
Facial recognition devices
Smart display terminals
Video terminals
Developer Resources of DSOM-010R-L RK3328 SoM (2GB RAM & 8GB eMMC)
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | DSOM-010R Smart Programmable Module SDK Quick Start Guide v1.1.pdf | V 1.1 |
| [Hardware Quickstart] | RK3328 datasheet & TRM | |
| [SDK] | DSOM-010R_sdk-debian_AV1.0.0.tar.gz | V 1.0.0 |
| [Firmware] | DSOM-010R-RK3328_Debian-img-AV1.0.0.0.rar | V 1.0.0.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Datasheet] | DSOM-010R Key Components of Development Board Manual.rar | |
| [Carrier Board Schematic] | DSOM-010R RK3328 Carrier Board Schematic.pdf | |
| [Hardware Developmemt Guide] | DSOM-010R RK3328 Development Board Hardware Manual V1.1 | V1.1 |
| Tools | ||
|---|---|---|
| [Flash Tool] | AndroidTool_Release | |
| [Driver Assistant] | DriverAssitant_v4.9.1 | V4.9.1 |
