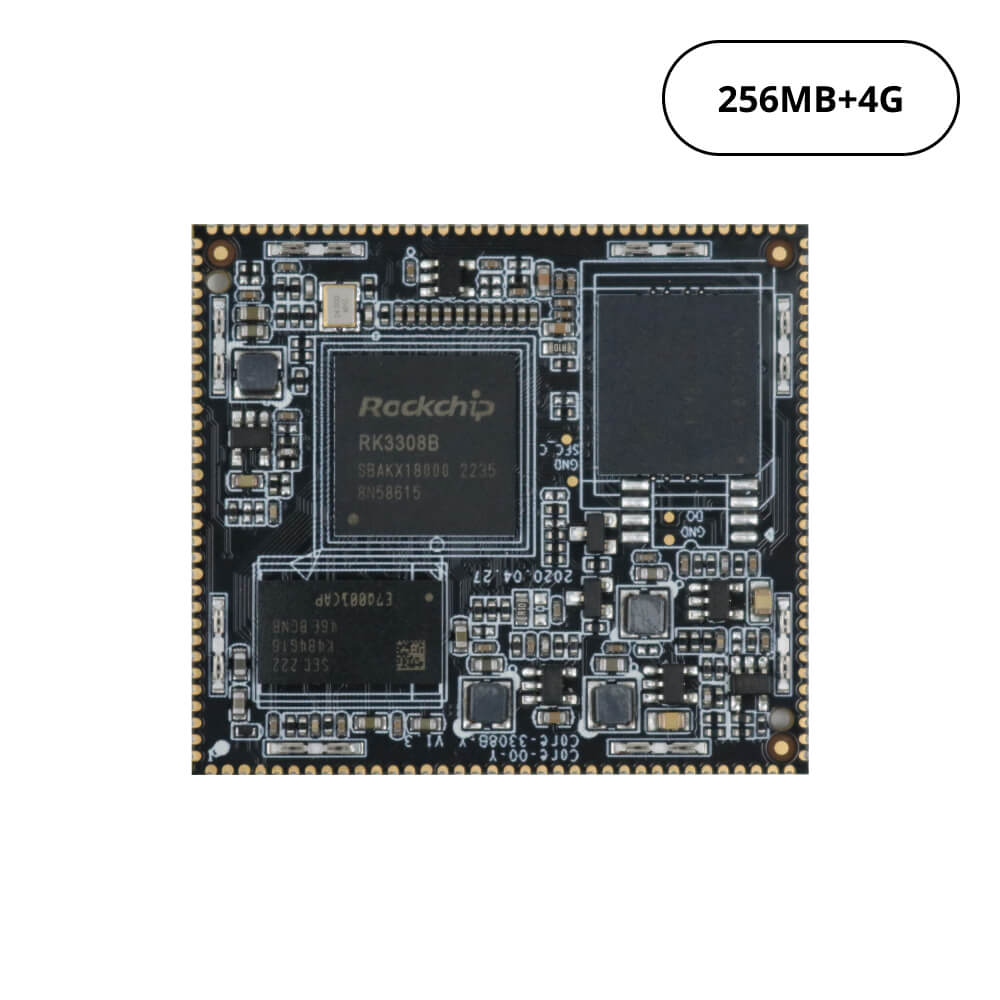

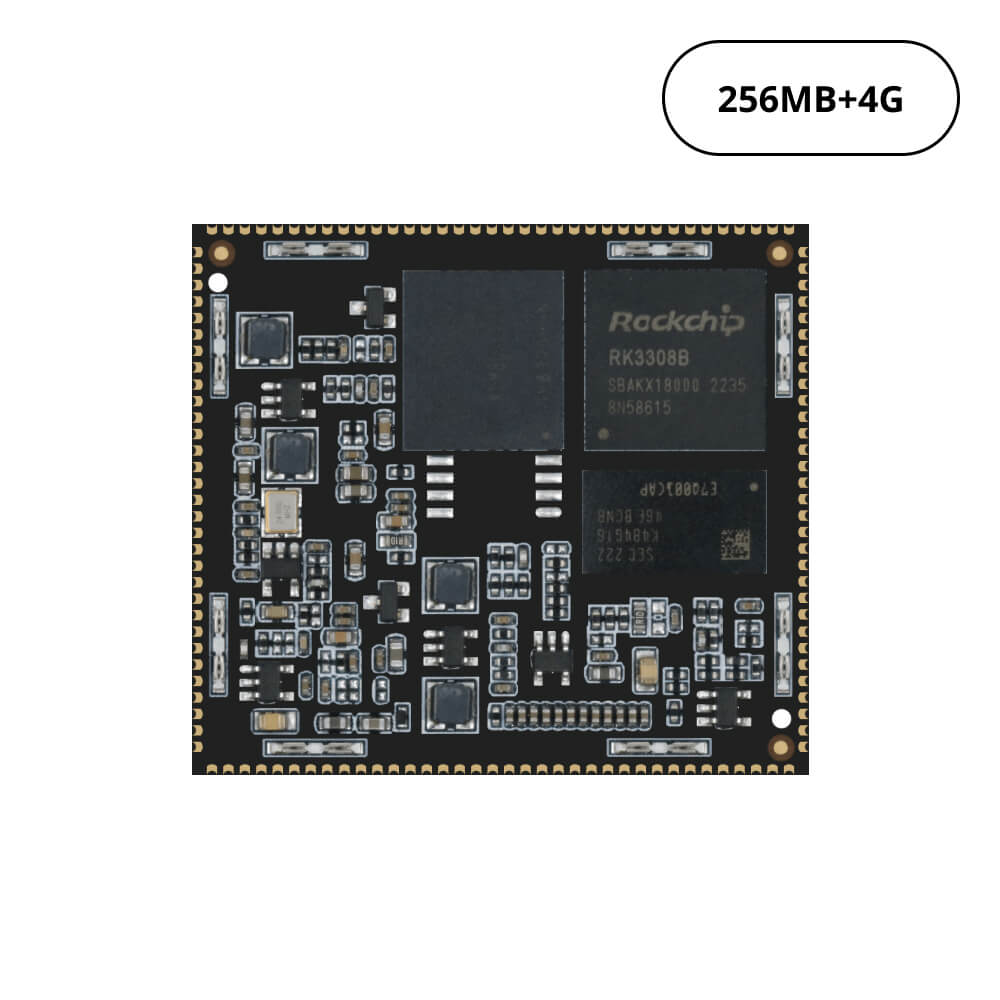

Quick View of DSOM-050R-G System on Module
The DSOM-050R-G is another variant of the DSOM-050R System-on-Module, designed to cater to applications that require larger storage capacity. It features an increased eMMC capacity, providing developers with 4GB of storage space, allowing for the storage of a vast amount of data, applications, and firmware.
This powerful processor RockChip RK3308 quad-core Cortex-A35 is complemented by up to 256MB DDR3 RAM for efficient multitasking and up to 4GB eMMC storage, providing an excellent balance of processing power, memory, and storage. The module presents a wide array of hardware interfaces such as GPIO, I2C, SPI, UART, SDIO, PWM, I2S, and PDM, offering diverse connectivity options to cater to various requirements. With abundant developing resources, including SDKs, API references, and module datasheets, it ensures a smooth and dynamic development process. The DSOM-050R-G is particularly applicable to a wide spectrum of IoT applications, from smart homes to industrial automation, making it an apt choice for those seeking a potent, flexible, and resource-rich solution.
Dimensions and Package of DSOM-050R-G SOM
Parameters of DSOM-050R-G RK3308B Core Board
| CPU | Quad-Core ARM® Cortex-A35 64-bit processor, Frequency up to 1.3GHz |
| RAM | 256 MB DDR3/LPDDR3 |
| Storage | eMMC 4GB |
| Power Management | Isolated DC/DC Converters that support dynamic frequency scaling |
| Operating Voltage | Typical voltage 5V/0.5A |
| OS | Buildroot, Linux + MiniGUI/QT, ROS (Robot Operating System) |
| Temperature | Operating Temperature: -10°C ~60 °C Storage Temperature: -40 °C ~85 °C |
| Humidity | 10~95%(Non-condensing) |
| Barometric Pressure | 76Kpa ~106Kpa |
| Size | 45mm×40.2mm x 3.35mm |
| Ethernet | 1 X 10M/100MHz RMII Ethernet interface needs an external PHY chip |
| LCD | Parallel RGB LCD interface supports RGB888, ARGB888, RGB565, YCbCr422, YCbCr420, YCbCr444 |
| Audio | The system provides a rich set of digital and analog audio interfaces, including
support for I2S, PDM, TDM, and SPDIF. ● built-in stereo headphone and line-out outputs and support for up to six channels of analog microphone input ● supports 8-channel I2S/TDM x 2, 8-channel PDM, and 2-channel I2S/PCM. ● supports up to 8-channel microphone array with echo cancellation |
| UART | 5 X Serial Ports and flow control are supported on all four channels except for UART2. |
| I2C | 4 X I2C |
| SDIO | 1 X SDIO |
| SPI | 1 X SPI |
| PWM | 11 X PWM output, including multiplexed channels |
| USB 2.0 | 2 X USB2.0, one of which is for OTG |
| USB 3.0 | 1 X USB3.0 |
| Ethernet | the main chip integrates a 100M Ethernet chip |
| TF | 1 X SDIO |
| GPIO | Defined features |
| ADC | 6 X ADC |
| Upgrade | supports local firmware upgrades via USB interface |
Use Cases of DSOM-050R-G System on Module
Developer Resources of DSOM-050R-G SOM
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | DSOM-050R SDK Quick Start Guide | V1.0 |
| [Hardware Quickstart] | Rockchip RK3308B Datasheet V1.2-20190509.pdf | V1.1 |
| [SDK] | DSOM-050R-DB-SDK | V1.0.0 |
| [Firmware] | DSOM-050R-DB-Image | V1.1.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Datasheet] | DSOM-050R RK3308B Key Components of Development Board Manual | |
| [Carrier Board Shematic] | DSOM-050R RK3308B Carrier Board Shematic | |
| Tools | ||
|---|---|---|
| [Flash Tool] | RKDevTool_Release_v2.8.zip | V2.8 |
| [Driver Assistant] | DriverAssitant_v5.1.1.zip | v5.1.1 |
DSOM-050R-G Model List
| Model | RAM | eMMC |
|---|---|---|
| DSOM-050R-G | 256MB | 4GB |
