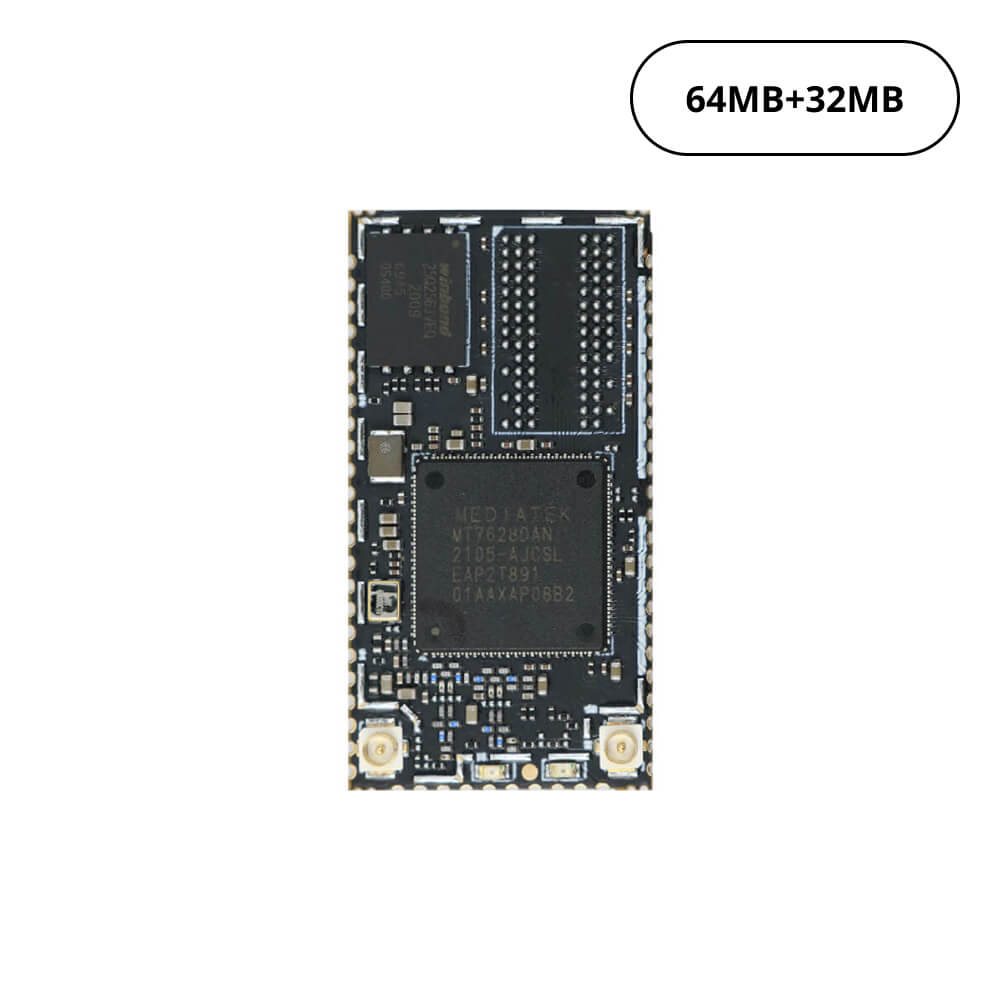

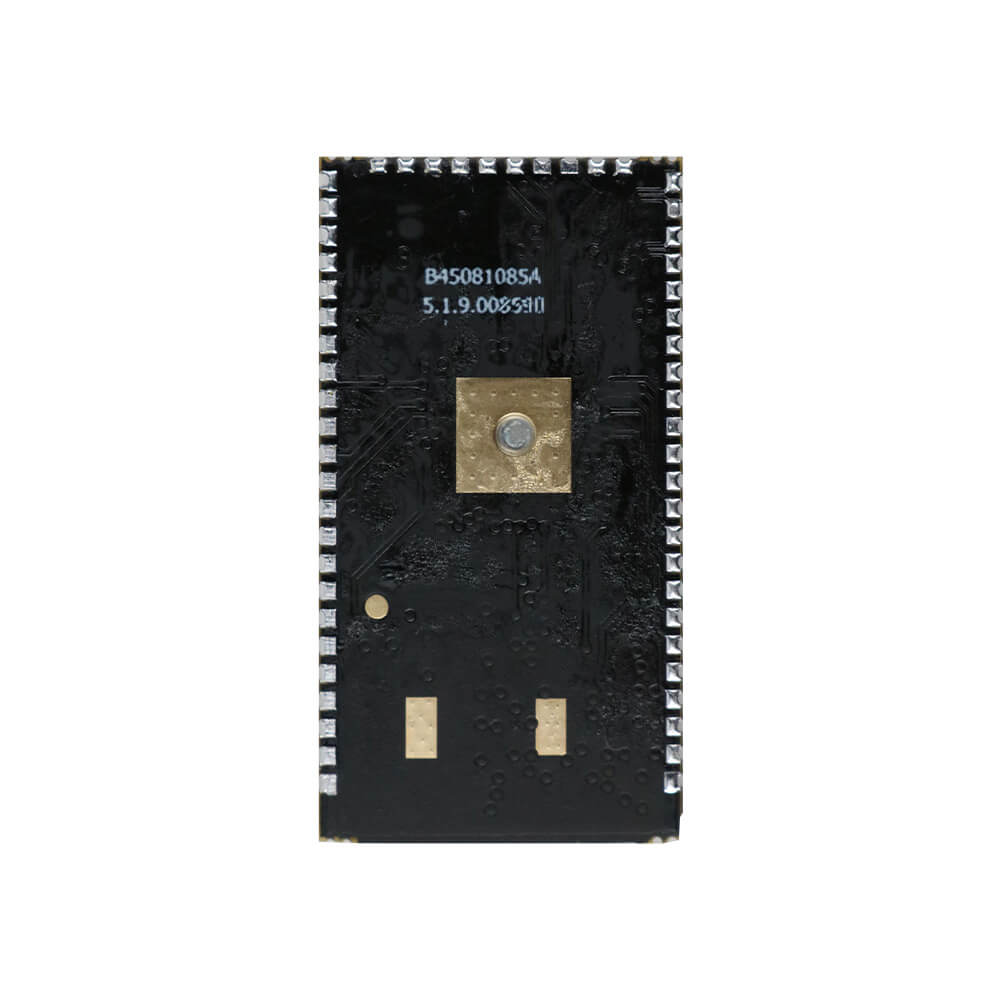

DSOM-080M-Z MT7628 System on Module

Model: DSOM-080M-Z Category:

The DSOM-080M-Z is a System-on-Module (SoM) based on the MT7628 chipset – a powerful 580MHz MIPS 24KEc CPU and is designed to provide a compact and efficient solution for IoT applications.

  • Super data processing capability, with an MCU main frequency of up to 580MHz
  • 300M wireless rate; Support for 802.11b/g/n mode; 20/40 channel bandwidth
  • Support for AP, STA, and AP/STA mixed mode
  • Support for up to 5 10/100M adaptive network ports
  • Multiple interfaces: SPI/SD-XC/eMMC
  • Rich peripheral interfaces: SPI, I2C, I2S, PCM, UART, JTAG, GPIO
  • Widely used in the Internet of Things
  • Support for multiple encryption methods: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
  • Support for multiple systems: Linux 2.6.36 SDK, OpenWrt 3.10

Quick View of DSOM-080M-Z MT7628 System on Module

The DSOM-080M-Z System on Module, produced by Dusun Electronics, is a low-cost and low-power 300M IoT module based on MediaTek MT7628AN as the core. This module provides access to all the interfaces of MT7628AN, supports Linux and OpenWrt operating systems, and allows for custom development.

The DSOM-080M-Z supports multiple wireless connectivity options, including 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2, allowing seamless integration with other devices and networks. It also offers a range of interfaces, such as Ethernet, USB, UART, SPI, I2C, and GPIO, enabling easy connectivity with external devices and peripherals.

With its compact size and low power consumption, the DSOM-080M-Z is suitable for a wide range of IoT applications, including smart home automation, industrial monitoring, and wireless sensor networks. Its robust design and reliable performance make it an ideal choice for developers and manufacturers looking to incorporate IoT capabilities into their products

The DSOM-080M-Z System on Module offers a wide range of development documents and software resources that are both free and open-source. This convenience enables developers to enhance their development efficiency and shorten the development cycle.

System Block Diagram of DSOM-080M-Z MT7628 SOM

Main Chip Block Diagram
mt7628nn mt7628an mt7628dan
Core Board Block Diagram
Interface diagram

Dimensions of DSOM-080M-Z MediaTek MT7628 SOM

Module Dimensions
dsom-080m module dimensions
Suggested Package Dimensions
Suggested Package Dimensions

Parameters of DSOM-080-Z SOM

Man chipMT7628AN
TemperatureWorking Temperature:-20℃~55℃
Storage Temperature:-40℃~85℃
Humidity10~95% (Non-condensing)
Atmospheric pressure76Kpa ~106Kpa
Dimension18.7mm x 35.2mm x 2.8mm
Wi-Fi2 x IPEX Antenna (IEEE 802.11b/g/n)
Ethernet1 x WAN+4 x LAN(10M/100M)
UART2 x UART, With transparent transmission function
SDIO3 x SDIO interfaces
SPI1 x SPI interfaces
I2C1 x I2C interfaces
I2S1 x I2S interfaces
PWM1 x PWM interfaces
GPIOUp to 8 GPIO interfaces
USB2.01 x USB 2.0 interfaces

System on Module Application

industrial embedded computer
Industrial-embedded Linux computer
home appliances
Home Appliances
smart home
Home Automation – Smart Home
iot gateways
IoT gateways

Developer Resources of DSOM-080M-Z MT7628 SOM

Coreboard Development
[Software Quickstart]DSOM-080M Smart Programmable Module SDK Quick Start Guide v1.0.pdfV1.0
[Hardware Quickstart] MT7628_Datasheet.pdfV1.1
[SDK] DSOM-080M_sdk_AV1.0.0.0.tar.gzV1.0.0.0
[Firmware] DSOM-080M_img_AV1.0.0.0.binV1.0.0.0
Carrier Board Development
[Carrier Board Schematic] node-red
[Hardware Developmemt Guide]MT7628AN Development Board Hardware Manual-V1.0
