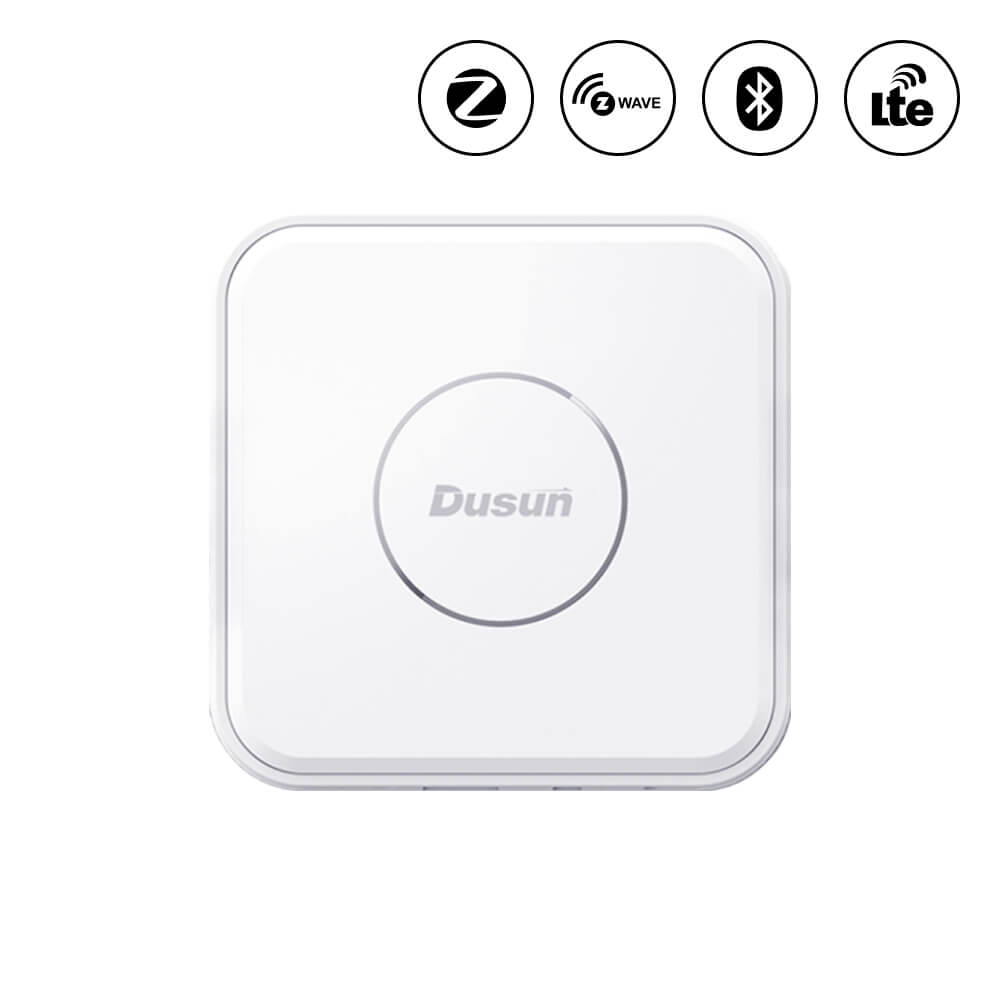

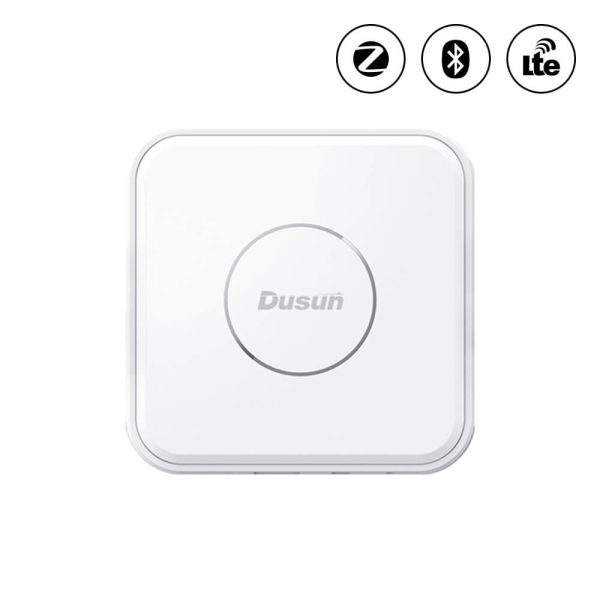

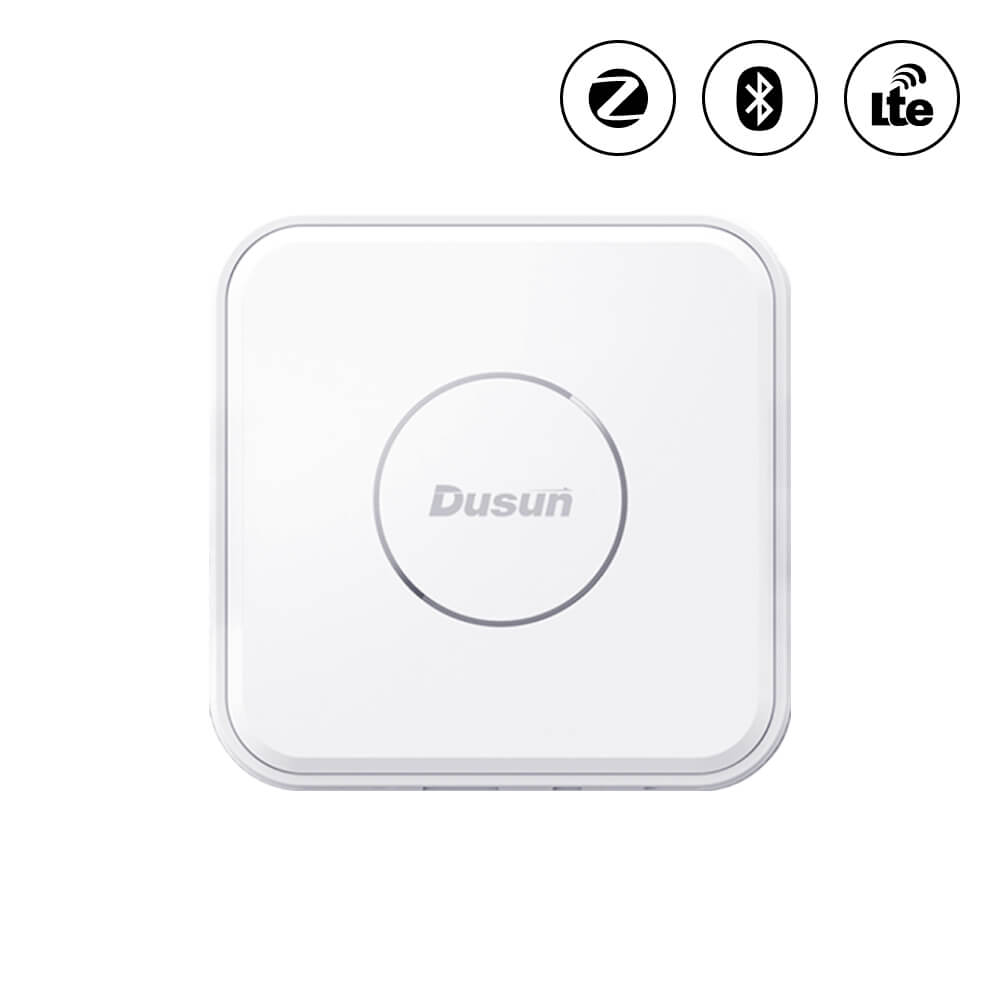

DSGW-210-B-26 IoT Smart Home Hub Gateway with Li-battery Backup

Model: DSGW-210-B-26 Category:

DSGW-210-B-26 smart home IoT hub has multiple connectivity including BLE, Zigbee, WiFi 2.4G/5G, 4G LTE LTE Cat4, and Ethernet, seamlessly integrating your smart devices and enjoying uninterrupted communication. A Li-ion battery as backup to make it operate withour the fear of power blackout.

  • Support 5V USB type-c power supply
  • Support IEEE802.11ac, IEEE802.11a, IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol
  • Support 4G LTE CAT4
  • Support Bluetooth 5.2, Zigbee3.0, Wi-Fi 2.4/5G
  • One WAN/LAN variable network port
  • One USB2.0 port
  • Backup Li-battery

Quick View of DSGW-210-B-26 IoT Smart Home Hub Gateway with Li-battery Backup

DSGW-210-B-26 Smart Home IoT Hub is the ultimate gateway to seamless connectivity and uninterrupted smart home control experience. It offers a multitude of connectivity options (including BLE, Zigbee, WiFi 2.4G/5G, 4G LTE Cat4, and Ethernet) that ensure a steady and reliable network connection, aiming to help users build a smarter, more efficient home.

DSGW-210-B-26 IoT smart hub has a Li-ion battery as backup, making power outages are no longer a concern for smart home users. It support 5V USB type-c power supply while equipped with a Li-ion battery, ensuring that your smart home remains operational even in the event of a power blackout. With it, users can Rest easy knowing that your devices will continue to function, keeping you in control and your home secure.

Designed for excellence, DSGW-210-B-26 home IoT hub features elegant and sleek design, ensuring a discreet presence while delivering exceptional performance. Moreover, it has 2GB RAM plus 8GB eMMC, providing a hardware platform for streamlined control and allowing users to set schedules, create automation routines.

solution value

Features of DSGW-210-B-26 IoT Smart Home Hub Gateway

Multiple Backhaul Connectivities

Capturing data from end devices and sending it to the cloud via Wi-Fi 2.4G/5G, and Ethernet.

Multi-Protocol Gateway

Built-in both Zigbee 3.0 module Module. In addition to these, it also supports custom protocols integration such as BLE 5.2,  LTECAT4, Wi-Fi 2.4/5G.

210 HA 6
dsgw 210 supporting multiple

Supporting Multiple Operation System(OS)

Offers powerful hardware architectures for running Debian11, Ubuntu20.04, Android11, Yocto4.0.

High Programmable

Our Gateway includes a comprehensive set of resources and services that enable the IoT Gateway developer to build custom firmware from the bottom layer of the hardware. It provides a highly secure, common platform for the IoT Gateway Developers while cutting costs and time-to-market.

Pre-Certified

Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide. Accelerating your product development and get to market faster.

Modular design

Each wireless module is designed based on the modular design, So the Gateway can be customized by removing unnecessary connectors and features to reduce cost.
dsgw 210 pre certified

Inner Board of DSGW-210-B-26 IoT Smart Home Hub Gateway

ront side of DSGW-210 IoT gateway hardware
back side of DSGW-210 IoT gateway hardware
DSGW-210 IoT gateway dimension and sizes
Dimension
Package List
Package List

Parameters of DSGW-210-B-26 IoT Smart Home Hub Gateway

CPU RK3328 Quad-core Cortex A53
System Debian 11,Ubuntu 20.04, Android11,Yocto4.0
RAM 2GB
eMMC 8GB
Power Supply USB Type-C 5V/3A
Reset Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds
Switch On/Off power
Network Interface 1 * WAN/LAN variable
USB 1 * USB2.0
SIM 1 * Micro SIM card slot
Indicator LEDs(RGB) 1). Power & battery LED 2). Wireless LED 3)LTE indicator
Antenna Zigbee/BLE PCB Antenna, Wi-Fi FPC Antenna
Li Battery 5000mAH
Installation method Flat, Ceiling, Wall Mounting
RTC Real-Time Clock operated from an onboard battery
Hardware encryption ECC608B
Operating Temperature -10℃~55℃
Storage Temperature -20℃~65℃
Operating humidity 10%~90%
IP rating IP22

Use Cases of DSGW-210-B-26 IoT Smart Home Hub Gateway

smart home
Smart Home
smart apartment 1
Smart Apartment
multifamily properties
Multifamily Properties
building automation
Building Automation
Smart Gateway for Home Automation Platform
IoT Asset Management for Coffee Shop
IoT Smart Apartment Solution in Europe
Multi Protocol Gateway For Smart Home System
Smart Home Controller Box

Developer Resources of DSGW-210-B-26 IoT Smart Home Hub Gateway

Development
[QUICK START] DSGW-210 Smart Programmable Gateway Quick Start Guide V2.0
[SDK] DSGW-210-Debian_sdk_RV1.1.7 V1.1.7
[WEB Description] Web-Description-Gateway-OldLuci .pdf
[WEB Description] DSGW-210-Web-Description imageRV1.2.3
[Language C Sample Code] Zigbee_sample_code_Amber_host_EZSP_V8.tar V8
[Language C Development Guide] Zigbee sample code ezsp development guide v1.0 V1.0
[Language Python Sample Code] DSGW-210_Python_sample.tar
[Language Python Development Guide] DSGW-210 Python Development Guide V1.0 V1.0
[Firmware packaging] DSGW-210-Debian_image_RV1.2.0 V1.2.0
[Zigbee module firmware] DSM-04B-zigbee_image_RV8(EZSP)Version:ezsp ver 0x08 V ezsp ver 0x08
[Ble module firmware] DSI-0177-AMBER-BLE-NCP_AV3.2.4.0129 V 3.2.4
Tools
[Burning tool] AndroidTool_Release
[Upgrade_tool] DriverAssitant_v4.91 V4.9.1
Third-Party Software
[Node-RED] node-red
[Docker] docker
[Ble2Mqtt] BLE2Mqtt message API v1.7 V1.7
[Zigbee2Mqtt] Zigbee2Mqtt Source Code & How To Install and Deploy[Dusun] V2.2
[Openthread] OpenThread For OTBR
[Matter] Matter Chip-tool Document

Model List of DSGW-210-B-26 IoT Smart Home Hub Gateway

Category B (Built by Order)

Feature Wi-Fi 2.4G/5G Bluetooth 5.2 Zigbee 3.0 LTE CatM1 LTE Cat1 Li Battery LTE Cat4
DSGW-210-B-26

Additional information

Weight 460 g
Product Type

IoT Gateway

Chip Platform

Rockchip

CPU Name

RK3328

RAM

2GB

Flash

8GB

Back-up Battery

Lithium back-up Battery

Interface

RJ45, SIM Card Slot, TF Card Slot, USB 2.0

System support

Android, Debian, Ubuntu, Yocto

Operating Temperature

-10℃~60℃

Install

Ceiling, Flat
