DSGW-070 Smart Plug and Play Gateway Specification (BLE/ZigBee/Z-Wave to Wi-Fi)

DSGW-070 is an IoT plug and play gateway with interchangeable plug outlet function supporting US, UK, AU, EU. It can control Zigbee/BLE/Z-WAVE devices remotely, and can also be used as a Wi-Fi signal extender. Read further to know its model list, features, block diagram, mechanical designs, hardware performance parameters, connectivity, z-wave frequency band table, quality test info, and configuration guide.
Table of Contents
DSGW-070 Smart Plug and Play Gateway

DSGW-070 Smart Plug and Play Gateway Model List

Model Country Wi-Fi 2.4G Bluetooth 5.0 Zigbee 3.0 Z-Wave
DSGW-070-1-US US
DSGW-070-2-US
DSGW-070-3-US
DSGW-070-1-UK UK
DSGW-070-2-UK
DSGW-070-3-UK
DSGW-070-1-AU AU
DSGW-070-2-AU
DSGW-070-3-AU
DSGW-070-1-EU EU
DSGW-070-2-EU
DSGW-070-3-EU

DusunIoT provides powerful IoT Gateways that are very user-friendly and convenient for IoT developers at all stages, from Prototype to mass production. Using a standard product as a building block for a semi-custom solution reduces time-to-market and can cut development costs.

1. DSGW-070 Smart Plug and Play Gateway Introduction

1.1 Purpose& Description

It’s a Gateway with Wi-Fi, zigbee, BLE, Z-WAVE function . It can be plug and play. It can be used in various scenarios flexibly. It can control zigbee/BLE/Z-WAVE devices remotely, receives the data sent by the zigbee/BLE/Z-WAVE devices and sends it to servers. It can connect to internet via Wi-Fi. It can also be used as a Wi-Fi signalextender.

1.2 Product Feature Summary
  • Support 100-240V AC power supply
  • Support IEEE802.11ac, IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol;
  • Support Bluetooth 5.0;
  • Support zigbee 3.0;
  • Support the Z-WAVE
  • RoHS compliance(Lead-free)
  • FCC,CE compliance
  • OpenWrt OS

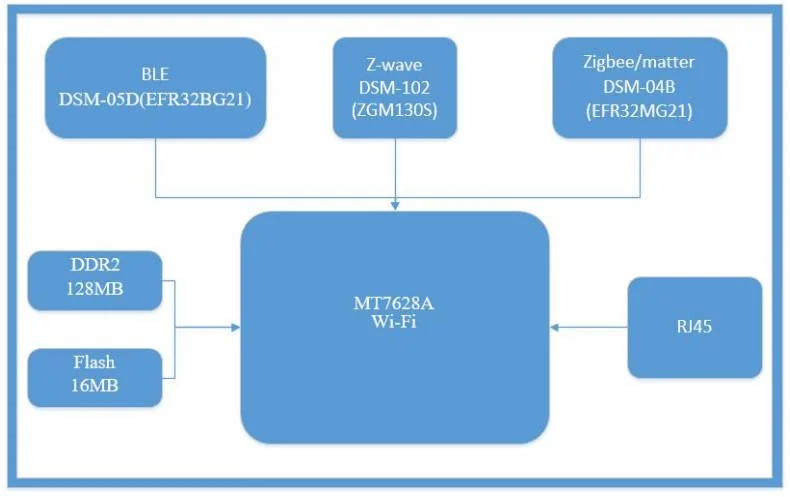

1.3 Hardware block diagram
dsgw 070 hardware block diagram

2. DSGW-070 Smart Plug and Play Gateway Mechanical Requirement

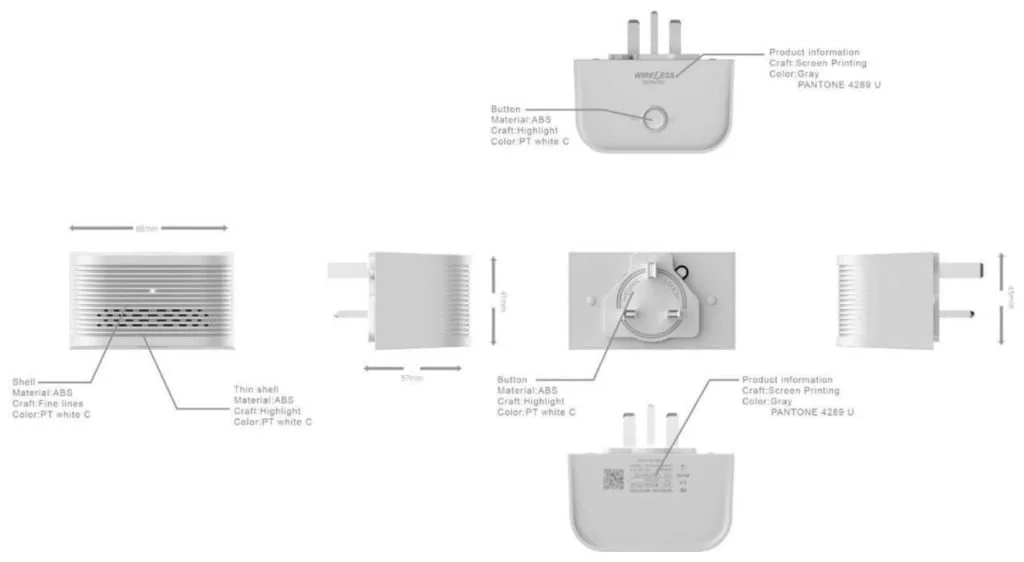

2.1 Drawings
dsgw 070 drawing

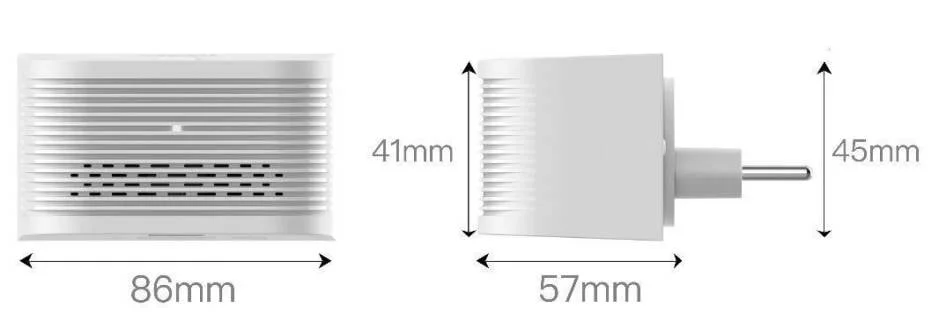

2.2 Product Size
dsgw 070 product size

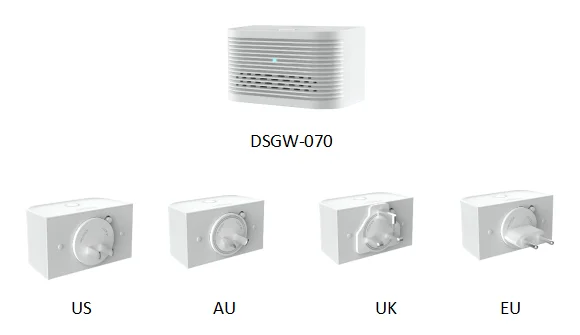

2.3 Plug accessories
Plug accessories EU
EU
Plug accessories US
US
Plug accessories UK
UK
Plug accessories AU
AU

3. DSGW-070 Smart Plug and Play Gateway Specifications

Technical Specification
Power Input:100V~240V AC/50~60HZ
Indicator LEDs Used for device status indication
Button The button use as a pair button or rest button
Operating Temperature -10℃~70℃
Performance Requirement
Wi-Fi Performance ●IEEE wireless LAN standard:
●IEEE802.11n; IEEE802.11g; IEEE 802.11b
●Data Rate:
IEEE 802.11b Standard Mode: 1,2,5.5,11Mbps
IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
●Sensitivity:
HT40 MCS7: -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7: -71dBm@10% PER(MCS7) /2.4GHz band
●Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
●Wireless Security: WPA/WPA2, WEP, TKIP, and AES
●Working mode : Bridge、Gateway、AP Client
●Range: 50 meters minimum, open field
●Transmit Power:17dBm
●Highest Transmission Rate: 300Mbps
●Frequency offset: +/- 50KHZ
●Frequency Range (MHz): 2412.0~2483.5
●Low Frequency (MHz): 2400
●High Frequency (MHz): 2483.5
●E.i.r.p (Equivalent Isotopically Radiated power) (mW) <100mW
●Bandwidth (MHz): 20MHz/40MHz
●Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
Zigbee3.0 Performance ●TX Power: 19.5dBm
●Range: 100 meters minimum, open filed
●Receiving Sensibility: -94dBm
●Frequency offset: +/-20KHZ
Bluetooth Performance ●Bluetooth Protocol: Bluetooth 5.0
●TX Power: 19.5dBm
●Range: 150 meters minimum, open filed
●Receiving Sensibility: [email protected]%BER
●Frequency offset: +/-20KHZ
Z-WAVE ●TX power: TX power up to 13dBm
●RX sensitivity: @100kbps -97.5dBm
●Range: 100 meters minimum, open filed
●Default Frequency: 916MHz (Different country with different frequency) Pls check the z-wave frequency band table (Table 0-1)
RF Factory Test Mode ●Setting the Board into the test mode, using the Iqexl-ws that can test the Wi-Fi, Zigbee.
●Please refer to the Dusun Test Specification for details.
Table 0-1 Z-WAVE frequency band table
COUNTRY/REGION STANDARD Z-WAVE FREQUENCY
Argentina FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Armenia ETSI EN 300 220 868.40MHz,869.85MHz
Australia AS/NZS 4268 919.80MHz,921.40MHz
Bahamas FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Barbados FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Bermuda FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Bolivia FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Brazil ANATEL Resolution 506 919.80MHz,921.40MHz
British Virgin Islands FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Canada FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Cayman Islands FCC CFR47 Part 15.249 908.40MHz,916.00MHz
CEPT* ETSI EN 300 220 868.40MHz,869.85MHz
Chile FCC CFR47 Part 15.249 919.80MHz,921.40MHz,921.42MHz
China CNAS/EN 300 220 868.40MHz
Colombia FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Costa Rica ARIB T96, ARIB STD-T108 922.50MHz,923.09MHz,926.30MHz
Ecuador FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Egypt ETSI EN 300 220 868.40MHz,869.85MHz
El Salvador AS/NZS 4268 919.80MHz,921.40MHz
EU EN 300 220 868.40MHz,869.85MHz
French Dep.of Guiana ETSI EN 300 220 868.40MHz,869.85MHz
Guatemala FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Haiti FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Honduras FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Hong Kong(China) HKTA 1035 919.80MHz
India CSR 564(E) 865.20MHz
Indonesia ETSI EN 300 220 868.40MHz,869.85MHz
Israel 916.00MHz
Jamaica FCC CFR47 Part 15.249 908.40MHz,916.00MHz
japan** ARIB STD-T108 922.50MHz,923.09MHz,926.30MHz
Jordan ETSI EN 300 220 868.40MHz,869.85MHz
Kazakhstan ETSI EN 300 220 868.40MHz,869.85MHz
Lebanon ETSI EN 300 220 868.40MHz,869.85MHz
Libya ETSI EN 300 220 868.40MHz,869.85MHz
Malaysia SKMM WTS SRD/ETSI 300 868.10MHz
Mauritius ETSI EN 300 220 868.40MHz,869.85MHz
Mexico FCC CFR47 Part 15.249 908.40MHz,916.00MHz
New Zealand AS/NZS 4268 921.40MHz,919.80MHz
Nicaragua FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Nigeria ETSI EN 300 220 868.40MHz,869.85MHz
Panama FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Paraguay AS/NZS 4268 919.80MHz,921.40MHz
Peru AS/NZS 4268 919.80MHz,921.40MHz
Qatar ETSI EN 300 220 868.40MHz,869.85MHz
Russian Federation GKRCh/ETSI 300 220 869.00MHz
Saudi Arabia ETSI EN 300 220 868.40MHz,869.85MHz
Singapore TS SRD/ETSI 300 220 868.40MHz,869.85MHz
South Africa ICASA/ETSI 300 220 868.40MHz,869.00MHz
Republic of Korea Clause 2, Article 58-2 of 920.90MHz,921.70MHz,923.10MHz
St Kitts & Nevis FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Suriname FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Taiwan(China) NCC/LP0002 922.50MHz,923.09MHz,926.30MHz
Trinidad & Tabago FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Turks & Caicos Islands FCC CFR47 Part 15.249 908.40MHz,916.00MHz
UAE ETSI EN 300 220 868.40MHz,869.85MHz
Uruguay AS/NZS 4268 919.80MHz,921.40MHz
USA FCC CFR47 Part 15.249 908.40MHz,916.00MHz
Yemen ETSI EN 300 220 868.40MHz,869.85MHz

4. DSGW-070 Smart Plug and Play Gateway Quality Requirements

Quality &Testing Information
Information Description Standard(Yes) custom(No)
ESD Testing Yes
RF Antenna Analysis Yes
Environmental Testing Yes
Reliability Testing Yes
Certification FCC,CE, Bluetooth certification, zigbee certification

5. DSGW-070 Smart Plug and Play Gateway Application

(1) Gateway collects information about Beacon nearby, including RSSI, MAC, etc., once per second.

(2) Gateway send the Beacon information through devices like smart Bluetooth gateway to Cloud via Wi-Fi or LTE once per second.

(3) Gateway support the TCP/IP, UDP protocol, and can support the MQTT, LWM2M protocol.

(4) Gateway support the zigbee3.0 devices protocol, and can connect to the zigbee devices.

(5) Gateway is with Wi-Fi repeater function, It can extend the Wi-Fisingle.

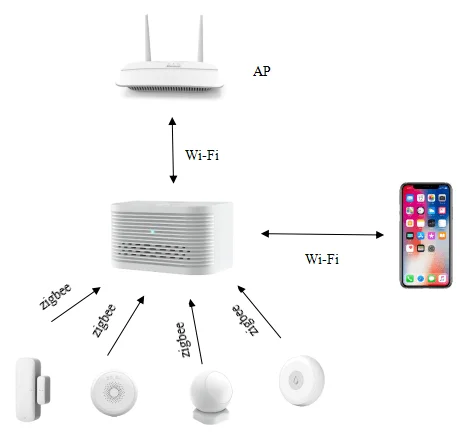

configuration of BLE/ZigBee/Z-Wave to Wi-Fi embeded gateway
