1. Product Description
1.1. Purpose and Description
The DSTA-B22041 AOA High Precision Positioning TAG is designed for exact location tracking. Encased in white ABS plastic, this device is highly portable and adaptable for various attachment methods, making it ideal for precise asset and material positioning.
1.2. Product Feature Summary
- Ultra-Long Battery Life: Utilizes a CR2032 battery, ensuring an extended operational life of 14-24 months with 1Hz.
- Robust Design: With an IP66 rating, the TAG is protected against harsh environmental conditions.
- Advanced Bluetooth: Supports Bluetooth BLE 5.3, maintaining backward compatibility with earlier versions for seamless integration.
- Versatile Mounting: Offers various mounting options including a 3M sticker, key holder, or ceiling mount for flexible installation.
2. Technical Specification
| Specification | Detail |
|---|---|
| Model | DSTA-B22029 |
| Antenna Type | PCB |
| Product Weight (g) | 3.5 (excluding battery) |

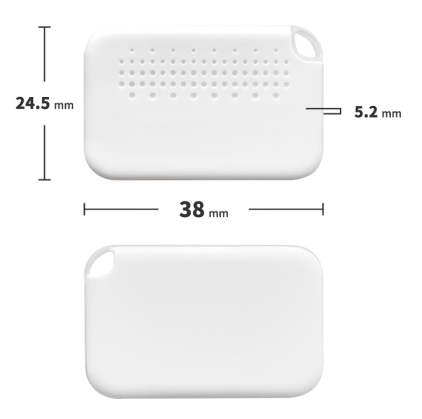

| Product Dimensions (mm) | 38 x 24.5 x 5.2 |
| Main Color | White |
| Shell Material | ABS |
| Battery Life | 14-24 Months @ 1Hz, working 8 hours per day |
| RF Channel | 2.4G Bluetooth |
| Main Frequency (GHz) | 2402 |
| Adjustable Transmit Power （dBm） | -6~+4 |
| Communication Distance (m) | Open Space: 50 |
| Protection Level | IP66 |
| Interaction | / |
| Bluetooth | BLE 5.3 (backward compatible with 5.0/4.2/4.0) |
