Smart Switch Specification

Dusun IoT offers ODM smart gateways and switches services. The WiFi/Bluetooth/Zigbee-enabled switches will be connected to the wireless smart gateway for automation control.
Table of Contents

Product Name: WiFi/Bluetooth/Zigbee Enabled Smart Switches

Model Name: DSW-010

Model Name: DSW-011

Model Name: DSW-012

smart switch 1
DSW-010
smart switch 2
DSW-011
smart switch 3
DSW-012

Connectivity Model List of Smart Switches

ModelWi-Fi 2.4GZigbee 3.0Bluetooth 5.0
DSW-010-1
DSW-010-2
DSW-010-3
DSW-011-1
DSW-011-2
DSW-011-3
DSW-012-1
DSW-012-2
DSW-012-3

1. Introduction of WiFi/Bluetooth/Zigbee Enabled Smart Switches

1. Introduction

The smart wall switch is WiFi/Bluetooth/Zigbee enabled, which the user can remotely control the opening and closing of the switch by connecting to a smart gateway.

This wireless smart switch has the advantages of the simple operation, high stability, strong anti-interference ability, and low power loss. After the interior is arranged, the status of all the lights in the room will be displayed on each switch.

1.2 Product Feature Summary
  • Easy to Install
  • High reliability
  • Supporting timing control: Set the time to automatically on/off

2. Mechanical Requirement of WiFi/Bluetooth/Zigbee Enabled Smart Switches

2.1 Drawings

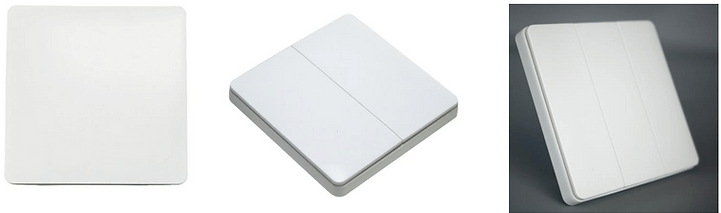

smart switch 4
2.2 Exploded drawing
smart switch 5

3. Specifications of WiFi/Bluetooth/Zigbee Enabled Smart Switches

Technical Specification
Operation temperature-10~ +50°C
Operation humidity5%-95%RH
Housing material(V0 grade flame retardant PC)
Wireless ProtocolWi-Fi or zigbee3.0 or Bluetooth
Switch classGB/T 15092.1
Socket classGB/T 2099.1,GB/T 1002 15092.1-2010
CertificationCE/FCC
Bluetooth-Performance●TX Power: 19.5dBm
●Bluetooth: 19.5dBm
●Range: 150 meters minimum, open filed
●Receiving Sensibility: [email protected]%BER
●Frequency offset: +/-20KHZ
●Frequency Range (MHz):2401.0~2483.5
●Low Frequency (MHz):2400
●High Frequency (MHz):2483.5
●E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
●Bandwidth (MHz):2MHz
●Modulation: GFSK
Wi-Fi Performance●IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
●Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 MbpsIEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
●Sensitivity:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
●Wireless Security: WPA/WPA2, WEP, TKIP, and AES
●Working mode : Bridge、Gateway、AP Client
●Range: 50 meters minimum, open field
●Transmit Power:17dBm
●Highest Transmission Rate: 300Mbps
●Frequency offset: +/- 50KHZ
●Frequency Range (MHz): 2412.0~2483.5
●Low Frequency (MHz):2400
Zigbee Performance●TX Power: 17.5dBm
●Range: 100 meters minimum, open filed
●Receiving Sensibility:-94dBm
●Frequency offset: +/-20KHZ
●Frequency Range (MHz):2401.0~2483.5
●Low Frequency (MHz):2400
●High Frequency (MHz):2483.5
●E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
●Bandwidth (MHz):5MHz
●Modulation: OQPSK
Indicator light status descriptionFlashing: The device enters the search network status
Slow flash: Device networking
Constantly bright: The device is connected to the network and lights up

4. Installation of WiFi/Bluetooth/Zigbee Enabled Smart Switches

4.1 Installation method
  • Use the tool to open the button/panel.
  • Strip the wire insulation layer about 10-12 mm.
  • Insert the wire into the hole of the base post and make sure it is inserted all the way, then tighten the wire with a flat or Phillips screwdriver to complete the connection.
  • Use a fixed screwdriver to tighten the mounting bracket to the cassette, then press the button to complete the installation.
  • This product should be installed and commissioned by qualified professionals in accordance with the electrical specifications and product specifications.

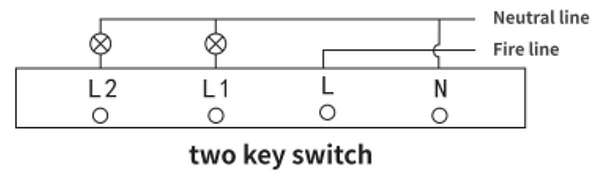

4.2 Installation wiring diagram
smart switch 6

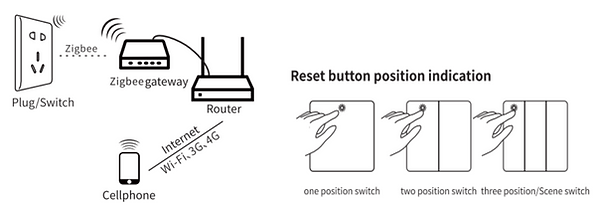

4.3 Device networking
smart switch 7

Network access: button reset button for 5 times(within 4 seconds), the flashing device enters the distribution mode, the indicator flashes for 40 seconds and then goes out. After 40 seconds, the indicator is off and the device is successfully connected to the network.

Exit the net: The button reset button is pressed 5 times (within 4 seconds) to enter the exit mode.

* The pairing operation between smart home gateway and smart system must refer to the gateway manual.
