DSGW-210B LoRaWAN to Ethernet/Wi-Fi Gateway Specification

DSGW-210B the things network indoor LoRaWAN gateway features built-in Ethernet port and default Wi-Fi AP mode, suitable for The Things Network and industrial uses. Read further to know its hardware model list and applicable regions, feature summary, block diagram, mechanical design, antenna dimension and package list.
Table of Contents
9

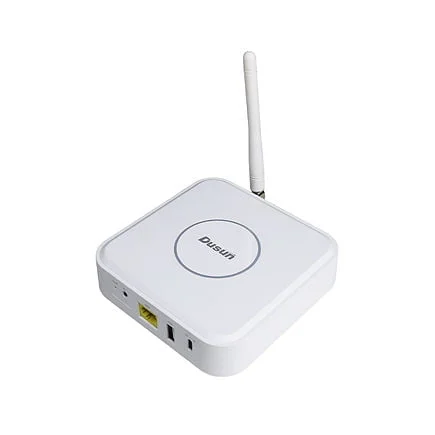

Product Name: Indoor LoRaWAN Gateway

Product Model: DSGW-210B

Hardware List
Model Hardware Software
·LoRaWAN ·BLE ·Wi-Fi ·GPS NS Embeds NS Cloud
DDR eMMC LTE TTN ChirpStack Helium ChirpStack AWS IoT Core for LoRaWAN LORIOT The Things Stack
DSGW-210-F-31-LoRaWAN-Embedded 2GB 32GB
DSGW-210-F-32-LoRaWAN-Embedded 2GB 32GB
DSGW-210B 2GB 32GB
DSGW-210-C-31-LoRaWAN-Cloud 1GB 16GB
DSGW-210-C-32-LoRaWAN-Cloud 1GB 16GB
Region List
Type Region Frequency(MHZ)
-CN China CN470
-EU Europe EU868
-US North America US915
-AS Asia AS923
-AU Australia AU915
-KR Korea KR920
-IN India IN865
-RU Russia RU864

1. Introduction of DSGW-210B LoRaWAN to Ethernet/Wi-Fi Gateway

1.1. Purpose& Description

The DSGW-210B is a full 8-channel Indoor Gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup. Additionally, an onboard Wi-Fi setup (supporting 2.4 GHz/5GHz Wi-Fi) allows it to be easily configured via the default Wi-Fi AP mode. With its industrial-grade components, this LoRaWAN gateway achieves a high standard of reliability.

1.2. Product Feature

  • Support 5V/3A adapter power supply
  • CPU: Quad-core Cortex A53
  • 2GB on-board RAM
  • 32GB eMMC
  • Base on the LoRa Concentrator Engine: Semtech SX1302
  • TX power up to 27dBm, RX sensitivity down to -139dBm @SF12, BW125kHz
  • LoRa Frequency band support: RU864, IN865, EU868, US915, AU915, KR920, AS923, CN470
  • Support Wi-Fi 2.4G IEEE 802.11b/g/n, BLE5.0
  • Support GPS,GLONASS,Galileo and QZSS
  • Support OTA
  • One WAN/LAN variable network port
  • RoHS/WEEE compliance(Lead-free)
  • Certification FCC,CE, IC, FAC, WPC, KC, NTC, RCM, SRRC

1.3. Hardware Block Diagram

8f066088d71f1508dd0ef4f22e2d118

2. Mechanical Design of DSGW-210B LoRaWAN to Ethernet/Wi-Fi Gateway

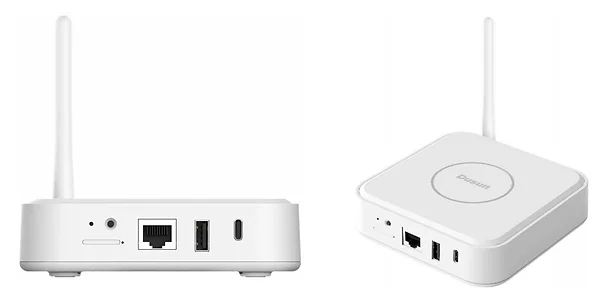

2.1. Drawing

277be35943b7b0d7da4e1c276f2aa73

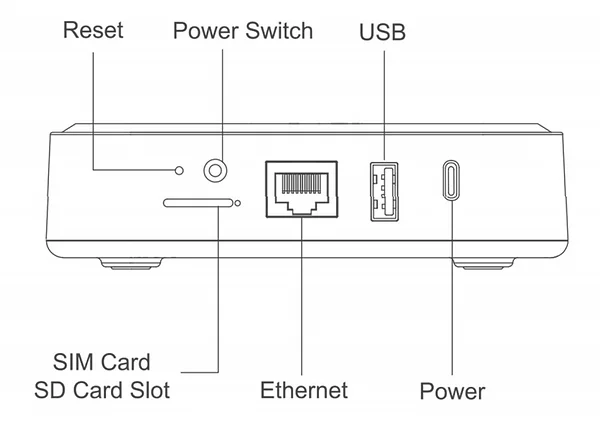

2.2. Interface

06672d5979e26ab512369853dfc6a05

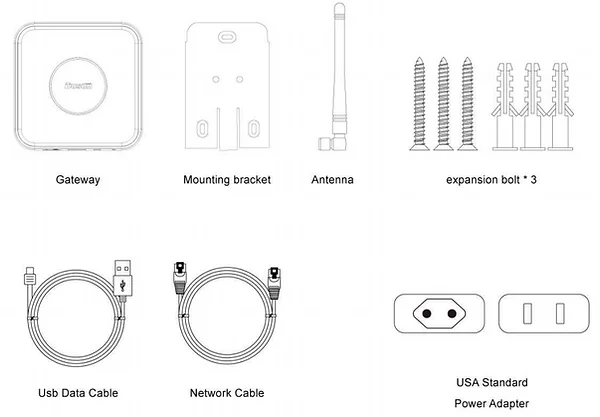

2.3. Package Content

Product List Number
Smart Gateway 1
Network Cable 1
USB Power Cable 1
Power adapter(EU or US) 1
Mounting Bracket 1
Expansion Screw 1
Antenna 1
7da2496905e8a91fd842d9ec68bcfa2

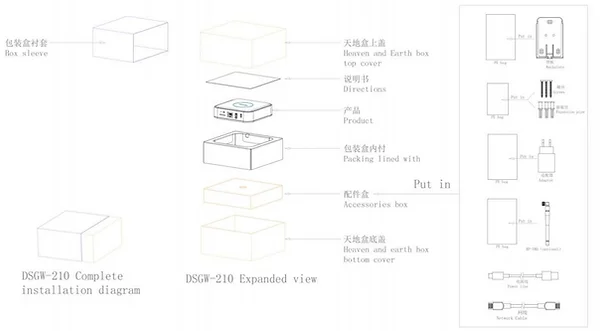

2.4. Package

93400ebea48037f14f16cf142846961

3. Specifications of DSGW-210B LoRaWAN to Ethernet/Wi-Fi Gateway

3.1. Hardware Information

Item Technical Specification
CPU Quad-core Cortex-A53
RAM 2GB
ROM eMMC 32GB
System Linux
Security module ATECC608
Power Supply Port 5V/3A
Reset button Reset the gateway into factory mode
Network Interface RJ45
Operating Temperature -10℃~55℃
Storage Temperature -10℃~65℃
Dimmension(L*W*H ) 120MM*120MM*30MM

3.2. Performance Requirement

Wi-Fi Performance • IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
• Sensitivity:
HT40 MCS7 : -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band
• Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
• Wireless Security: WPA/WPA2, WEP, TKIP, and AES
• Working mode : Bridge、Gateway、AP Client
• Range: 50 meters minimum, open field
• Transmit Power:17dBm
• Highest Transmission Rate: 300Mbps
• Frequency offset: +/- 50KHZ
• Frequency Range (MHz): 2412.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
• Bandwidth (MHz):20MHz/40MHz
• Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
BLE Performance • TX Power: 10dBm
• Range: 150 meters minimum, open filed
• Receiving Sensibility: [email protected]%BER
• Frequency offset: +/-20KHZ
• Frequency Range (MHz):2401.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
• Bandwidth (MHz):2MHz
• Modulation: GFSK
Zigbee Performance • Range: 100 meters minimum, open field
• Transmit Power:17.5dBm
• Highest Transmission Rate: 300Mbps
• Frequency offset: +/- 20KHZ
• Receiving Sensibility:-94dBm
• Frequency Range (MHz):2401.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
• Bandwidth (MHz):5MHz
• Modulation: OQPSK
LoRa Performance • Supports class A, C
• Frequency band support: RU864, IN865, EU868, US915, AU915,
KR920, AS923
• TX power up to 27dBm, RX sensitivity down to -139dBm @SF12,
BW125kHz
GPS GPS,GLONASS, Galileo and QZSS
Ethernet WAN/LAN port:10M/100Mbps

4. Antenna Specification of DSGW-210B LoRaWAN to Ethernet/Wi-Fi Gateway

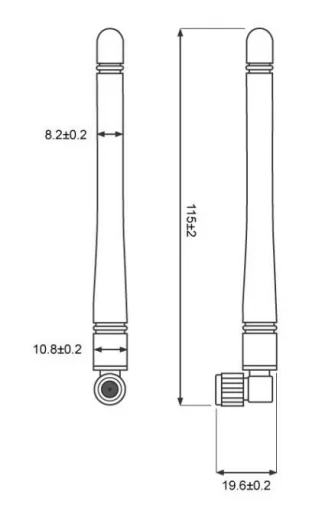

4.1 Antenna Dimension

473874c8bf1955df2a4851d434e78f0

4.2 Antenna Parameter

Frequency (MHZ) Gain (dBi) Efficiency (%)
868 1.81 66.45
878 0.93 51.98
888 1.62 59.13
898 1.36 57.05
908 1.9 64.32
915 2.44 72.67
