DSGW-210N Edge Computing Smart Gateway

The DSGW-210N is an IoT gateway with multiple protocols and edge computing functionality. It supports Total Control powerful tool for projecting the screen of multiple devices to the PC that connect with DSGW-210N (must running Android OS). Read its model list, feature summary, block diagram, mechanical design, hardware specification, connectivity performance, and tutorials on working with Total Control.
Table of Contents
Model List
ModelHardwareSoftware
DDReMMCLTERJ45Wi-FiBluetoothAndroidLinux
DSGW-210N-11GB8GB
DSGW-210N-21GB8GB

1. Product Description of DSGW-210N Edge Computing Smart Gateway

1.1. Purpose and Description

The DSGW-210N is an IoT gateway with multiple protocols and edge computing functionality. It provides reliable connectivity for a wide range of wireless IoT devices. The edge computing gateway features a variety of interfaces, including USB Type-C, USB 2.0, and RJ45, and supports wireless protocols such as Bluetooth and Wi-Fi.

As a smart Bluetooth gateway product, in addition to supporting the Blue-Z Stack, it also features a highly integrated wireless Wi-Fi module and LTE module. Users can add devices, reset devices, implement third-party control, and manage Bluetooth group control for smart homes and other applications that require Bluetooth-connected devices.

1.2. Product Feature Summary

  • High Performance Processor- Quad-core Cortex A53
  • Support 5V USB type-c power supply
  • Support IEEE802.11ac, IEEE802.11a, IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol
  • Support USB2.0
  • Support RTC
  • Support Cellular network LTE Cat.4

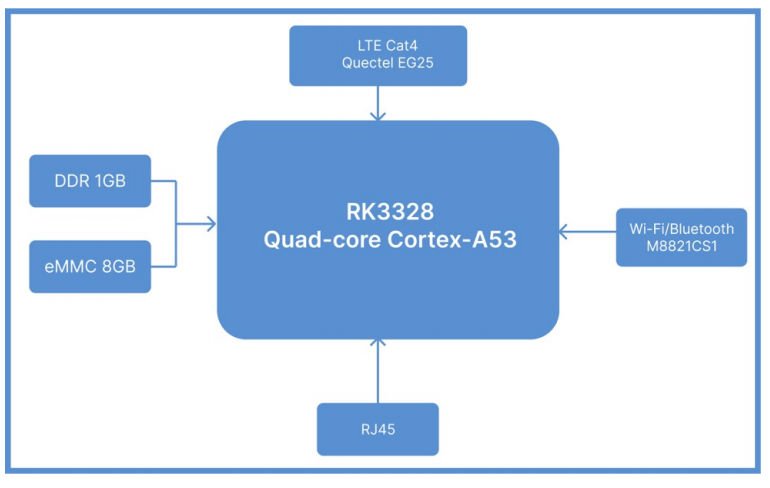

1.3. Hardware Block Diagram

dsgw 210n hardware block diagrams

2. Mechanical Requirement of of DSGW-210N Edge Computing Smart Gateway

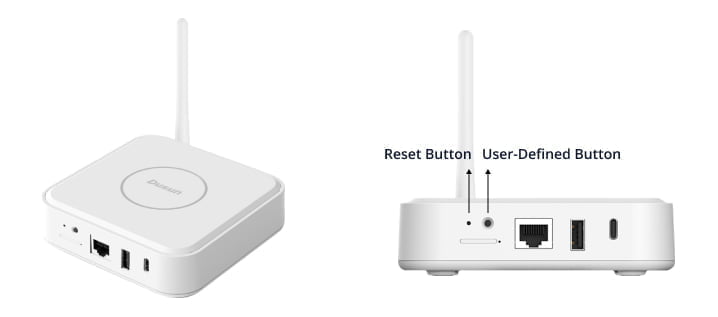

2.1. Drawings

dsgw 210n drawings

3. Specification of of DSGW-210N Edge Computing Smart Gateway

3.1. Technical Specification

CategorySpecifications
CPUQuad-core Cortex A53
SystemLinux/Android
Bluetooth StackBlue-Z
RAM1GB
eMMC8GB
Power SupplyUSB Type-C 5V/3A
Reset buttonThe reset button is a hole button, After pressing the reset button for more than 5 seconds, the Locator will be restored to the factory settings
User-Defined ButtonSupport
Network InterfaceWAN/LAN Variable
USBUSB 2.0, OTG
Indicator LEDs(RGB)1) Power & battery LED
2) Wireless LED
3)LTE indicator
Wireless protocolZigbee, BLE ,Wi-Fi, LTE
RTCSupport
Installation methodFlat, Ceiling, DIN
Hardware encryptionECC608
Operating Temperature-10℃~45℃
Storage Temperature-10℃~65℃
Operating humidity10%~90%
IP ratingIP22
CoolingHeat dissipation silicone/aluminum
Current500mA@5V
Performance Requirement
Wi-Fi Performance●IEEE Wireless LAN standard: IEEE802.11n; IEEE802.11g; IEEE802.11b
●Data Rate:
IEEE 802.11b Standard Mode: 1,2,5.5,11Mbps
IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n:
MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
MCS0~MCS9 @ HT40/ 5GHz band
IEEE 802.11ac: MCS0~MCS9 @ VHT80/ 5GHz band
●Sensitivity:
VHT80 MCS9: -60dBm@10% PER(MCS9) /5GHz band
HT40 MCS9: -63dBm@10% PER(MCS9) /5GHz band
HT40 MCS7: -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7: -71dBm@10% PER(MCS7) /2.4GHz band
●Transmit Power:
IEEE 802.11ac: 13dBm @HT80 MCS9 /5GHz band
IEEE 802.11ac: 16dBm @HT80 MCS0 /5GHz band
IEEE 802.11n: 14dBm @HT20/40 MCS7 /5GHz band
IEEE 802.11n: 16dBm @HT20/40 MCS0 /5GHz band
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHzband
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm@11MHz
●Wireless Security: WPA/WPA2, WEP, TKIP, and AES
●Working mode: Bridge, Gateway, AP Client
●Range: 50 meters minimum, open field
●Transmit Power: 17dBm
●Highest Transmission Rate: 300Mbps
●Frequency offset: +/- 50KHZ
●Frequency Range (MHz): 2412.0~2483.5
●Low Frequency (MHz): 2400
●High Frequency (MHz): 2483.5
●E.i.r.p (Equivalent Isotopically Radiated power) (mW) <100mW
●Bandwidth (MHz): 20MHz/40MHz
●Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
Bluetooth Performance●TX Power: 19.5dBm
●Range: 150 meters minimum, open filed
●Receiving Sensibility: [email protected]%BER
●Frequency offset: +/-20KHZ
●Frequency Range (MHz): 2401.0~2483.5
●Low Frequency (MHz): 2400
●High Frequency (MHz): 2483.5
●E.i.r.p (Equivalent Isotopically Radiated power) (mW) <10mW
●Bandwidth (MHz): 2MHz
●Modulation: GFSK
LTE CAT4●4G FDD-LTE B1/ B3/ B7/ B8/ B20 (2100/ 1800/ 2600/ 900/ 800MHz)
●TDD-LTE B38/ B39/ B40/ B41 (2600/ 1900/ 2300/ 2500MHz)
●3G: DC-HSPA+/ HSPA+/ HSPA/ UMTS B1/ B8 (2100/ 900MHz)
WAN/LAN10/100M bps

4. DSGW-210N Gateway Working with Total Control (For Android Version)

Total Control is a powerful tool for projecting the screen of multiple DSGW-210N(MUST running Android OS) devices to the PC. The following section will guide you on how to install Total Control on your PC and create a connection with our gateway device:

4.1. Download Total Control for PC

Visit the official website of Total Control (http://www.total-control.org/) and download the Total Control software for your PC. Choose the correct version for your operating system (Windows or macOS).

4.2. Install Total Control on your PC

Locate the downloaded installer file on your PC and double-click it to start the installation process. Follow the on-screen instructions to complete the installation.

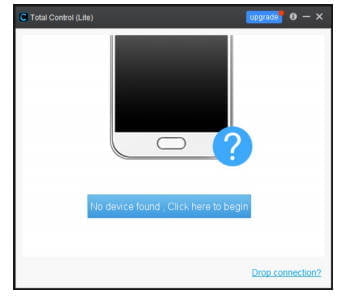

4.3. Connect your Android device to your PC

  • Connect the Gateway device to your PC using a USB cable.
  • Launch Total Control on your PC.
  • Open Total Control on your PC, and it should automatically detect your connected Android device. If prompted, allow USB debugging on your Android device by tapping “Allow” or “OK” on the popup.
dsgw 210n connect android device to pc

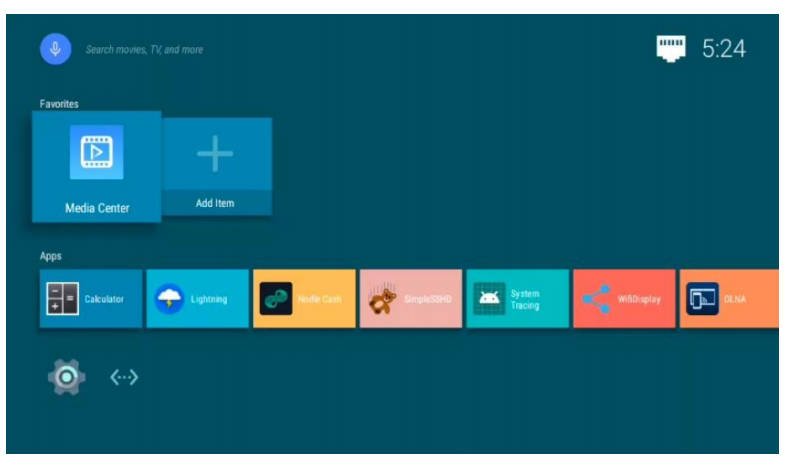

4.4. Log in to the Android11 Screen

dsgw 210n log in

4.5. Start Configuration Devices

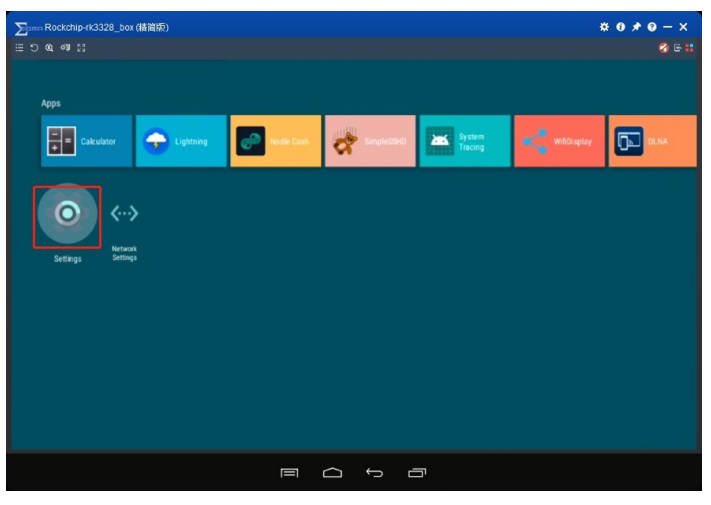

4.5.1 Open Configuration
dsgw 210n open configuration

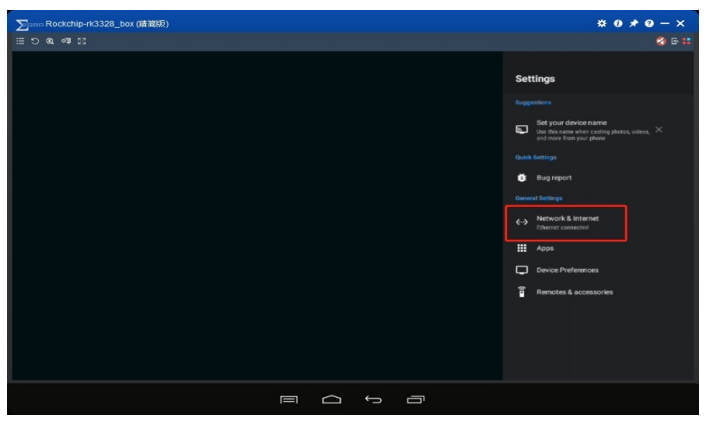

4.5.2 Network Internet
dsgw 210n network internet

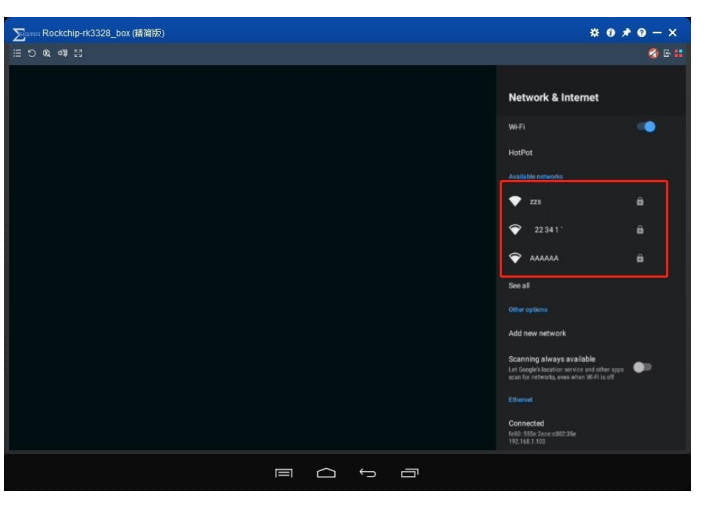

4.5.3 Connect Network
dsgw 210n connect network
4.5.4 LTE

Plugin Sim Card,LTE will autodial

4.5.5 Bluetooth

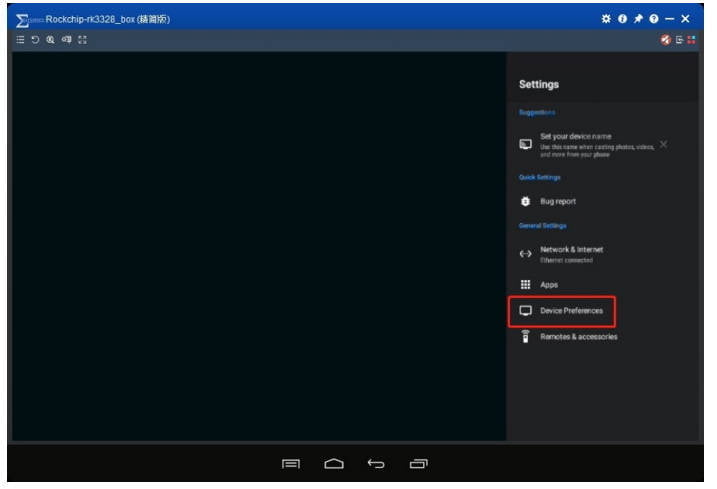

1. Click Device Preferences

dsgw 210n device preferences

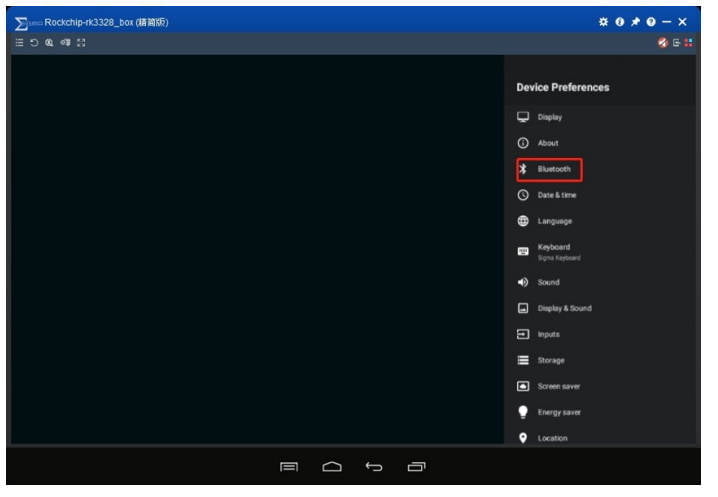

2. Select Bluetooth

dsgw 210n bluetooth

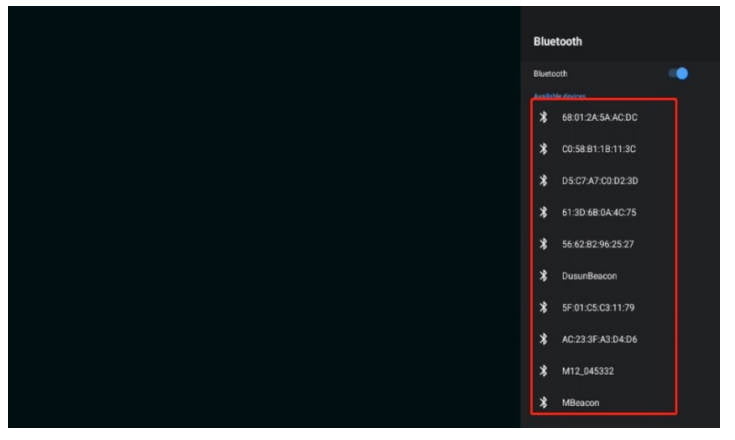

3. Click on the device you want to connect to

dsgw 210n click on device connect
