DSM-060 LoRa Gateway Module

Table of Contents

1. Introduction of DSM-060 LoRa Module

1.1 Purpose& Description

DSM-060 LoRa gateway module is specially developed for low- power LPWAN applications, and can be applied to LoRa or LoRaWAN networks on CN470/EU868/AS923/KR920/IN865/RU864/US915/AU915 frequency band.

This new-generation SX1302 module has a unique 64-bit ID and significantly reduces power consumption and simplifies heat dissipation design. Unlike previous generations of LoRa wireless module, SX1302 LoRa module embeds the capability to SF5 and SF6, which can better handle high-speed data. In addition, a new high-precision temperature sensor is added for real-time temperature monitoring and parameter calibration. Furthermore, it supports the LBT. This module has excellent performance in demodulation capability and power consumption. It is suitable for various Internet-of-Things (IoT) applications.

1.2 Key Features

● 125kHz LoRa Receiver
8 × 8 Channels LoRa® packet detectors
8 × SF5-SF12 LoRa® demodulators
8 × SF5-SF10 LoRa® demodulators
● mini-PCIE interface (LoRa Mini-PCIE Module)
SPI×1(for SX1302 and SX1262)
● RF interface IPEX

1.3 Application
  • Electricity/water/gas/heat meter
  • Street lights
  • Trash can
  • Vehicle sensor, ground lock
  • Personnel/asset positioning
  • Smart agriculture and animal husbandry
  • Warehousing
  • Smart Medical
  • Smart Factory
  • Smart home
  • Wearable devices

2. Mechanical Requirement of LoRa Module

2.1 Drawings

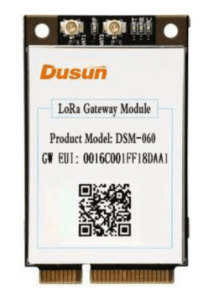

DSM 060 1

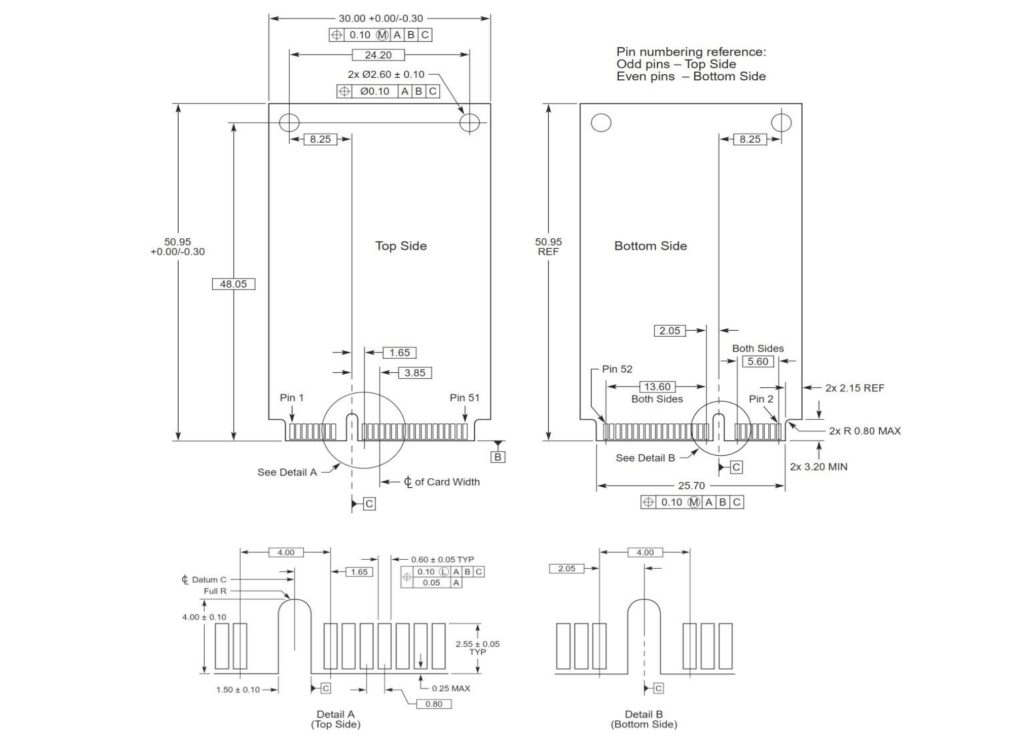

2.2 Package Outline Drawing

Unit : m

Package: mini PCIe

DSM 060 2
2.3 Pin Definition
NO. Name Function
1 NC NC
2 NC NC
3 NC NC
4 GND Power Ground
5 NC NC
6 GPIO[9] GPIO[9] of SX162
7 NC NC
8 NC NC
9 GND Power Ground
10 NC NC
11 NC NC
12 NC NC
13 NC NC
14 NC NC
15 GND Power Ground
16 Power_EN Enable of Power
17 SCK SCK of SX1262 and SX1302
18 GND Power Ground
19 MISO MISO of SX1262 and SX1302
20 NC NC

3. Basic parameters of LoRa Module

3.1 RF parameters
Part number Working frequency Description
DSM-060-2K730NE0 RX: 470-510MHz/TX: 470-510MHz Customizable hardware(470-510MHz)
DSM-060-2K830NE0 RX: 863-870MHz/TX: 863-870MHz
DSM-060C-2K930NE0 RX: 902-928MHz/TX: 902-928MHz
Part number Sensitivity Description
DSM-060-2K730NE0 -127dBm@470MHz~510MHz
DSM-060-2K830NE0 -125dBm@863MHz~870MHz
DSM-060C-2K930NE0 -126dBm@902MHz~928MHz
Part number Power Description
Min Typical Max DSM-060-2K730NE0
DSM-060-2K730NE0 20 21 22 Configurable
DSM-060-2K830NE0 25 26 27 Configurable
DSM-060C-2K930NE0 25 26 27 Configurable
Part number Frequency accuracy Description
DSM-060-2K730NE0 2.5PPM@-40℃~+85℃
DSM-060-2K830NE0 2.5PPM@-40℃~+85℃
DSM-060C-2K930NE0 2.5PPM@-40℃~+85℃
3.2 Power characteristics
Part number Operating voltage Description
DSM-060-2K730NE0 3.0V-3.6V, Typical 3.3V@25℃
DSM-060-2K830NE0 3.0V-3.6V, Typical 3.3V@25℃
DSM-060C-2K930NE0 3.0V-3.6V, Typical 3.3V@25℃
3.3 Environmental characteristics
Item Parameter
Working temperature -40℃~+85℃
Storage temperature -40℃~+125℃

4. Hardware Features of LoRa Module

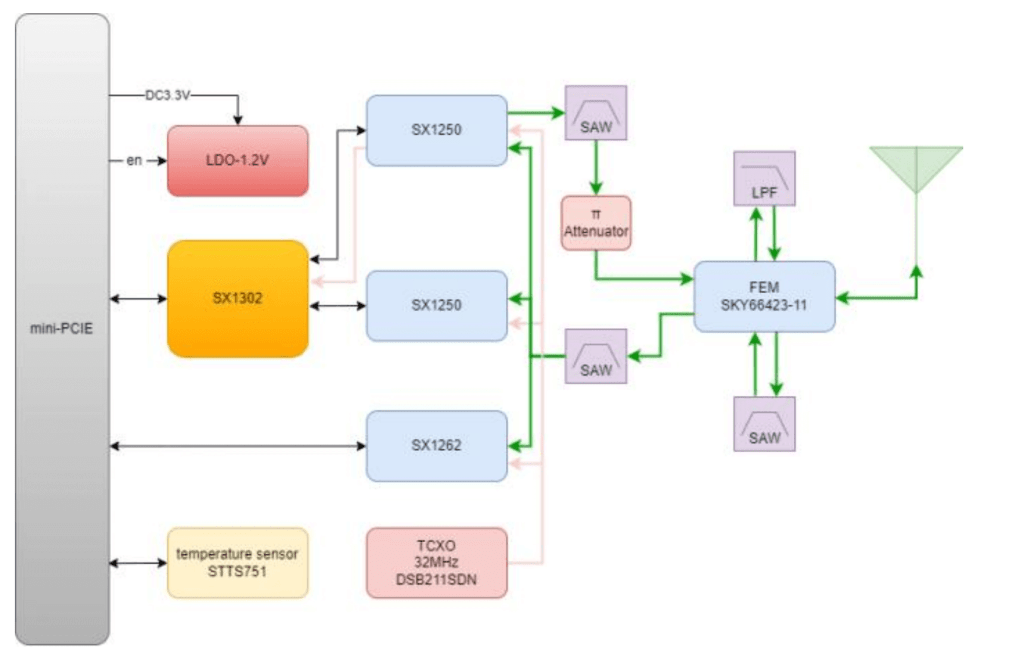

4.1 Hardware diagram
DSM 060 3

LoRa Module Comparison

1. The SX1262 is used to achieve LBT (listen before talk) functions and solve the problem as below:

● Inability to enter the country’s market due to strict access regulations

● Data loss due to packet conflicts in the network

2. The SX1302 is the Lora baseband chip for data transmission;

3. The SX1250 is the muti-band RF front End IC;

4. The STTS751 is the temperature sensor for the module temperature detection.

5. Software Feature of LoRa Module

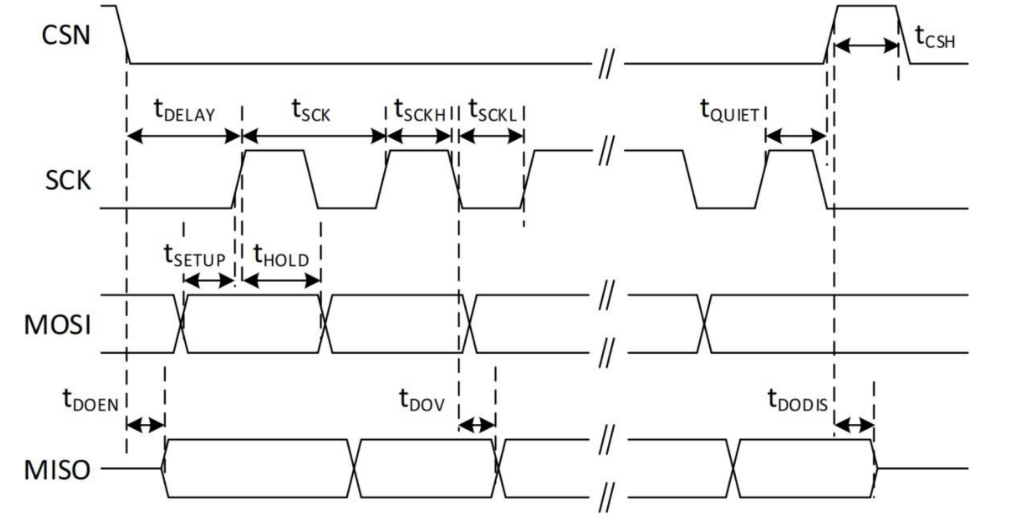

5.1 SPI interface
DSM 060 4

6. LoRa Module Design Reference

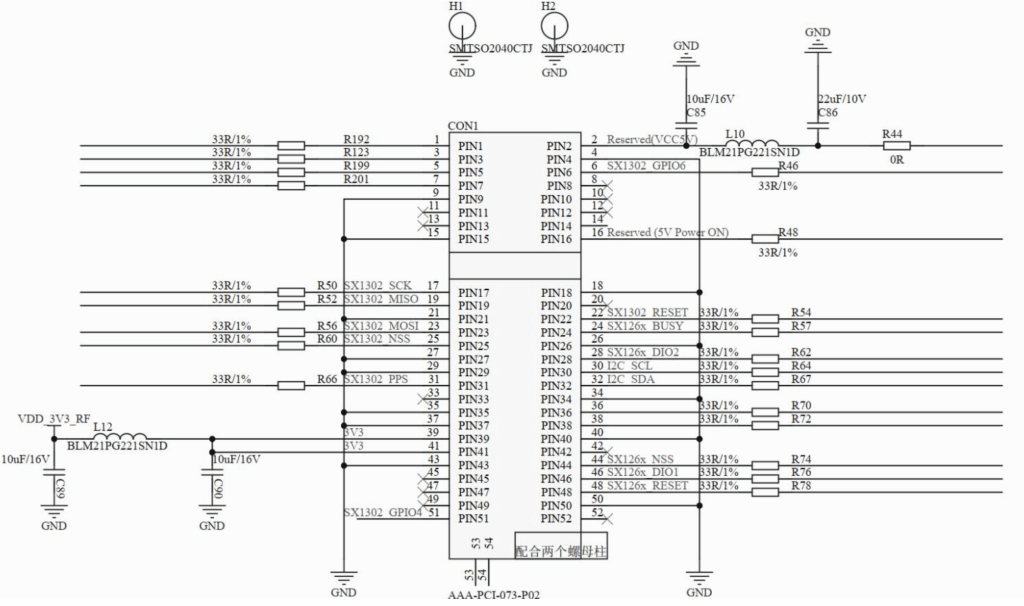

6.1 Typical Application Circuits
DSM 060 5
