1. Product Description
1.1. Purpose and Description
The Smart Valve Controller, designed to help prevent small leaks from becoming major problems, can be easily installed on existing ball valves to enable remote control of your water or gas lines. This device, working in conjunction with the Smart Gateway, allows you to monitor and control your valves directly from your mobile phone. You can set schedules to efficiently manage consumption and automatically close or open valves as needed.
The Smart Valve Controller is an ideal product for intelligent home safety and automatic control of agriculture and forestry irrigation.
1.2. Product Feature Summary
- Supports Zigbee 3.0
- Mobile app timing switch / remote control (compatible with Tuya app)
- Easy installation; no plumbing required
- Timing control: Set times to automatically open or close the valve
- Compatible with multiple valve specifications (1/4, 1/2, 1 inch)
2. Mechanical Requirement
2.1. Drawing

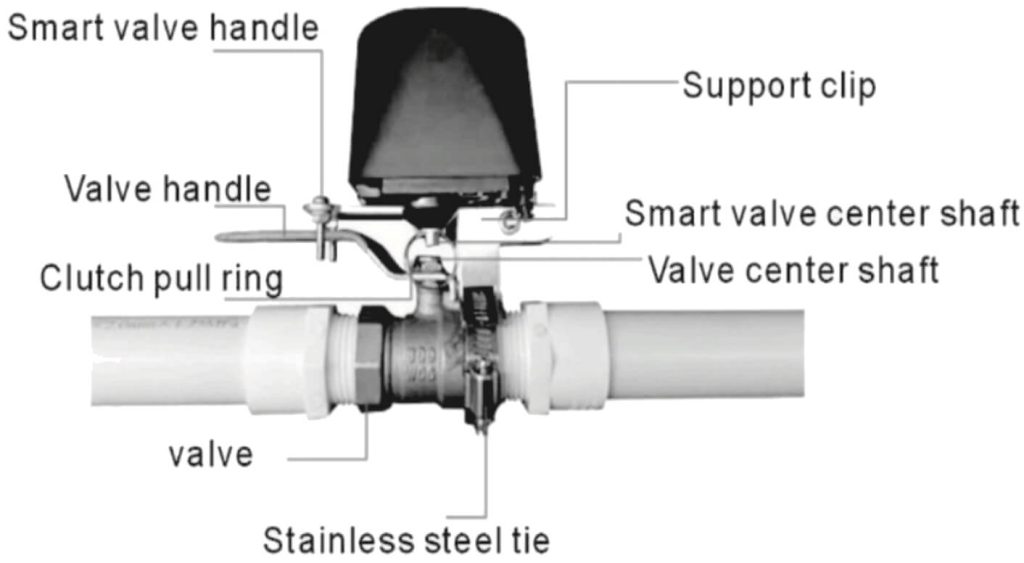

2.2. Installation Diagram
3. Specification
3.1. Technical Specification
| Item | Parameter |
|---|---|
| Power supply | 12V/1A |
| Protocol | Zigbee 3.0 |
| Communication frequency | 2.405GHz — 2.480GHz |
| Wireless range | 60-80M |
| Value Pressure | 1.6 Mpa |
| Close time | 5~8 seconds |
| Open time | 5~8 seconds |
| Value size | 4, 6, 1 inch |
| Torque | 60-70kg.cm |
| Certification | CE, FCC |

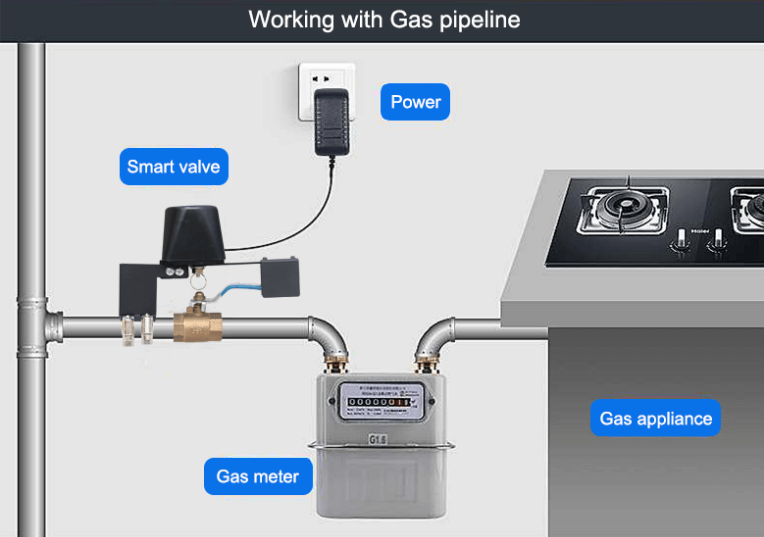

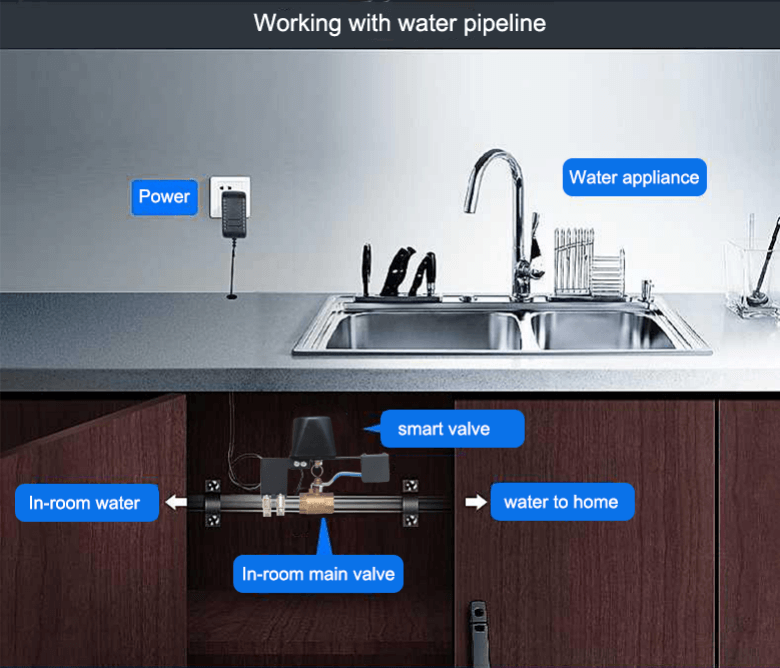

4. Application
