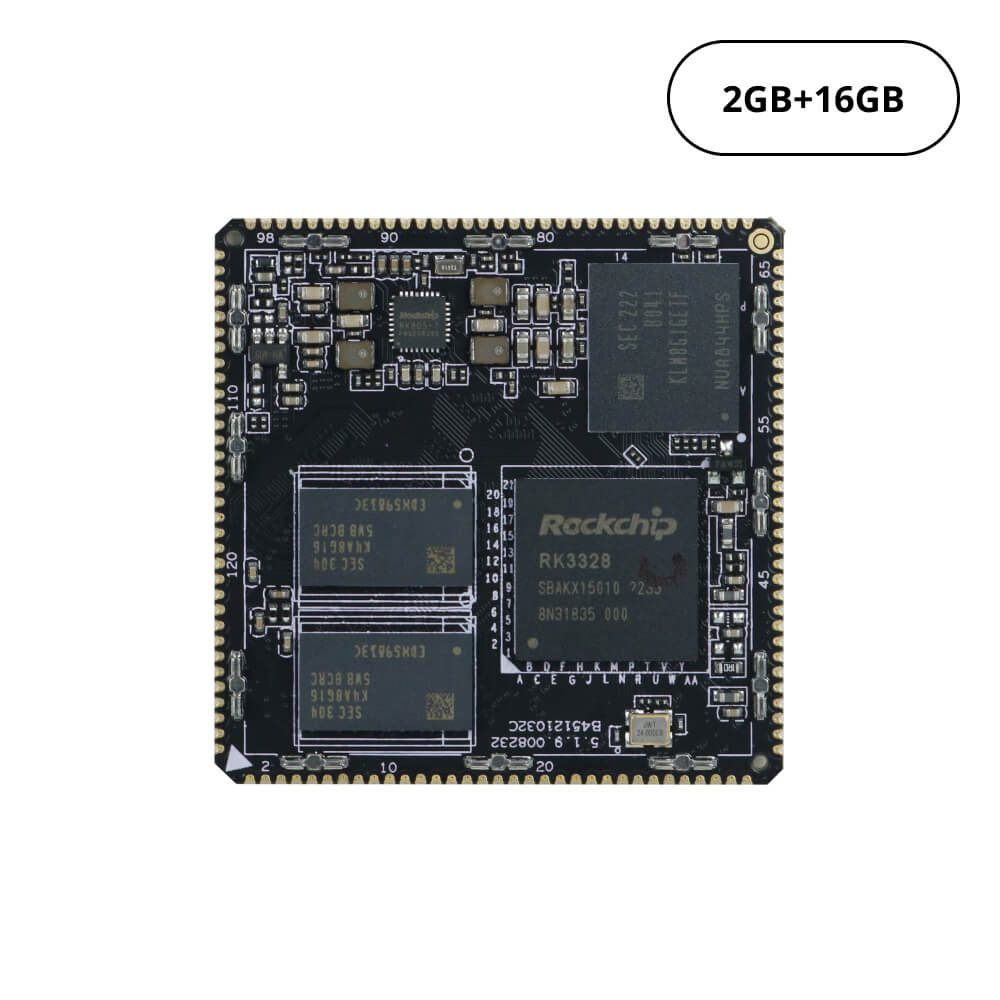

Quick View of DSOM-010R-M RK3328 SoM (2GB RAM &16GB eMMC)
DSOM-010R-M RK3328 SoM with 2GB of RAM and 16GB eMMC storage, well-suited for various projects, offering a balance of memory and storage for seamless operation.
It is powered by a Quad-Core ARM Cortex-A35 processor running at up to 1.5GHz and a Mali-450MP2 GPU supporting OpenGL ES1.1/2.0, offering exceptional processing capabilities. Its advanced VPU supports 4K video decoding and 1080P multi-format video decoding, and built-in CVBS and HDMI, ensuring top-notch multimedia performance.
DSOM-010R-M has been used to develope a Zigbee hub. If you are interested, welcome to explore it.
Hardware Structure of DSOM-010R-M RK3328 SoM (2GB RAM &16GB eMMC)
Main Chip Block Diagram
Core Board Block Diagram
Dimensions of DSOM-010R-M RK3328 SoM (2GB RAM &16GB eMMC)
Parameters of DSOM-010R-M RK3328 SoM (2GB RAM &16GB eMMC)
| CPU | Quad-Core ARM® Cortex-A53 64-bit processor, Frequency up to 1.5GHz |
| GPU | ARM Mali-450 MP2 Quad-Core GPU Support OpenGL ES1.1/2.0, OpenVG1.1 Frequency up to 500 MHz |
| VPU | Support 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265) 1080P video coding, support H.264/H.265 Video postprocessor: de-interlacing, denoising, edge/detail/color optimization |
| RAM | 2GB |
| Storage | eMMC 16GB |
| Power Management | RK805-1 |
| Operating Voltage | Typical voltage 5V/2A |
| OS | Android, Debian |
| Temperature | Operating Temperature: 0 °C ~80 °C |
| Storage Temperature: -40 °C ~85 °C | |
| Humidity | 10~95% (Non-condensing) |
| Barometric Pressure | 76Kpa ~106Kpa |
| Size | 44mm x 44mm x 3.0mm |
Use Cases of DSOM-010R-M RK3328 SoM (2GB RAM &16GB eMMC)
IoT gateways
Robotics
Facial recognition devices
Smart display terminals
Video terminals
Developer Resources of DSOM-010R-M RK3328 SoM (2GB RAM &16GB eMMC)
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | DSOM-010R Smart Programmable Module SDK Quick Start Guide v1.1.pdf | V 1.1 |
| [Hardware Quickstart] | RK3328 datasheet & TRM | |
| [SDK] | DSOM-010R_sdk-debian_AV1.0.0.tar.gz | V 1.0.0 |
| [Firmware] | DSOM-010R-RK3328_Debian-img-AV1.0.0.0.rar | V 1.0.0.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Datasheet] | DSOM-010R Key Components of Development Board Manual.rar | |
| [Carrier Board Schematic] | DSOM-010R RK3328 Carrier Board Schematic.pdf | |
| [Hardware Developmemt Guide] | DSOM-010R RK3328 Development Board Hardware Manual V1.1 | V1.1 |
| Tools | ||
|---|---|---|
| [Flash Tool] | AndroidTool_Release | |
| [Driver Assistant] | DriverAssitant_v4.9.1 | V4.9.1 |
