Wi-Fi

Adapter

Realtek RTL8192eus Wireless Wi-Fi Adapter

300 Mbps

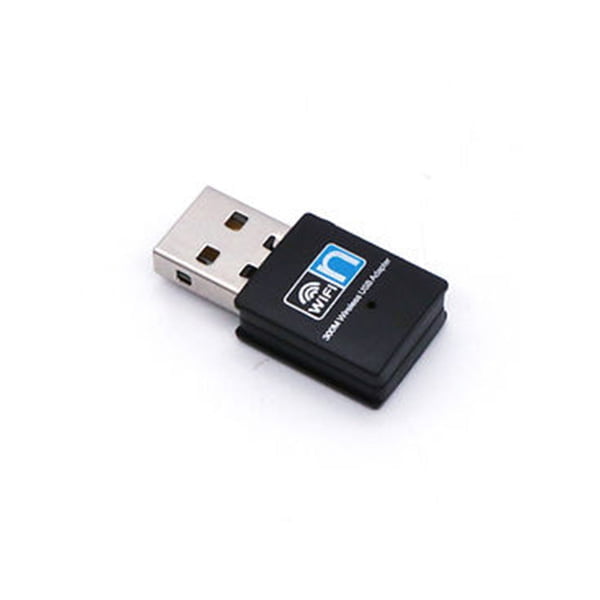

DSWD-010 Wi-Fi Adapter

DM 20220706164311 007
DSWD-010

Feature

  • Wireless Standards: IEEE 802.11n/g/b. RTL8192CU Chipset, 2.4GHz Enhanced 300Mbps Wireless data transmission rate, wide range, and ultra-speed.
  • Wide Compatibility: Perfect for PC Laptop Desktop, Support Windows 10/8.1/8/7/XP/Vista, Mac OS 10.4-10.12.2, Linux.
  • Internal Antenna & Save Space: The internal Omni-directional antenna for increased coverage and stability, easy to carry, and no space occupation with mini size.

Plug and Play

DM 20220706164311 008
DM 20220706164311 009

Wide Compatibility

Perfect for PC Laptop Desktop, Support Windows 10/8.1/8/7/XP/Vista, Mac OS 10.4-10.12.2, Linux.
DM 20220706164311 010

Internal Antenna & Save Space

DM 20220706164311 011
The internal Omni-directional antenna for increased coverage and stability, easy to carry, and no space occupation with mini size.

Product Specification

Software Specification

StandardIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
ChipsetRealtek 8192EUS
Wireless Speed11n: Up to 300Mbps
11g: Up to 54Mbps
11b: Up to 11Mbps
Frequency Range2.4-2.4835GHz
Wireless Transmit Power20dBm(MAX EIRP)
Modulation TypeOFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity

(without Standards antenna)
130M: [email protected]% PER
108M: [email protected]% PER
54M: [email protected]% PER
11M: [email protected]% PER
6M: [email protected]% PER
1M: [email protected]% PER
Work ModeAd-Hoc, Infrastructure
Wireless Security64/128 bits WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating SystemWindows XP/Vista/Win 7/Win 8/Linux/ MAC

Hardware Specification

InterfaceUSB2.0 Hi-Speed connector
Operating Temperature0℃~40℃(32℉~104℉)
Storage Temperature-40℃~70℃ (-40℉~158℉)
Relative Humidity10% ~ 90%, non-condensation
Storage Humidity5%~90%, non-condensing
Dimensions17.5*11*1cm ( L*W*H) Packaging
