Wi-Fi

Adapter

1200Mbps Dual Band 5dBi External Antenna USB 3.0 Wireless Transmitter Receiver Network Card Wi-Fi Adapter

1200 Mbps

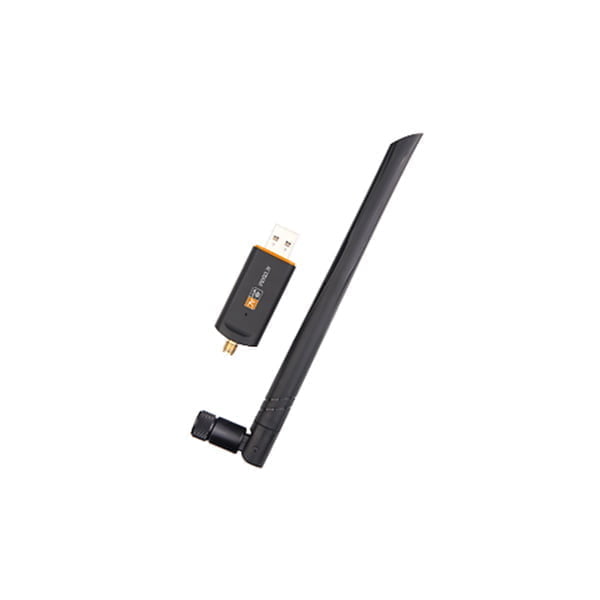

DSWD-060 Wi-Fi Adapter

DM 20220706194137 007
DSWD-060

Features

  • Works with Any Wi-Fi Routers.
  • Simply update your Desktop/PC/Laptop can receive 802.11ac Dual Band wireless signal.
  • Supports soft AP Mode to establish your wireless LAN networking.
DM 20220706194137 008

USB 3.0 Wireless Transmitter Receiver

Simply update your Desktop/PC/Laptop can receive 802.11ac Dual Band wireless signal. Auto-detects and changes the network transmission rate. Maximum speed up to 5GHz 867Mbps or 2.4GHz 300Mbps.
DM 20220706194137 009
DM 20220706194137 010
DM 20220706194137 011

Works with Any Wi-Fi Routers

DM 20220706194137 012
DM 20220706194137 013

High Coverage

Added antenna to increase Wi-Fi coverage.
DM 20220706194137 014

High Speed, And Easy to Use

Supports soft AP Mode to establish your wireless LAN networking. Mini size design, space-saving, and easy to carry.Easy to use, once you’ve installed the CD and run the software, you can simply insert the adapter to get connected.
DM 20220706194137 015

Product Specifications

Hardware Features
InterfaceUSB 3.0
ButtonWPS button
Dimensions253*22*13
Antenna1 Hight Gain Extemal Antennas
Antenna TypeOmini Directional
Wireless Features
Wireless StandardsIEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency5 GHz,2.4 GHz
Signal Rate5 GHz
11.ac:Up to 867Mbps(dynamic)
11.n:Up to 300Mbps(dynamic)
11.a:Up to 54Mbps(dynamic)

2.4 GHz
11.n:Up to 300Mbps(dynamic)
11.g:Up to 54Mbps(dynamic)
11.b:Up to 11Mbps(dynamic)
Reception Sensitivity5 GHz
11a 6Mbps:-91dBm
11a 54Mbps:-77dBm
11n HT20:-74dBm
11n HT40:-71dBm
11ac HT20:-70dBm
11ac HT40:-66dBm
11ac HT80:-62dBm

2.4 GHz
11b 11Mbps:-86dBm
11g 54Mbps:-74dBm
11n HT20:-72dBm
11n HT40:-70dBm
Transmit Power<20dBm(EIRP)
Wireless ModesAd-Hoc / Infrastructure mode
Wireless SecuritySupport 64 / 128 bit WEP,WPA-PSK / WPA2-psk
Modulation TechnologyDBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM,256-QAM
