DSGW-120V2 Home Automation Control Panel with Touch Screen

DSGW-120V2 wall-mountable home automation panel with IPS touch screen allows users to control smart home gadgets conveniently. It supports multiple wireless protocols such as Zigbee 3.0, Z-Wave, Bluetooth 5.2, and Wi-Fi2.4, etc., to connect various home devices. Continue to read its features, block diagram, mechanical design, parameters, connectivity performance, installation, and quality testing info.
Table of Contents

1 Product Description of DSGW-120V2 Home Automation Touch Screen Panel

1.1 Purpose and Description

The DSGW-120 home automation control panel with touch screen is equipped with a PX30 Quad Core ARM Cortex-A35 processor. It is a multifunctional home automation control panel designed to manage and optimize your smart home experience, allowing IoT Gateway developers to control all devices from a single location conveniently.

It supports multiple protocols, including Zigbee and Z-Wave, and features a voice intercom function. Boasting high programmability and comprehensive documentation, the DSGW-120 enables secondary development at the hardware level to create custom applications that meet your specific needs. This device is especially suited for developers creating Internet of Things (IoT) gateway solutions.

1.2 Product Feature Summary
Unlock the Full Potential of Your Smart Home Automation with Powerful Hardware

Featuring a powerful PX30 Quad Core ARM Cortex-A35 processor, an 8-inch IPS capacitive touchscreen display, 2GB RAM, and 8GB eMMC storage, it offers seamless performance and ample storage space for all your smart home needs.

Multi-Protocol Support for Seamless Integration

With the ability to communicate using protocols such as Zigbee 3.0, Z-Wave, Bluetooth 5.2, and Wi-Fi2.4. This device can work with various devices, regardless of their protocols.

Built-in Microphone and Speaker

With the built-in microphone and speaker, you can use voice commands to control your smart devices. Additionally, you can engage in two-way conversations with visitors through the camera doorbell utilizing the device.

Compatible with various Home Automation Systems

Designed to be compatible with kinds of home automation platforms, such as Home Assistant and openHAB, which are widely used open-source solutions for home automation. These platforms can easily integrate and manage many smart home devices.

Effortless installation with convenient wall-mounting

Designed for easy installation using wall mounting, which provides a clean and streamlined look,
reducing clutter and enhancing the overall appearance of the space.

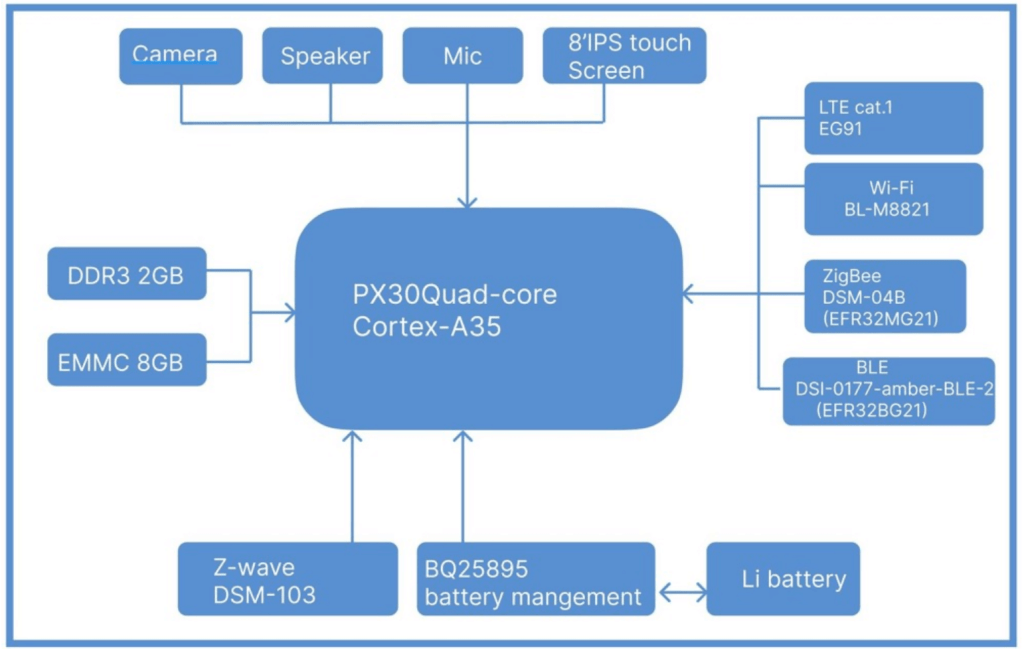

1.3 Hardware Block Diagram
DSGW 120V2 home automation touch screen panel

2 Mechanical Requirement of DSGW-120V2 Home Automation Touch Panel

2.1 Drawings
DSGW 120V2 home automation touch panel

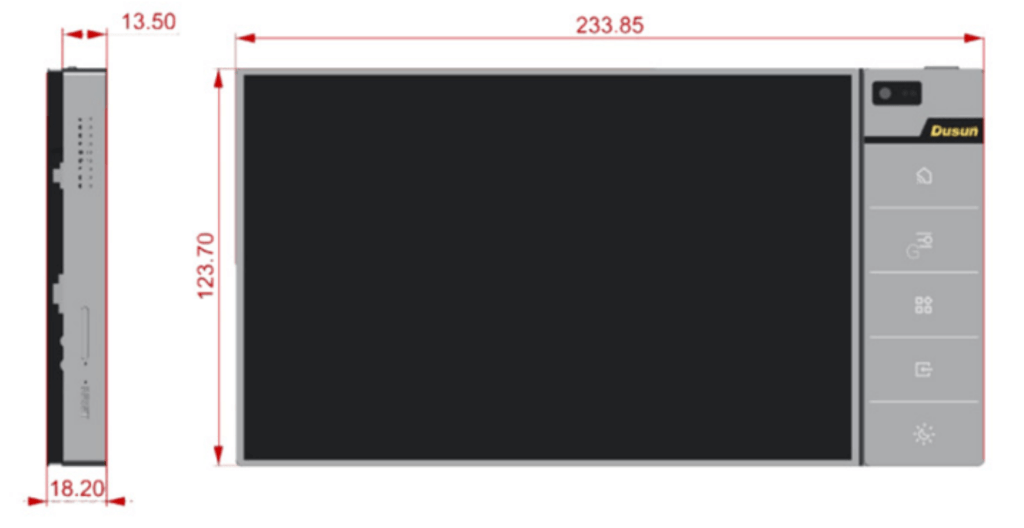

2.2 Dimension
DSGW 120V2 home automation panel

3 Specification of DSGW-120V2 Home Automation Panel

3.1 Technical Specification
Item Parameter
CPU PX30
RAM 2GB
eMMC 8GB
TF Card Up to 128GB
OS Android 11
Power Supply AC 12~24V/2A, DC Type C 5V/3A
Interface 1* 10/100 Mbps WLAN/LAN port,1*RS485
SIM 1 * Micro SIM slot
Camera 5 million pixels,Panoramic depth camera
SD Card 1 * SD slot
Microphone 1
Speaker 1
RTC Real-Time Clock operated from the onboard battery
Li battery 1500mAH
Auto Power-On When the primary power source is lost, the system's auto-power-on feature
activates and uses the battery. Similarly, when the primary power source is
restored, the system automatically switches back to it.
Reset Button Factory reset button. To reset the Gateway to its original factory settings, press and
hold it for more than 10 seconds
Power switch ON/OFF
Power LED When the device powers on, the power indicator LED turns green. The indicator
LED switches to red if the battery is low
3.2 Wireless Performance
Wi-Fi Performance · IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
· Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
· Sensitivity:
HT40 MCS7 : -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band
· Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
· Wireless Security: WPA/WPA2, WEP, TKIP, and AES
· Working mode: Bridge、Gateway、AP Client
· Range: 50 meters minimum, open field
· Transmit Power:17dBm
· Highest Transmission Rate: 300Mbps
· Frequency offset: +/- 50KHZ
· Frequency Range (MHz): 2412.0~2483.5
· Low Frequency (MHz):2400
· High Frequency (MHz):2483.5
· E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
· Bandwidth (MHz):20MHz/40MHz
· Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
Zigbee3.0 Performance · Range: 100 meters minimum, open field
· Transmit Power:17.5dBm
· Highest Transmission Rate: 2Mbps
· Frequency offset: +/- 20KHZ
· Receiving Sensibility:-94dBm
· Frequency Range (MHz):2401.0~2483.5
· Low Frequency (MHz):2400
· High Frequency (MHz):2483.5
· E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
· Bandwidth (MHz):5MHz
· Modulation:OQPSK
Bluetooth Performance · TX Power: 19.5dBm
· Range: 150 meters maximum, open filed
· Receiving Sensibility: [email protected]%BER, 1Mbps
· Frequency offset: +/-20KHZ
· Frequency Range (MHz):2401.0~2483.5
· Low Frequency (MHz):2400
· High Frequency (MHz):2483.5
· E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
· Bandwidth (MHz):2MHz
· Modulation: GFSK
Z-wave Performance · TX power up to13dBm (20mW)
· RX sensitivity: @100kbps-97.5dBm
· Range: 100 meters minimum, open filed
· Default Frequency: 916MHz( Different country with different
frequency)
LTE Cat M1 · LTE FDD: B2/B4/B5/B12/B13
· WCDM: B2/B4/B5
· LTE FDD Data rate:10(DL)/5(DL)
Ethernet · 10/100M bps

4 QA Requirement of DSGW-120V2 Home Automation Control Panel

Information Description Standard(Yes)Custom(No)
ESD Testing YES
RF Antenna Analysis YES
Environment Testing YES
Reliability Testing YES
Certification FCC,CE,RoHs
