Keyfob/wristband Emergency Button Product Specification
Product Name: Wireless emergency button
Model Name: DSBC-101
1. Introduction
- SOS alarm
- Elderly care
2. Appearance
| Model | Bluetooth 5.2 long range | Bluetooth 5.0 | Zigbee | NFC | Beep |
|---|---|---|---|---|---|
| DSBC-101-2-WB | ● | ● | ● | ||
| DSBC-101-2-LY | ● | ● | ● |
| Model | Bluetooth 5.2 long range | Bluetooth 5.0 | Zigbee | NFC | Beep |
|---|---|---|---|---|---|
| DSBC-101-1-WB | ● | ● | ● | ||
| DSBC-101-1-LY | ● | ● | ● | ||
| DSBC-101-3-WB | ● | ● | ● | ||
| DSBC-101-3-LY | ● | ● | ● |

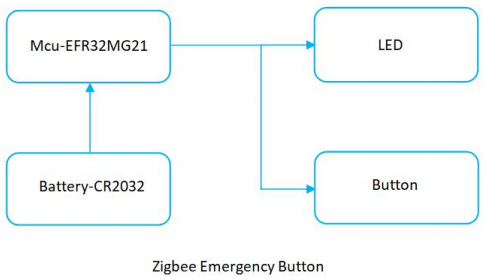

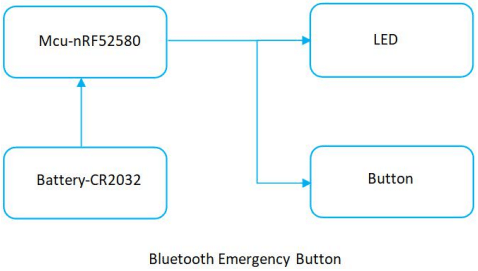

3. Hardware block diagram
4. Product specification
| Item | Performance | |
|---|---|---|
| DSBC-101-1 DSBC-101-3 | DSBC-101-2 | |
| Outline Size | φ41mm | |
| Net weight | ~30g | |
| Main IC | nRF52820 | EFR32MG21 |
| Protocol | Bluetooth 5.0 | Zigbee 3.0 |
| Transmission frequency | 2.400 - 2.4835GHz | 2.400 - 2.4835GHz |
| TX power | -20 ~ +8dBm, default 0dBm | 0 ~ +19.5dBm, default 19.5dBm |
| Receiving Sensibility | -94dBm | |
| Transmission distance | 101-3: 50~100 meters （open area） 101-1: 100~200meters(open area) |
200 meters minimum (open area) |
| Average power consumption | <65uA | <30uA |
| Working voltage: | 2.2~3.6VDC | 2.75~3.6VDC |
| Operation temperature | -10~65°C | |
| Storage temperature | -30~85°C | |
| Color | Black | |
| Built-in battery | CR2032 180mAh | |
| Battery life | 2Years （Depends on the mode of operation） | |
| IP protection | IP68 | |
| NFC | ISO/IEC 14443 A | |
| Beep | support | |
| Certification | CE, FCC | |
5. Function
5.1.1 When there is no pairing information, press the button for 5 seconds to enter pairing mode, and the LED starts flashing at 2Hz (DSBC-101-1 DSBC-101-3)/1Hz (DSBC-101-2) frequency.
5.1.2 If the pairing is successful, the LED will be on for 2 seconds and the off.
5.1.3 If the pairing is not successful within 60 seconds, the LED will turn off and exit the pairing mode.
5.1.4 When there is pairing information, press the button for 5 seconds, and the LED starts flashing at 1Hz frequency. At this time, release the button. If you press the button again within 2 seconds and hold it for 5 seconds, the LED flashes at 2Hz frequency to clear the pairing and launch the pairing broadcast. If the button is not pressed again within 2seconds, the LED will stop flashing.
| Status | Description |
|---|---|
| Low voltage（DSBC-101-1: Below 20% electric quantity, DSBC-101-2: Below 30% electric quantity DSBC-101-3: Below 20% electric quantity, ） |
LED flashes every 10s |
| Starting up | LED flashes three times at 1Hz frequency |
| Short press the button once | LED flashing once |
| OTA | LED always on |
| Pairing mode | LED flashes at 2Hz (DSBC-101-1)/1Hz (DSBC-101-2) frequency for 60s |
| Pairing success | LED is on for 2s |
| Switch on pairing mode when the device has pairing information | LED flashes at 2Hz frequency |
| Button Action | Description |
|---|---|
| Short press the button once | Submit an alarm message to the gateway |
| (Unpaired) Press the button for 5seconds. | Enter pairing mode |
| (Paired) Press the button for 5seconds and then release, and then press the button again within 2 seconds and hold it for 5 seconds. | Clear the pairing and launch the pairing broadcast |
When the device is in the network state, the gateway or mobile APP issues an upgrade command to the device.
6. Caution
- Being close to a metal object will interfere with the signal, causing the signal to be weaken.
- Note the distance between DSBC-101 and the receiver to guarantee the accuracy of receiving.
- Keep away from the corrosive objects.
7. Reference usage

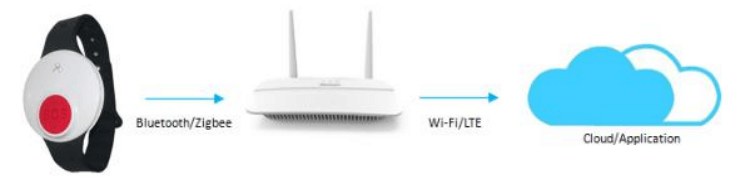

- DSBC-101 paired to the Bluetooth/Zigbee gateway.
- Bluetooth/Zigbee Gateway gets the data from the sensor and sends the information to Cloud via Wi-Fi or LTE once per second.

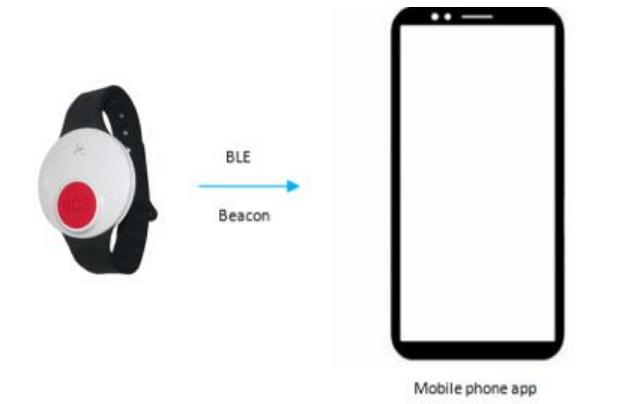

- The device will always want to send a broadcast packet nearby at a certain frequency.
- A mobile phone with Bluetooth enabled can receive the beacon information and parse the data through the APP
8. Installation

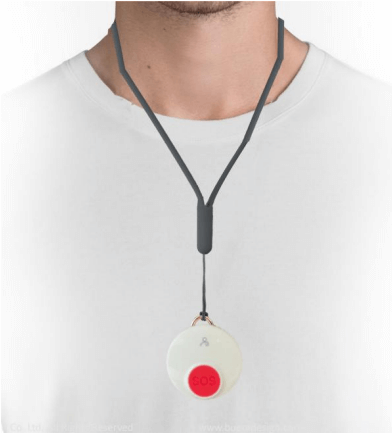

Can be wear on the neck.

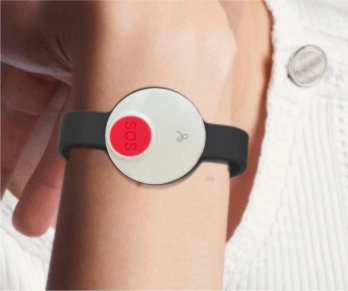

With rubber wristband accessories, can be wear the product on the wrist

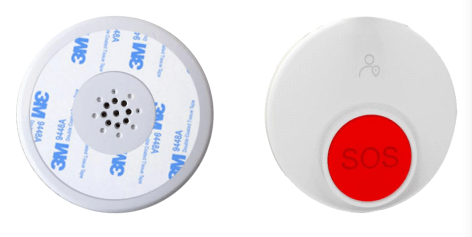

- Select the adhesive tape to stick to the back of the device, and tear off the adhesive tape on the back of the beacon sensor
- Just stick the beacon sensor to the surface of the object
9. QA Requirements
| Quality & Testing Information | |
|---|---|
| Information Description | Standard（Yes）custom（No） |
| ESD Testing | Yes |
| Battery life Testing | Yes |
| RF Antenna Analysis | Yes |
| Environmental Testing | Yes |
| Reliability Testing | Yes |

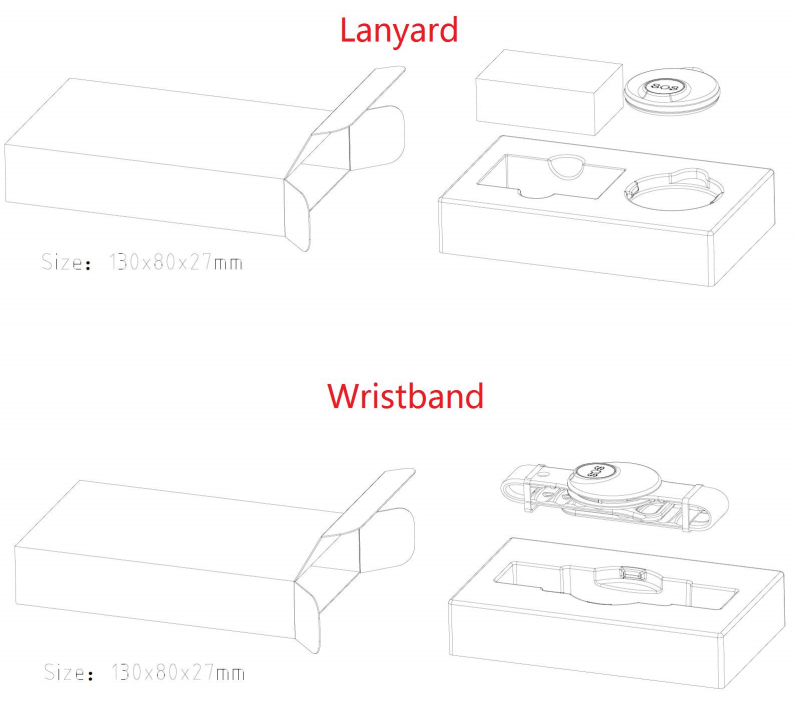

10. Package
The outer packaging of the product is simple packaging, the outer packaging is a paper box material, blister box lining.
