DSGW-021 Dual Band Wireless Wi-Fi Router/Repeater/Extender Gateway Specification

DSGW-021 wireless router gateway complies with the latest IEEE 802.11ac Wi-Fi standard and LTE 4G function. A simultaneous dual-band design makes the wireless connection more flexible and stable, especially over long distances. Read further to know the feature summary, mechanical drawings, hardware and connectivity performance, and software.
Table of Contents

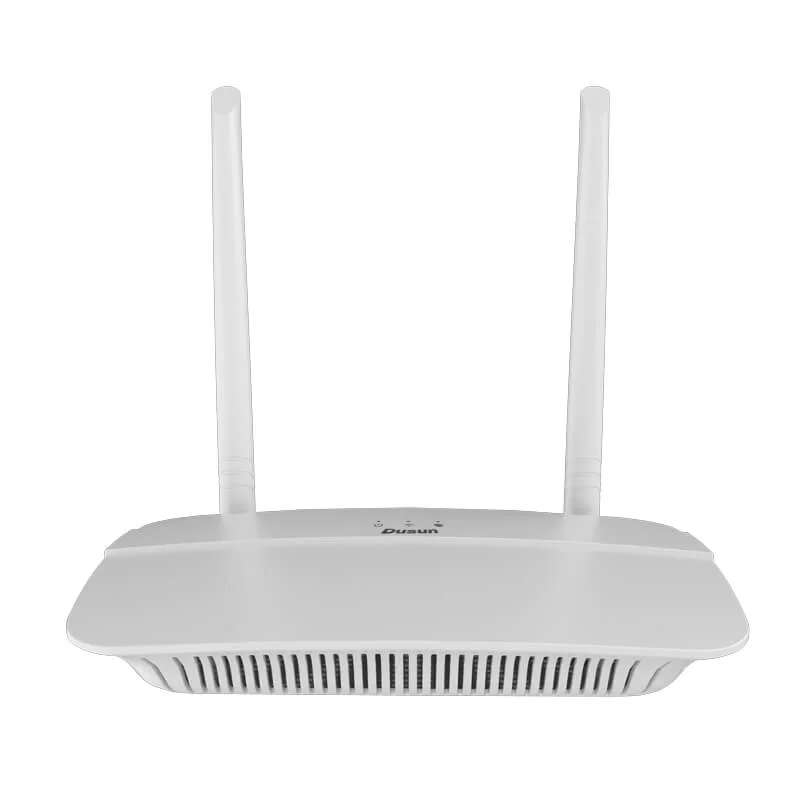

4g lte product spec pro
Category A ( In Stock, Lead Time: 1~2 Weeks)
FeatureWi-Fi 2.4G/5GLTE Cat4BLEZigbee
DSGW-021-2
DSGW-021-5
Category B (Built by Order, Lead Time: 3~4 Weeks)
FeatureWi-Fi 2.4G/5GLTE Cat4BLEZigbee
DSGW-021-3
Category C (Built by Order , Lead Time More Than 8 Weeks , MOQ: 500 )
FeatureWi-Fi 2.4G/5GLTE Cat4BLEZigbeeZ-Wave
DSGW-021-1
DSGW-021-4

1. Dual Band Wi-Fi Router/Repeater/Extender Gateway Introduction

1.1. Purpose and Description

The DSGW-021 LTE Cat4 Router Gateway is designed for IoT Gateway developers and complies with the latest IEEE 802.11ac Wi-Fi standard. It delivers consistent high-speed data transmission for multiple devices simultaneously.

With its dual-band design, it facilitates versatile and stable wireless connections over long distances. Ideally suited for medium-sized homes, This router gateway also supports BLE5.2, and Zigbee, enabling it to connect with end devices that support different protocols. Potential usage scenarios include home use, smart home integration, small business offices, remote work settings, Internet of Things (IoT) applications, and educational environments.

Further, with pre-integrated, comprehensive, and fully documented out-of-the-box guidance and support, developers can create a custom firmware, starting from the lowest layer of the hardware

1.2 Product Feature Summary

  • 4G CAT4 Network: shares internet access with up to 64 Wi-Fi devices and enjoys download speeds of up to 150 Mbps.
  • AC1200 Wi-Fi: creates simultaneous dual-band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
  • Plug a SIM Card and Play: No configurations are needed; compatibility with SIM cards in over 100 countries is assured by years of field testing.
  • Two Detachable Advanced LTE Antennas: Enjoy stable and efficient connections to every device, thanks to the two external antennas.
  • Wi-Fi Router Mode: Plug an Ethernet cable into the WAN port. You have flexible access as a backup option if you can’t get a 4G connection.
  • Supports multiple Protocols: BLE5.2, Zigbee3.0.

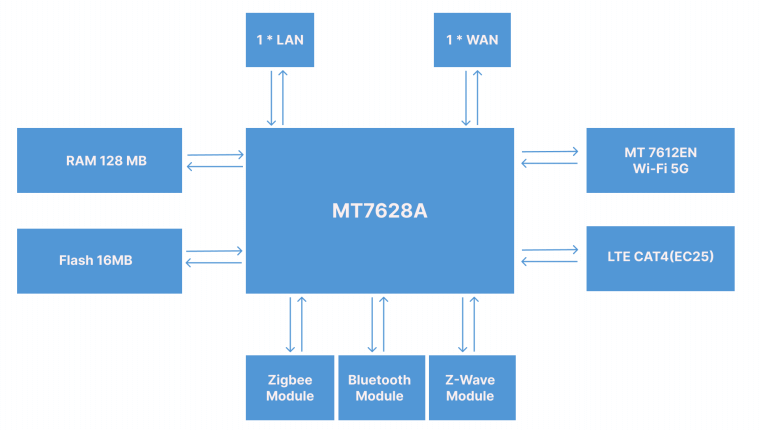

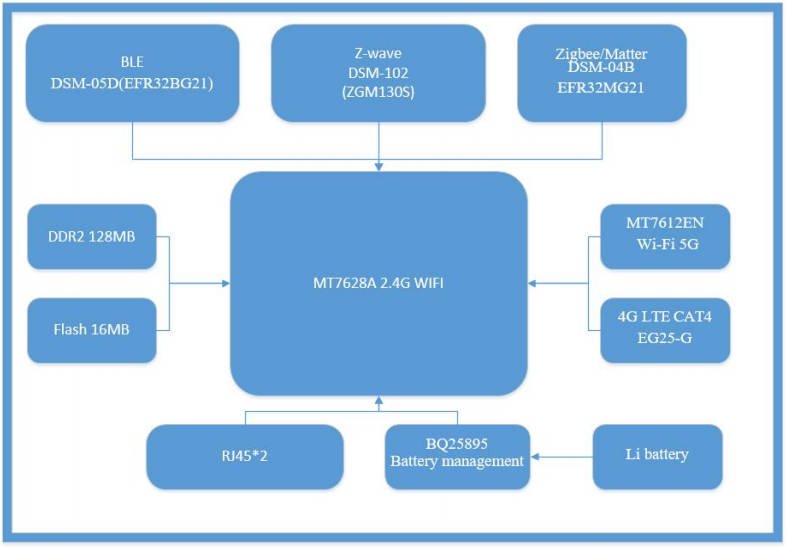

1.3. Hardware Block Diagram

dsge 021 Hardware Block Diagram

2. Dual Band Wi-Fi Router/Repeater/Extender Gateway Mechanical Requirement

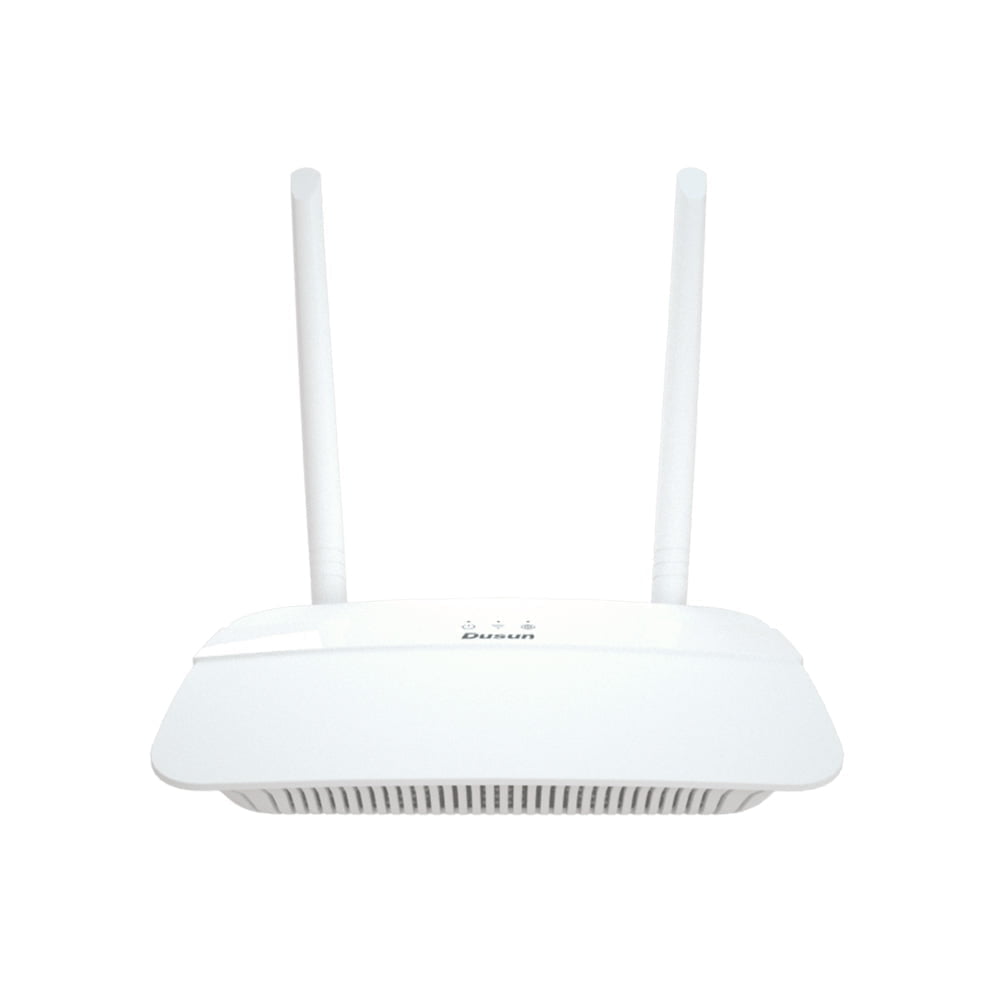

2.1 Router Gateway Drawings

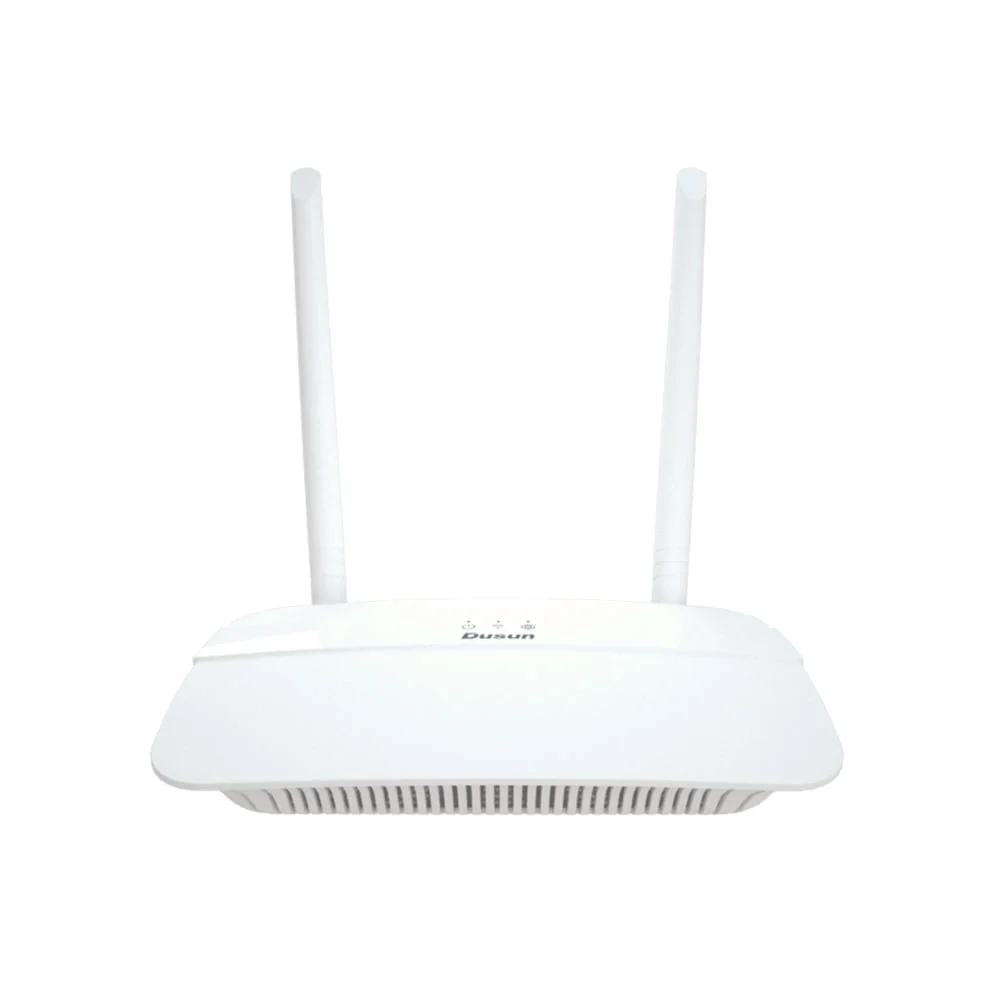

dsgw 021 dual band 3

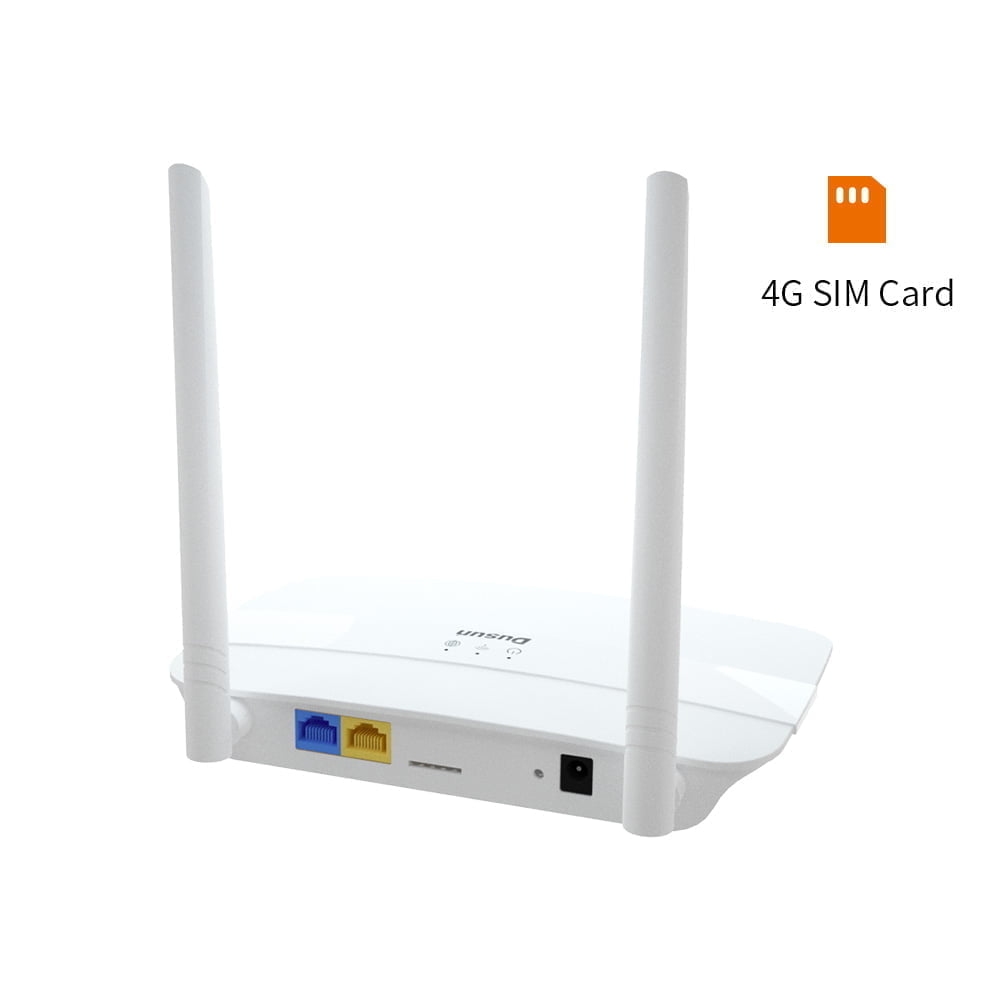

dsgw 021 dual band 1

2.1 Router Gateway Dimension

dsgw 021 Dimension

3. Dual Band Wi-Fi Router/Repeater/Extender Gateway Specification

3.1 Technical Specification

CategorySpecifications
CPUMT7628AN 600MHz processor
OSOpenWrt
RAM128MB
Flash16MB
Power SupplyDC input with a voltage range of 4.5V to 5V.
The power seat aperture is 3.5mm and the needle diameter is 1.35mm, with a positive polarity.
ResetFactory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds
SIM1 * Micro SIM slot
Interface• 1 * 10/100Mbps LAN Port
• 1 * 10/100Mbps WAN Port
Indicator LEDs• The Zigbee/BLE LED flashes when a signal is received.
• The Network LED indicates RED when no establishing a network connection.
• The Network LED indicates GREE when a network connection is established.
Antenna1 * 4G LTE FPC antenna,2 * 2.4G/5G External On-Board antenna
InstallationFlat, Ceiling
WeightTBD
Operating Temperature-0℃~40℃
Storage Temperature-40℃~65℃
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
IP RatingIP 22

3.2 Performance Requirement

Wi-Fi Performance● IEEE Wireless LAN standard:
IEEE802.11ac, IEEE802.11n, IEEE802.11g, IEEE 802.11b
● Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g StandardMode:6,9,12,18,24,36,48,54Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
MCS0~MCS9 @ HT40/ 5GHz band
IEEE 802.11ac: MCS0~MCS9 @ VHT80/ 5GHz band
● Sensitivity:
VHT80 MCS9: -60dBm@10% PER(MCS9) /5GHz band
HT40 MCS9: -63dBm@10% PER(MCS9) /5GHz band
HT40 MCS7: -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band
● Transmit Power:
IEEE 802.11ac: 13dBm @HT80 MCS9 /5GHz band
IEEE 802.11ac: 16dBm @HT80 MCS0 /5GHz band
IEEE 802.11n: 14dBm @HT20/40 MCS7 /5GHz band
IEEE 802.11n: 16dBm @HT20/40 MCS0 /5GHz band
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHzband
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
● Wireless Security: WPA/WPA2, WEP, TKIP, and AES
● Working mode: Bridge, AP Client
● Range: 50 meters maximum, open field
● Transmit Power:17dBm
● Highest Transmission Rate: 300Mbps
● Frequency offset: +/- 50KHZ
● Frequency Range (MHz): 2412.0~2483.5
● Low Frequency (MHz):2400
● High Frequency (MHz):2483.5
● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
● Bandwidth (MHz):20MHz/40MHz
● Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
Zigbee Performance● TX Power: 17.5dBm
● Range: 100 meters maximum, open filed
● Receiving Sensibility: -94dBm
● Frequency offset: +/-20KHZ
● Frequency Range (MHz):2400.0~2483.5
● Low Frequency (MHz):2400
● High Frequency (MHz):2483.5
● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
● Bandwidth (MHz):5MHz
● Modulation: OQPSK
LTE CAT4● LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
● LTE-TDD: B38/B39/B40/B41
● WCDMA: B1/B2/B4/B5/B6/B8/B19
● GSM: B2/B3/B5/B8
Bluetooth(EFR32MG21)● TX Power: 19.5dBm
● Range: 150 meters maximum, open filed
● Receiving Sensibility: [email protected]%BER, 1Mbps
● Frequency offset: +/-20KHZ
● Frequency Range (MHz):2401.0~2483.5
● Low Frequency (MHz):2400
● High Frequency (MHz):2483.5
● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
● Bandwidth (MHz):2MHz
● Modulation: GFSK
Bluetooth(NRF52840)● TX Power: 10dBm
● Range: 100 meters minimum, open filed
● Receiving Sensibility: [email protected]%BER
● Frequency offset: +/-20KHZ
● Frequency Range (MHz):2401.0~2483.5
● Low Frequency (MHz):2400
● High Frequency (MHz):2483.5
● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW● Bandwidth (MHz):2MHz
● Modulation: GFSK
DataMax. 150Mbps downlink / 50Mbps Uplink Under LTE
3.3. Software Feature
Quality of ServicePrioritizes network traffic by device or application
Operating Modes3G/4G Router, Wireless Router
WAN TypeDynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
ManagementAccess Control, Local Management, Remote Management(TR069)reboot schedule
DHCPServer, Client, DHCP Client List, Address Reservation
Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
Dynamic DNSDynDns, NO-IP
VPNPPTP VPN, IPSec VPN , OpenVPN
Access ControlParental Control, Local Management Control
Firewall SecurityDoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
ProtocolsSupports IPv4 and IPv6
Guest Network2.4GHz guest network x 1, 5GHz guest network x 1
IPSec VPNSupports up to 10 IPSec VPN tunnels

4. Dual Band Wi-Fi Router/Repeater/Extender Gateway Web management

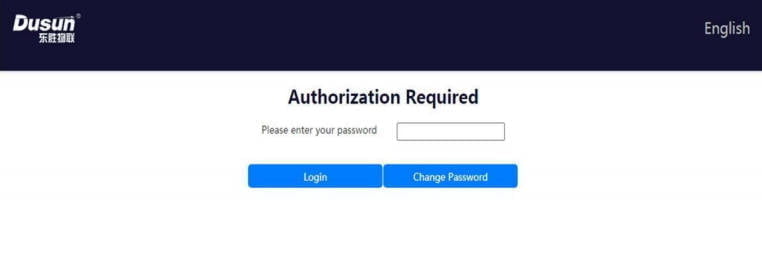

4.1 Login

dsgw 021 login

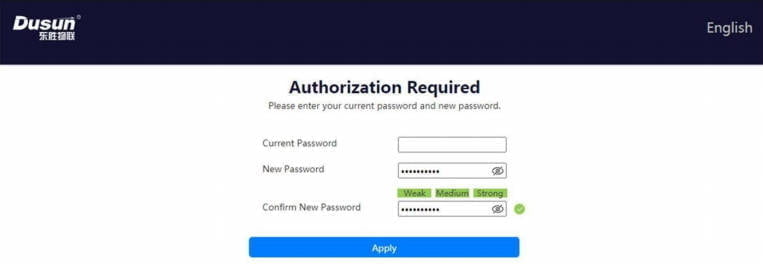

4.2 Modify the password

dsgw 021 modify password

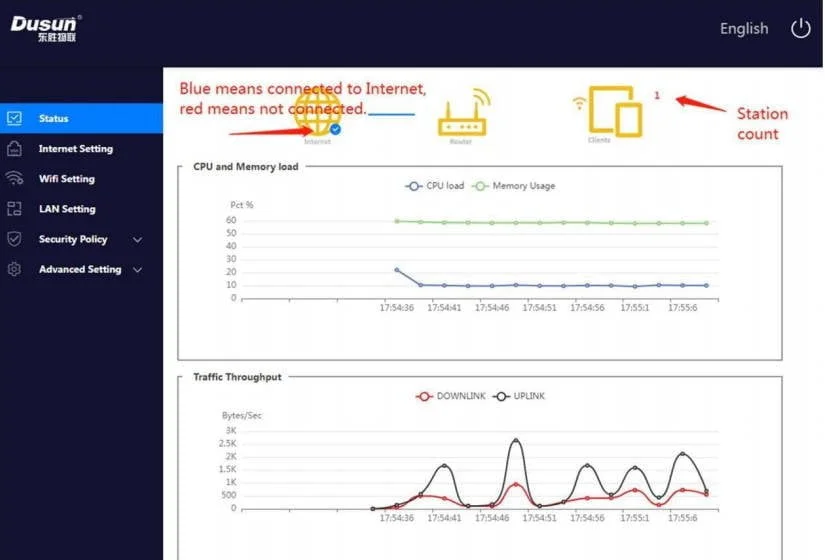

4.3 Router Status

router status

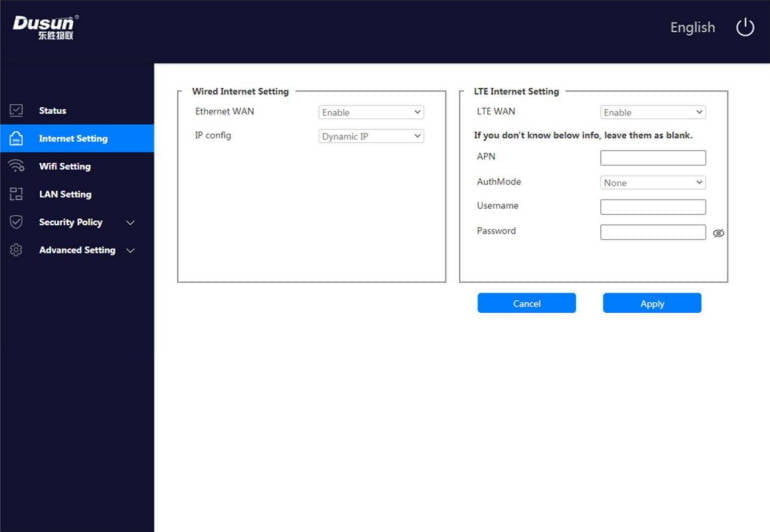

4.4 Internet Setting

internet setting

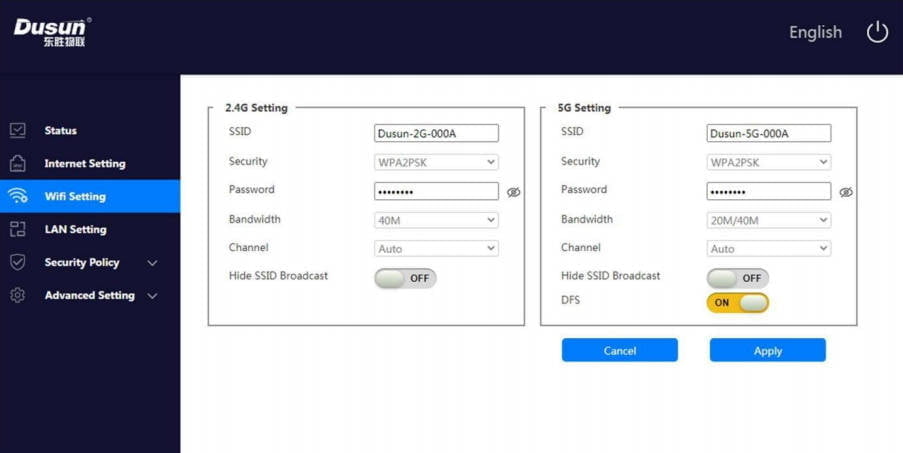

4.5 Wi-Fi setting

wi fi setting

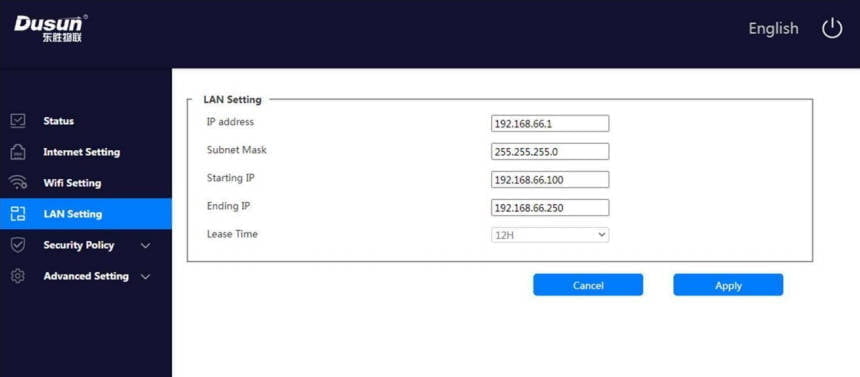

4.6 LAN setting

lan setting

4.7 Security Policy

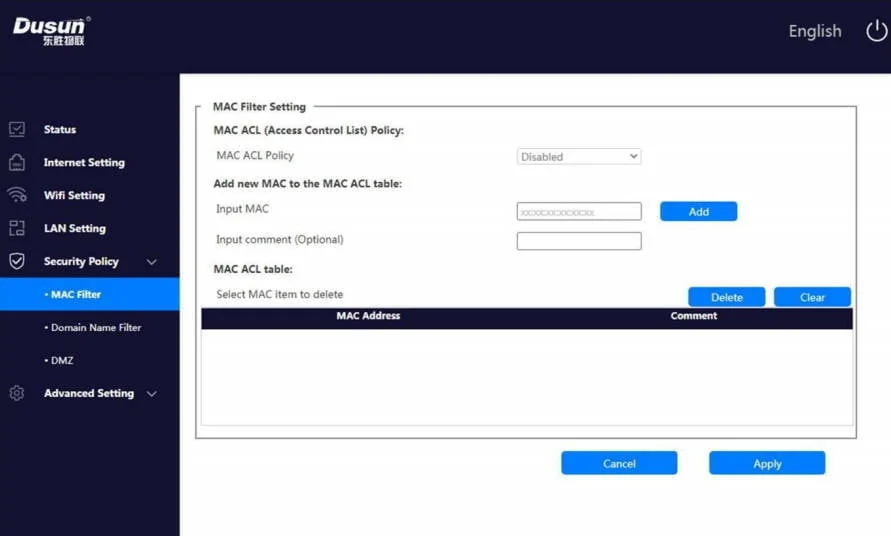

4.7.1 MAC Filter
mac filter

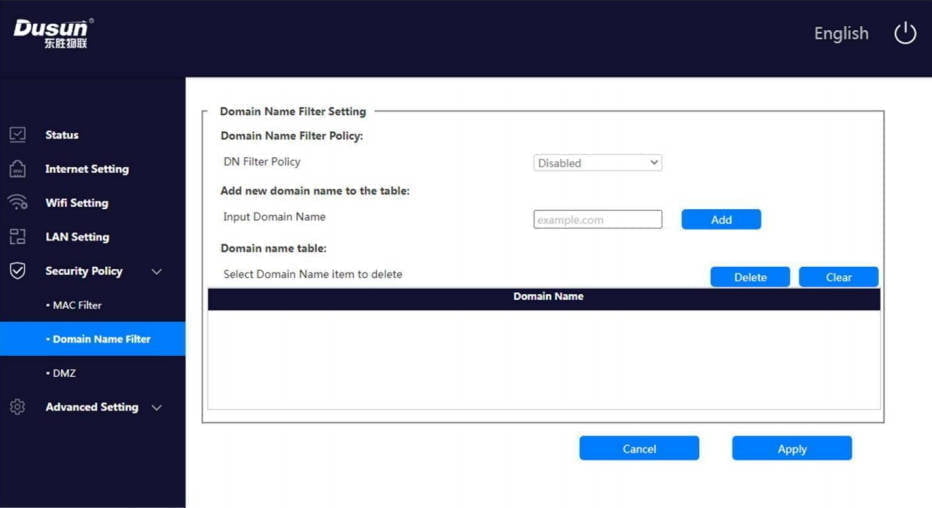

4.7.2 Domain Name Filter
domain name filter

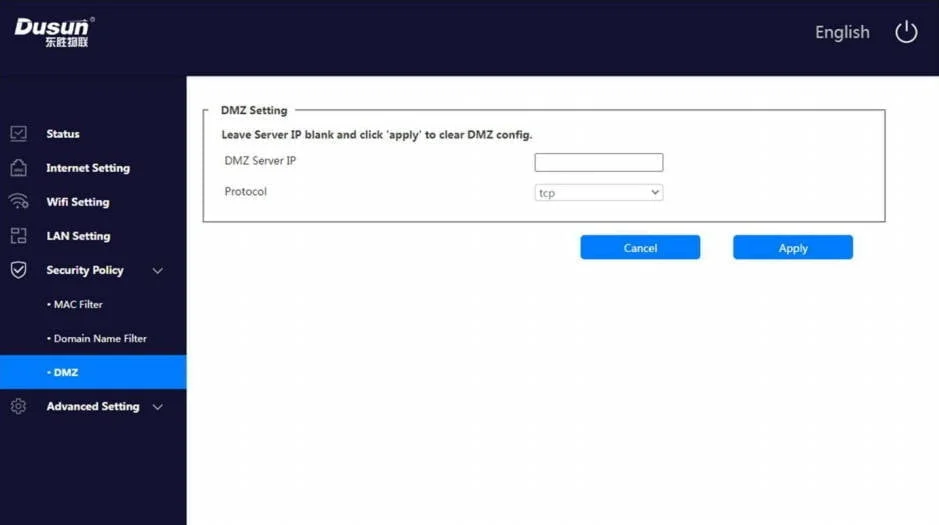

4.7.3 DMZ
dmz

4.8 Advanced Setting

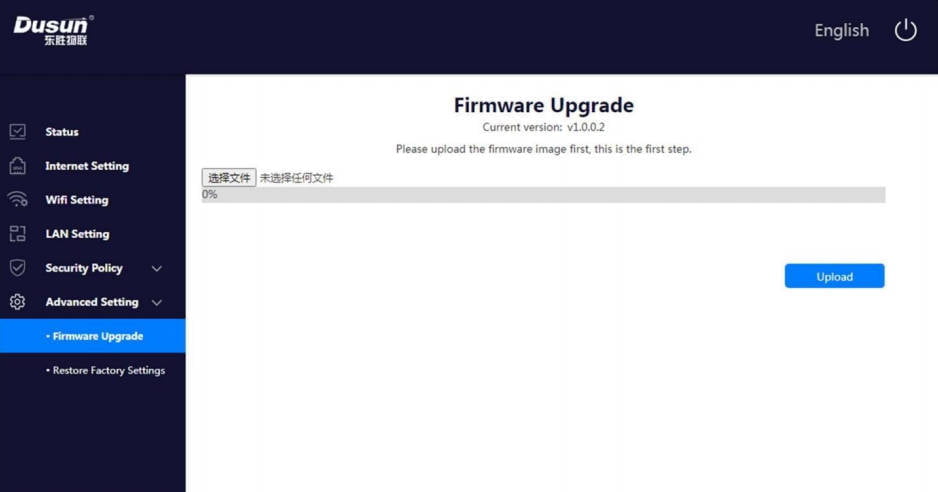

4.8.1 Firmware update
firmware update

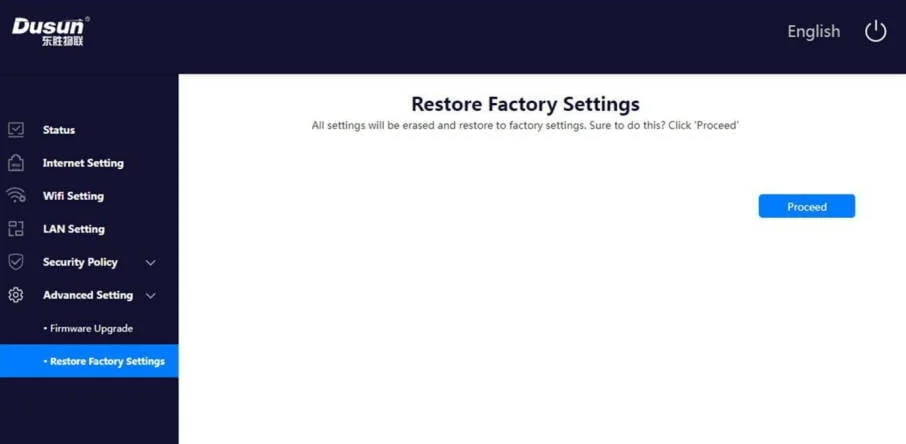

4.8.2 Factory Setting
factory setting

5. Development

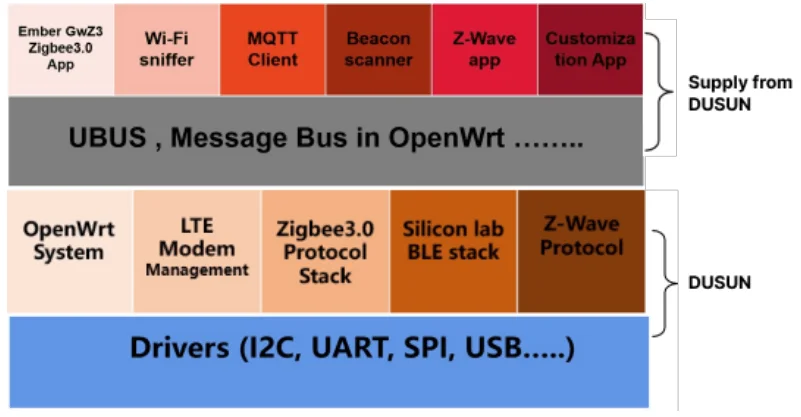

5.1. System Block Diagram

dsgw 021 System Block Diagram
Dusun provides an SDK that includes the OpenWRT system, drivers, and the wireless protocol stack.

5.2. SDK Support

SystemDriversProtocol
OpenWRTUBOOTZigbee3.0
UARTBLE 5.2
SPILTE CAT4
I2C
USB
SDIO
Ethernet
OTA

5.3. Development Enviroment and Tool

Development EnvironmentLinux
VersionChaos_calmer/15.05.1/
Development ToolToolchain

5.4. IoT Application Software

Dusun develops IoT application software based on DSGW-021. If customers need this software, they can apply for and purchase it.

  • Wi-Fi: Detects surrounding Wi-Fi devices.
  • MQTT Client: Converts wireless protocol to MQTT protocol.
  • Beacon Scanner: Scans and configures beacons.
  • LUCI Page: Facilitates AP configuration, traffic detection, firewall settings, VPN configuration, APN settings, and IoT configuration

5.5. How to Program

  1. Customers can download the SDK from Dusun’s Website.
  2. Build your compilation environment.
  3. Refer to the development document, “DSGW-021 SDK Quick Start Guide”.
  4. Build firmware with your desired software functions.

5.6. Software Feature

Customers can implement the routing function on the gateway.

FeatureDetails
Quality of ServicePrioritizes network traffic by device or application
Operating ModesFunctions as a 3G/4G Router and Wireless Router
WAN TypeSupports Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
ManagementProvides access control, local management, remote management, and reboot scheduling
DHCPIncludes a server, client, DHCP client list, and address reservation
Port ForwardingOffers virtual server, port triggering, UPnP, and DMZ
Dynamic DNSCompatible with DynDns and NO-IP
VPNSupports PPTP VPN, IPSec VPN, and OpenVPN
Access ControlFeatures parental control and local management control
Firewall SecurityProvides DoS, SPI Firewall, IP address filter/domain filter, IP and MAC address binding
ProtocolsSupports both IPv4 and IPv6
Guest NetworkAllows for a 2.4GHz guest network x 1 and a 5GHz guest network x 1
IPSec VPNSupports up to 10 IPSec VPN tunnels
IoT protocolZigbee3.0, BLE 5.2

Documentations

DusunIoT offers full set of development resources including QUICK START, SDK, Firmware packaging, module firmware, Tools, vairous third party software,etc.
