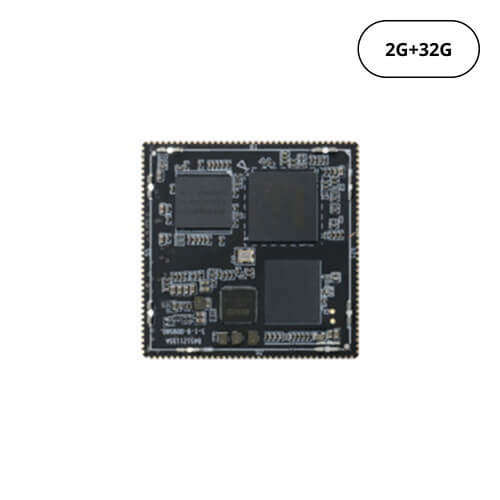

Quick View of DSOM-020R-N Industrial CoM
The DSOM-020R-N industrial CoM combines the exceptional features of the Rockchip PX30 processor with the flexibility of Android and Debian operating systems, offering a solid foundation for your program development needs. With its industrial-grade specifications and performance, the DSOM-020R-N industrial CoM is the cornerstone of innovation across various industries, enabling you to bring your products to the forefront with stable performance and efficient processing.
Applications for the DSOM-020R-N industrial CoM includes but not limited to；
- Smart LCD Displays: Whether it’s billboards, digital signage, or information kiosks, this Industrial CoM empowers users to create intelligent LCD displays. Its high performance and low-power design make it an ideal choice for prolonged operation.
- Industrial Automation: In the realm of industrial automation, this Industrial CoM finds its place in control panels and monitoring systems. Its stability and diverse connectivity options make it suitable for a wide range of industrial applications.
- Medical Equipment: For medical equipment such as medical displays and data acquisition systems, this Industrial CoM shines in delivering high-quality image and data processing.
System Block Diagram of DSOM-020R-N Industrial CoM
Dimension
Package List
Parameters of DSOM-020R-N Industrial CoM
| CPU | Quad-core 64-bit Cortex-A35, frequency up to 1.3 GHz |
| GPU | Embedded ARM G31-2EE GPU makes the PX30K fully compatible with OpenGL ES 1.1/2.0/3.2, DirectX 11 FL9_3, OpenCL 2.0, and Vulkan 1.0. Built-in embedded high-performance 2D acceleration hardware |
| RAM | LPDDR3 2GB |
| Storage | eMMC 32 GB |
| Power Management | RK809-1 Dynamic adjustment of the output voltage of each DC-DC converter |
| Operating Voltage | Typical voltage 5V/1.5A |
| RTC Input Voltage | Typical voltage 5V/30 uA |
| OS | Android/Debian |
| Temperature | Operating Temperature: -20 °C ~85 °C Storage Temperature: -40 °C ~85 °C |
| Humidity | 10~95%(Non-condensing) |
| Barometric Pressure | 76Kpa ~106Kpa |
| Size | 45mm×45mm x 2.6mm |
| Ethernet | 1-channel 10M/100MHz Ethernet interface requires an external PHY chip |
| LCD | Support MIPI, LVDS, RGB Interface |
| Touch | Capacitive touch can be expanded with USB or serial port resistive touch |
| Audio | AC97/IIS, Support recording and playback of audio |
| TF Card | 1 X SDIO Output Channel |
| I2S | 1 X 8-Channel I2S interface |
| SDIO | 1 X SDIO |
| eMMC | Onboard eMMC interface, the pins are not additionally led out |
| USB 2.0 | 2-channel USB 2.0 interface, one of which is a USB OTG interface |
| UART | 6 X Serial Port, except for UART2, the other four channels support serial flow control |
| PWM | 8 X PWM Output |
| I2C | 4 X I2C |
| SPI | 2 X SPI |
| ADC | 3 X ADC |
| Camera | 1 X MIPI CSI camera input interface or parallel camera input interface. |
| Upgrade | Support local upgrade via USB interface. |
Use Cases of DSOM-020R-N Industrial CoM
AIOT equipment
Vehicle control
Game equipment
Commercial display equipment
Medical equipment
Vending machines
Industrial computers
Developer Resources of DSOM-020R-N Industrial CoM
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | DSOM-020R SDK Quick Start Guide V1.1.pdf | V1.1 |
| [Hardware Quickstart] | DSOM-020R PX30K Key Components of Development Board Manual | |
| Ubuntu | ||
|---|---|---|
| [Software Quickstart] | DSOM-020R SDK Quick Start Guide V1.2.pdf | V1.1 |
| [Ubuntu SDK] | DSOM-020R-UT-SDK-RV.1.0.0.tar.gz | |
| [Ubuntu Firmware] | DSOM-020R-UT-RV1.0.1.tar.gz | V1.0.0 |
| Yocto | ||
|---|---|---|
| [Software Quickstart] | DSOM-020R-Yocto SDK Quick Start Guide V1.0.pdf | V1.1 |
| [Yocto SDK] | DSOM-020R-YT-SDK-New | |
| [Yocto SDK Core] | DSOM-020R-YT-SDK-Core | V1.0.0 |
| [Yocto Firmware] | DSOM-020R-YT-AV1.0.0.tar.gz | V1.0.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Datasheet] | DSOM-020R PX30K Key Components of Development Board Manual | |
| [Carrier Board Shematic] | DSOM-020R PX30K Carrier Board Shematic.pdf | |
| [Hardware Developmemt Guide] | DSOM-020R PX30K Development Board Hardware Manual V1.1 | V1.1 |
| Tools | ||
|---|---|---|
| [Flash Tool] | AndroidTool_Release | |
| [Driver Assistant] | DriverAssitant | |
DSOM-020R-N Model List
| Model | RAM | eMMC |
|---|---|---|
| DSOM-020R-N | 2GB | 32GB |
