How To Enable Wifi For IoT Gateway

This article will discuss how to enable Wi-Fi for Dusun IoT gateway.
DM 20220630164956 015
Table of Contents

 This article will discuss how to enable Wi-Fi for the Dusun IoT gateway.

1. Launch A Web Browser

Launch a web browser from a device that is connected to the gateway. The device can be a computer that is directly connected to the gateway (figure1: connection type 1) or a client from a router that is connected to the gateway (figure 2: connection type 2).

System configuration

Figure 1 connection type 1 (for two ports gateway)

connection type2

Figure 2 connection type 2 (for one port gateway)

2. Login

1) In the address field of your web browser:

  • Enter http://192.168.66.1 for connection type one.

  • Log in to the router, and find the gateway’s IP address (IP_addr), then Enter IP_addr.

2) In the Login field, enter the gateway password and click the Login button. The default password is root (case-sensitive).

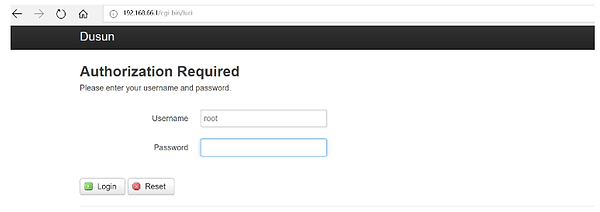

DM 20220629140139 001

3. Configuration

1) Select Dusun > Wifi Manage.

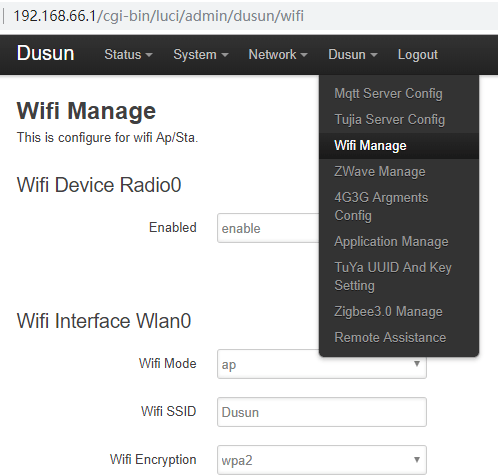

3 wifi manage

2) Enable Device Radio0 and configure Wifi Interface Wlan0(Wifi Mode: ap, Wifi SSID: Input your own; WIFI Encryption: PSK2 or others; WIFI key: your password)

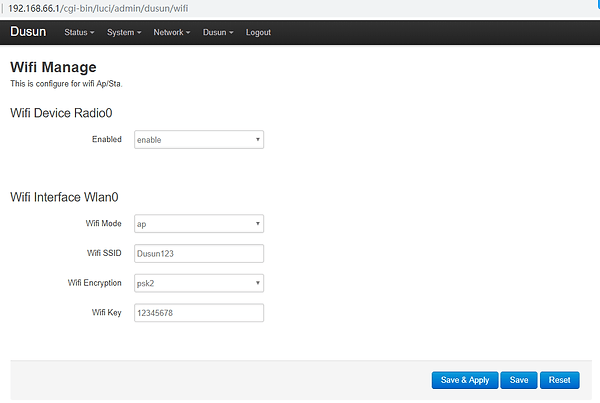

4 wifi manage

3) Click the Save & Apply button, and waiting for the changes to be applied.

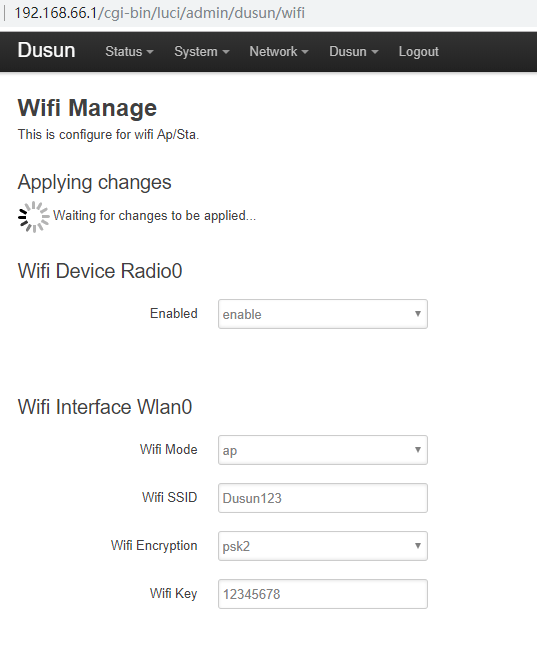

5 wifi manage

4) Then we can connect the Wifi (for this case: Dusun123) and connect the gateway through Wifi.

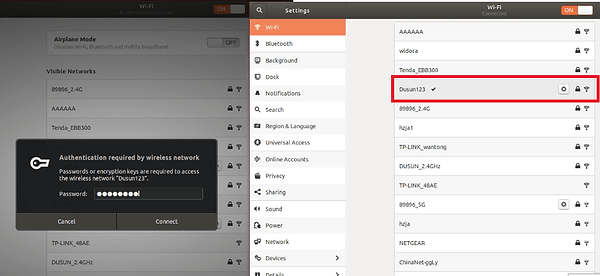

6 connect wifi

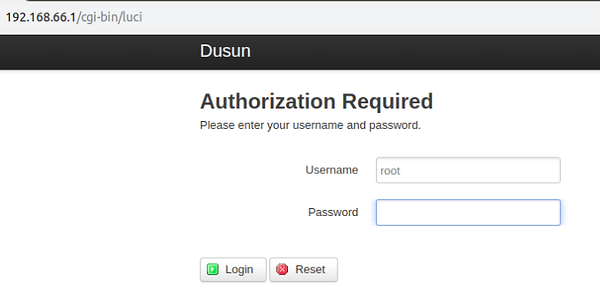

7 connect wifi
