DSBC-062 Bluetooth 5.1 Beacon & Tag for Asset Tracking

DSBC-062 is a fixed BLE 5.1 beacon based on Silicon Labs' EFR32BG22C224F512GM32-C chip with ultra-low power consumption. Equipped with an accelerometer, a LED and a button. Suitable for BLE-based indoor asset tracking solution.
Table of Contents

1. Overview of DSBC-062 Bluetooth 5.1 Beacon & Tag

1.1 Purpose& Description

DSBC-062 is a fixed BLE 5.1 beacon & tag suitable for Bluetooth asset tracking. It is developed based on the EFR32BG22C224F512GM32-C chip of Silicon Labs, and has ultra-low power consumption. At the same time, this Bluetooth 5.1 beacon is equipped with an accelerometer, a LED and a button.

1.2 Product Feature

Product size50.5mm×50.5mm x16.5mm
Product colorTBD
Main ICEFR32BG22C224F512GM32-C
Wireless protocolBluetooth 5.2
Tx powerMax 6dBm,default Tx power is 0dBm
Battery TypeCR2477(950mAh)
Operating Voltage2.5~3.3V
Operating Temperature-20~+65°C
IP ProtectionIP67
Button functionTurn on/off Device
Working current40uA (@0dBm ,at 2000ms broadcast interval )
Battery life800 Days (@0dBm ,at 2000ms broadcast interval)
Low voltage alarmWhen less than 20% battery level(equivalent to less than 2.5V )

2. Appearance of DSBC-062 Bluetooth 5.1 Beacon & Tag

b606331d7821b8b41c17e1300e28677

3. Hardware Features of DSBC-062 Bluetooth 5.1 Beacon & Tag

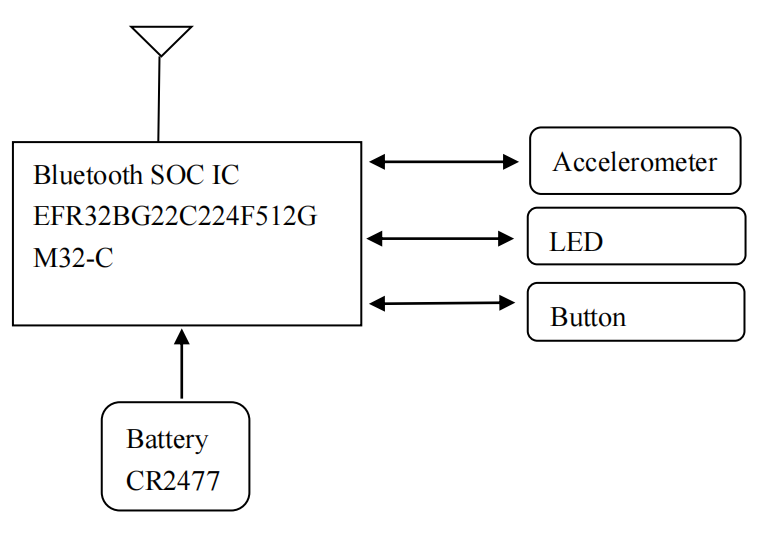

3.1 Product diagram

aec7e85fb25a7b7282acd9b6aed5196

3.2 LED Status

The LED status can be customized.
When Device is being turned onLED flashes 3 times at 1 Hz frequency
When Device is being turned offAfter user presses and holds button for 2 seconds, LED keeps light on for 3 seconds and then flashes 2 times at 2 Hz frequency
Low Voltage StatusLED flashes every 5 seconds per time until it is turned off, if button is pressed during this period, stop flashing and priority to indicate the button action until the button action is done, then continue flashing every 5 seconds per time

3.2 LED Status

The button function can be customized.

Turn on DeviceClick the button
Turn off DevicePress and hold the button for 5 seconds

4. Software of DSBC-062 Bluetooth 5.1 Beacon & Tag

When DSBC-062 BLE 5.1 beacon is in state of motion, AoA broadcast interval is 100ms.

When DSBC-062 BLE 5.1 beacon is in stationary state, AoA broadcast interval is 2000ms.

Once DSBC-062 BLE 5.1 beacon is turned off, its low voltage detection will stop until it is turned on again.

5. When Using with BLE AoA Locator

Before installing the DSBC-062 BLE 5.1 beacon, please make sure that you have clicked the button to turn on the device.

DSBC-062 BLE 5.1 beacon is designed to work with AoA Locator  to achieve BLE positioning function.

In order to ensure the positioning accuracy and stability, at least two AoA Locators should be in work at the same time.

Before using the DSBC-062 BLE 5.1 beacon, users should enter the beacon’s MAC address into the positioning system platform.

6. Installation and Maintenance of DSBC-062 Bluetooth 5.1 Beacon & Tag

6.1 Installation

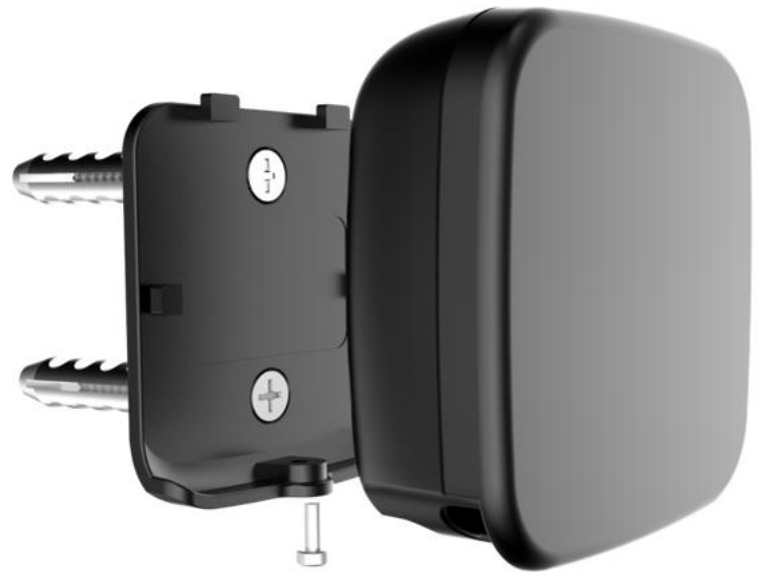

  • Screw fixing type
  1. Drill holes (3mm) in the corresponding positions of the wall, and plug the expansion screw cap into the hole;
  2. Place the bracket in the corresponding position and fix it with screws;
55f218f75b286b2941c1c439027a370

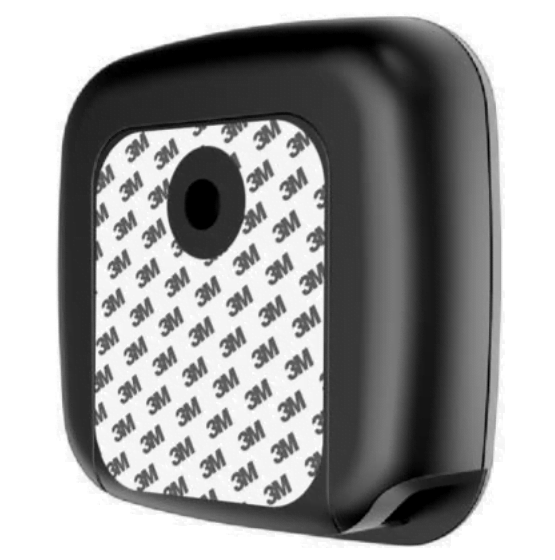

  • 3M adhesive type
  1. Select the adhesive tape to stick to the back of the device, and tear off the adhesive tape on the back of the AOA Tag;
  2. Just stick the AOA Tag to the surface of the object;
05c6a01a58c81c6b4518597a5d96716

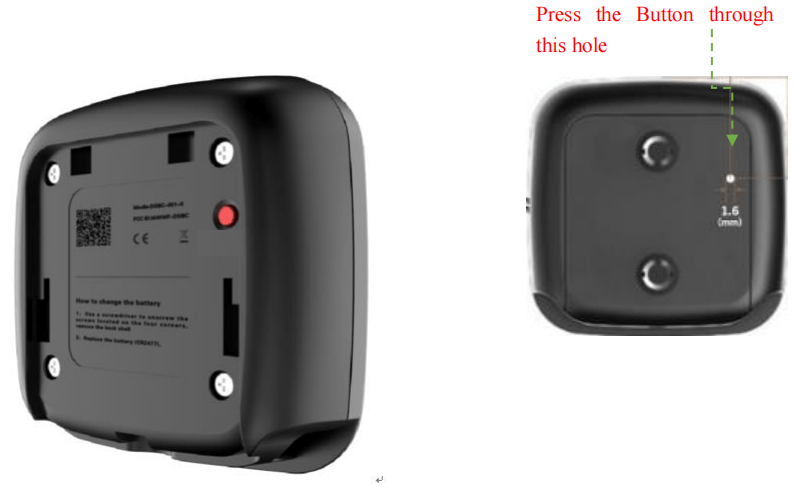

6.2 Battery replacement

Step1. Use a screwdriver to unscrew the screws located on the four corners, remove the back shell

Step2. Replace the battery (CR2477).

Note: Before installing the Device, please make sure that you have clicked the button to turn on device.

160c0ce18b93b4fddbbfebd395f50e4
