DSGW-010 Waterproof Industrial IoT Gateway Specification

DSGW-010 is an Industrial IoT Gateway with POE/DC power supply and excellent waterproof performance. Continue to read its feature summary, block diagram, drawings, dimensions, electrical requirement, conectivity performance, quality assurance info, installation, packing list, and certifcation.
Table of Contents

Product Name: Waterproof Industrial IoT Gateway
Model Name: DSGW-010

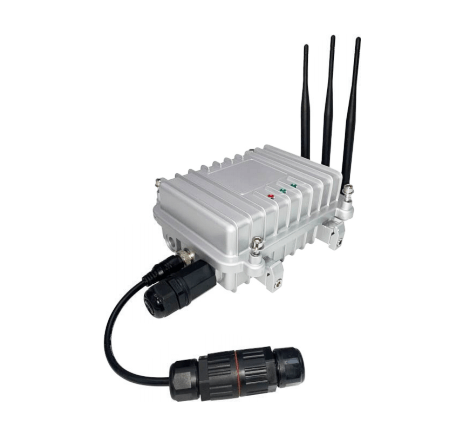

dsgw 010 new 1

Waterproof Industrial IoT Gateway Model List


Waterproof Industrial IoT Gateway Introduction

DSGW-010 is an Industrial IoT Gateway with POE or DC power supply. Due to its excellent waterproof performance, it can be used in various industrial scenarios flexibly.

DSGW-010 Industrial IoT Gateway can acts as a Bluetooth gateway to control BLE device remotely, receives the data sent by the BLE devices and sends it to servers.

The Wi-Fi data rate can be up to 580Mbps and the BLE data rate can be up to 2Mbps. This Waterproof Industrial IoT Gateway can also support the POE switch power supply and 12V adapter power supply, It reserves the ZigBee function and 4G LTE function as well.

Waterproof Industrial IoT Gateway Feature Summary

  • Support the POE switch power supply and 12V adapter power supply
  • Support IEEE802.3-2012 Type 1, the IEEE802.3-2012 Type 1 requires a power supply device (PSE) to provide 44 to 57V, and the power of the powered device (PD) must not exceed 12.95 W and the current does not exceed 350 mA
  • Support IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol
  • Support Network Communication of 4G Module (LTE-TDD / LTE-FDD) ( option )
  • Support Bluetooth 5.2
  • Support ZigBee3.0 (option)
  • Support GPS, GLONASS, BeiDou / Compass, Galileo, QZSS (Option)
  • Supporting waterproof IP66
  • One WAN/LAN variable network port
  • RoHS compliance (Lead-free)
  • FCC, CE compliance

Waterproof Industrial IoT Gateway Hardware Block Diagram

dsgw 010 block

Waterproof Industrial IoT Gateway Mechanical Requirement

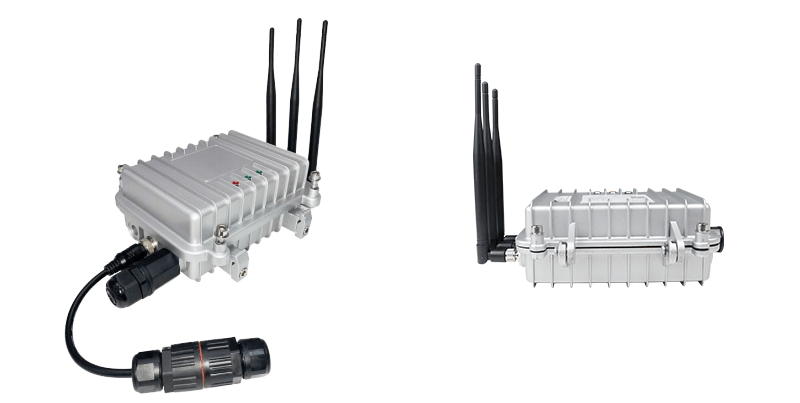

Waterproof Industrial IoT Gateway Drawings

dsgw 010 new 3
dsgw 010 new 4

1. LED indicator
2. RJ45Interface(Network Interface and POE Power Supply Interface)
3. DC power
4. WIFI Antenna
5. LTE Antenna
6. BT Antenna, Zigbee Antenna, Z-wave Antenna, GPS Antenna(custom)

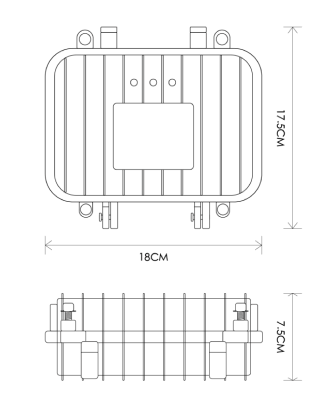

Waterproof Industrial IoT Gateway Dimension

dsgw 010 new 5

Waterproof Industrial IoT Gateway Electrical Requirements

Waterproof Industrial IoT Gateway Hardware Information

Power Supply PortSupport DC input, input Voltage range is 10V to12V.
The power seat aperture is 3.5mm.
The needle diameter is1.35 mm and is positive.
Power adapter:100-240V 50/60HZ,Output is 12V/2A
Reset buttonThe reset button inside the gateway, After pressing the reset button for more than 5 seconds, the Wi-Fi unit will be restored to the factory settings.
Network InterfaceThe network interface supports CAT-5/CAT-5E to transmit data and POE
Power Supply (voltage range is 44~ 57V). It is a WAN/LAN variable.
Indicator LEDs1). Power LED normally on when powered on
2). Network LED normally on when connected
3). Wi-Fi LED normally on after connecting to Wi-Fi for 1- 2 sec
Operating Temperature -20℃~70℃
waterproof leveIP66

Waterproof Industrial IoT Gateway Performance Requirement

wifi-performance●IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
●Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n:
- MCS0~MCS7 @ HT20/ 2.4GHz band
- MCS0~MCS7 @ HT40/ 2.4GHz band
HT40 MCS7 : -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band
●Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
●Wireless Security: WPA/WPA2, WEP, TKIP, and AES
●Working mode: Bridge、Gateway、AP Client
ZigBee-performance●TX Power: 17.5dBm
●Range: 100 meters minimum, open filed Receiving
●Sensibility: -94dBm
●Frequency offset: +/-20KHZ
●Bluetooth Protocol: Bluetooth 5.2 TX Power: 19.5dBm
●Range: 150 meters minimum, open filed
●Receiving Sensibility: [email protected]%BER
●Frequency offset: +/-20KHZ
LTE Performance●Global: LTE FDD:B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B26/ B28
●North America: LTE TDD:B2/ B4/ B12/ B13
●LTE TDD: B39(for cat.M1 only) EGPRS Cat.M1/Cat.NB1
GPS Performance●GPS/Galileo/QZSS: 1575.42±1.023MHz
●GLONASS: 1597.5~1605.8MHz
●BeiDou: 1561.098±2.046MHz

Waterproof Industrial IoT Gateway QA Requirements

Waterproof Industrial IoT Gateway Quality Information

Quality &Testing Information
Information DescriptionStandard(Yes) custom(No)
ESD TestingYes
RF Antenna AnalysisYes
Environmental TestingYes
Reliability TestingYes
Bluetooth CertificationYes
Zigbee CertificationYes
Waterproof testYes

Waterproof Industrial IoT Gateway Operating temperature

For gateway, the Standard temperature operates is at -20℃~70℃.

Waterproof Industrial Bluetooth Gateway Application

1) Bluetooth Gateway collects information about Beacon nearby, including RSSI, MAC, etc., once per second.

2) Bluetooth Gateway sends the Beacon information to Cloud via Wi-Fi or LTE once per second.

3) Bluetooth Gateway supports the TCP/IP, UDP protocol, and can support the MQTT, LWM2M protocol

4) GPS collects latitude and longitude information, send it to Cloud every 15 minutes (custom)

Waterproof Industrial Bluetooth Gateway Application Scenarios

Application NOFunction IntroductionModel NameFirmware Version
AP-01WI-FI and Bluetooth ScannerDSGW-010-3DSGW-010-3-Vesion1.0
AP-02Work with Beacon for Indoor PositioningDSGW-010-3DSGW-010-3-Vesion2.0
AP-03Locate the shipDSGW-010-5DSGW-010-3-Vesion3.0
AP-04Work for mobile Industrial serverDSGW-010-5DSGW-010-3-Vesion3.0

Waterproof Industrial Bluetooth Gateway for Monitoring Shopping and Street Activity

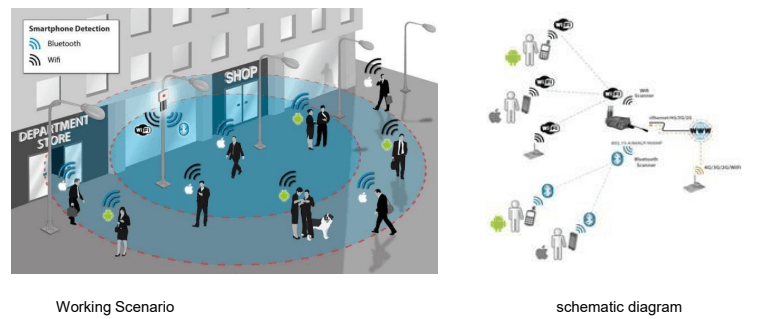

The bluetooth gateway can be used to detect iPhone and Android devices, which can be detected without the need of being connected to a specific Access Point, enabling the detection of any smartphone, laptop, or handsfree device which comes into the coverage area of this smart gateway and in general any device which works with Wi-Fi or Bluetooth interfaces. Users have to do nothing to be detected as the WIFI and Bluetooth radios are integrated into their smartphones

dsgw 010 new 6
534832012/4/24 7:56:25C4:2C:03:96:0E:4A69Apple
534822012/4/24 9:11:26D8:2A:7E:10:1E:63libelium_wsn160Nokia Corporation

Example of information monitored by the WIFI Scanner

454002012/5/16 16:18:1200:26:7E:5F:3C:18myCar-72HandsfreePARROT SA
780052012/4/20 12:59:27D8:2A:7E:0E:C3:10Tropic-85SmartphoneNokia Corporation

Example of information monitored by the Bluetooth Scanner

Waterproof Industrial Bluetooth Gateway + Beacons for Indoor Guidance and Location

dsgw 010 new 7

Exemplary deployment of a beacon infrastructure

The beacon attached to the asset to be tracked sends BLE signals to Bluetooth Gateway that are installed in the building. The Gateway processes the provided data and sends it via Wi-Fi, Ethernet to Server. Here, the position is displayed on a map, and motion statistics can be retrieved.

Waterproof Industrial Bluetooth Gateway to Locate the Ship

dsgw 010 new 8

Working Scenario

The industrial bluetooth gateway can be used as a transmitter to connect various communication equipment on the ship and transmit signals to the monitoring center by the LTE. At the same time, the gateway can be connected to the camera or voice device, and the image can be encoded and transmitted back to the ground satellite fixed station through a variety of communication means. As a router, it is convenient for the crew to connect computers, mobile phones, etc., and access the Internet through the ground satellite master station to realize network surfing.

Waterproof Industrial Bluetooth Gateway for Smart Construction Site Management

dsgw 010 new 9

Wisdom site

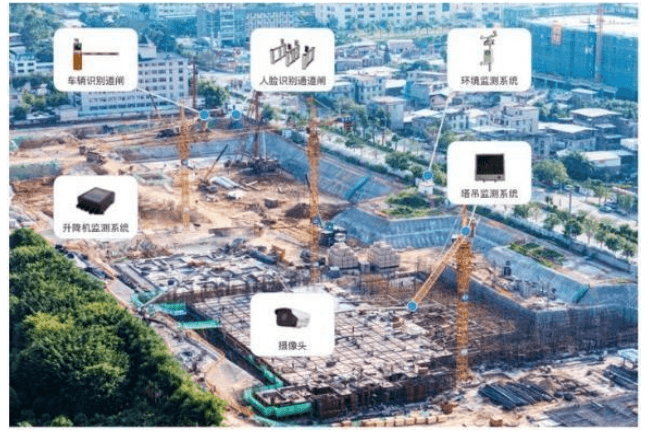

As the central controllor, Bluetooth gateway of the construction site can  monitor and collect information of various sensors in the construction site.  ZigBee, and Ethernet is also a good way to realize real-time remote monitoring of the construction site. At the same time for the site of computers, printers to provide network access, convenient supervisor office.

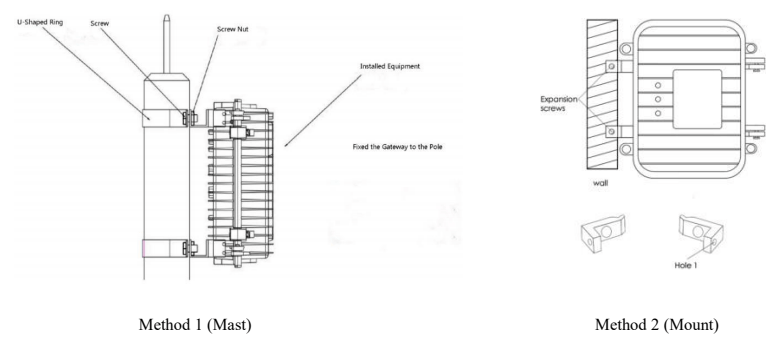

Waterproof Industrial IoT Gateway Installation

dsgw 010 new 10

Waterproof Industrial Bluetooth Gateway Packing List

Network Cable1
Clamping Fixture1

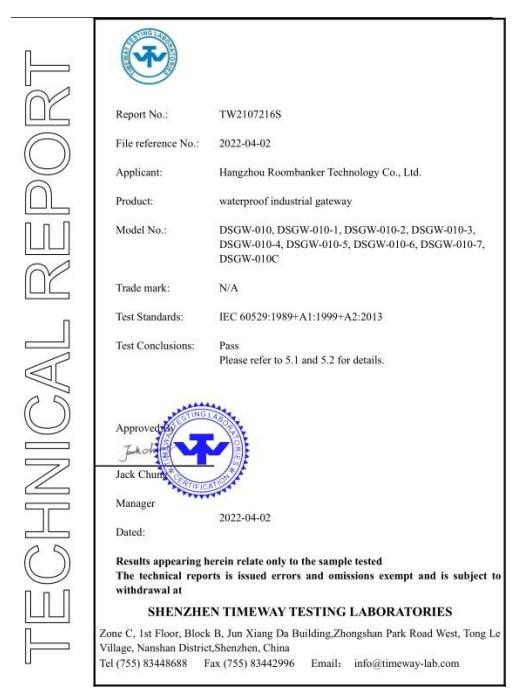

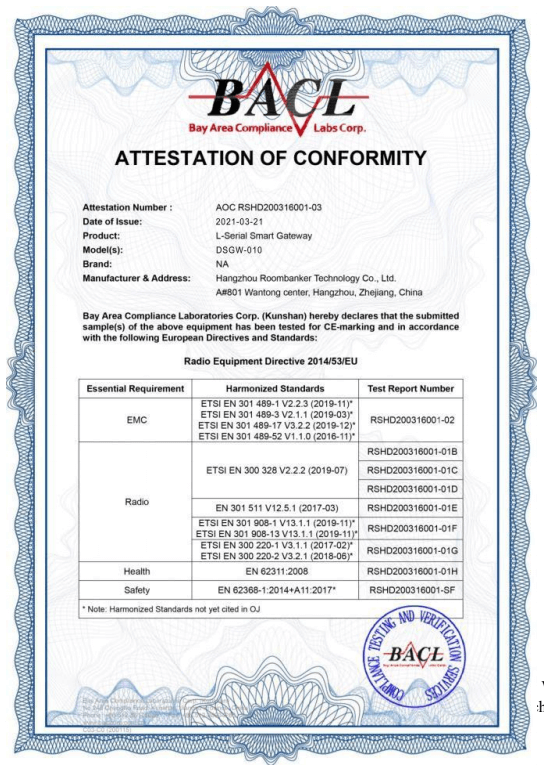

Waterproof Industrial Bluetooth Gateway Certification

dsgw 010 new 11
dsgw 010 new 12
