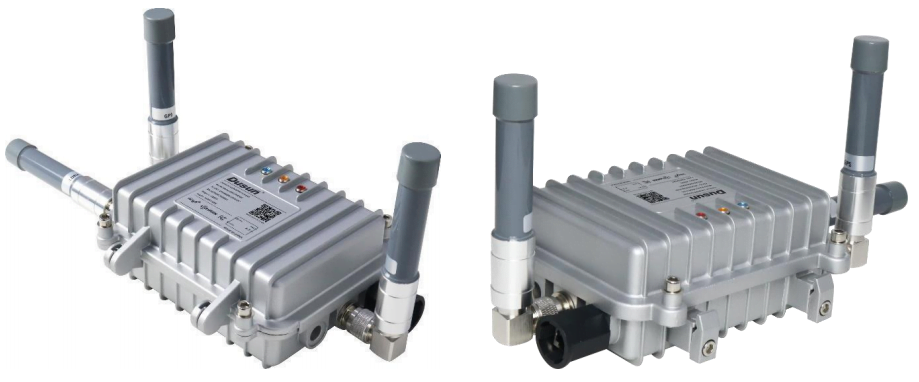

DSGW-014 LoRaWAN Gateway Outdoor

The DSGW-014 LoRaWAN Outdoor Gateway has robust enclosure and is able to have TTN, Chirpstack, Helium, AWS IoT Core, LORIOT, ThingStack integration built-in already. Read further to know its model list, applicable region list, features, block diagram, mechanical drawings, installation, hardware and connectivity performance.
Table of Contents
DSGW-014

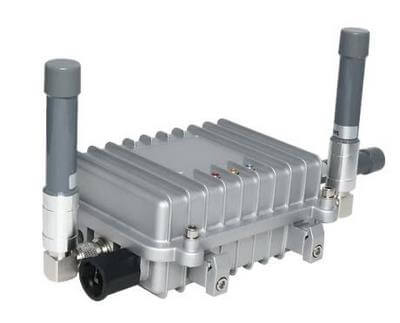

Dusun Pi3 Model C 014

Model List of DSGW-014 LoRaWAN Outdoor Gateway

ModelHardwareSoftware
·LoRaWAN·BLE ·WIFI·GPSNS EmbedsNS cloud
DDReMMCLTETTNChirpstackHeliumChripstackAWSIoT coreLORIOTThingStack
DSGW-014-1-F2GB32GB
DSGW-014-2-F2GB32GB
DSGW-014-1-F-H2GB32GB
DSGW-014-1-L1GB16GB
DSGW-014-2-L1GB16GB

Lora Performance Region List of DSGW-014

TypeRegionFrequecy(MHZ)
-CNChinaCN470
-EUEuropeEU868
-USNorth AmericaUS915
-ASAsiaAS923
-AUAustraliaAU915
-KRKoreaKR920
-INIndiaIN865
-RURussiaRU864

DSGW-014 LoRaWAN Outdoor Gateway Introduction

The DSGW-014 Outdoor LoRa Gateway is a high-efficiency gateway. It’s a LoRa IoT Gateway with POE or DC power supply. It can be used in various scenarios flexibly, for example, it can be applied to Earn HNT cryptocurrency by mining Helium and building coverage for The People’s Network. It provides reliable connectivity for a wide range of devices through wireless protocol including Wi-Fi 2.4G/5G, BLE5.2 LoRa,LTE.

Product Feature Summary

  • Support the POE switch power supply
  • Base on the LoRa Concentrator Engine: Semtech SX1302
  • Support Wi-Fi 2.4G/5G IEEE 802.11b/g/n/ac
  • Support BLE4.2
  • Support GPS,GLONASS,Galileo and QZSS
  • Support IP66 waterproof housing
  • Support OTA
  • Support LTE cat 1
  • One WAN/LAN variable network port

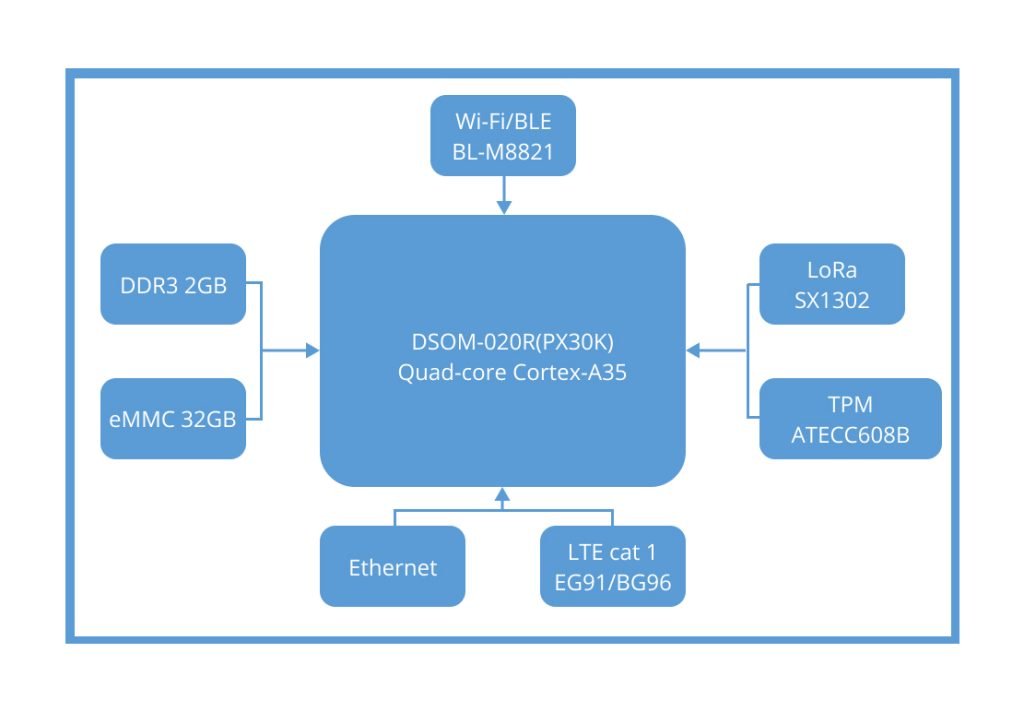

Hardware block diagram

block diagram of LoRaWAN Gateway Outdoor

Mechanical Requirement of DSGW-014 LoRaWAN Outdoor Gateway

Drawings

mechanical design of LoRaWAN Gateway Outdoor

Interface

interface of LoRaWAN Gateway Outdoor

Installation

installation of LoRaWAN Gateway Outdoor

Electrical Requirements of DSGW-014 LoRaWAN Outdoor Gateway

Hardware Information

CategorySpecifications
CPUQuad-core Cortex-A35
RAM2GB
ROMeMMC 32GB (up to 128GB)
SystemLinux
Security moduleATECC608B
Network InterfaceThe network interface supports CAT-5/CAT-5E to transmit data
and
POE Power Supply (voltage range is 44~ 57V). It is WAN/LAN
variable.
Indicator LEDs1) . Power LED normally on when powered on
2) . Network LED normally on when connected
3) . LTE Card indicator
Wireless protocolWifi, BLE, LoRa,LTE
GPSGPS,GLONASS,Galileo and QZSS(LTE Integrated)
Operating Temperature-20℃~65℃
IP ratingIP66
LTECat1

Performance Requirement

Wi-Fi
Performance
· Wireless2.4GHz
WLAN standard: IEEE802.11b/g/n
Frequency Range:2.4~2.4835GHz(2.4GHz ISM
Band) Channels: Ch1~Ch13 (For 20MHz Channels)
Modulation:
802.11b (DSSS): DBPSK, DQPSK, CCK;
802.11a/g (OFDM): BPSK, QPSK, QAM16, QAM64;
802.11n (OFDM): BPSK, QPSK, QAM16, QAM64;
Data Rate:
802.11b: 1, 2, 5.5, 11Mbps;
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;
802.11n (HT20): MCS0~MCS7 6.5~72.2Mbps;
802.11n (HT40): MCS0~MCS7 13.5~150Mbps;
· Frequency offset: +/-30KHz
Sensitivity:
[email protected]: [email protected]% PER
[email protected]: [email protected]% PER
[email protected]_MCS7 : [email protected]% PER
[email protected]_MCS7 : [email protected]% PER
· Transmit Power:
802.11b: 17±1.5dBm @11MHz
802.11g: 15±1.5dBm @54MHz
802.11n: 15±1.5dBm @HT20 MCS7
802.11n: 14.5±1.5dBm @HT40 MCS7
· 5GHz
WLAN standard:
IEEE802.11a/n/ac Frequency
Range:
5.15~5.25GHz; 5.25~5.35GHz; 5.47~5.73GHz;
5.735~5.835GHz(5GHz ISM Band)
· Channels:Ch36, Ch40, Ch44, Ch48; Ch52~Ch64;
· Ch100~Ch140; Ch149~Ch165(For 20MHz Channels)
Modulation:
802.11a (OFDM): BPSK, QPSK, QAM16, QAM64;
802.11n (OFDM): BPSK, QPSK, QAM16, QAM64;
802.11ac (OFDM): BPSK, QPSK, QAM16, QAM64, QAM256;
· Data Rate:
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps;
802.11n (HT20): MCS0~MCS7 6.5~72.2Mbps;
802.11n (HT40): MCS0~MCS7 13.5~150Mbps;
· Wireless2.4GHz
WLAN standard: IEEE802.11b/g/n
Frequency Range:2.4~2.4835GHz(2.4GHz ISM
Band) Channels: Ch1~Ch13 (For 20MHz Channels)
Modulation:
802.11b (DSSS): DBPSK, DQPSK, CCK;
802.11a/g (OFDM): BPSK, QPSK, QAM16, QAM64;
802.11n (OFDM): BPSK, QPSK, QAM16, QAM64;
Data Rate:
802.11b: 1, 2, 5.5, 11Mbps;
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;
802.11n (HT20): MCS0~MCS7 6.5~72.2Mbps;
802.11n (HT40): MCS0~MCS7 13.5~150Mbps;
· Frequency offset: +/-30KHz
Sensitivity:
[email protected]: [email protected]% PER
[email protected]: [email protected]% PER
[email protected]_MCS7 : [email protected]% PER
[email protected]_MCS7 : [email protected]% PER
· Transmit Power:
802.11b: 17±1.5dBm @11MHz
802.11g: 15±1.5dBm @54MHz
802.11n: 15±1.5dBm @HT20 MCS7
802.11n: 14.5±1.5dBm @HT40 MCS7
· 5GHz
WLAN standard:
IEEE802.11a/n/ac Frequency
Range:
5.15~5.25GHz; 5.25~5.35GHz; 5.47~5.73GHz;
5.735~5.835GHz(5GHz ISM Band)
· Channels:Ch36, Ch40, Ch44, Ch48; Ch52~Ch64;
· Ch100~Ch140; Ch149~Ch165(For 20MHz Channels)
Modulation:
802.11a (OFDM): BPSK, QPSK, QAM16, QAM64;
802.11n (OFDM): BPSK, QPSK, QAM16, QAM64;
802.11ac (OFDM): BPSK, QPSK, QAM16, QAM64, QAM256;
· Data Rate:
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps;
802.11n (HT20): MCS0~MCS7 6.5~72.2Mbps;
802.11n (HT40): MCS0~MCS7 13.5~150Mbps;
Bluetooth
Performance
· Bluetooth Specification: Bluetooth v2.1+EDR/4.0/4.2
· Frequency Range:2.4~2.4835GHz(2.4GHz ISM Band)
· Channels:
Bluetooth Classic: Ch0~Ch78 (For 1MHz Channels);
Bluetooth Low Energy: Ch0~Ch39 (For 2MHz Channels);
· Power Classes
Bluetooth Classic: Class1; Bluetooth
Low Energy: Class1.5;
· Date Rate & Modulation
BR_1Mbps: GFSK;
EDR_2Mbps: π/4-DQPSK;
EDR_3Mbps: 8DPSK;
LE_1Mbps: GFSK;
· TX Power: 2~8dBm
· Receiving Sensibility:
[email protected] : [email protected]% BER
[email protected] : [email protected]% BER
BLE : [email protected]% BER
· Frequency offset: +/-30KHz
· Bandwidth (MHz):2MHz
· E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
LoRa
Performance
· Supports class A, C
· Frequency band support
· RU864, IN865, EU868, US915, AU915, KR920, AS923
· TX power up to 27dBm,  RX sensitivity down to -139dBm @SF12
· Frequency offset: +/-1KHz
· BandWidth:125kHz
GPS· Supported Bands
· GPS L1 C/A: 1575.42 MHz
· GLONASS L1: 1602.5625 MHz
· BeiDou B1I : 1561.098 MHz
· Galileo E1:1575.42 MHz
· Default GNSS Constellation:GPS + GLONASS Number of Concurrent GNSS:3
Channels
· 33 Tracking Channels
· 99 Acquisition Channels
· 210 PRN Channels
· Horizontal Position Accuracy:Autonomous: < 2.5 m CEP
· Velocity Accuracy:Without Aid: < 0.1 m/s
· Acceleration Accuracy:Without Aid: < 0.1 m/s²  [email protected] with EASY™ Cold Start:<15s
· Warm Start:<5s Hot Start:<2s
· [email protected] without EASY™ Cold Start:<32s
· Warm Start:<30s Hot Start:<2s
· Timing Accuracy:1pps<100ns
· Reacquisition Time:<1S
· Sensitivity: Acquisition:<-149dBm Tracking:<-167dBm
· Re-acquisition:<-161dBm
Ethernet· WAN/LAN port:10M/100Mbps
LTE cat.1· -E ( Europe ) LTE-FDD: B1/B3/B7/B8/B20/B28A; WCDMA: B1/B8; GSM: B3/B8
· -EX ( Europe ) LTE-FDD: B1/B3/B7/B8/B20/B28; WCDMA: B1/B8; GSM: B3/B8
· -NAXD ( North America ) LTE-FDD: B2/B4/B5/B12/B13/B25/B26; WCDMA: B2/B4/B5
· -NA ( North America ) LTE-FDD: B2/B4/B5/B12/B13 ; WCDMA: B2/B4/B5
· -NAX ( North America ) LTE-FDD: B2/B4/B5/B12/B13/B25/B26 ; WCDMA: B2/B4/B5
· -VX (Verizon) LTE-FDD: B4/B13
· -AUX (Latin america /ANZ) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66; WCDMA:
B1/B2/B5/B8; GSM: B2/B3/B5/B8

Solution with DSGW-014 LoRaWAN Outdoor Gateway

Connect to third-party LoRaWan platforms (DSGW-014-※-L)

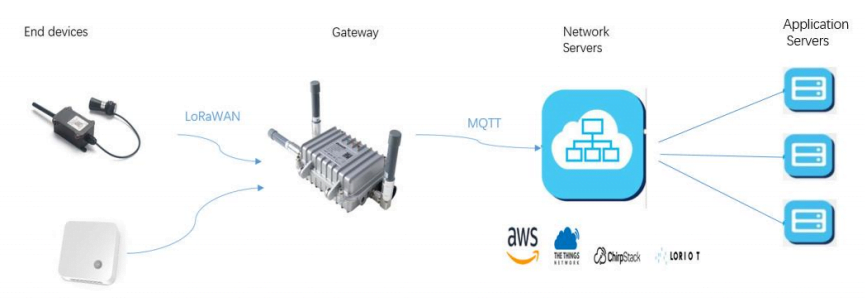

connect LoRaWAN Gateway Outdoor to third-party cloud platform

Build-in Network Server

built-in network server integration of LoRaWAN Gateway Outdoor

Thrid-Part Platform of DSGW-014 LoRaWAN Outdoor Gateway

The Things Stack (DSGW-014-※-F-TTN)

The Things Stack is an enterprise grade LoRaWAN network server, built on an open source core. The Things Stack allows you to build and manage LoRaWAN networks on your own hardware or in the cloud.

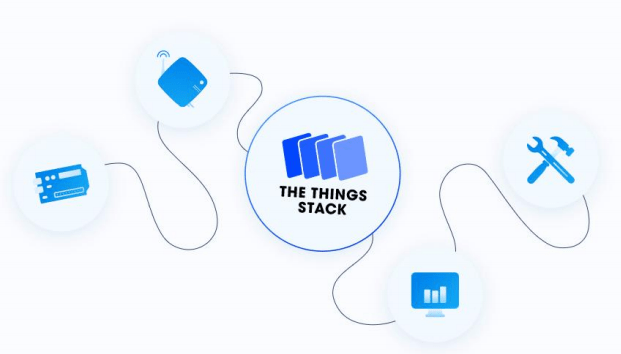

LoRaWAN Gateway Outdoor connect to the things stack

The link for the things stack: thethingsindustries docs

Chripstack (DSGW-014-※-F-CS)

The ChirpStack open-source LoRaWAN Network Server stack provides open-source components for LoRaWAN networks. Together they form a ready-to-use solution including an user-friendly web-interface for device management and APIs for integration. The modular architecture makes it possible to integrate within existing infrastructures. All components are licensed under the MIT license and can be used for commercial purposes.

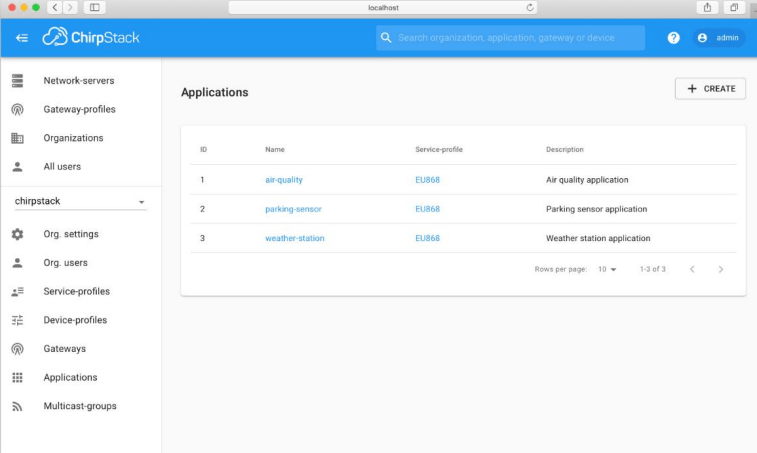

LoRaWAN Gateway Outdoor connected to ChripStack

The link for Chripstack: https://www.chirpstack.io/

AWS IoT Core for LoRaWAN(DSGW-014-※-L)

AWS IoT Core Integration is a software service that enables your AWS LoRaWAN gateway to work with AWS IoT Core. This document will show you how to set up a LoRaWAN end-node and view its data on the AWS IoT Console. In addition, it’ll show you how to send a message from AWS IoT Console to the end-node as well.

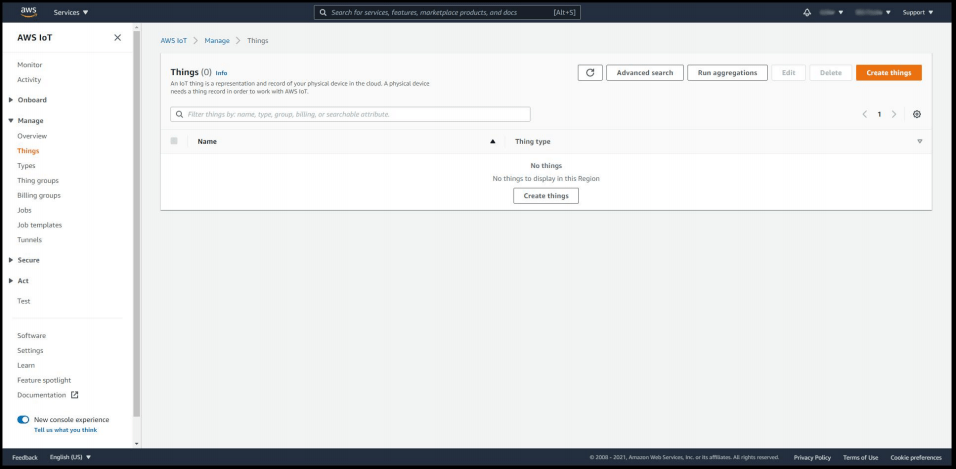

LoRaWAN Gateway Outdoor connected to AWS IoT Core

QA Requirements of DSGW-014 LoRaWAN Outdoor Gateway

Quality and Testing Information

Information DescriptionStandard(Yes) custom(No)
ESD TestingYes
RF Antenna AnalysisYes
Environmental TestingYes
Reliability TestingYes
CertificationFCC, CE, IC, RoHS/WEEE

Packing list

Gateway1
adapter1
network cable1
Clamping Fixture1
antenna1

Documentations

DusunIoT offers full set of development resources including QUICK START, SDK, Firmware packaging, module firmware, Tools, vairous third party software,etc.
