DSGW-075 Tuya Smart Life ZigBee 3.0 Gateway Hub Specification

DSGW-075 Tuya ZigBee gateway hub has a Tuya ZigBee 3.0 module built-in. You can directly run smart life App on it and control your smart devices. Read further to know its model list in different countries, feature summary, block diagram, mechanical drawings, hardware and connectivity performance.
Table of Contents
075 1

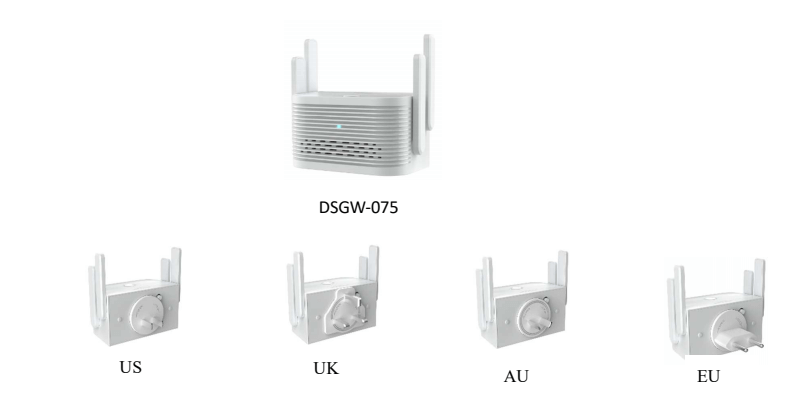

Model List

Model Country Wi-Fi 2.4G/5G Bluetooth 5.0 Zigbee3.0 Z-WAVE
DSGW-075-tuya-US US
DSGW-075-tuya-UK UK
DSGW-075-tuya-AU AU
DSGW-075-tuya-EU EU

1. Introduction

1.1. Purpose& Description

The tuya gateway is developed based on DSGW-070-1 ZigBee to Wi-Fi 2.4G Gateway Interchangeable Plug, it can be connected to tuya’s ZigBee device. You can control the devices via the gateway with tuya App or smart life App.

1.2. Product Feature Summary
  • Support 100-240V AC power supply
  • Support Support IEEE802.11ac, IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol;
  • Up to 1200Mbps data rate
  • Support AP mode
  • Support WPS
  • Support the MIMO technology
  • Support zigbee 3.0;
  • Support tuya app or smartlife APP
  • RoHS compliance(Lead-free)
  • FCC,CE compliance

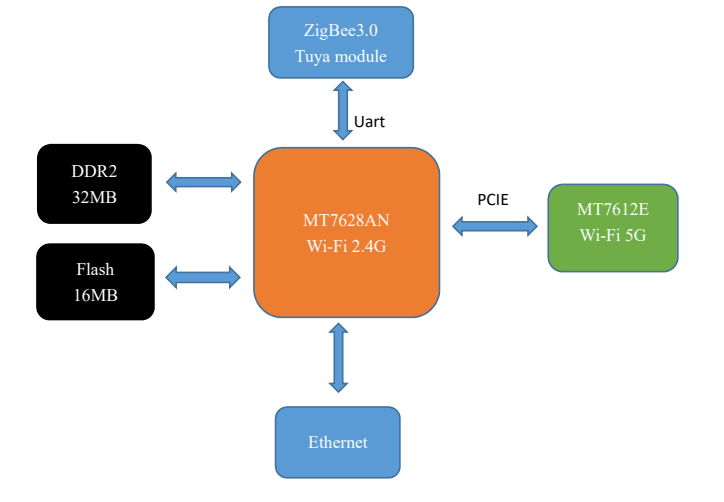

1.3. Hardware block diagram
075 2

2. Mechanical Requirement

2.1. Drawings
075 3

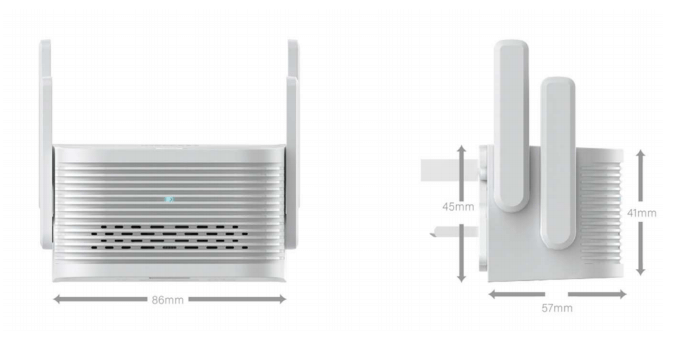

2.2. Product Size
075 4
2.3. Plug accessories
075 5

3. Specifications

Technical Specification
Power Input:100V~240V AC/50~60HZ
Indicator LEDs Used for device status indication
Button The button use as a pair button or rest button
Operating Temperature -10℃~70℃
Performance Requirement
Wi-Fi Performance ● IEEE wireless LAN standard: IEEE802.11ac, IEEE802.11n;
IEEE802.11g; IEEE 802.11b
● Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
MCS0~MCS9 @ HT40/ 5GHz band
IEEE 802.11ac: MCS0~MCS9 @ VHT80/ 5GHz band
● Sensitivity: VHT80 MCS9 : -60dBm@10% PER(MCS9) /5GHz band
HT40 MCS9 : -63dBm@10% PER(MCS9) /5GHz band
HT40 MCS7 : -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band
● Transmit Power:
IEEE 802.11ac: 13dBm @HT80 MCS9 /5GHz band
IEEE 802.11ac: 16dBm @HT80 MCS0 /5GHz band
IEEE 802.11n: 14dBm @HT20/40 MCS7 /5GHz band
IEEE 802.11n: 16dBm @HT20/40 MCS0 /5GHz band
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
● Wireless Security: WPA/WPA2, WEP, TKIP, and AES
● Working mode : Bridge、Gateway、AP Client
Zigbee3.0 Performance ● Range: 100 meters minimum, open field
● Transmit Power:17.5dBm
● Highest Transmission Rate: 300Mbps
● Frequency offset: +/- 20KHZ
● Receiving Sensibility:-94dBm
● Frequency Range (MHz):2401.0~2483.5
● Low Frequency (MHz):2400
● High Frequency (MHz):2483.5
● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
● Bandwidth (MHz):5MHz
● Modulation: OQPSK

4. QA Requirements

4.1 Quality Information
Quality &Testing Information
Information Description Standard(Yes) custom(No)
ESD Testing Yes
RF Antenna Analysis Yes
Environmental Testing Yes
Reliability Testing Yes
Certification FCC,CE, zigbee certification

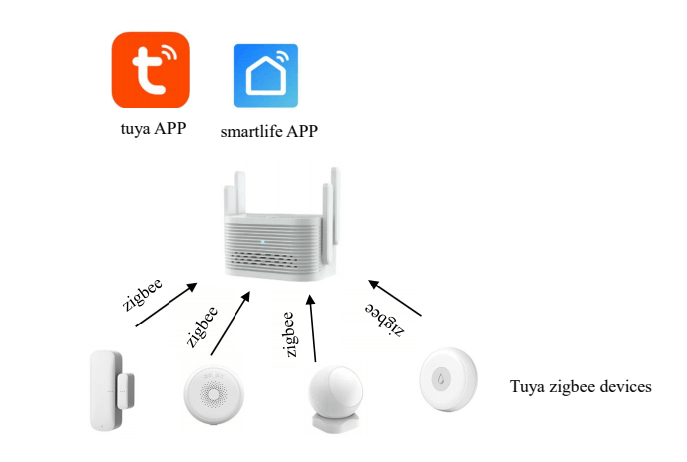

5. Application

075 6
