Smart Scales Product Specification

The DSSA-010 scale uses BIA (Bioelectrical Impedance Analysis) technology to measure body composition data by sending a safe low-tension electrical current through the body. It supports measures body weight, BMI, body fat, muscle, water, vessel fat, bone mass, metabolism, protein, obesity degree, body age, weight without fat, you could check this data via cellphone.
Table of Contents

Product Name: Smart Scales

Model Name: DSSA-010

Model List

ModelBLE4G
DSSA-010-1
DSSA-010-2

1. Introduction

1.1 Purpose& Description

The DSSA-010 scale uses BIA (Bioelectrical Impedance Analysis) technology to measure body composition data by sending a safe low-tension electrical current through the body. It supports measures body weight, BMI, body fat, muscle, water, vessel fat, bone mass, metabolism, protein, obesity degree, body age, weight without fat, you could check this data via cellphone.

1.2 Product Feature Summary

  • Guaranteed accuracy
  • High precision strain gauge sensors system
  • Auto on/off
  • Magic Hidden LED display
  • Weight units: kg/lb/st: lb (the unit could be changed by the app)

2. Mechanical Requirement

2.1 Drawings

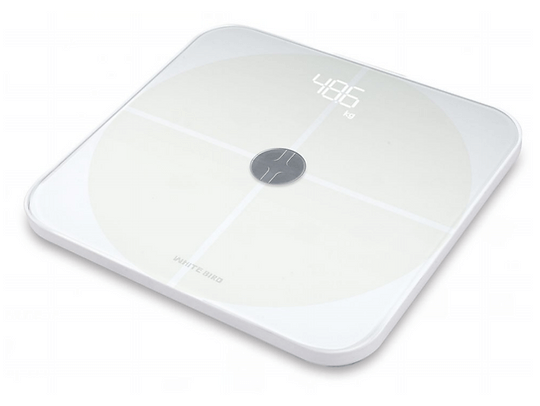

body fat scale 1

3. Specifications

3.1 Specification

CategorySpecifications
ProtocolBluetooth4.0 OR 4G
DisplayHD LED Screen
MaterialITO coated tempered glass platform + ABS bottom housing
BatteryAAA X4
Dimensions304 x 304 x 22 mm
Maximum capacity180kg/400lb
Bluetooth Performance●TX Power: 4dBm
●Range: 50~100 meters, open filed
●Frequency Range (MHz): 2.405 GHz-2.480 GHz
●Receiving Sensibility: [email protected]%BER
●Frequency offset: +/-20KHZ
●Frequency Range (MHz):2401.0~2483.5
●E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
●Bandwidth (MHz):2MHz
●Modulation: GFSK
4GFrequency
●LTE-TDD: B34/B38/B39/B40/B41
●LTE-FDD: B1/B3/B5/B8
●WCDMA: B1/B5/B8
●TX Power LTE: Class 3(23dBm±2dB) UMTS: Class 3(24dBm+1/-3dB)
Data business
●WCDMA (3GPP R8)
●UMTS R99: DL 384kbps/UL 384kbps
●DC-HSPA+: DL 42Mbps/UL 5.76Mbps
●LTE (non-CA Cat4)
●LTE FDD: DL 150Mbps/UL [email protected] BW cat4
●LTE TDD: DL 130Mbps/UL [email protected] BW cat4
Network ProtocolSupport TCP/UDP/PPP/HTTP/NITZ/CMUX/NDIS/NTP/ HTTPS/PING
LED Size48 x 31mm
ColorWhite / Black
LED ColorWhite
Weight limit5kg-180kg (11lb – 396lb)

4. Certification

body fat scale 2
