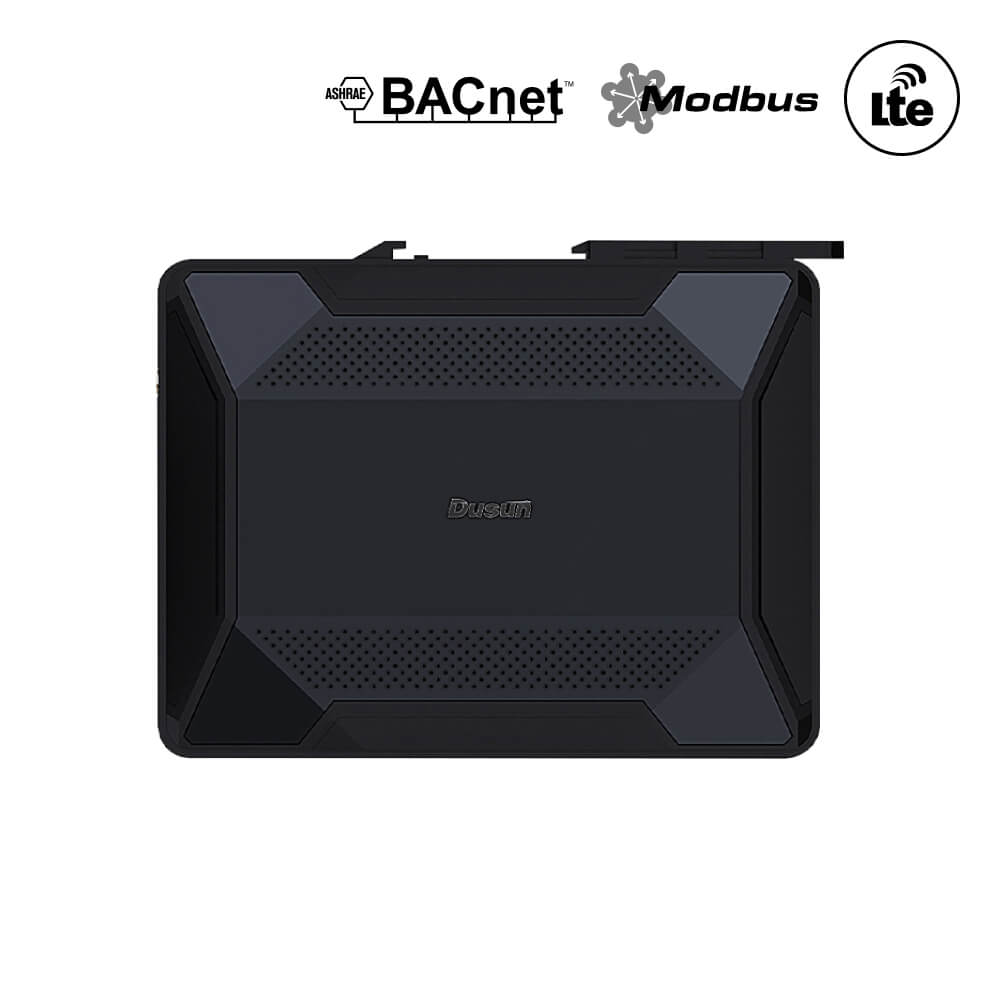

Quick View of CDGW-006-1 Modbus RS485 Converter Gateway
CDGW-006-1 Modbus to TCP IP Gateway Converter is designed for ultimate versatility, openning up a world of possibilities in industrial connectivity.
CDGW-006-1 has two RS485 COM ports and can effortlessly converting Modbus serial communication protocol to TCP/IP network communication protocol, allowing devices using Modbus protocol Communicate via Local Area Network (LAN) or Wide Area Network (WAN) to enable remote monitoring and control.
CDGW-006-1 also has a USB 2.0 interface, making data exchange between USB interface devices and Modbus RS485 networks becomes a breeze, empowering you to create comprehensive and integrated solutions.
CDGW-006-1 also supports other communication protocols including Wi-Fi, 4G LTE Cat4, Ethernet/IP, etc. Equipped with Modbus software, and ready with AWS IoT SDK integration, it is capable of streamlining communication, harnessing the power of versatile connectivity and enhancing future-ready adaptability. Whether you’re in industrial automation, building management, or any other domain requiring seamless protocol conversion, the CDGW-006-1 is your gateway to efficiency, connectivity, and success.
Features of CDGW-006-1 Modbus RS485 Converter Gateway
Capturing data from end devices and sends it to the cloud via 4G CAT4, and Ethernet

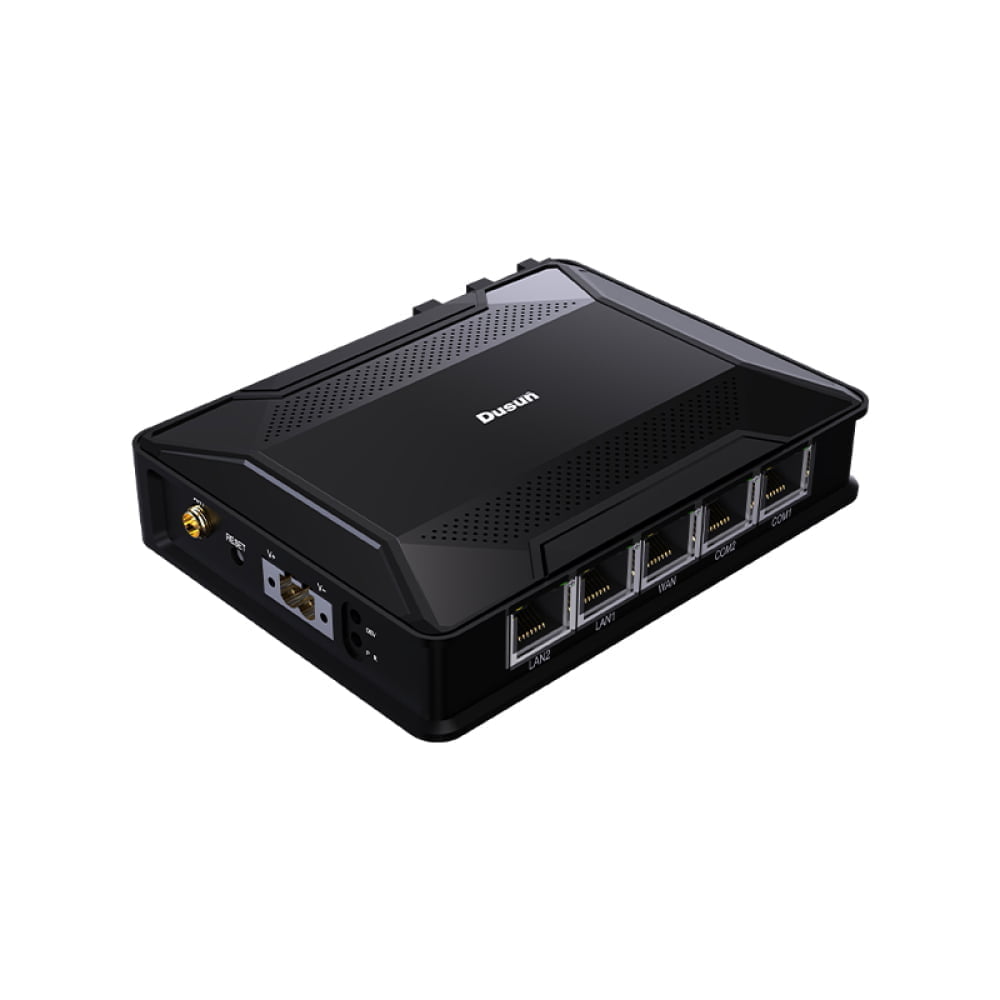

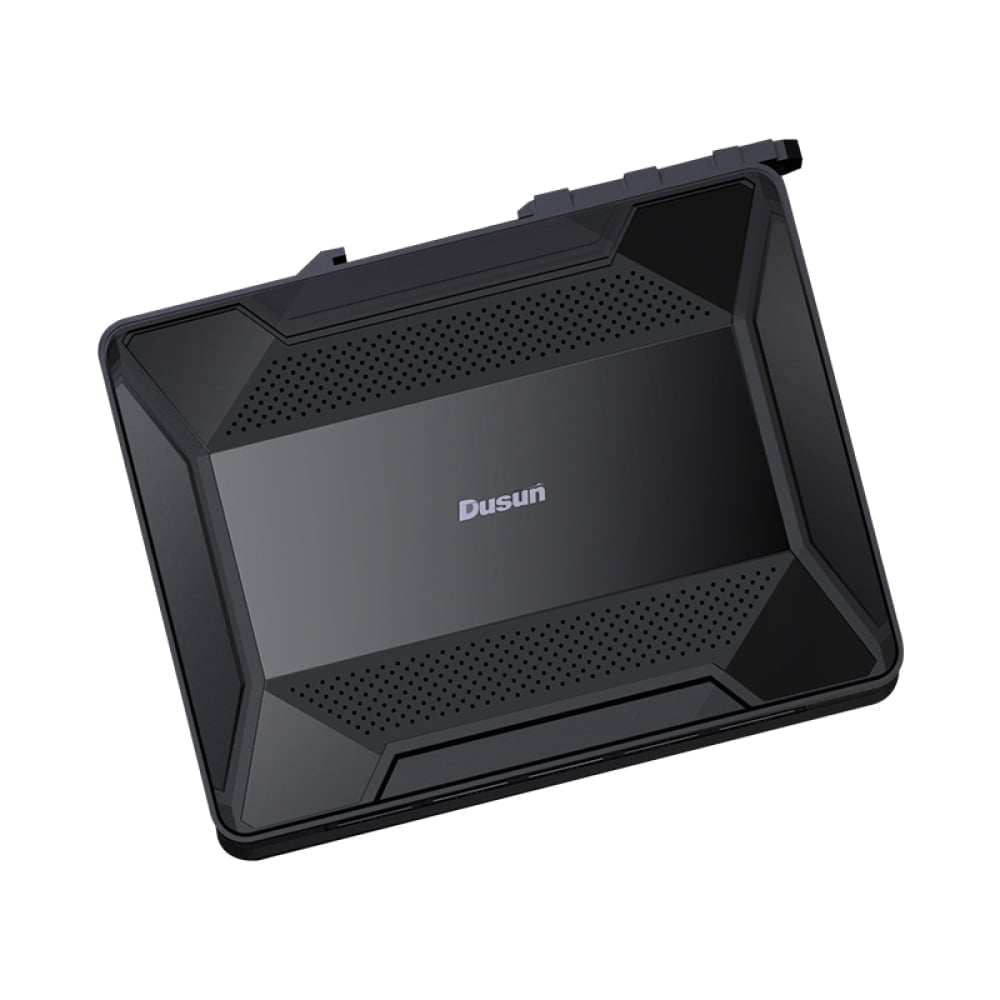

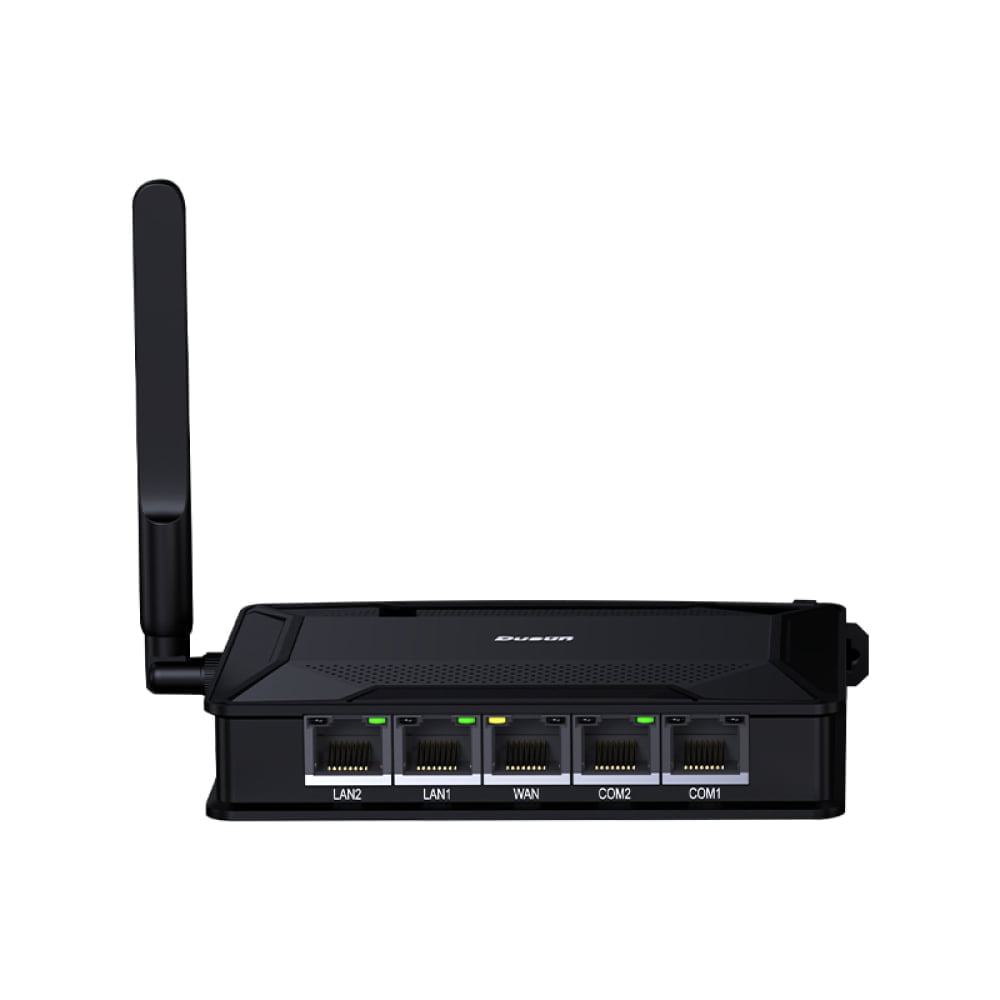

Hardware and Dimension of CDGW-006-1 Modbus RS485 Converter Gateway
Parameters of CDGW-006-1 Modbus RS485 Converter Gateway
| CPU | MT7628AN |
| System | OpenWrt |
| RAM | 128MB DDR2 |
| Storage | 32MB Nor Flash |
| Power Supply | DC 12/24V, 2-Pins Cresnet Interface |
| USB | 1 * USB 2.0 |
| SIM | 1 * Micro SIM slot |
| WAN | 1 * 10/100 Mbps port |
| LAN | 2 * 10/100 Mbps ports |
| COM | 2 * COM ports RS485 |
| Antenna | LTE FPC Antenna//Wi-Fi SMA-Rod Antenna |
| Installation Method | Flat, Ceiling, DIN |
| Dimension | 120MM X 90.5MM X 25MM |
| Operating Temperature | -0℃~55℃ |
| Storage Temperature | -40℃~65℃ |
| Operating Humidity | 10%~90% |
Use Cases of CDGW-006-1 Modbus RS485 Converter Gateway
Developer Resources of CDGW-006-1 Modbus RS485 Converter Gateway
| Development | ||
|---|---|---|
| [QUICK START] | CDGW-006 SDK Quick Start Guide V1.0.pdf | V1.0 |
| [SDK] | CDGW_006_openwrt_sdk_v1.0.4 | V1.0.4 |
| [Firmware packaging] | CDGW-006_openwrt_image_RV1.0.4 | V1.0.4 |
| Third-Party Software | ||
|---|---|---|
| [Openz-wave] | OpenZwave Developer Tutorual | |
CDGW-006-1 Modbus RS485 Converter Gateway Model List
| Model | Hardware | Software | ||||||
|---|---|---|---|---|---|---|---|---|
| Wi-Fi2.4G Ethernet 4G LTE CAT4 | Protocol | Platform | ||||||
| RS485 | RS232 | Modbus | BACnet | DMX512 | BNP3 | ThingsBoard | AWS IoT | |
| CDGW-006-1 | ● | ● | ● | |||||
