Quick View of DSGW-230 Smart Gateway Hub with a Gigabit Ethernet Port
DSGW-230 smart gateway hub is developed based on RK3328 processor, which is an IoT SoC perfectly used in smart home scenarios and building automation settings with features of high-performance and power-efficiency. It supports BLE, Zigbee, Z-Wave, LoRaWAN, WiFi 2.4G/5G, 4G LTE Cat1 and is equipped with a 1000Mbps WAN/LAN variable network port, allowing users to deal with complicated needs of IoT-based automation.

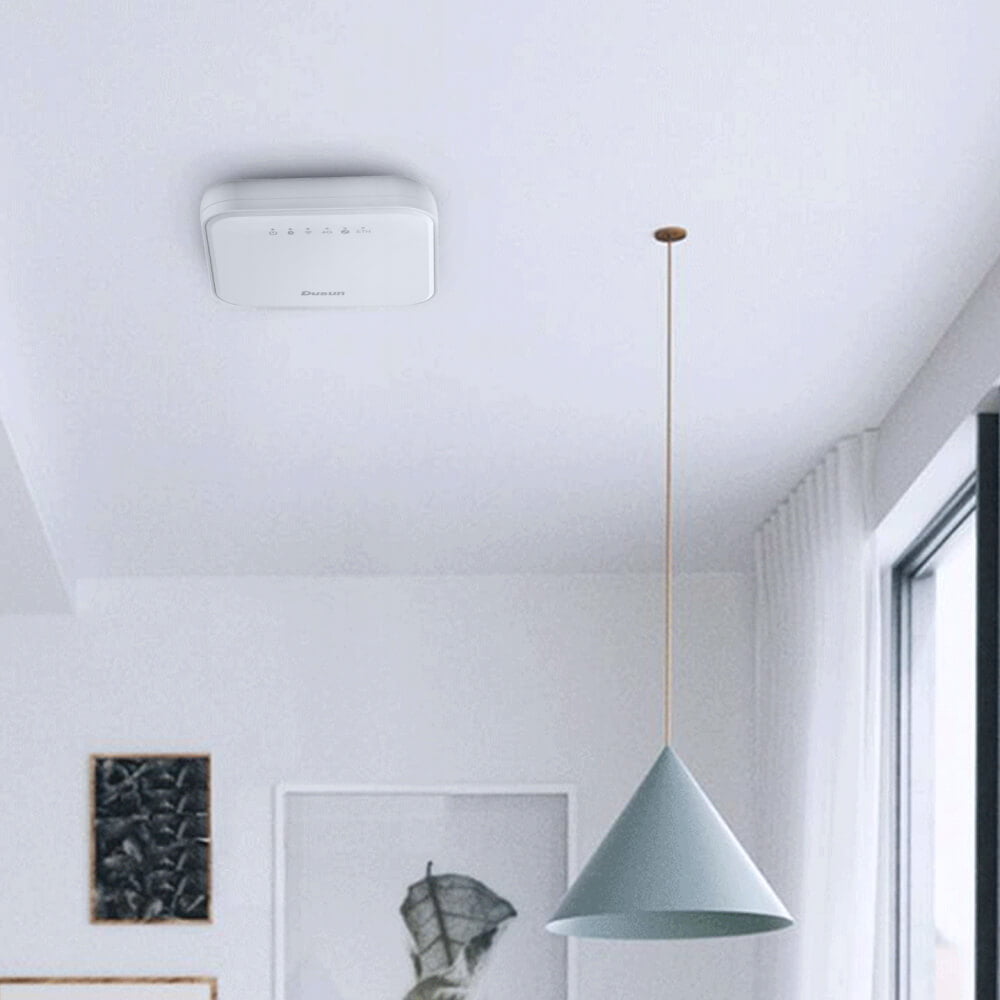

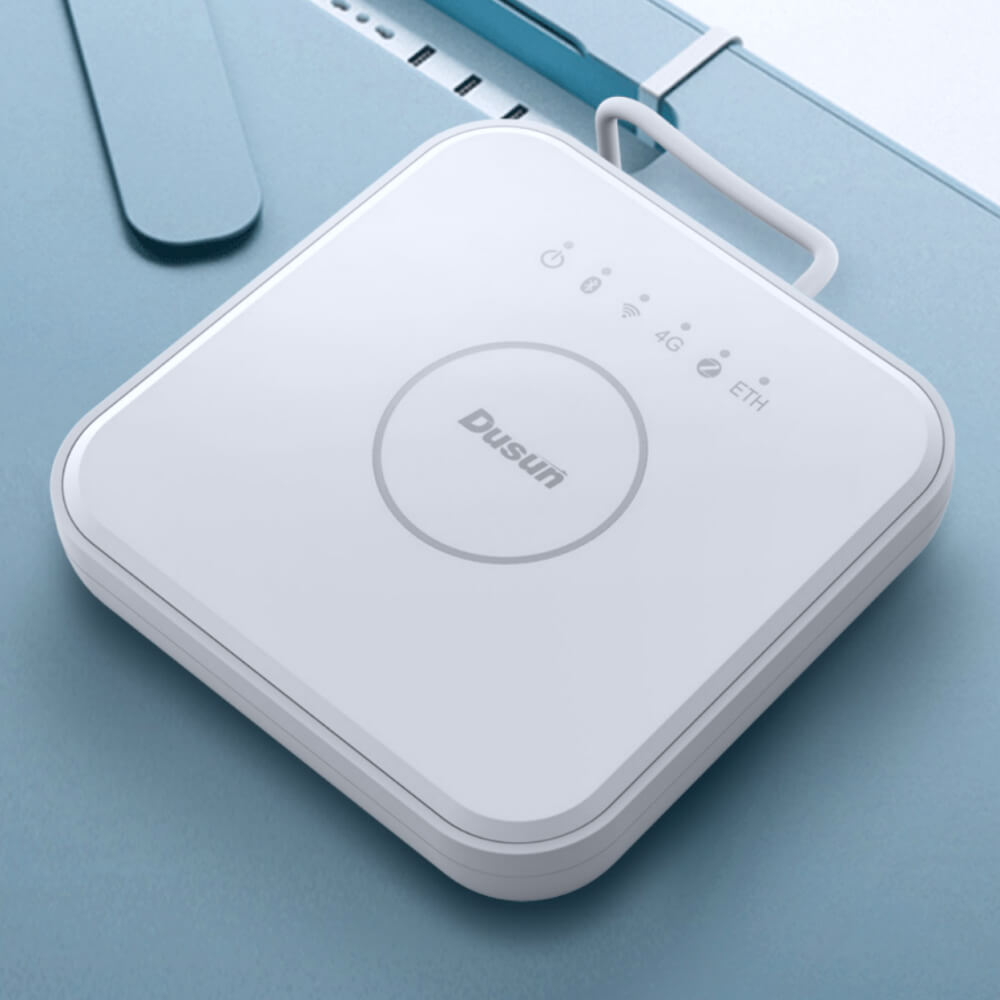

DSGW-230 smart hub gateway support PoE and three installaion methods (flat/ceiling/wall-mounting), designed for hassle-free deployment. Meanwhile, it has a 5000 mAh Lithium Battery as backup power source, ensuring uninterrupted operation. With it, your devices can remain connected, responsive, and operational, even in challenging or unforeseen circumstances.

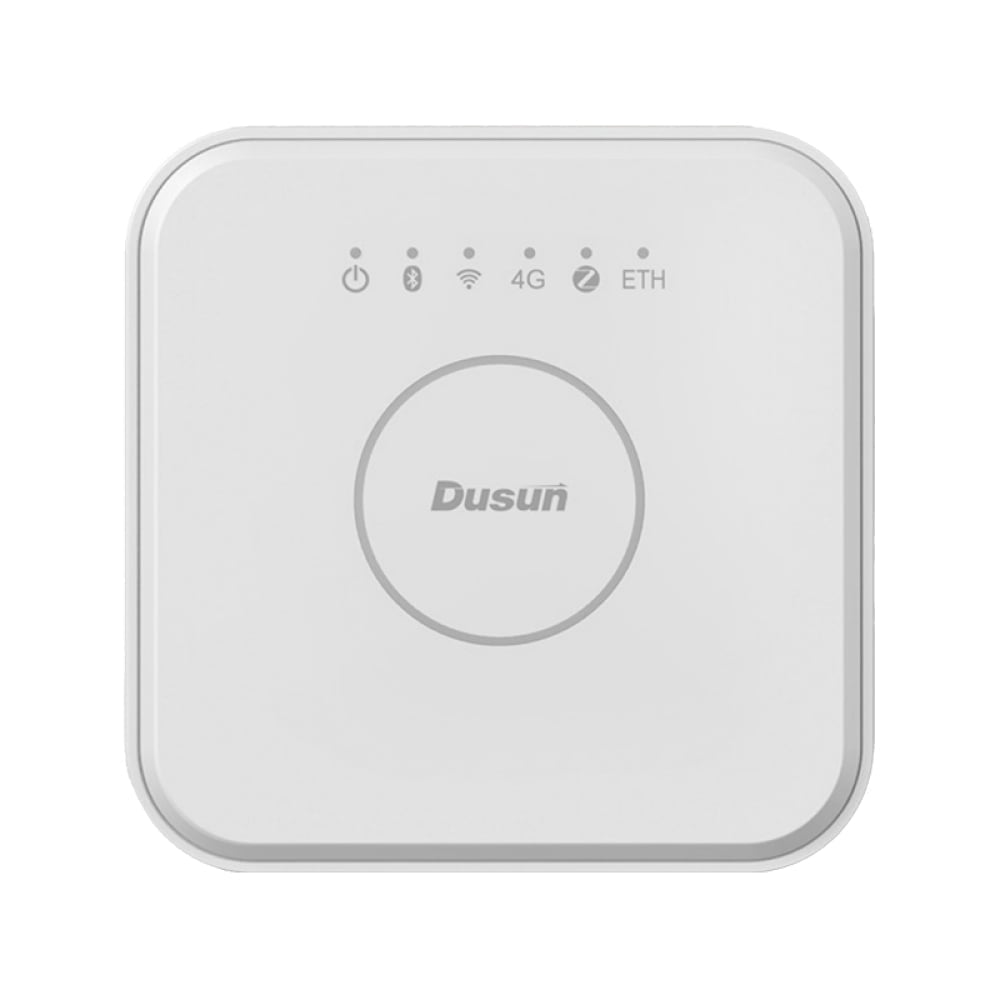

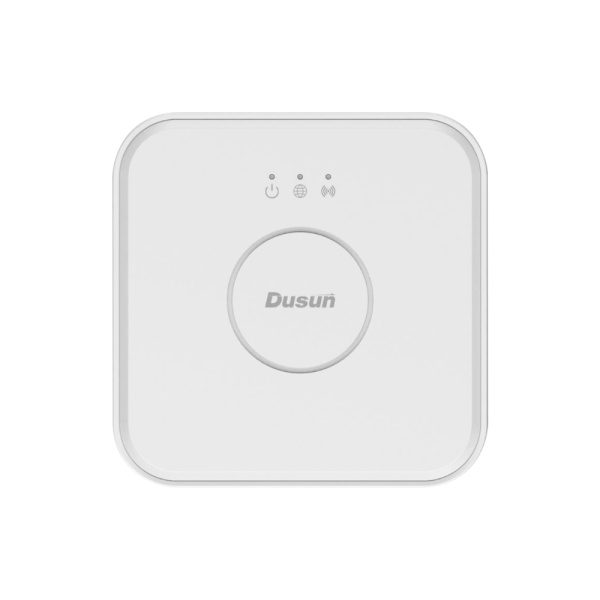

Hardware Overview of DSGW-230 Smart Gateway Hub
Dimensions and Package of DSGW-230 Smart Gateway Hub
| CPU | RK3328 Quad-core Cortex A53 |
| System | Debian11 |
| RAM | 2GB |
| eMMC | 32GB |
| SD card | Up to 128GB |
| Power Supply | DC 12V/1.5A |
| User-Defined button | Support |
| Switch | On/Off power |
| Network Interface | • CAT-5/CAT-5e cables for data transmission and PoE Supply with a voltage range of 44 to 57V. • 1000M WAN/LAN variable port |
| USB | USB2.0 Type-C |
| SIM card slot | • Dual Micro SIM card slots, link backup capability, Dual card with single standby mode • Dimensions: 12mm x 15mm |
| SD card slot | 1 |
| Indicator LEDs (RGB) | 1). Power LED 2). Wireless LED 3）LTE indicator |
| Antenna | Zigbee/BLE PCB, Z-Wave/Wi-Fi FPC Antenna |
| Li battery | 5000mAH |
| Installation method | Flat, Ceiling |
| RTC | Real-Time Clock operated from an onboard battery |
| Hardware encryption | ECC608B |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -40℃~65℃ |
| Operating humidity | 10%~90% |
| IP rating | IP22 |
Use Cases of DSGW-230 Smart Gateway Hub
Developer Resources of DSGW-230 Smart Gateway Hub
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-230 SDK Quick Start Guide V1.0.pdf | V1.0 |
| [SDK] | DSGW-230_sdk_rv1.0 | V1.0 |
| [Firmware packaging] | DSGW230_1000M_Debian11_rleaseall_RV2.1 | V2.1 |
| [Zigbee module firmware] | DSGW-210-Zigbee-MG1B_image_RV8 Version：ezsp ver 0x08 | V ezsp ver 0x08 |
| [Ble module firmware] | DSI-0177-Amber-BLE-NCP_AV3.2.4.0129 Version：3.2.4.297 | V 3.2.4 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V Z-Wave 7.18 |
| Tools | ||
|---|---|---|
| Burning tool] | AndroidTool_Release | |
| [Upgrade_tool] | DriverAssitant_v4.91 | V4.9.1 |
| Third-Party Software | ||
|---|---|---|
| [Node-RED] | node-red | |
| [Matter] | Matter Developer Document Matter Chip-tool Document | |
| [Ble2Mqtt] | BLE2Mqtt message API v1.7 | V1.7 |
| [Zigbee2Mqtt] | Zigbee2Mqtt Source Code & How To Install and Deploy[Dusun] | V2.2 |
| [Z-Wave2Mqtt] | Z-Wave2Mqtt(oz) of Dusun Gateway v1.0 | V1.0 |
| [Docker] | docker | |
| [Openz-wave] | OpenZwave Tutorial | |
| [Openthread] | OpenThread For OTBR | |
Model List of DSGW-230 Smart Gateway Hub
| Model | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee 3.0 | Z-Wave | LoRa | LTE Cat1 |
|---|---|---|---|---|---|---|
| DSGW-230-11 | ● | ● | ● | ● | ● | ● |
| Model | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee 3.0 | Z-Wave | LoRa | LTE Cat1 |
|---|---|---|---|---|---|---|
| DSGW-230-13 | ● | ● | ● | ● |
| Model | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee 3.0 | Tuya Zigbee | Z-Wave | LoRa | LTE Cat1 |
|---|---|---|---|---|---|---|---|
| DSGW-230-12 | ● | ● | ● |
FAQs of DSGW-230 Smart Gateway Hub
What is Gigabit PoE and its benefits?
In data communication, a Gigabit (Gb) is a billion bits, or 1000000000 bits. It is frequently used to calculate the quantity of data that is transferred between two communication points in a second. Power over Ethernet functionality is referred to by the acronym PoE.
Gigabit PoE allows for communication between network clients and supplies power to PoE-capable edge devices over the same RJ45 network line. It enables the device to operate in locations without network or power outlets. The main purpose of PoE is to enable edge devices to operate where they are required while saving organizations a lot of money on the costs of building network and electrical connections.
How fast is 1000 Mbps Ethernet?
125 megabytes (1,000 megabits) of data can be sent across a gigabit network at a pace of 1 gigabit per second (Gbps).
What is the benefits of installing PoE on the ceiling?
PoE reduces the amount of cables and power supplies required, which lowers the cost of the installation and materials. You just need to run one wire at a time to the IoT gateway device because PoE connections transmit both data and power.
What is the benefit of using PoE gateway controller box at home?
Even while WiFi is frequently used to communicate with smart home appliances, it can occasionally be unstable. Internet connections to PoE gateway devices using Ethernet cables are significantly more dependable. By using just one cable, a PoE gateway can save costs for customers while also removing the need for high-voltage circuit alignment above the ceiling and any accompanying metal conduits necessary to run high-voltage cabling.
What is PoE gateway?
PoE (Power over Ethernet) Gateway utilizes Power over Ethernet technology. You may run a single wire to your networking devices instead of having to connect power and ethernet individually, and it can be simply mounted to a ceiling/wall or tabletop. PoE has the finest speeds, coverage, and capacity, making it ideal for deployment of higher-performing home automation systems.
