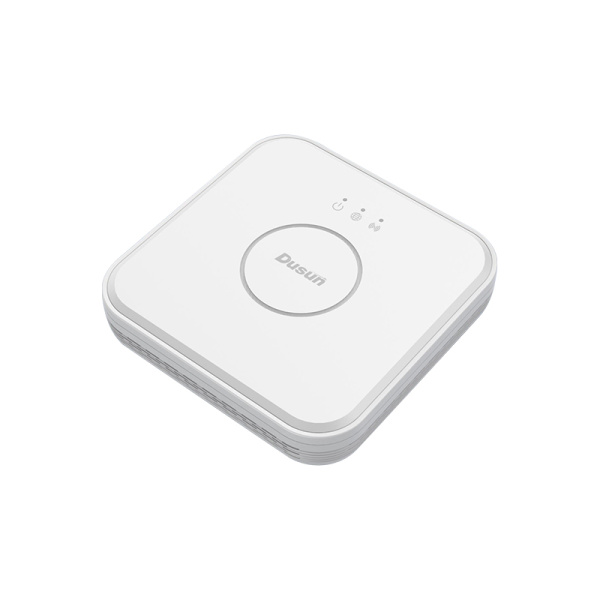

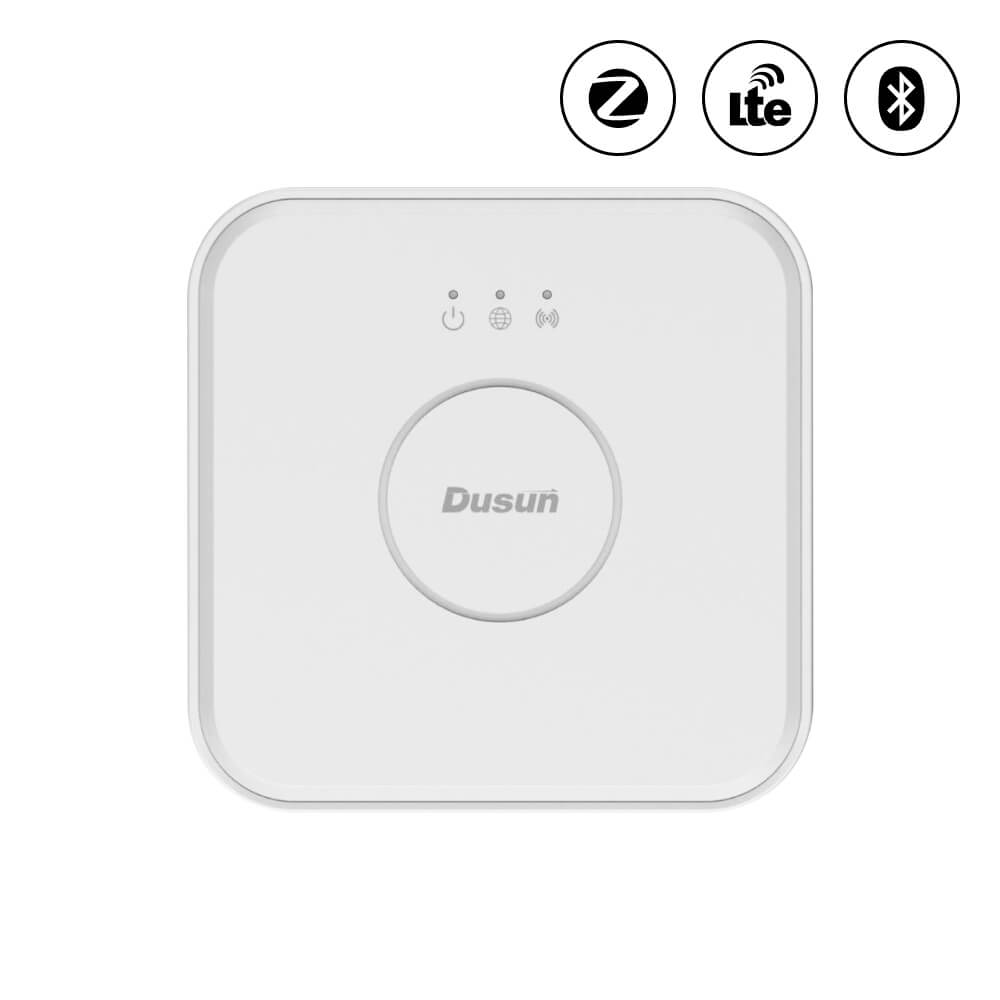

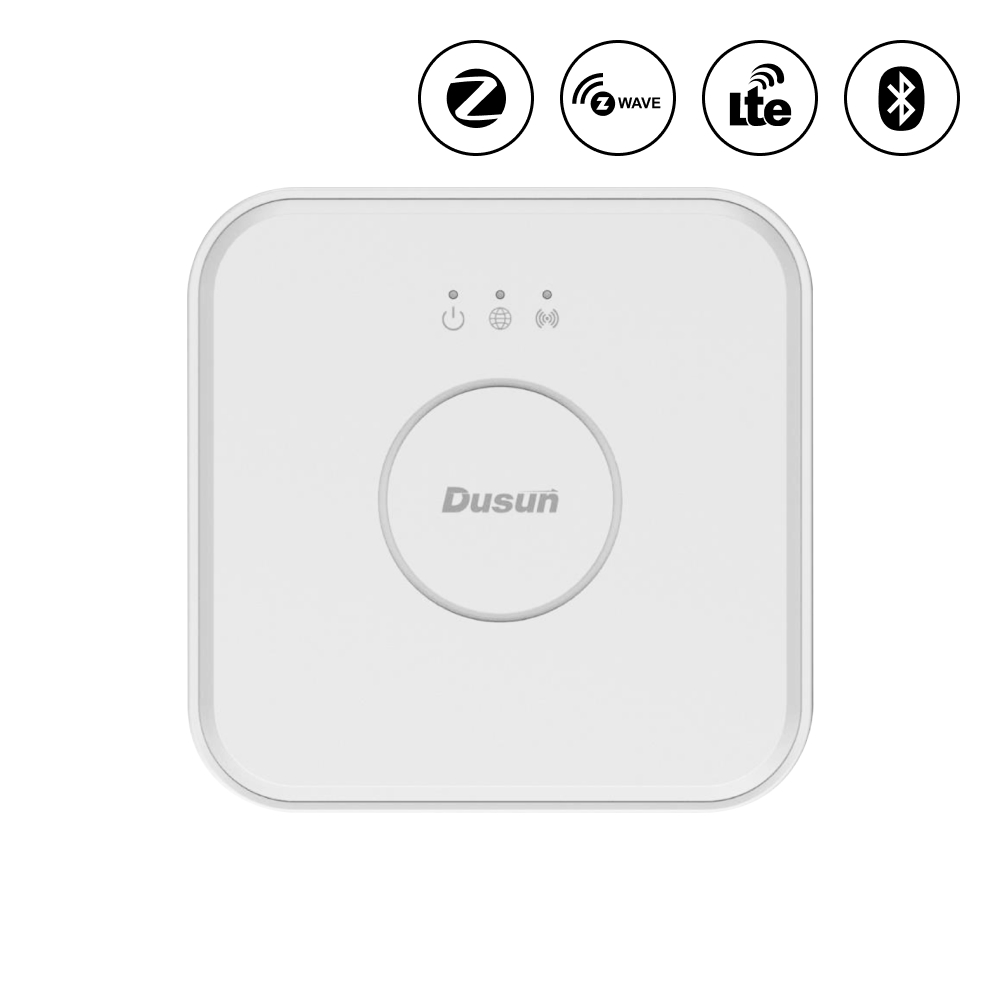

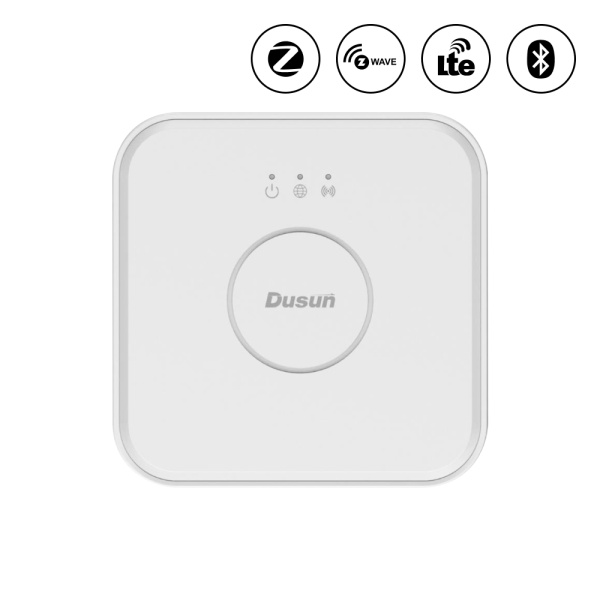

Quick View of DSGW-230-13 Smart Gateway Automation Hub with WiFi 2.4G/5G and Gigabit Ethernet
DSGW-230-13 smart gateway automation hub is a cutting-edge device meticulously designed to elevate smart home user experience a new level of control, convenience, and connectivity like never before. It has both WiFi 2.4G and 5G options, elevating user experience with swift and stable data transmission across your smart ecosystem. Meanwhile, it has a Gigabit Ethernet port that guarantees a robust and steadfast network connection.
DSGW-230-13 smart gateway automation hub unleashes the power of IoT smart home. Whether you’re handling data-intensive tasks or ensuring swift communication between your devices, this hub is engineered to deliver performance that exceeds expectations.
What’s more, DSGW-230-13 smart gateway automation hub enjoys dual power options for freedom to choose between PoE (Power over Ethernet) or USB Type-C connection, allowing users to integrate it into their existing setup without worrying about power sources.

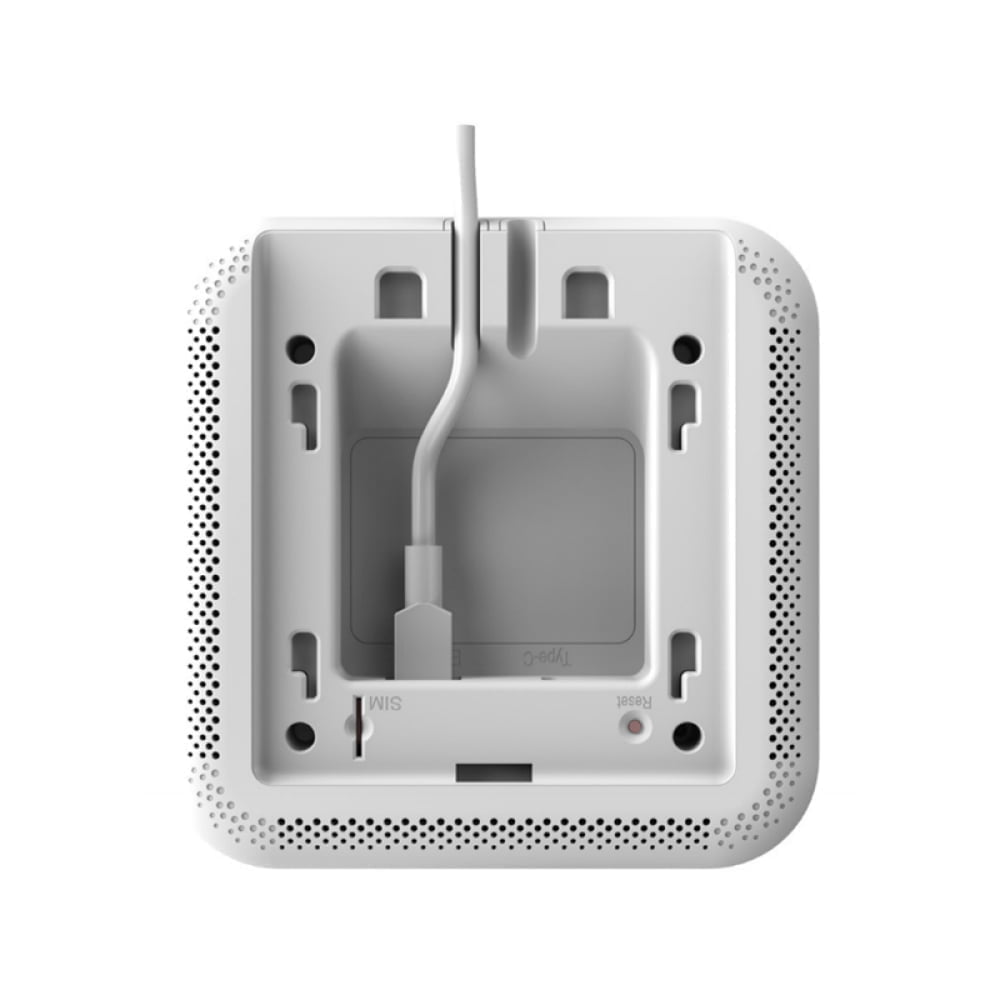

Hardware Overview of DSGW-230-13 Smart Gateway Automation Hub
Dimensions and Package of DSGW-230-13 Smart Gateway Automation Hub
| CPU | RK3328 Quad-core Cortex A53 |
| System | Debian11 |
| RAM | 2GB |
| eMMC | 16GB |
| SD card | Up to 128GB |
| Power Supply | DC 12V/1.5A |
| User-Defined button | Support |
| Switch | On/Off power |
| Network Interface | • CAT-5/CAT-5e cables for data transmission and PoE Supply with a voltage range of 44 to 57V. • 1000M WAN/LAN variable port |
| USB | USB2.0 Type-C |
| SD card slot | 1 |
| Indicator LEDs (RGB) | 1). Power LED 2). Wireless LED 3）LTE indicator |
| Antenna | Zigbee/BLE PCB, Z-Wave/Wi-Fi FPC Antenna |
| Li battery | 5000mAH |

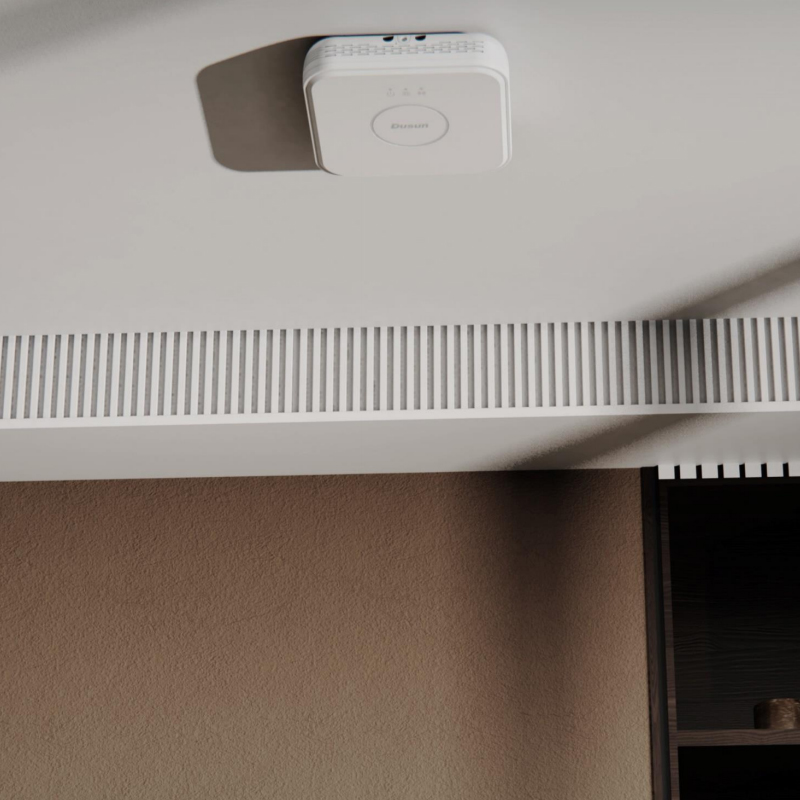

| Installation method | Flat, Ceiling |
| RTC | Real-Time Clock operated from an onboard battery |
| Hardware encryption | ECC608B |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -40℃~65℃ |
| Operating humidity | 10%~90% |
| IP rating | IP22 |
Use Cases of DSGW-230-13 Smart Gateway Automation Hub
Developer Resources of DSGW-230-13 Smart Gateway Automation Hub
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-230 SDK Quick Start Guide V1.0.pdf | V1.0 |
| [SDK] | DSGW-230_sdk_rv1.0 | V1.0 |
| [Firmware packaging] | DSGW230_1000M_Debian11_rleaseall_RV2.1 | V2.1 |
| [Zigbee module firmware] | DSGW-210-Zigbee-MG1B_image_RV8 Version：ezsp ver 0x08 | V ezsp ver 0x08 |
| [Ble module firmware] | DSI-0177-Amber-BLE-NCP_AV3.2.4.0129 Version：3.2.4.297 | V 3.2.4 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V Z-Wave 7.18 |
| Tools | ||
|---|---|---|
| Burning tool] | AndroidTool_Release | |
| [Upgrade_tool] | DriverAssitant_v4.91 | V4.9.1 |
| Third-Party Software | ||
|---|---|---|
| [Node-RED] | node-red | |
| [Matter] | Matter Developer Document Matter Chip-tool Document | |
| [Ble2Mqtt] | BLE2Mqtt message API v1.7 | V1.7 |
| [Zigbee2Mqtt] | Zigbee2Mqtt Source Code & How To Install and Deploy[Dusun] | V2.2 |
| [Z-Wave2Mqtt] | Z-Wave2Mqtt(oz) of Dusun Gateway v1.0 | V1.0 |
| [Docker] | docker | |
| [Openz-wave] | OpenZwave Tutorial | |
| [Openthread] | OpenThread For OTBR | |
Model List of DSGW-230-13 Smart Gateway Automation Hub
| Model | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee 3.0 | Z-Wave | LoRa | LTE Cat1 |
|---|---|---|---|---|---|---|
| DSGW-230-13 | ● | ● | ● | ● |
