DSGW-020 Dual Band WiFi Router Gateway with PoE Switch (BLE/Zigbee Supported)

Model: DSGW-020 Categories ,

DSGW-020 adopts MediaTek’s MT7628A router-on-a-chip and enable AP (access point) router function. By adding an extra 802.11ac MediaTek MT7612E, it can be a dual-band (WiFi 2.4G/5G) concurrent IoT gateway. DSGW-020 WiFi router gateway supports both WiFi AP (Access Point) and WiFi Station mode(STA), customers are allowed to switch modes according to their needs.

As an IoT gateway, DSGW-020 can captures data from end devices that support Zigbee 3.0 and Bluetooth and transfers it to the cloud via Wi-Fi 2.4G/5G and Ethernet. It is an enhanced version of DSGW-040 LTE gateway with both PoE function and power adapter, which means it can be powered by a DC power supply or a network cable that supports POE.

We have FAE technical support team to help integrate the devices to your cloud. SDK/APIs will be offered. If there have some issues in the future, firmware OTA is supported.

Quick View of DSGW-020 PoE WiFi Router Gateway

  • MT7628A MCU, OpenWrt OS, programmable;
  • Supports power supply from POE switches and 5V adapters;
  • Support data transmited to the cloud via WiFi 2.4G/5G, LTE 4G (LTE-TDD/LTE-FDD), and Ethernet;
  • Downlink device connection supports Bluetooth 5.2/SIG mesh, Zigbee 3.0;
  • Two extra antennas for WiFi and Zigbee signal strengthing;
  • Features one WAN/LAN variable network port;
  • Support custom firmware from the bottom layer of the hardware;
  • Certification: CE, FCC, BQB, Zigbee;
  • Operating Temperature: -0℃~55℃;
  • ODM/White Label/OEM supported for large quantity order.

Parameters of DSGW-020 Power over Ethernet Router Gateway

RAMUp to 128MB
eMMcUp to 16MB Flash
OTR0℃~40℃ Commercial Grade
ProtocolUplink: Wi-Fi 2.4G/5G, Ethernet, LTE CAT.1, LTE CAT M1 Downlink: BLE 5.2, Zigbee 3.0
Network InterfaceThe network interface supports CAT-5/CAT-5E to transmit data and POE Power Supply (voltage range is 44~ 57V). It is a WAN/LAN variable.
Indicator LEDs1). Power LED normally on when powered on
2). Network LED normally on when connected
3). Wi-Fi LED normally on after connecting to Wi-Fi for 1- 2 sec
LTE CAT M14G FDD-LTE B1/B3/B7/B8/B20(2100/1800/2600/900/800MHz)
TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
AntennnaWi-Fi Antenna, LTE Antenna, Optional BT, Zigbee, GPS
Operating Temperature-10℃~70℃

Features of DSGW-020 PoE Wireless Router Gateway

Multi-Protocol Gateway

Coming with Zigbee3.0, Wi-Fi 2.4G/5G, BLE 5.2, and LTE CAT M1

Dual Band(2.4G and 5G) running on the same network

Enhancing your wireless signal experience over two different radio bands(2.4GHz and 5GHz ) at once.
dsgw 020 multi protocol gateway 3
dsgw 020 high programmable 3

High Programmable

Develop your custom firmware directly on our hardware using our comprehensive and fully documented guidance covering all aspects of the products’s capabilities and hardware interface.

Globally and Carrier Certified

Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide. Accelerating your product development and get to market faster.

Dimensions and Package of DSGW-020 PoE-powered Router Gateway

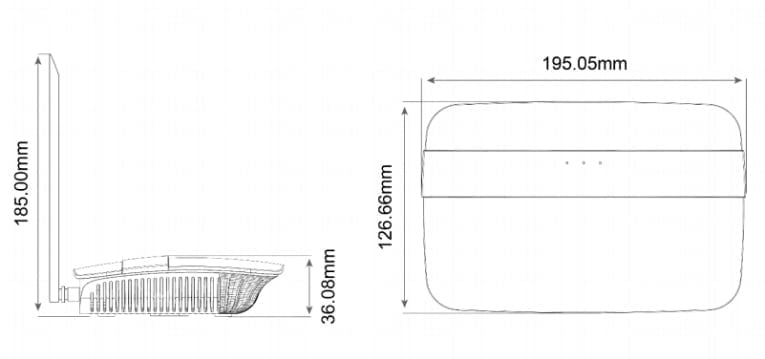

dsgw 020 dimension

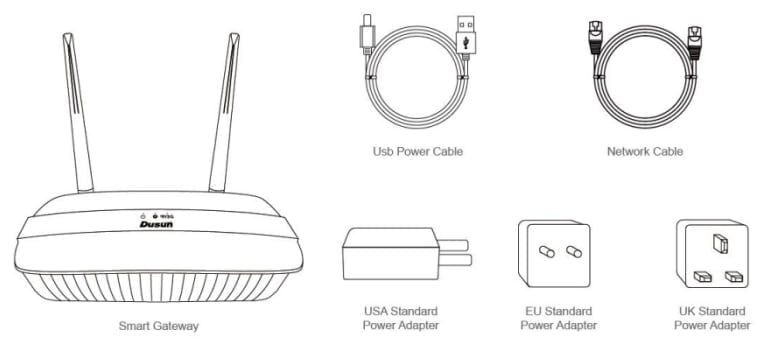

dsgw 020 package list
Package List
Optional Model for the mass production
ModelWi-Fi 2.4G/5GBluetooth 5.2Zigbee 3.0LTE CatM1POE
DSGW-020-8One Antenna for Zigbee, the other for Wi-Fi&5G
For Sample only Product (DSGW-020-5) available
ModelWi-Fi 2.4G/5GBluetooth 5.2Zigbee 3.0LTE CatM1POE
MOQ (Minimum Order Quantity) for Logo Customization is $ 20K

Application of DSGW-020 PoE Router Gateway for Home

dsgw 020 smoke alarms

Smoke alarms

dsgw 020 water leakage detector

Water leakage detector

dsgw 020 smart door lock

Smart door lock

dsgw 020 smart thermostat

Smart thermostat

IoT Smart Lighting

Smart Metering

Cold Chain Monitoring

Use Cases of DSGW-020 PoE Router Gateway for Home

Developer Resources of DSGW-020 PoE-Powered WiFi Router Gateway

Third-Party Software

FAQs of DSGW-020 Dual Band WiFi Router Gateway with PoE Ports

Devices typically have two operating modes: Access Point Mode and Station Mode (also referred to as Client Mode). Most people would consider Station Mode (STA) to be the default WiFi device mode. It may be stationary, moving, or portable. Any WiFi device, is a station with AP mode included, technically speaking. Therefore, all stations are APs, but not all APs are stations. WiFi Access Point serves as a hub for one or more stations.
WiFi Access Point (AP, both 2.4G and 5G) mode: in this mode, the gateway works as a router. The AP SSID, AP Password and AP encryption mode are configurable by users, and users can connect to the SSID using the AP Password.
WiFi Station Mode (STA): in this mode, the gateway functions as a access point and is able to connect to a router. User can fill in the SSID and Password of the router to let gateway connect to router.

End devices are connected via the Zigbee protocol to transmit data can be categories into three types of network topologies, including star, mesh, and tree topologies. In theory, the Zigbee gateway could connect more than 10,000 devices in mesh topology, but after the test, DSGW-020 can handle up to 40 devices in a tree topology.

If you use standard Zigbee 3.0 or BLE protocol, end devices can directly communicate, and Dusun IoT has Zigbee2MQTT and BLE2MQTT documents provided. If yours are not standardized, our FAE team can offer professional integration support and assist in firmware developing, but that’s may charged. For device integration, we have an example of developing an application to communicate with BLE5 pulse eximeters. You are welcomed to see details.

Dusun IoT will offer you integration api, or you can directly integrate with azure or AWS, Tuya cloud, or your own private platform.
Yes, it can employ PoE to transmit data and power the devices at the same time. Power over Ethernet (PoE) uses a single network cable to supply power and network connectivity to devices that are PoE-powered. Since it is a 2-in-1 solution, you are not limited to having your devices adjacent to an outlet.

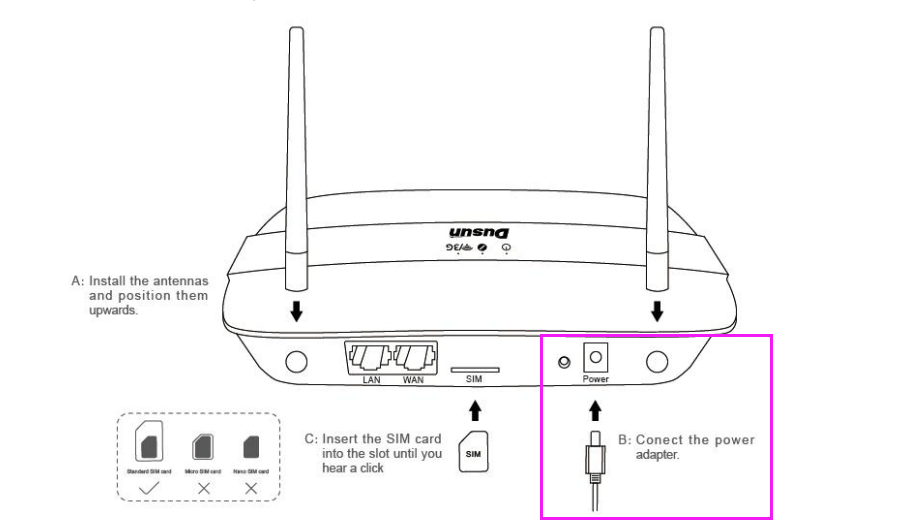

To use DAGW-020, it is suggested to find a place with less obstacles like concrete structures and thick walls, and plug in the power adapter to activate the gateway. When the green light on the enclosure is continually on, the gateway is powered on; the router power is off, and the green light is off. When the power adapter is cut off, the PoE power can be used as well.

dsgw 020 can i power my router with poe

By using Ethernet data cables instead of conventional electrical power cords and wiring, Power over Ethernet (PoE), a technology for constructing wired Ethernet local area networks (LANs), allows the electrical current required to operate each device. This has implications for both commercial settings and applications for smart homes. Instead of using electrical cable, which only provides power and necessitates separate wiring for data, PoE employs less expensive Ethernet cabling, which can transmit both power and data. Electrical wiring can stay minimal because PoE transmits both power and data over Ethernet cable, reducing the amount of wiring required.
