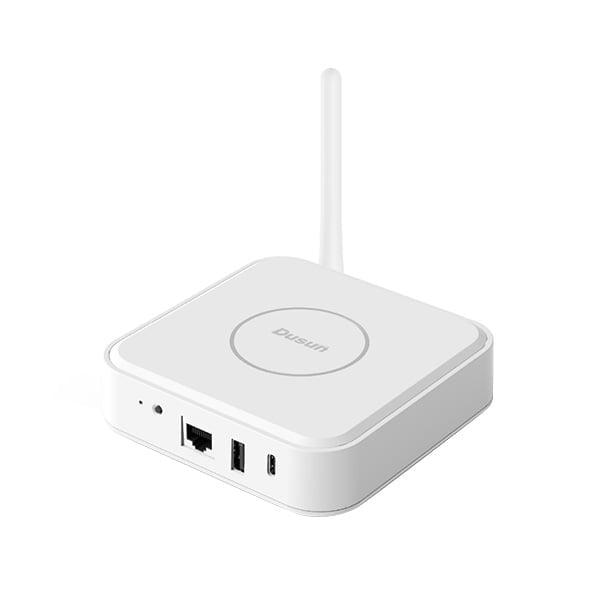

DSGW 210B 5

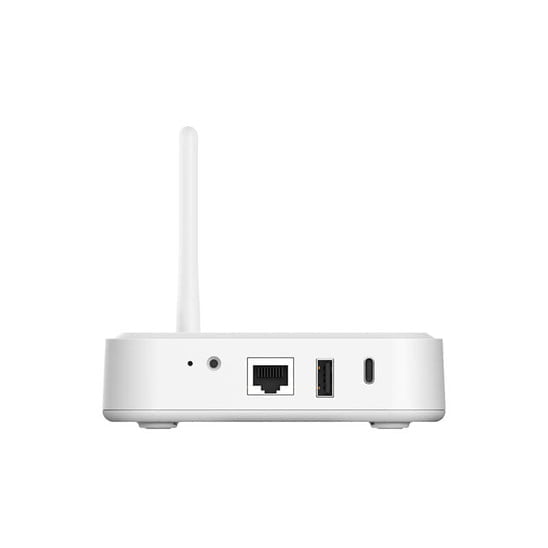

DSGW 210B 3

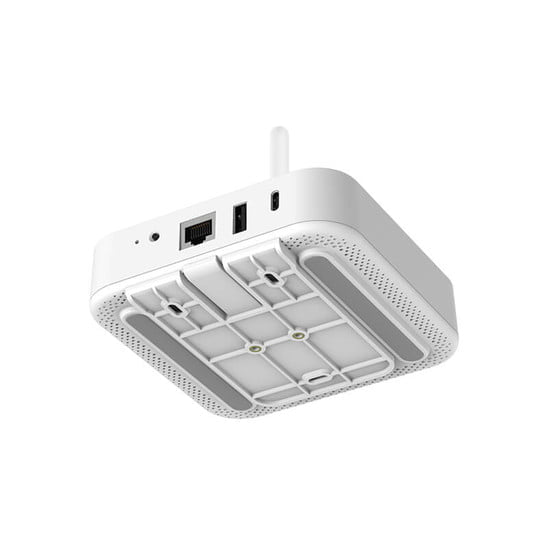

DSGW 210B 4
DSGW 210 product image 1

Indoor LoRaWAN Gateway

Model: DSGW-210B-helium Category: Tag

DSGW-210B the things network indoor LoRaWAN gateway features built-in Ethernet port and default Wi-Fi AP mode, suitable for The Things Network and industrial uses. Read further to know its hardware model list and applicable regions, feature summary, block diagram, mechanical design, antenna dimension and package list.

QuickStart >>

User Manual >>

Buy from Alibaba

Specification
Get A Quote

Dusun Hotspots Distribution

helium dusun gateway map

Frequency variants

Frequency Country
915MHz Australia,New Zealand
868MHz Europa
915MHz USA
864MHz Russia
920MHz South Korea
864MHz India
923MHz Thailand

Max TX Power within the Certification Standards

Brand Standard Value Dusun B** N** P** R** S**
Maximum
Transmit
Power		 27.00dBm
(923.3- 927.5)
LoRaWAN		 26.78 dBm
(923.3- 927.5)		 11.28dBm
(904- 926)		 17.50 dBm
(923.3- 927.5)		 23.45 dBm
(903- 927.5)		 13.39dBm
(923.3- 927.5)		 25.2 dBm
(903- 927.5)
Deviation 0.22 15.72 9.5 3.55 13.61 1.8
21.00dBm
(902.3 - 914.9)
Helium PoC		 22.10 dBm
(902.3- 914.9)		 11.78dBm
(902.3- 915.1)		 / 23.84 dBm
(902.3- 927.7)		 / 25.1dBm
(902.3- 914.9)
Deviation 1.1 9.22 / 2.84 / 4.1
FCCID /
 2AUXBDSGW-210B 2A** 2A** 2A** 2A** Z4**

Hardware Specifications

Item Technical Specification
CPU Quad-core Cortex-A53
RAM 2GB
ROM eMMC 32GB
System Linux
Security module ATECC608
Power Supply Port 5V/3A
Reset button Reset the gateway into factory mode
Network Interface RJ45
Operating Temperature -10°C~55°C
Storage Temperature -10°C~65°C
Dimmension(L*W*H ) 120MM*120MM*30MM

Package Content

Product list number
Smart Gateway 1
Network Cable 1
USB Power Cable 1
Power adapter(EU or US) 1
Mounting bracket 1
Expansion Screw 3
Antenna 1
DSGW 210B 5

FAQ

Rockchip’s 3328, its performance is enough for HNT.

We don’t have a TTL interface, but we can provide SSH.

1302.
