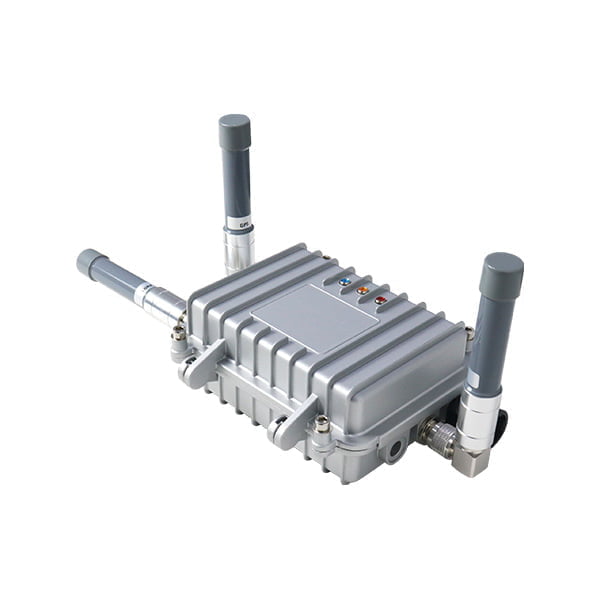

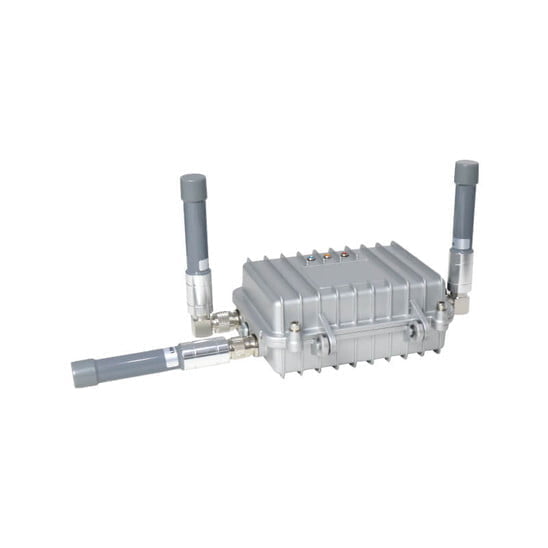

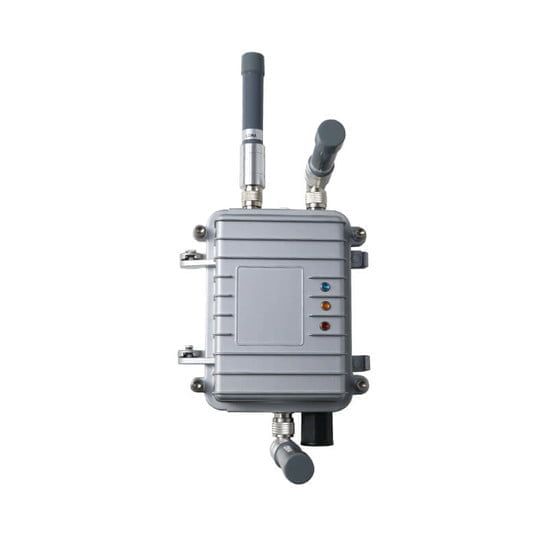

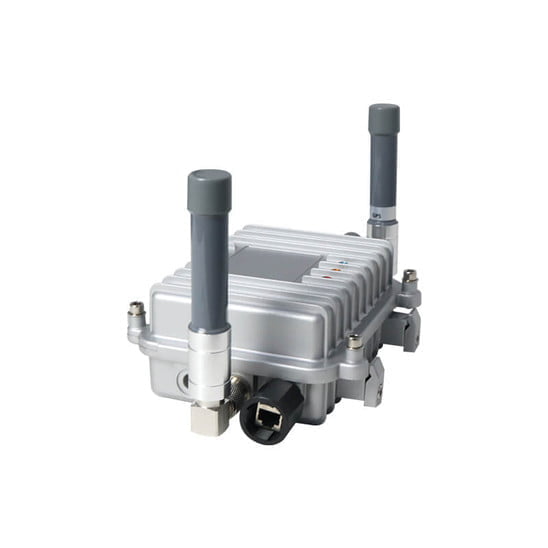

Outdoor LoRaWAN Gateway

QuickStart >>

User Manual >>

Specification Document >>

Dusun Hotspots Distribution

helium dusun gateway map

Frequency variants

Frequency Country
915MHz Australia,New Zealand
868MHz Europa
915MHz USA
864MHz Russia
920MHz South Korea
864MHz India
923MHz Thailand

Max TX Power within the Certification Standards

Brand Standard Value Dusun B** N** P** R** S**
Maximum
Transmit
Power
27.00dBm
(923.3- 927.5)
LoRaWAN
26.78 dBm
(923.3- 927.5)
11.28dBm
(904- 926)
17.50 dBm
(923.3- 927.5)
23.45 dBm
(903- 927.5)
13.39dBm
(923.3- 927.5)
25.2 dBm
(903- 927.5)
Deviation 0.22 15.72 9.5 3.55 13.61 1.8
21.00dBm
(902.3 - 914.9)
Helium PoC
22.10 dBm
(902.3- 914.9)
11.78dBm
(902.3- 915.1)
/ 23.84 dBm
(902.3- 927.7)
/ 25.1dBm
(902.3- 914.9)
Deviation 1.1 9.22 / 2.84 / 4.1
FCCID /
2AUXBDSGW-210B 2A** 2A** 2A** 2A** Z4**

Hardware Specifications

Category Specifications
CPU Quad-core Cortex-A35
RAM 1GB
ROM eMMC 8GB
System Linux
Security module ATECC6081
Power Supply Port Support DC input , input Voltage range is 4.5V to 5V.
Power seat aperture is 3.5mm. The needle diameter is1.35 mm and is positive.
Power adapter:100-240V 50/60HZ, Output is 5V/2A
Reset button The reset button inside gateway, After pressing the reset button for more than 5 seconds, the Wi-Fi unit will be restored to the factory settings.
Network Interface The network interface supports CAT-5/CAT-5E to transmit data and POE Power Supply (voltage range is 44~ 57V). It is WAN/LAN variable.
Indicator LEDs 1).Power LED normally on when powered on
2).Network LED normally on when connected
3). Card indicator
TF card Up to 128GB
Operating Temperature 0℃~65℃
waterproof level IP66

FAQ

Q: What model of CPU do you use in your current equipment?
A: Rockchip's 3328, its performance is enough for HNT.
Q: Does your HNT device have TTL interface? (TTL is used for bug fixes)
A: We don't have a TTL interface, but we can provide SSH.
Q: What model is our lorawan module?
A: 1302.
