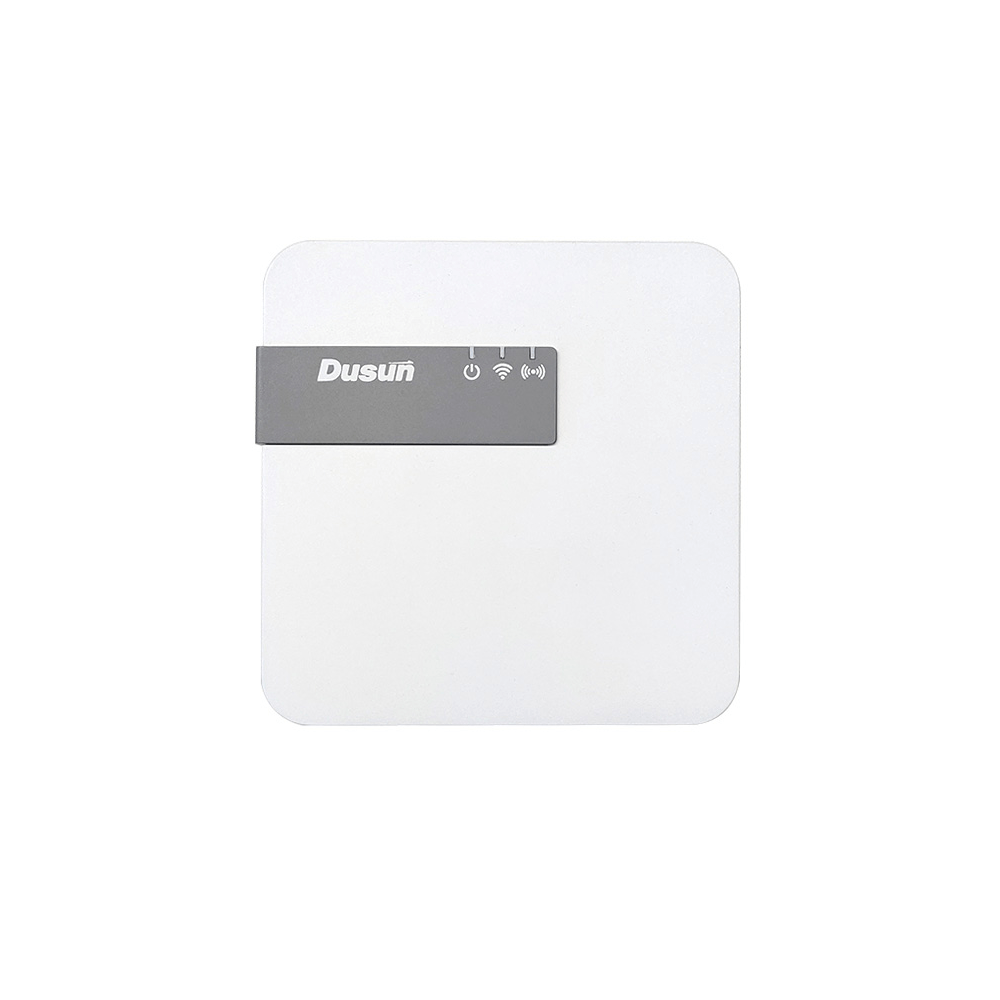

DSGW-090 Wireless Zigbee to Wired PoE Gateway

Model: DSGW-090 Category:

DSGW-090 Zigbee/Z-Wave PoE gateway is built with highly-integrated small box (9.5*9.5*2.6) and supports multiple protocols (Zigbee 3.0/Z-Wave Plus/BLE 5 to Wi-Fi/LTE/Ethernet). It is an PoE (Power over Ethernet) gateway alternative to DSGW-030 Zigbee gateway USB stick. Additionally, DSGW-090 is ceiling-installed.
DSGW-090 is a residential wireless gateway bridge hub designed for collecting data from smart locks, temperature/humidty/motion sensors, power meters, and communicating with public/private cloud platform, especially suitable for multi-member home and apartmant IoT projects.

Quick View of DSGW-090 PoE (Power over Ethernet) Gateway

  • Processor: MTK7628 (MIPS24KEc(580MHZ)), MIPS-Based;
  • OS: Linux@ OpenWrt; RAM: 128MB; Flash: 16MB; SDK Quick start guide provided;
  • OpenWrt-LuCI page offered to setup gateway parameters and MQTT configuration;
  • Support integrating third-party platforms such as Azure, AWS etc, or your private platforms;
  • Connect smart sensors downlink through Zigbee, BLE, Z-Wave;
  • Connect the network uplink via Wi-Fi, Ethernet and Cellular LTE;
  • One WAN/LAN variable network port (10/100Mbps);
  • Support hardware and firmware customization;
  • Power supply: USB 5V type C and PoE Ethernet Port;
  • Operating Temperature: -10℃~55℃;
  • Certification: FCC,CE ,IC, Z-wave plus, RoHs.

Parameters of DSGW-090 Wired Power over Ethernet Gateway

RAMUp to 128MB
CPUMTK7628 (MIPS24KEc (580MHZ))
OSOpenWrt
Network InterfaceThe network interface supports CAT-5/CAT-5E to transmit data and POE Power Supply (voltage range is 44~ 57V).
It is a WAN/LAN variable.
Indicator LEDsPower LED normally on when powered on
Zigbee/Z-WAVE LED is flash when the signal come
Wi-Fi LED normally on after connecting to Wi-Fi for 1-2 sec
LTE CAT1• LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/ B26(Cat M1Only)/B27(Cat M1 Only)/B28/B31/B66/ B71(Cat • NB2 Only)/B72/B73/B85/B86*2 (Cat NB2 only)/B87*2 /B88*2
• EGPRS: 850/900/1800/1900MHz
AntennnaWi-Fi Antenna, LTE Antenna, Optional BT, Zigbee, GPS
Operating Temperature-20℃~70℃
Current[email protected]
IP RatingIP 66

Features of DSGW-090 Zigbee Gateway Ethernet

Multiple-Protocol(wire and wireless)supported

Connecting various sensors/devices through Zigbee3.0, Wi-Fi 2.4G, BLE 5.2, Z-WAVE and LTE CAT 1

Power over Ethernet( POE) supported

In addition to USB 5V type C Power supply,it also supports power up the device through the ethernet interface voltage range is 44~ 57V)

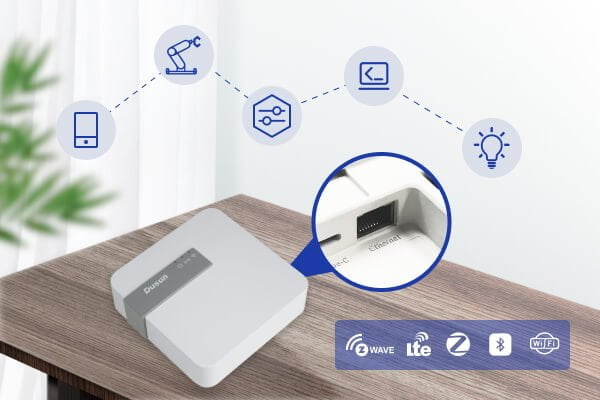

dusun dsgw 090 multiple protocol
dusun dsgw 090 high programmable

High Programmable

Develop your custom firmware from the bottom layer of the hardware with a comprehensive set of resources and services to help developers create successful IoT Gateway projects.

Pre-Certified

Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide

Dimensions and Package of DSGW-090 Wireless Home IoT Gateway

dsgw 090 dimension
Dimension
dsgw 090 package list
Package List
Optional Model for the mass production
ModelWi-Fi 2.4GBluetooth 5.2Zigbee3.0Z-WaveLTE Cat1
DSGW-090-1
DSGW-090-2
DSGW-090-3
DSGW-090-4
For Sample only Product ( DSGW-090-2 ) available
ModelWi-Fi 2.4GBluetooth 5.2Zigbee3.0Z-WaveLTE Cat1
DSGW-090-2
MOQ (Minimum Order Quantity) for Logo Customization is $ 20K

Developer Resources of DSGW-090 Zigbee WLAN Gateway

Use Cases of DSGW-090 Wireless Sensor Network Gateway

smart lock remote access

smart lock remote access

smart apartment mold detection

smart apartment mold detection

home energy monitoring

home energy monitoring

motion sensor security monitoing

motion sensor security monitoing

FAQs of DSGW-090 Zigbee/Z-Wave Ethernet Gateway

Data and electrical connections are needed for IoT gateway hardware devices. With Ethernet, it is possible to make electrical current enterance and Ethernet data connection at the same power source end, while remaining the data signal and the power current apart so that they do not conflict.
PoE has four main benefits: less infrastructure costs, quick and easy deployments, better LAN architecture, and less e-waste. While the electrical connection fuels the gadget, the data connection enables communication with the network.

An Ethernet gateway is basically a node in a computer network that uses the Internet Protocol Suite. In addition to acting as a common access point to other networks like Zigbee/Z-Wave/BLE mesh networks, it also forwards data packets to remote/local cloud servers.

Sure, Dusun IoT has ZigBee Ethernet gateways and support Home Assistant. It is called DSGW-210-HA Zigbee Ethernet Gateway. This Home Assiatant Zigbee gateway allow users to use Zigbee and KNX to control Zigbee light. With 2GB RAM, up to 64GG eMMC, and an extra TF card up to 128GB, it allows users to work offline and independently from any cloud-based services.
