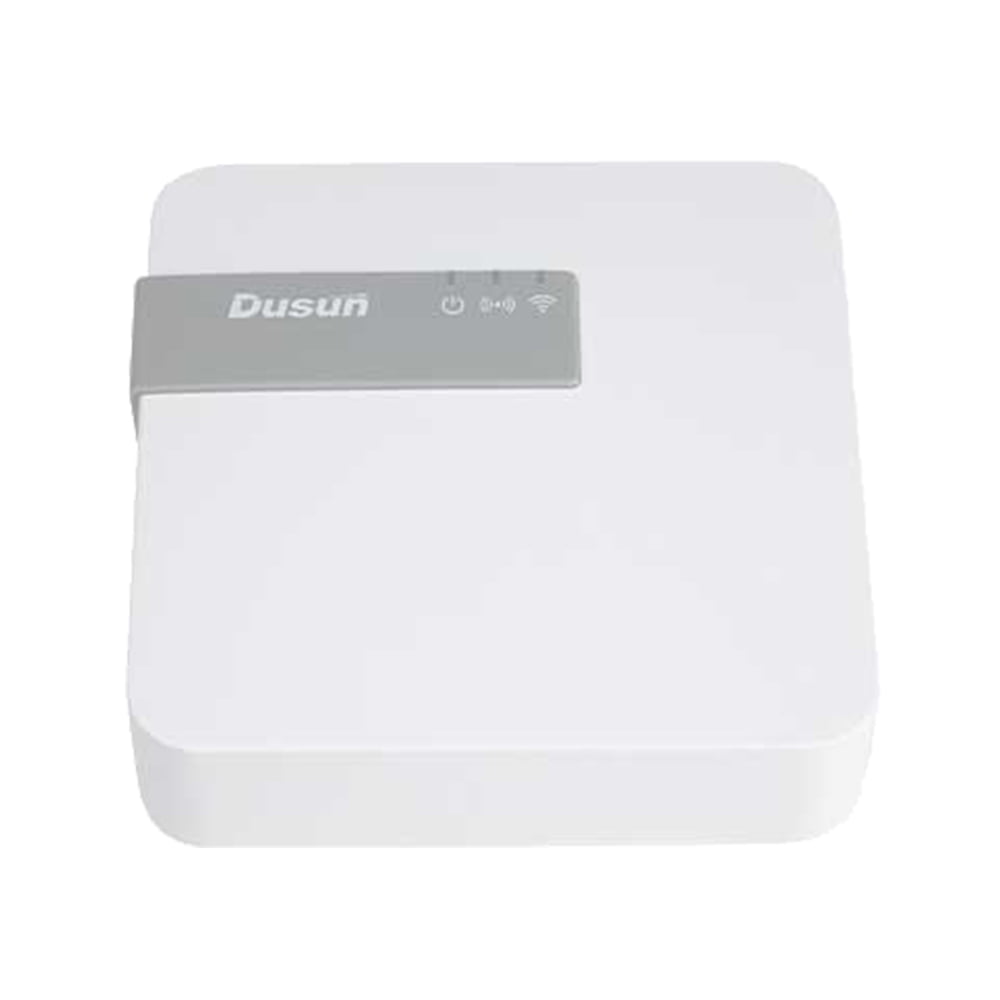

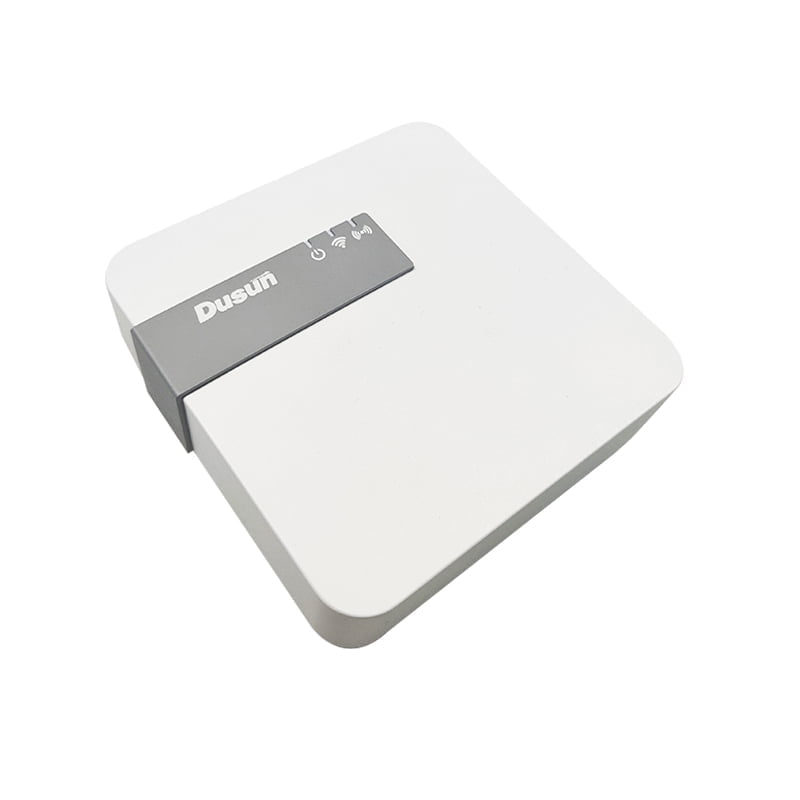

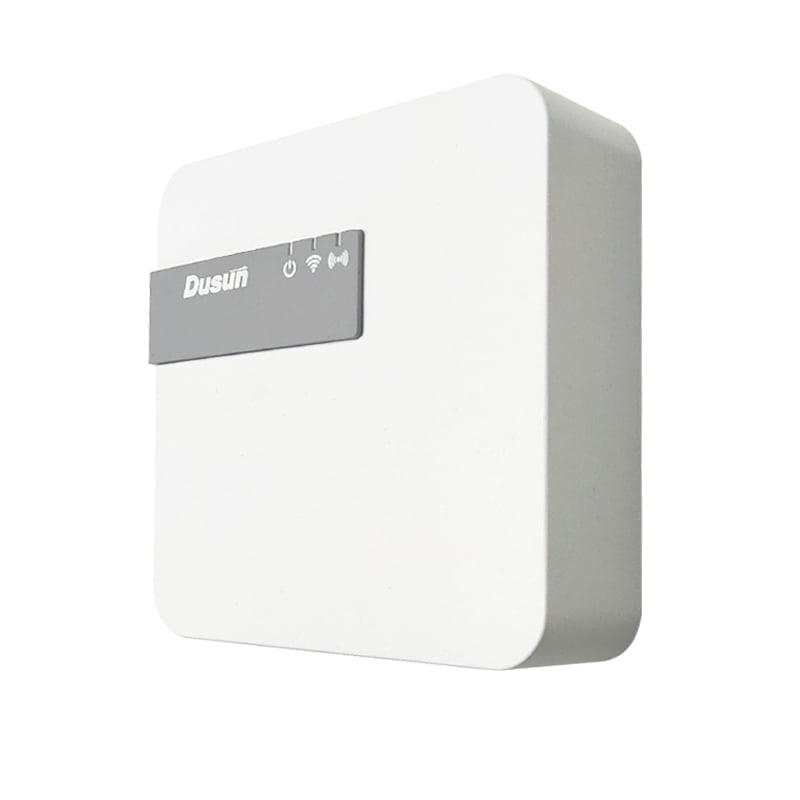

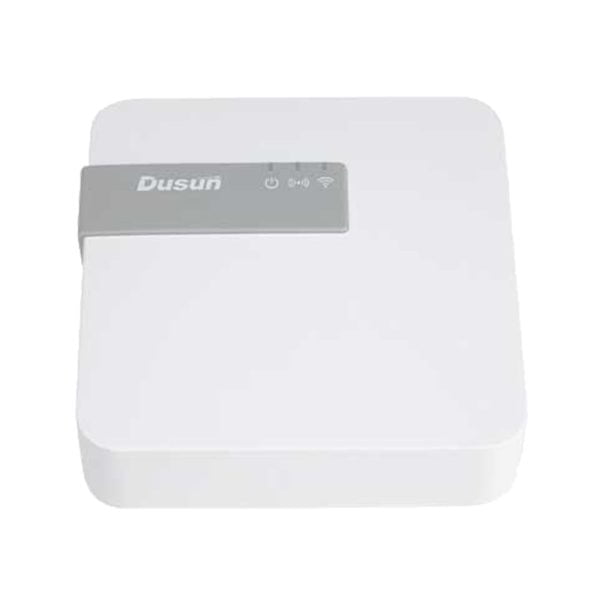

DSGW-091 RK3308 Programmable Linux@Debian OS POE Gateway

Model: DSGW-091 Category:

DSGW-091, also called Dusun Pi Zero, is a multi-protocol (supporting BLE/Zigbee/Z-Wave/LoRaWAN to WiFi2.4&5G/Ethernet) gateway running Linux@Debian 11 OS. Up to 64MB RAM and 4GB eMMC/Flash allow users to run application and process data locally. If you need develop your own application/firmware on the gateway by yourself, we can provide the SDK quick start guide to you. DSGW-091 supports adding coding evironment like adding your Python script. Dusun IoT is willing to offer the best technical services in the PoC stage and successfully complete the pilot with customers.
DSGW-091 is a cost-efficient version of DSGW-210 RK3328 IoT gateway hardware. Meanwhile, DSGW-091 can be both PoE-powered or via USB 5V type C power supply. It is ceiling installed by default.

Quick View of DSGW-091 RK3308 Programmable Linux@Debain Gateway

  • Processor: Quad-core 64-bit Cortex-A35 up to 1.3GHz;
  • OS: Linux@Debian 11;
  • RAM: 512MB; eMMC:4GB;
  • Support data transmited to the cloud via WiFi 2.4G/5G and Ethernet;
  • Downlink device connection supports Bluetooth 5.2, Zigbee 3.0, Z-Wave, LoRaWAN;
  • USB 5V type C power supply and PoE power supply avaliable;
  • One WAN/LAN variable network port;
  • Easy to config with your own platforms via MQTT;
  • Operating Temperature: -10℃~70℃;
  • Certification: FCC,CE ,IC, Z-wave plus, RoHs.

Parameters of DSGW-091 RK3308 Linux Default Gateway

CPU DSOM-050R ( RockChip RK3308 ) Quard Core Cortex A35
RAM Up to 512MB DDR3
eMMC Up to 128GB
OTR -10℃~70℃ Industrial Grade
Dimension 96mm*94.5mm*31mm
Protocol Uplink: Wi-Fi 2.4G/5G, Ethernet Downlink: BLE 5.2, Zigbee 3.0, Z-Wave, LoRa
Network Ethernet
Wireless Protocol Z-Wave,BLE,Zigbee/Lora
Power Adapter Input:100V~240V AC/50~60HZ Output:5V/3A, USB type C
Ethernet The network interface supports CAT-5/CAT-5E to transmit data and POE Power Supply (voltage range is 44~ 57V). It is WAN/LAN variable.
Indicator LEDs Power LED normally on when powered on
Zigbee/Z-WAVE LED is flash when the signal come
Wi-Fi LED normally on after connecting to Wi-Fi for 1-2 sec
Reset Button The reset button is hole button, After pressing the reset button for more than 5 seconds, the Gateway will be restored to the factory settings.

Features of DSGW-091 RK3308 Linux Debian Gateway Programmable

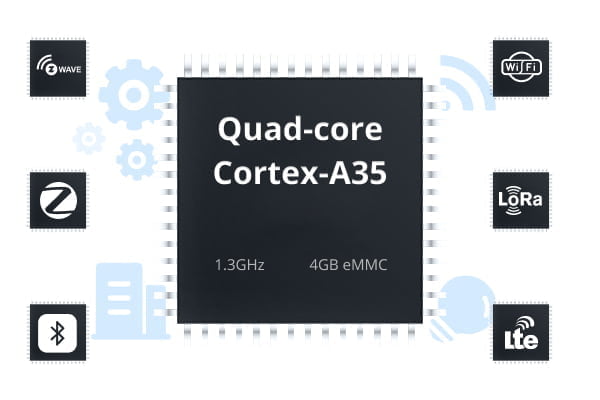

High-performance hardware with robust capabilities

Dusun Pi Zero is equipped with a powerful quad-core Cortex-A35 processor running at up to 1.3GHz and 4GB eMMC memory, making it suitable for various industrial applications, including Smart Home and Building Automation.

Seamless Communication with Multiple Protocol Support

Dusun Pi Zero supports multiple communication protocols commonly used in various IoT devices, including Zigbee, BLE5.2, Cat4, Wi-Fi2.4/5G, Z-Wave, and LoRa.

dusun dsgw 091 high performance hardware with robust capabilities 1 1
dusun dsgw 091 supporting both type c and poe power supply 1
dusun dsgw 091 supporting ceiling installation

Supporting both Type-C and POE Power Supply

Supporting both Type-C and POE power supply that provides increased flexibility for powering a device. This feature allows users to power the device using either a Type-C power adapter or POE, depending on their specific setup and preferences.

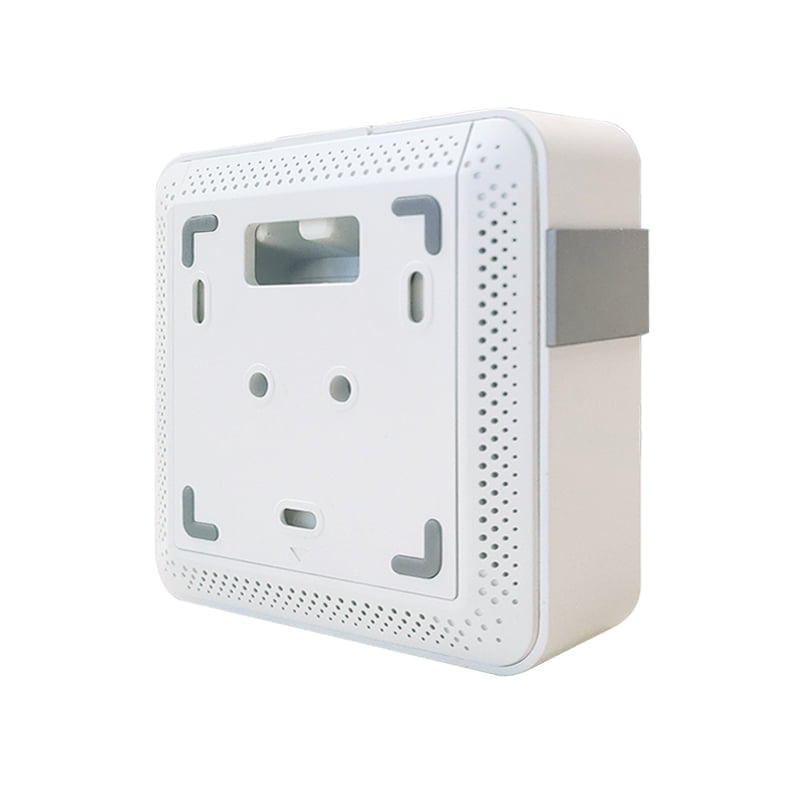

Supporting Ceiling Installation

Supporting different mounting options, including ceiling and wall mounting, can increase the versatility of the device and allow it to be used in a wider range of scenarios.

Dimension and Package Lists of DSGW-091 RK3308 Linux Internet Gateway

image 383
image 52
Package List
Optional Model for the mass production
Mode Ethernet Bluetooth5.2 Zigbee3.0 Z-Wave Lora

Use Cases of DSGW-091 RK3308 Linux Zigbee Gateway

air quality detection

Air quality detection

visitor access control

Visitor access control

energy meter monitoring

Energy meter monitoring

home hvac remote control

Home HVAC remote control

Developer Resources of DSGW-091 RK3308 Debian Gateway


FAQs of DSGW-091 RK3308 Linix@Debian Gateway

When used on IoT gateway hardware, the main difference between RK3308 and RK3328 lies in CPU performance, DDR3, storage, supported OS. We made a comparison chart for reference:

CPUARM Cortex-A35 quad coreARM Cortex-A53 quad core
main frequency1.3GHz1.5GHz
Supported OSBuildroot, Linux + MiniGUI/QT, ROS (Robot Operating System)Andriod/Debian

Acorn Computers, Apple, and VLSI Technology created ARM Holdings plc in 1990, which went on to develop and release the first ARM processors. Acorn RISC Machine was the first abbreviation for ARM, which was eventually changed to Advanced RISC Machine. The benefits of using ARM-based processors lie in these five reasons:
Low prices: ARM processors are easy to manufacture and frequently perfect for less expensive products like mobile phones.
Plain design: the less complex architecture of RISC design makes ARM chips simpler to design and frequently more compact.
Less power needed: due to the RISC architecture design, ARM processors function with minimal power requirements and use less power than other CPUs.
Better battery life: because ARM processors use a single-cycle computational architecture, they offer a better battery life.
Lower heat generation: ARM processors also produce less heat, enabling for the slimmer design and constant user holding of products like smartphones and tablets.

Both Debian and Ubuntu are two popular Linux distribution. Debian is the source of Ubuntu. Or we say Ubuntu is built on Debian architecture and infrastructure and uses. This implies that Ubuntu and Debian share a substantial number of packages and libraries from Debian repositories and use the same APT packaging mechanism.
However, they have something different. There are two types of Ubuntu releases: LTS and normal. Every two years, Ubuntu releases an LTS (long term support) version, which is broadly thought to be more dependable, receives support for a period of five years. The Regular releases are only supported for nine months. Users have the choice to upgrade to the newest releases based on their stability and new features.
Debian, on the other hand, offers three distinct releases: Testing, Unstable, and Stable. Unstable should only be used for testing purposes. The testing branch serves as the foundation for the subsequent stable branch, which follow and has a rock-solid reliability record.
Debian has a greater emphasis on stability, while Ubuntu typically offers more recent iterations of well-known programs. To know more IoT operating system, welcome to consult our expert.
