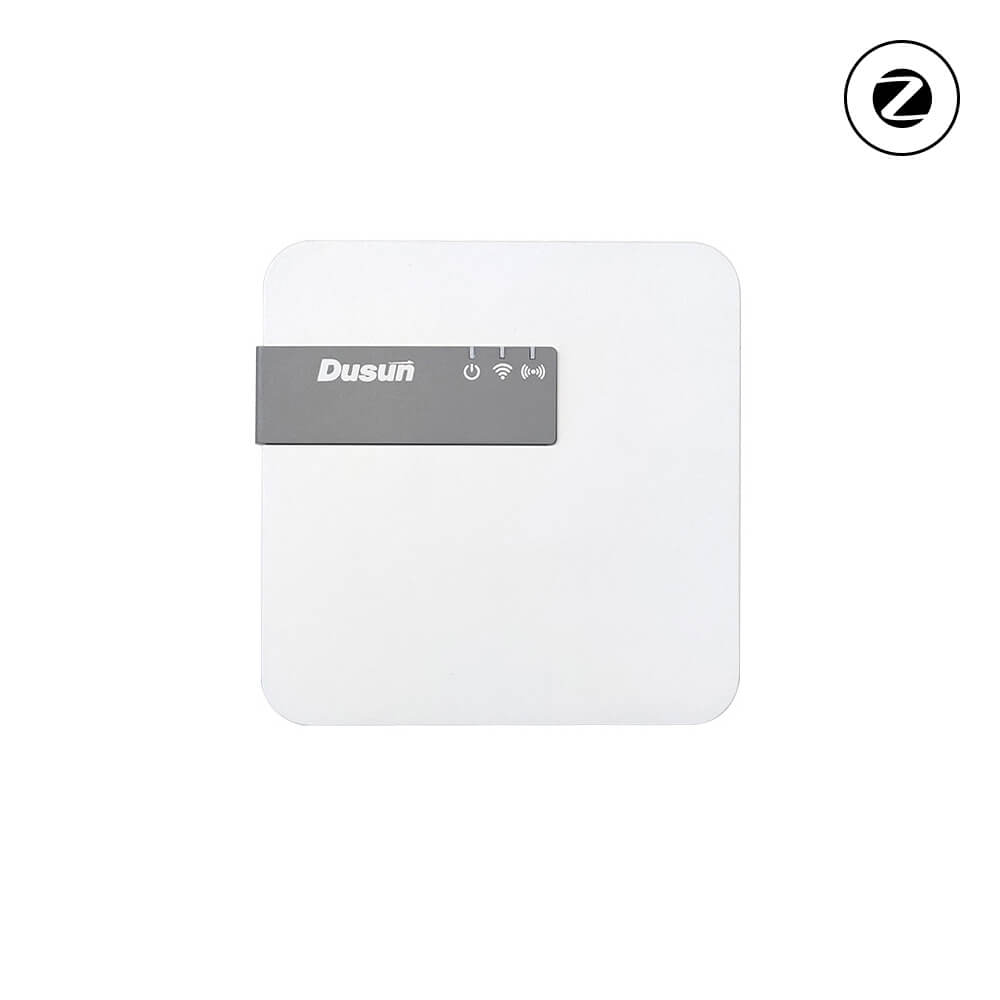

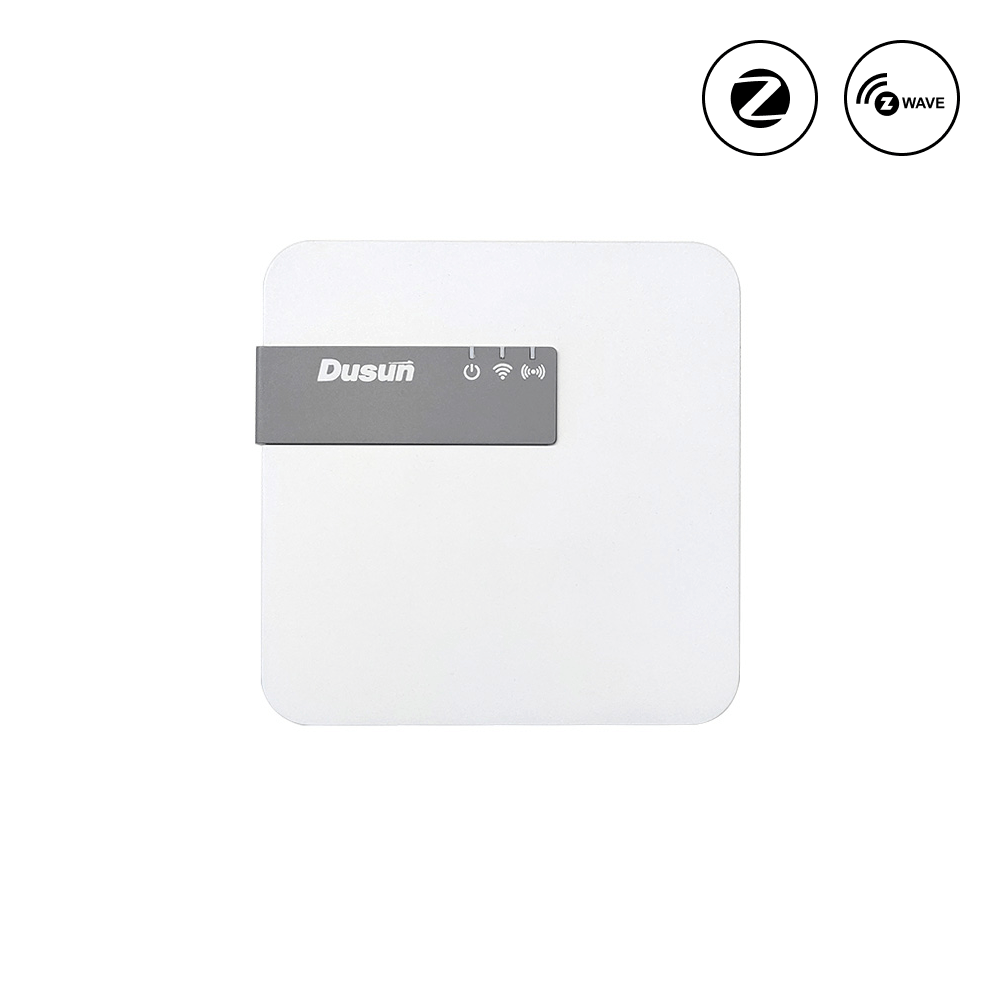

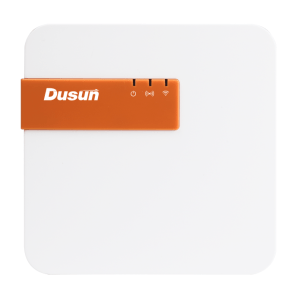

DSGW-090-3 Zigbee Z-Wave Thread WiFi LTE Cat1 Gateway

Model: DSGW-090-3 Category:

DSGW-090-3 Zigbee Z-Wave Thread gateway powered by MIPS24KEc 32-bit 580MHz processor, with market-proven IoT gateway, router and bridge functionality. Meanwhile,it is equipped with EFR32MG21 SoC (Zigbee, Thread, Bluetooth mesh supported) and ZGM130S Z-Wave Module(Z-Wave Long Range supported). Ideal for connecting smart home, hospitality and MDU(multidwelling unit) devices. Lead Time: 3~4 Weeks.

  • OS: OpenWrt
  • USB 5V type-C and PoE power supply
  • Processor: MTK7628 (MIPS24KEc, 580MHz)
  • RAM: 128MB
  • Flash: 16MB
  • Supports IEEE802.11n, IEEE802.11g, IEEE 802.11b protocols
  • Supports Wi-Fi 2.4, Zigbee 3.0, Z-Wave
  • One WAN/LAN variable network port

Quick View of DSGW-090-3 Thread Zigbee Z-Wave Gateway with WiFi Connectivity

DSGW-090-3 Zigbee Thread Z-Wave Wi-Fi gateway device features the harmonization of popular smart home protocols, enabling users to experience a cohesive and interconnected smart home, hospitality, or MDU automation connectivity solution. Whether it’s managing smart lighting, security systems, climate control, or other IoT devices, DSGW-090-3 empowers you with unparalleled control and convenience.

Welcome to a new era of smart connectivity with the DSGW-090-3, which the combination and compatibility of Zigbee Z-Wave Thread Wi-Fi will enhance the reach and performance of your smart ecosystem.

Features of DSGW-090-3 Thread Zigbee Z-Wave Gateway Device

Multiple-Protocol (wire and wireless) supported

Connecting various sensors/devices through Zigbee3.0, Z-WAVE, Wi-Fi 2.4G

Power over Ethernet (POE) supported

In addition to USB 5V type C Power supply, it also supports power up the device through the ethernet interface.

dsgw 090 x protocol (1)
dusun dsgw 090 high programmable
High Programmable

Develop your custom firmware from the bottom layer of the hardware with a comprehensive set of resources and services to help developers create successful IoT Gateway projects.


Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide.

Dimensions and Package of DSGW-090-3 Zigbee Thread Z-Wave Gateway Smart Home Hub

dsgw 090 Dimensions
dsgw 090 package list
Package List

Parameters of DSGW-090-3 Gateway Zigbee Thread Z-Wave Gateway Hub

Storage16MB SPI Flash
Power SupplyUSB Type-C 5V/2A, POE
Indicator LEDs1). Power LED 2). Wireless LED 3)LTE indicator
AntennaFPC Antenna

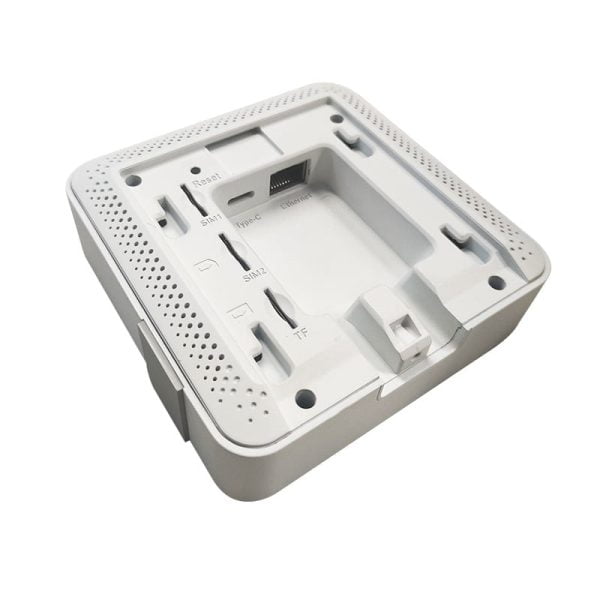

InterfaceTF Card Slot x 1, SIM Card Slot x 2
Ethernet1 * WAN/ LAN 10/100 Mbps variable port
ResetFactory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds
Installation methodFlat, Ceiling
Operating Temperature-10℃~55℃
Storage Temperature-20℃~65℃
Operating humidity10%~90%
IP ratingIP22

Use Cases of DSGW-090-3 Zigbee Z-Wave Smart Home IoT Gateway

smart lock remote access
Smart lock remote access
smart apartment mold detection
Smart apartment mold detection
home energy monitoring
Home energy monitoring
Home Security Monitoring
Motion sensor security monitoing

Developer Resources of DSGW-090-3 Zigbee Z-Wave Thread Gateway

Connectivity Model List of DSGW-090 Zigbee Z-Wave Thread Wi-Fi 2.4G Gateway

Category B (Built by Order)
FeatureWi-Fi 2.4GBluetooth 5.2Zigbee3.0Z-WaveLTE Cat1

Additional information

Product Type

IoT Gateway

Chip Platform


CPU Name






Back-up Battery



RJ45, TF Card Slot

System support


Operating Temperature



Ceiling, Flat
