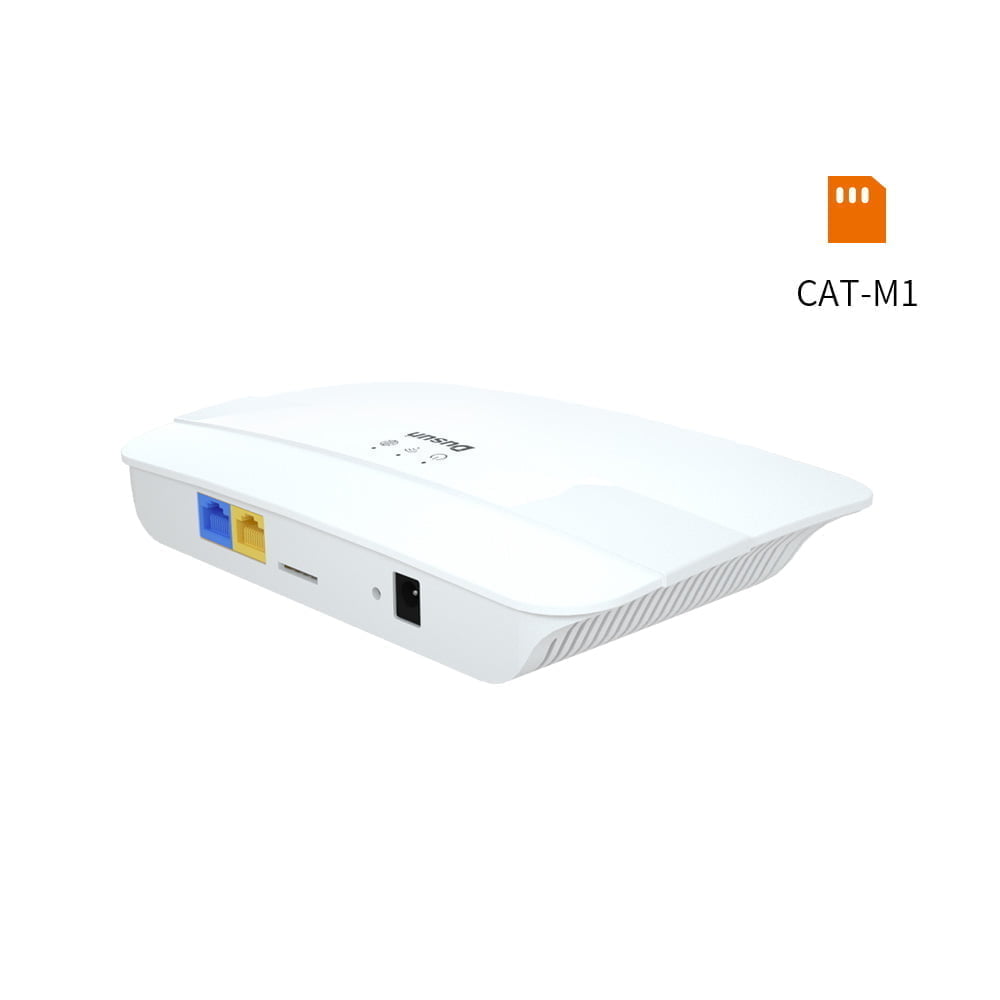

DSGW-040 Zigbee/Z-Wave/BLE to LTE CAT 1/CAT M1 Gateway with Li Battery (Optional)

Model: DSGW-040 Category:

Dusun IoT DSGW-040 4G LTE CAT 1/CAT M Cellular WiFi gateway enables to connect ZigBee/Z-Wave/BLE devices to the cloud with SIM card (AT&T, Verizon, etc) for network connection in Europe, North America, etc. With LTE/Wi-Fi/Ethernet options, LAN/WAN Ports, and Li-battery option, DSGW-040 enables customers to Implement a failover to SIM card for communication in case of a WiFi or power failure.

As an IoT gateway, DSGW-040 transmit data from devices to your platform through MQTT via Ethernet/LTE/Wi-Fi. It is a ready-to-use IoT hardware that you can use LuCi page we provided to quickly integrate the gateway with the cloud, saving time for developing your own firmware. We will provide API document.

Quick View of DSGW-040 Wireless LTE 4G IoT Gateway

  • Built based on MTK7620 Wi-Fi System-On-Chips (WiSOC);
  • OpenWrt OS sources, SDK quick start guide, tool chain, all develop kits provided for reprogramming;
  • Easy integration with public (e.g Azure) or your cloud platform via MQTT, so as to remotely control your sensor;
  • Multi-protocol: Zigbee/BLE/Sub-G to Wi-Fi/LTE 4G/Ethernet
  • 4G/LTE option: LTE CAT1, LTE CAT M1
  • Supports both WiFi AP and WiFi STA modes
  • Optional backup Li battery can last 4 hours without DC power, in case of a sudden power blackout;
  • One WAN and one LAN network port, one SIM card slot;
  • Operating Temperature: 0℃~55℃
  • Certification: FCC, CE, Zigbee, Bluetooth(BQB), RoHs, PTCRB
  • Wall / Ceiling Mountable

Parameters of DSGW-040 LTE Gateway Router with LAN & WLAN Port

CPUMT7620
DDR264MB
eMMC16MB
NetworkWi-Fi, Ethernet
Wireless ProtocolBLE, Zigbee, Z-Wave
Power SupplySupport DC Input, input Voltage range is 4.5V to 5V. Power seat aperture is 3.5mm. The needle diameter is1.35 mm and is positive. Power adapter: 100- 240V 50/60HZ, Output is 5V/2A
Reset buttonThe reset button is hole button, after pressing the reset button for more than 5 seconds, the Gateway will be restored to the factory settings.
Power buttonProducts with Li Battery have self-locking fuction. The battery status is ensured through the self-locking switch hole. Only by poking the self-locking switch hole can the gateway work, even when the power supply isconnected.
Network InterfaceWLAN/LAN port
Indicator LEDs1).Power LED normally on when powered on
2).Zigbee/BLE/Z-WAVE LED is flash when the signal come
3).Wi-Fi LED normally on after connecting to Wi- Fi for 1-2 sec
Li battery4100mAH (It can last 4 hours without DC power )

Features of DSGW-040 Enhanced Hybrid LTE Gateway

Multipe-Protocol (wire and wireless) supported

Connecting various sensors/devices through Zigbee3.0, Wi-Fi 2.4G, BLE 5.2, Z-WAVE and LTE (CAT M1/ CAT 1) .

Battery Backup

Coming with a built-in battery power option so that in the event of a power failure the system will continue to run.

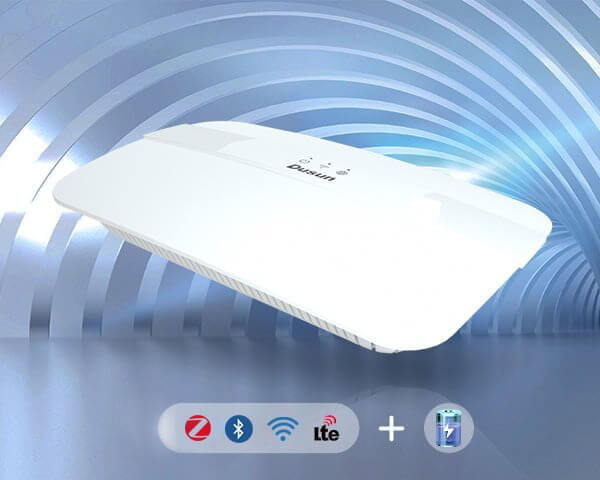

dsgw 040 multipe protocols battery backup with lan/wlan port
dsgw 040 programmable and certified

High Programmabler

Develop your custom firmware from the bottom layer of the hardware with a comprehensive set of resources and services to help developers create successful IoT Gateway projects.

Pre-Certified

Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide.

Dimension and Package of DSGW-040 4G SIM Card Gateway

040 Bluetooth-Cellular LTE WiFi Router Gateway dimension
Dimension
040 Bluetooth-Cellular LTE WiFi Router Gateway package
Package List

Connectivity Options of DSGW-040 Gateway with LAN/WLAN Port

ModelWi-Fi 2.4GBluetooth 5.2Zigbee 3.0Z-WaveLTE Cat M1LTE Cat1Li battery
DSGW-040-1
DSGW-040-2
DSGW-040-3
DSGW-040-4
DSGW-040-5
DSGW-040-6
DSGW-040-7
DSGW-040-8
DSGW-040-9
DSGW-040-10
DSGW-040-11
DSGW-040-12
DSGW-040-13
DSGW-040-14
DSGW-040-15
DSGW-040-16
DSGW-040-17

Developer Resources of DSGW-040 4G SIM Card Gateway

Tools

Third-Party Software

Use Cases of DSGW-040 OEM 4G LTE Gateway

smart lock remote management

Smart lock remote management

air quality monitoring

Air quality monitoring

smart cleaning managemet

Smart cleaning managemet

smart warehouse management

Smart warehouse management

FAQs of DSGW-040 LTE Cat1/ Cat M1 Gateway

Do DSGW-040 Gateway support Wifi AP & Wifi STA Mode

Yes, the gateway support both wifi ap and wifi sta mode.

Wifi AP mode: In this mode, the gateway works as a router, user can connect to the SSID using the AP Password. The AP SSID, AP Password and AP encryption mode are configurable
Wifi STA mode: In this mode, the gateway functions as a access point and is able to connect to a router. User can fill in the SSID and Password of the router to let gateway connect to router.

What is LAN vs WAN Gateway?

A WAN port establishes a gateway connection to an external or Internet source. A LAN port is used to connect the computers and other client machines with gateway. The WAN cable that is used to connect your gateway router and modem can be a normal ethernet cable.

Is WAN faster than Ethernet?

Ethernet cabling is extremely reliable and much faster than WAN speeds. LAN speeds are typically 1,000 Mb/s to 40,000 Mb/s. Contrast that with the typical 150 Mb/s WAN speed and now we have some speed.

Is the DSGE-040 gateway a LAN or WAN?

The DSGW-040 gateway can be a device that connects the Wide-area network (WAN) to the LAN as a bridge between two networks.

Is gateway required on LAN?

Gateway is the device address that your device will use to respond to any requests for which it has no direct route. Without a gateway, all devices on the same LAN (same subnet) can communicate with one another. To connect to a device on a network outside of your LAN, such as the Internet, you need a gateway.

What is LTE Cat M1 and its difference with LTE Cat 1?

LTE Cat M1 primarily serves IoT applications with low to medium data rate needs and has uplink and downlink rates that can exceed 375 kbps in half-duplex mode. Compared to traditional cellular technologies like LTE Cat 1, it provides longer battery lifecycles and greater indoor range. LTE-M's key characteristics are as follows:
●little power usage
●a greater inside range
●complete mobility and in-car handover
●support VoLTE voice functionality

How to connect DSGW-040 to AT&T mobile network?

The initial step for users is to purchase an AT&T LTE-M SIM card, place it in the DSGW-040's SIM card slot, then activate it through the AT&T website's services.
After that, by logging into the gateway, users can power it on and change the APN settings. Customers can contact AT&T for the most recent information regarding the APN setting and enter broadband in the APN set textbox.
Finally, the 4G module will start up when users unplug the network cable. The gateway network indicator will turn on if the gateway can establish a connection to a cloud platform.
You can view more deployment detail here.

What's the difference between DSGW-030 and DSGW-040?

After finishing modifications to its 4G LTE cell sites across the USA, AT&T officially turned on its CatM1 and narrowband internet of things (NB-IoT) network. This is because the 3GPP organization has issued LTE CatM1 and NB-IoT standards to support IoT. DSGW-040 is an AT&T certified LTE 4G IoT gateway. This indicates that connecting to the cloud with an AT&T LTE-M sim card is supported by this LTE IoT gateway hub. Therefore, many IoT applications, especially those constrained by wired internet connections, can use this wireless gateway for AT&T. The 4G LTE IoT gateway from Dusun can also support LTE or LTE-M services from other providers.ATT Certified Devices

NB-IoT vs LTE-M, What's the difference?

Narrow Bandwidth-Internet of Things is what this term stands for. It is a form of technology that supports device communication in 4G and 5G networks. NB-IoT has a greater range and uses less power than LTE-M since it only uses a single narrow band of bandwidth in the 200kHz region. The major flaw in NB-IoT is its speed, which is less than 100kbps, yet devices that use it typically have batteries that last more than ten years.
"Long-Term Evolution for Machines" is what LTE-M stands for. You won't need to install new infrastructure for your project because LTE-M is backward compatible with existing LTE networks and only works on 4G networks. Higher bandwidth communications, such as Voice Over IP services, can be supported by LTE-M specifications. Given that it has upload and download speeds of up to 1 Mbps and a latency of only 50 to 100 ms, it is effective for speech data transfers.
View more NB-IoT vs LTE-M info here.

What is LTE (Long-term Evolution)?

Long-word Evolution (LTE) is a word for the cellular network that defines a standard for mobile devices to deliver higher bandwidth, reduced latency, and higher data services than 3G. It is established by the 3GPP.
The LTE protocol defines 22 LTE UE Categories to characterize the performance requirements of LTE devices. There are various parameters for each LTE UE Category. such as signal coverage, frequency spectrum, power consumption, and data rate. The LTE base station cannot properly communicate with LTE devices without the aid of LTE UE Categories. The base station has to use the LTE UE Categories information from this apparatus to assess the UE's performance. It might then be able to interact with it appropriately. The data for each LTE UE category is displayed in a table.
