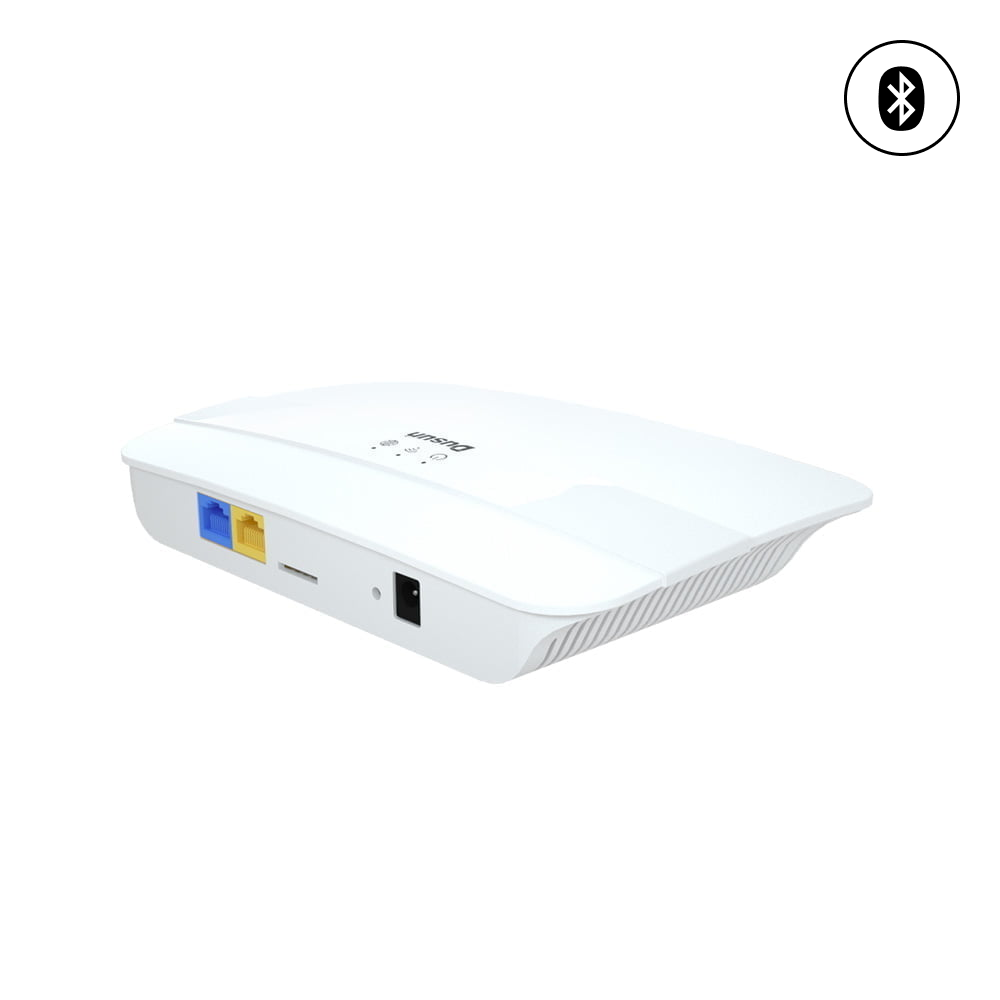

Quick View of DSGW-040-1 Bluetooth WiFi Gateway
Multi-in-one Network Router
Combing router functionality as well as WiFi and Ethernet network options, DSGW-040-1 is an economical router gateway connecting and managing a variety of smart devices.
Budget-friendly Alternative
DSGW-040-1 can be a cost-conscious alternative for smart home businesses. It combines a Wi-Fi capable CPU plus a reasonable-priced BLE module. Welcome to quote for bulk order price!
Versatile Bluetooth Gateways
DSGW-040-1 does not limit users’ creativity when it comes to using it for Bluetooth single-point or mesh communication, indoor Bluetooth RSSI positioning, or other applications. We just offer comprehensive support.
Stable Wireless Signal
Both WiFi and Bluetooth signal are reliable to provide stable wireless connections for a variety of applications.
Features of DSGW-040-1 Bluetooth WiFi Gateway
One LAN, One WAN Network Port
Providing users with the flexibility to connect the gateway to a local network or an external network.
Programmable
Firmware can be customized to be compatible with your proprietary software and platforms, with comprehensive resources support.
Carrier-Certified
Pre-certified DSGW-040-1 gateway simplifies certification process, reduces time-to-market and enables faster product launches.
Dimension and Package of DSGW-040-1 Bluetooth WiFi Gateway
Parameters of DSGW-040-1 Bluetooth WiFi Gateway
| Category | Specifications |
| CPU | MT7620 |
| System | OpenWrt |
| RAM | 128MB |
| Flash | 16MB |
| Network Interface | 1 * 10/100 Mbps LAN port, 1 * 10/100 Mbps WAN port |
| Indicator LEDs | • The BLE LED flashes when a signal is received. • The Network LED indicates RED when no establishing a network connection. • The Network LED indicates GREEN when a network connection is established. |
| Power Supply | DC Input, input voltage range is 4.5V to 5V. The power seat aperture is 3.5mm. The needle diameter is 1.35mm and is positive. The power adapter: 100-240V 50/60HZ. Output is 5V/2A. |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| Installation | Flat, Ceiling |
| Weight | TBD |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -40℃~65℃ |
| Operating humidity | 10%~90% |
| IP Rating | IP 22 |
Use Cases of DSGW-040-1 Bluetooth WiFi Gateway
Developer Resources of DSGW-040-1 Bluetooth WiFi Gateway
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-040 Smart Programmable Gateway SDK Quick Start Guide v1.0 | V1.0 |
| [SDK] | DSGW-040_sdk_AV4.8.314.4296608 | V4.8.314 |
| [Firmware packaging] | DSGW-040_AV4.8.308.4145708 | V4.8.308 |
| [Zigbee module firmware] | DSI-0134-Amber-Zigbee_RV6 Version：ezsp ver 0x06 | V ezsp ver 0x06 |
| [Ble module firmware] | DSI-0177-Amber-BLE-NCP_AV3.2.4.0129 Version：3.2.4.297 | V3.2.4.297 |
| Third-Party Software | ||
|---|---|---|
| [Openz-wave] | OpenZwave Developer Tutorual | |
Model List of DSGW-040-1 Bluetooth WiFi Gateway
| Model | Wi-Fi 2.4G | Bluetooth 5.2 | Zigbee 3.0 | LTE Cat M1 |
|---|---|---|---|---|
| DSGW-040-1 | ● | ● |
FAQs of DSGW-040-1 Bluetooth WiFi Gateway
What devices can DSGW-040-1 Bluetooth WiFi Gateway connect?
DSGW-040-1 Bluetooth WiFi Gateway can connect a wide range of devices, catering to both residential and commercial areas, including but not limited to smart locks and thermostats, smart wrenches and distance meters, BLE beacons, pulse oximeters, etc.
How many BLE devices can DSGW-040-1 Bluetooth WiFi Gateway connect?
Usually, for point-to-point applications, DSGW-040-1 Bluetooth WiFi Gateway can support 7-8 devices simultaneously. For more connected device number, please consult our FAE team for suggestions on Dusun IoT forum.
Do you have WiFi Zigbee Bluetooth gateway?
Absolutely, the entire DSGW-040 has many sub models, some of them have WiFi, Zigbee, and Bluetooth connectivity, even more. You can explore more models at DSGW-040 4G LTE gateway page.
What is a BT gateway?
BT is the abbreviation for Bluetooth. A Bluetooth gateway is a combination of hardware and software that connect and manage BLE-enabled devices.
