DSGW 040 Bluetooth-Cellular LTE WiFi Router Gateway Specification

Dusun IoT DSGW-040 Bluetooth-Cellular LTE WiFi Router Gateway features multiple protocols support (4G LTE, Wifi 2.4G, BLE, ZigBee3.0, Z-WAVE, etc) with with Li Battery option, multi Lan and Wlan ports and Sim Card for Indoor applications. DSGW 040 BLE LTE gateway can control BLE device remotely and sent data to servers by Cellulat LTE. Read further to know its model list, feature, block diagram, mechanical drawings, specifications, hardware and connectivity performance, z-wave frequency band table, and so on.
Table of Contents

Product Name: BLE-Cellular LTE WiFi Router Gateway
Model Name: DSGW-040

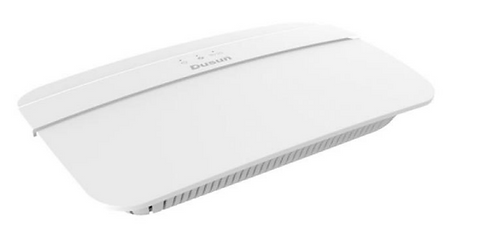

DSGW-040 Bluetooth-Cellular LTE WiFi Router Gateway

BLE-Cellular LTE Gateway Model List

ModelWi-Fi 2.4GBluetooth 5.2Zigbee 3.0Z-WaveLTE Cat M1LTE Cat1Li battery
DSGW-040-1
DSGW-040-2
DSGW-040-3
DSGW-040-4
DSGW-040-5
DSGW-040-6
DSGW-040-7
DSGW-040-8
DSGW-040-9
DSGW-040-10
DSGW-040-11
DSGW-040-12
DSGW-040-13
DSGW-040-14
DSGW-040-15
DSGW-040-16
DSGW-040-17
DusunIoT provides powerful IoT Gateways that are very user-friendly and convenient for IoT developers at all stages, from Prototype to mass production. Using a standard product as a building block for a semi-custom solution reduces time-to-market and can cut development costs.

BLE-Cellular LTE Gateway Introduction

Dusun IoT DSGW-040 Bluetooth-Cellular LTE WiFi Router Gateway features multiple protocols support (4G LTE, Wifi 2.4G, BLE, ZigBee3.0, Z-WAVE, etc) with Li Battery option, multi Lan and Wlan ports and Sim Card for Indoor applications. DSGW 040 BLE-Cellular LTE Wifi Gateway can control BLE device remotely, receives the data sent by the BLE devices and sends it to servers. It reserves the ZigBee3.0 function ,Z-WAVE, Sub-G, 4G LTE function as well. The Wi-Fi data rate can be up to 580Mbps and BLE data rate can be up to 2Mbps.

DSGW 040 BLE-Cellular LTE Gateway is equipped with DC power supply, and can be used in various scenarios flexibly. It can also supports the 5V adapter power supply.

BLE-Cellular LTE Gateway Feature Summary

  • Support 5V adapter power supply
  • Support IEEE802.11ac,IEEE802.11n,IEEE802.11g,IEEE 802.11b Protocol
  • Support LTE CAT1, LTE CAT M1
  • RAM: 64MB (Can be upgraded to 128M) Free Space:16MB (if RAM128M,Free Space is 80M)
    (development Space for user)
  • Flash: 16MB Free Space:8MB (development Space for user)
  • Support Bluetooth 5.2
  • Support ZigBee3.0
  • Support Z-WAVE
  • One WAN,One LAN network port
  • Backup Li battery ( optional)

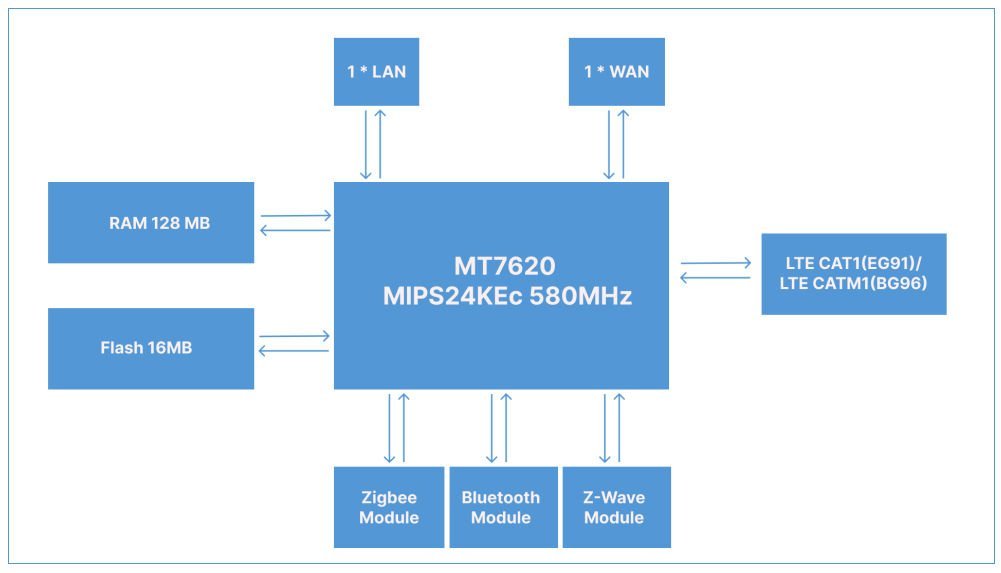

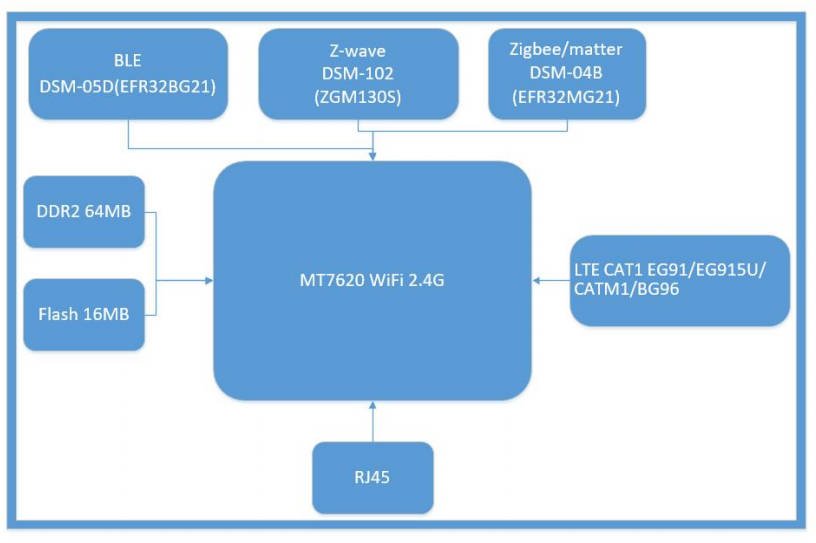

BLE-Cellular LTE Gateway Hardware Block Diagram

dsgw 040 Bluetooth-Cellular LTE WiFi Router Gateway hardware block diagram

BLE-Cellular LTE Gateway Mechanical Requirement

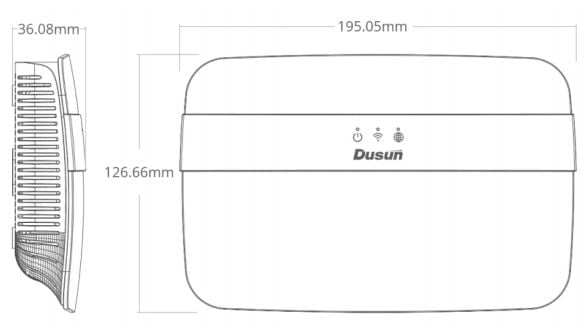

BLE-Cellular LTE Gateway Drawings

DM 20220629170549 009
Products without Li battery
DM 20220629170549 009
Products with Li battery

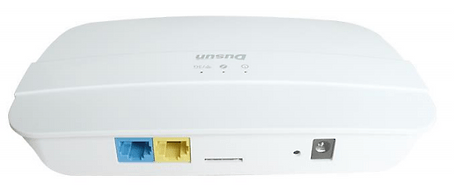

BLE-Cellular LTE Gateway Interface

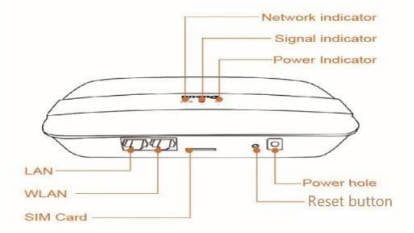

interface 040 Bluetooth-Cellular LTE WiFi Router Gateway without li battery
Products without Li battery

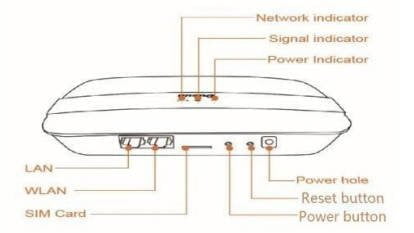

interface 040 Bluetooth-Cellular LTE WiFi Router Gateway with li battery
Products with Li battery

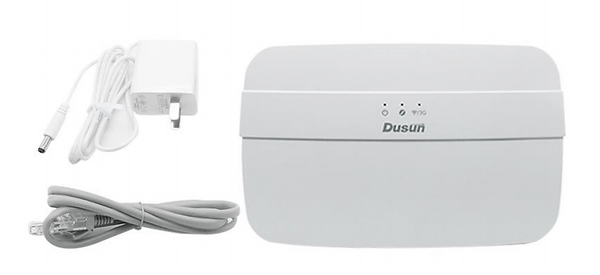

BLE-Cellular LTE Gateway Item List

DM 20220629170549 011
  • Power Adapter
  • Network Cable
  • Gateway

BLE-Cellular LTE Gateway Specifications

BLE-Cellular LTE Gateway Technical Specification

CategorySpecifications
Power SupplySupport DC Input, input Voltage range is 4.5V to 5V. Power seat aperture is 3.5mm. The needle diameter is1.35 mm and is positive. Power adapter:100- 240V 50/60HZ, Output is 5V/2A
Reset buttonThe reset button is hole button, after pressing the reset button for more than 5 seconds, the Gateway will be restored to the factory settings.
Power buttonProducts with Li Battery have self-locking fuction. The battery status is ensured through the self-locking switch hole. Only by poking the self-locking switch hole can the gateway work, even when the power supply isconnected.
Network InterfaceWLAN/LAN port
Indicator LEDs1).Power LED normally on when powered on
2).Zigbee/BLE/Z-WAVE LED is flash when the signal come
3).Wi-Fi LED normally on after connecting to Wi- Fi for 1-2 sec
Li battery4100mAH (It can last 4 hours without DC power )
Operating Temperature-10℃~55℃
Storage Temperature-40℃~65℃
Current[email protected]

BLE-Cellular LTE Gateway Performance Requirement

Wi-Fi Performance
  • IEEE wireless LAN standard:
    IEEE802.11n; IEEE802.11g; IEEE 802.11b
  • Data Rate:
    IEEE 802.11b Standard Mode:1, 2, 5.5, 11 Mbps
    IEEE 802.11g Standard Mode:6, 9, 12, 18, 24, 36, 48, 54 Mbps
    IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band; MCS0~MCS7 @ HT40/ 2.4GHz band
  • Sensitivity:
    HT40 MCS7: [email protected]% PER (MCS7) /2.4GHz band
    HT20 MCS7: [email protected]% PER (MCS7) /2.4GHz band
  • Transmit Power:
    IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
    IEEE 802.11g: 16dBm @54MHz
    IEEE 802.11b: 18dBm @11MHz
  • Wireless Security: WPA/WPA2, WEP, TKIP, and AES
  • Working mode: Bridge, Gateway, AP Client
  • Range: 50 meters minimum, open field
  • Transmit Power: 17 dBm
  • Highest Transmission Rate: 300 Mbps
  • Frequency offset: +/- 50KHZ
  • Frequency Range (MHz): 2412.0~2483.5
  • Low Frequency (MHz): 2400
  • High Frequency (MHz): 2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)< 100mW
  • Bandwidth (MHz): 20MHz/40MHz
  • Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
Zigbee Performance
  • TX Power: 17.5dBm
  • Range: 100 meters minimum, open filed
  • Receiving Sensibility: -94dBm
  • Frequency offset: +/-20KHZ
  • Frequency Range (MHz): 2401.0~2483.5
  • Low Frequency (MHz): 2400
  • High Frequency (MHz): 2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)< 100mW
  • Bandwidth (MHz): 5MHz
  • Modulation: OQPSK
Bluetooth Performance
  • TX Power: 19.5dBm
  • Bluetooth: 19.5dBm
  • Range: 150 meters minimum, open filed
  • Receiving Sensibility: [email protected]%BER
  • Frequency offset: +/-20KHZ
  • Frequency Range (MHz): 2401.0~2483.5
  • Low Frequency (MHz): 2400
  • High Frequency (MHz): 2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)< 10mW
  • Bandwidth (MHz): 2MHz
  • Modulation: GFSK
LTE Cat M1
  • Operation Frequency Band: 850/ 900/ 1800/ 1900 MHZ
  • Global:LTE: FDD:B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B26/ B28
  • North America: LTE TDD: B2/ B4/ B12/ B13
  • LTE TDD: B39 (for cat.M1only)
LTE CAT1 EG915-UCN
  • LTE-FDD: B1/ B3/ B5/ B8
  • LTE-TDD: B34/ B38/ B39/ B40/ B41; GSM: B3/ B8
  • LTE-FDD: B1/ B3/ B5/ B7/ B8/ B20/ B28; GSM: B2/ B3/ B5/ B8
  • LTE-FDD: B2/ B3/ B4/ B5/ B7/ B8/ B28/ B66; GSM: B2/ B3/ B5/ B8
LTE CAT1
  • E ( Europe ) LTE-FDD: B1/ B3/ B7/ B8/ B20/ B28A; WCDMA: B1/ B8; GSM: B3/ B8
  • EX ( Europe ) LTE-FDD: B1/ B3/ B7/ B8/ B20/ B28; WCDMA: B1/ B8; GSM: B3/ B8
  • NAXD ( North America ) LTE-FDD: B2/ B4/ B5/ B12/ B13/ B25/ B26; WCDMA: B2/ B4/ B5
  • NA ( North America ) LTE-FDD: B2/ B4/ B5/ B12/ B13 ; WCDMA: B2/ B4/ B5
  • NAX ( North America ) LTE-FDD: B2/ B4/ B5/ B12/ B13/ B25/ B26 ; WCDMA: B2/ B4/ B5
  • VX (Verizon) LTE-FDD: B4/ B13
  • AUX ( Latin America /ANZ) LTE-FDD: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B28/ B66; WCDMA: B1/ B2/ B5/ B8; GSM: B2/ B3/ B5/ B8
Z-wave Performance
  • TX power up to 13 dBm (20mW)
  • RX sensitivity: @100kbps-97.5dBm
  • Range: 100 meters minimum, open filed
  • Default Frequency: 916 MHz( Different country with different frequency) Pls check the Z-wave frequency band table
WAN/LAN 10/100M bps
RF Factory Test Mode Setting the Board into the test mode, using the Iqexl-ws that can test the Wi-Fi, Zigbee, Bluetooth, LTE.
Please refer to the DUSUN Test Specification for details.

BLE-Cellular LTE Gateway's Z-wave Frequency Band Table

COUNTRY/REGIONSTANDARDZ-WAVE FREQUENCY
ArgentinaFCC CFR47 Part 15.249908.40MHz,916.00MHz
ArmeniaETSI EN 300 220868.40MHz,869.85MHz
AustraliaAS/NZS 4268919.80MHz,921.40MHz
BahamasFCC CFR47 Part 15.249908.40MHz,916.00MHz
BarbadosFCC CFR47 Part 15.249908.40MHz,916.00MHz
BermudaFCC CFR47 Part 15.249908.40MHz,916.00MHz
BoliviaFCC CFR47 Part 15.249908.40MHz,916.00MHz
BrazilANATEL Resolution 506919.80MHz,921.40MHz
British Virgin IslandsFCC CFR47 Part 15.249908.40MHz,916.00MHz
CanadaFCC CFR47 Part 15.249908.40MHz,916.00MHz
Cayman IslandsFCC CFR47 Part 15.249908.40MHz,916.00MHz
CEPT*ETSI EN 300 220868.40MHz,869.85MHz
ChileFCC CFR47 Part 15.249919.80MHz,921.40MHz,921.42MHz
ChinaCNAS/EN 300 220868.40MHz
ColombiaFCC CFR47 Part 15.249908.40MHz,916.00MHz
Costa RicaARIB T96, ARIB STD-T108922.50MHz,923.09MHz,926.30MHz
EcuadorFCC CFR47 Part 15.249908.40MHz,916.00MHz
EgyptETSI EN 300 220868.40MHz,869.85MHz
El SalvadorAS/NZS 4268919.80MHz,921.40MHz
EUEN 300 220868.40MHz,869.85MHz
French Dep.of GuianaETSI EN 300 220868.40MHz,869.85MHz
GuatemalaFCC CFR47 Part 15.249908.40MHz,916.00MHz
HaitiFCC CFR47 Part 15.249908.40MHz,916.00MHz
HondurasFCC CFR47 Part 15.249908.40MHz,916.00MHz
Hong Kong(China)HKTA 1035919.80MHz
IndiaCSR 564(E)865.20MHz
IndonesiaETSI EN 300 220868.40MHz,869.85MHz
Israel916.00MHz
JamaicaFCC CFR47 Part 15.249908.40MHz,916.00MHz
japan**ARIB STD-T108922.50MHz,923.09MHz,926.30MHz
JordanETSI EN 300 220868.40MHz,869.85MHz
KazakhstanETSI EN 300 220868.40MHz,869.85MHz
LebanonETSI EN 300 220868.40MHz,869.85MHz
LibyaETSI EN 300 220868.40MHz,869.85MHz
MalaysiaSKMM WTS SRD/ETSI 300868.10MHz
MauritiusETSI EN 300 220868.40MHz,869.85MHz
MexicoFCC CFR47 Part 15.249908.40MHz,916.00MHz
New ZealandAS/NZS 4268921.40MHz,919.80MHz
NicaraguaFCC CFR47 Part 15.249908.40MHz,916.00MHz
NigeriaETSI EN 300 220868.40MHz,869.85MHz
PanamaFCC CFR47 Part 15.249908.40MHz,916.00MHz
ParaguayAS/NZS 4268919.80MHz,921.40MHz
PeruAS/NZS 4268919.80MHz,921.40MHz
QatarETSI EN 300 220868.40MHz,869.85MHz
Russian FederationGKRCh/ETSI 300 220869.00MHz
Saudi ArabiaETSI EN 300 220868.40MHz,869.85MHz
SingaporeTS SRD/ETSI 300 220868.40MHz,869.85MHz
South AfricaICASA/ETSI 300 220868.40MHz,869.00MHz
Republic of KoreaClause 2, Article 58-2 of920.90MHz,921.70MHz,923.10MHz
St Kitts & NevisFCC CFR47 Part 15.249908.40MHz,916.00MHz
SurinameFCC CFR47 Part 15.249908.40MHz,916.00MHz
Taiwan(China)NCC/LP0002922.50MHz,923.09MHz,926.30MHz
Trinidad & TabagoFCC CFR47 Part 15.249908.40MHz,916.00MHz
Turks & Caicos IslandsFCC CFR47 Part 15.249908.40MHz,916.00MHz
UAEETSI EN 300 220868.40MHz,869.85MHz
UruguayAS/NZS 4268919.80MHz,921.40MHz
USAFCC CFR47 Part 15.249908.40MHz,916.00MHz
YemenETSI EN 300 220868.40MHz,869.85MHz

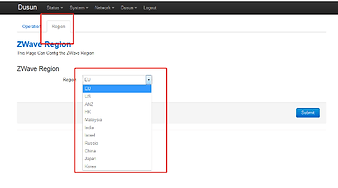

Setting the corresponding z-wave frequency band according to the Development user manual
DM 20220629170549 013

BLE-Cellular LTE Gateway Quality and Testing

Information DescriptionStandard(Yes) custom(No)
ESD TestingYes
RF Antenna AnalysisYes
Environmental TestingYes
Reliability TestingYes

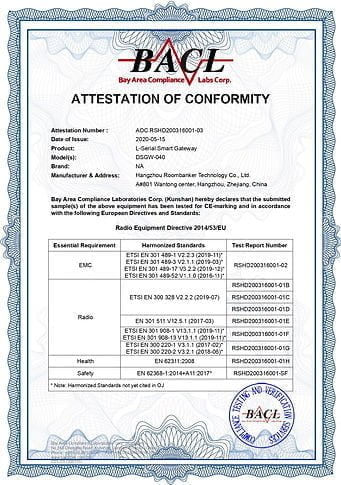

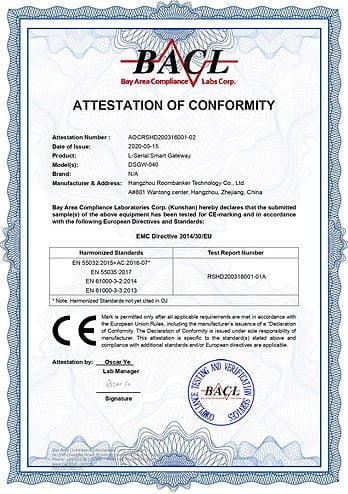

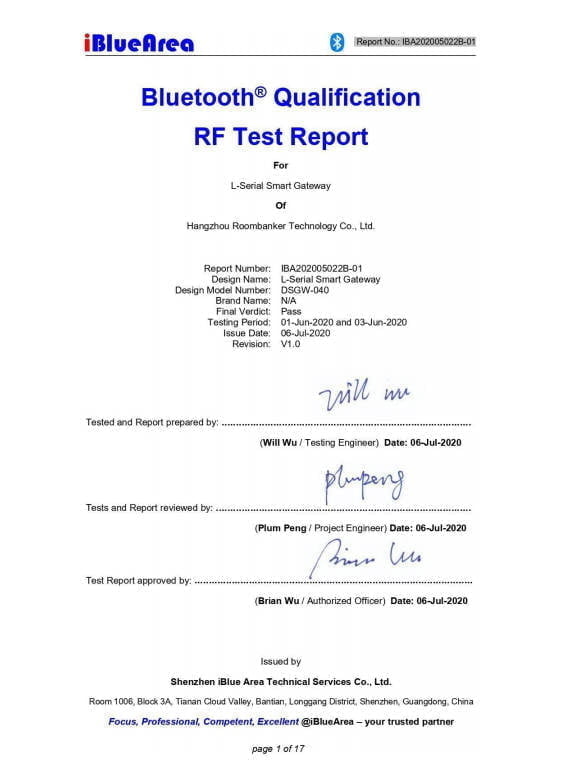

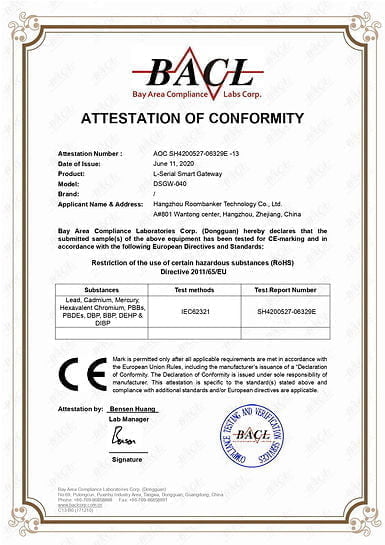

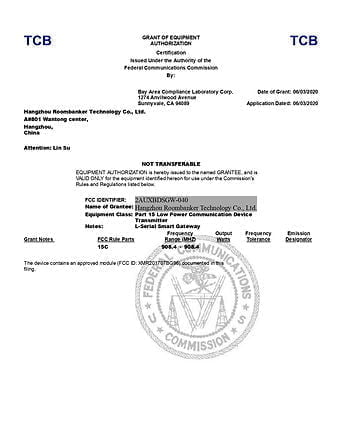

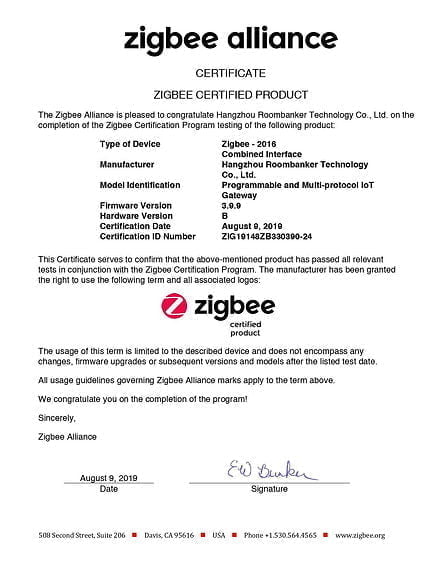

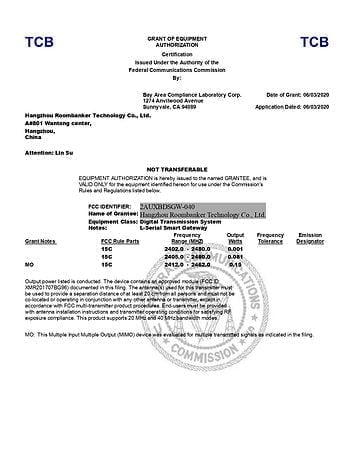

CertificationFCC, CE, Zigbee, Bluetooth(BQB), RoHs
Operate temperature-5℃~65℃

BLE-Cellular LTE Gateway Software Requirement

This software will be based on MTK platform. It runs on the OpenWrt system. And the Features are as follows:

  • Wi-Fi
  • Zigbee 3.0
  • Bluetooth 5
  • Z-Wave
  • LTE
  • OTA
  • MQTT

BLE-Cellular LTE Gateway Defines

Boot up

When insert the power , the green and yellow LED are lighting, the Yellow LED is go out and the green LED is blink, the green led is lighting, the BLE-Cellular LTE Gateway boot up successfully.

Reset

Keep pressing the button for 5s. All matching information is eliminated.

Indicator LED

  • Green LED: it is used to indicate system startup
  • Yellow LED: it is used to indicate the operating the Zigbee and Z-wave. When the BLE-Cellular LTE Gateway communicate with sensor, the led will be blink. If let the gateway go into pairing mode, the led will be blink.
  • Red LED: it is used to indicate BLE-Cellular LTE Gateway connect with cloud, if the gateway connect with successfully, the Red LED is go out, failed is lighting.

Wi-Fi Configuration

The Wi-Fi support the AP mode and client mode. It can be switched.
The name of AP : xxxxxxx
Pass word : xxxxxxx

Zigbee Configuration

The Zigbee stack is version 3.0, it can support ZHA, Greenpower, ZLL, ZSE etc.

It support most cluster of Zigbee devices. Like door sensor, leakage sensor, Motion sensor, Tem&Hum sensor, smart plug, smart lamp, smoke sensor, curtain etc. It can used web or command to add the device.

Bluetooth Configuration

The Bluetooth is core 5.0, it supports BLE 5. It can used web or command to add the device.

Z-Wave Configuration

Z-Wave is a standard module, it supports most cluster of Z-Wave devices. It can used web or command to add the device.

LTE Configuration

The BLE-Cellular LTE Gateway power on , the LTE will set up , and check if there is a sim card, then scan the network and join it.

It can used the web or command to change the APN to adapt to different countries.

OTA

The BLE-Cellular LTE Gateway can be upgradeable over the network.

MQTT

The BLE-Cellular LTE Gateway support the MQTT protocol to connect the cloud.

BLE-Cellular LTE Gateway Application Scenarios

Application NOFunction IntroductionModel NameFirmware Version
AP-01WI-FI and Bluetooth ScannerDSGW-040-2DSGW-040-2-Vesion1.0

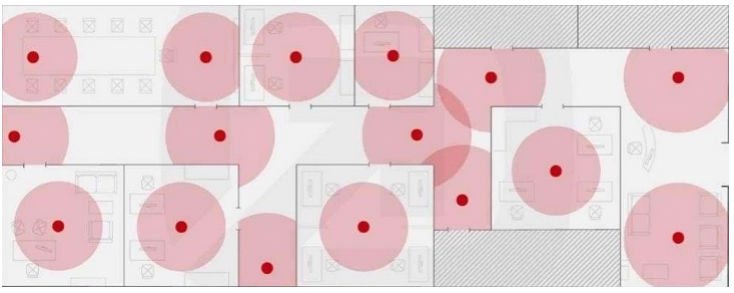

AP-02Work with Beacon for Indoor PositioningDSGW-040-3DSGW-040-3-Vesion1.0

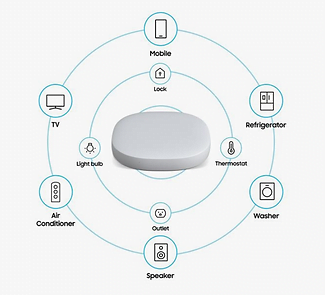

AP-03Smart Home IOTDSGW-040-7DSGW-040-7-Vesion1.2

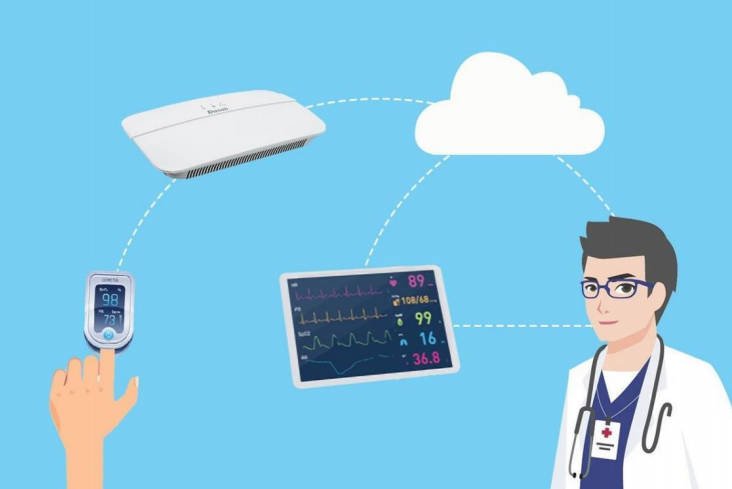

AP-04Bluetooth roaming function provides remote health guidanceDSGW-040-8DSGW-040-8-Verision1.1
Application List

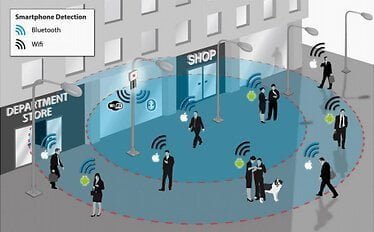

BLE-Cellular LTE Gateway for Monitor Shopping and Street Activity

The Cellular LTE Gateway can be used to detect iPhone and Android devices, which can be detected without the need of being connected to an specific Access Point, enabling the detection of any smartphone, laptop or handsfree device which comes into the coverage area of this smart gateway and in general any device which works with Wi-Fi or Bluetooth interfaces. Users have to do nothing to be detected as the Wi-Fi and Bluetooth radios integrated in their smartphones.

DM 20220629170549 0141

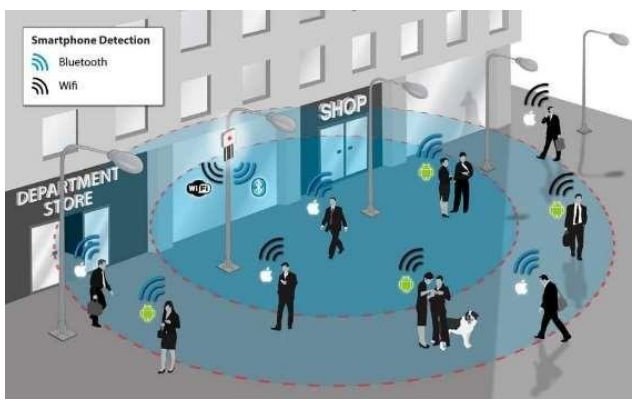

Working Scenario
DM 20220629170549 0142

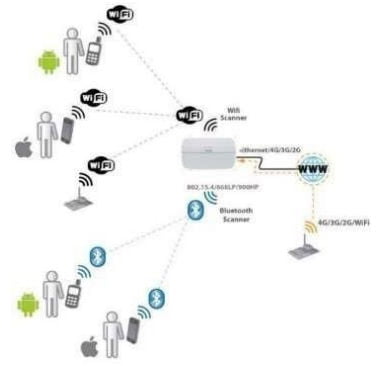

Schematic Diagram
DB IDTimestampMACAPRSSIVendor
534832012-04-24 7:56:25C4:2C:03:96:0E:4A69Apple
534822012-04-24 9:11:26D8:2A:7E:10:1E:63libelium_wsn160Nokia Corporation
Example of information monitored by the Wi-Fi Scanner
DB IDTimestampMACIDRSSICoDVendor
454002012-05-16 16:18:1200:26:7E:5F:3C:18myCar-72HandsfreePARROT SA
780052012-04-20 12:59:27D8:2A:7E:0E:C3:10Tropic-85SmartphoneNokia Corporation
Example of information monitored by the Bluetooth Scanner

BLE-Cellular LTE Gateway and Beacons for Indoor Guidance and Location

DM 20220629170549 017

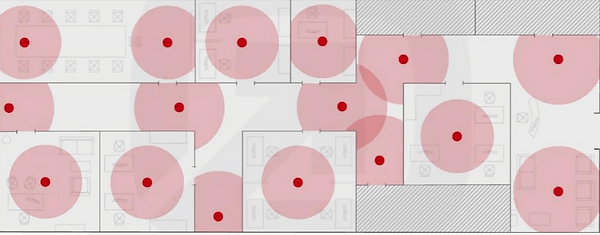

Exemplary deployment of a beacon infrastructure

The beacon attached to the asset to be tracked sends BLE signals to BLE-Cellular LTE Gateway that are installed in the building. The BLE-Cellular LTE Gateway processes the provided data and sends it via Wi-Fi, Ethernet to Server. Here, the position is displayed on a map and motion statistics can be retrieved.

BLE-Cellular LTE Gateway for IoT Smart Home

DM 20220629170549 018
Exemplary deployment of a beacon infrastructure

The BLE-Cellular LTE Gateway as the brain of the smart home connects wirelessly with a wide range of smart devices and make them work together.

  • Control lights, electronics, and small appliances from anywhere.
  • Set devices to turn on and off at different times of day.
  • Receive alerts when there’s unexpected activity in your home.
  • Set connected lights to turn on and off as people come and go.
  • Monitor moisture and temperature.

AP-04 Healthcare

healthcare 1

Health medical equipment can be connected to the cloud platform through the gateway to send health and medical data remotely, and doctors can remotely provide medication guidance to patients with chronic diseases.

The gateway has Bluetooth roaming function. In a large area, the device can connect from gateway A to gateway B through Bluetooth roaming.

BLE-Cellular LTE Gateway Certification

FCC

DM 20220629170549 019
DM 20220629170549 020

RoHs

DM 20220629170549 021

CE

DM 20220629170549 022
DM 20220629170549 023

Zigbee

DM 20220629170549 024

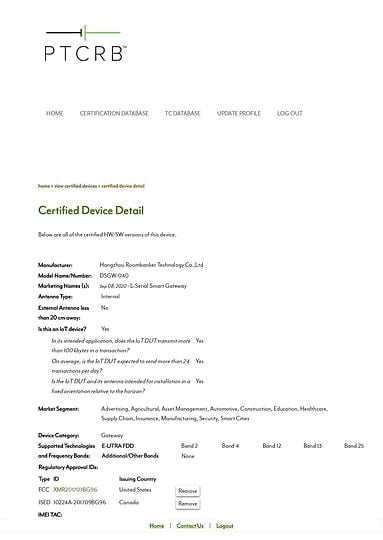

PTCRB

DM 20220629170549 025

BQB

bqb

Documentations

DusunIoT offers full set of development resources including QUICK START, SDK, Firmware packaging, module firmware, Tools, vairous third party software,etc.

Related IoT Product Specifications

DSGW-023 4G LTE SIM Card Gateway

DSGW-023 4G LTE SIM Card Gateway with Wi-Fi Option has a SIM card plug-and-play setting. And allow running Tuya Smartlife APP on it. Read further

DSGW-210 IoT Edge Gateway

DSGW-210 IoT gateway is Dusun IoT’s flagship product. It supports multiple protocols and edge computing functions. You can find any features you want at our

Looking For An IoT Device Supplier For Your Projects?

CONTACT US

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    IoT Gateways for Recommendation

    CONTACT US

      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Welcome to DusunIoT

      Hi there 👋 Is there anything we can help you with today? Please fill in the form below for the team to follow up if you become disconnected.

        DusunIoT Distributor Program

          This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

            This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
