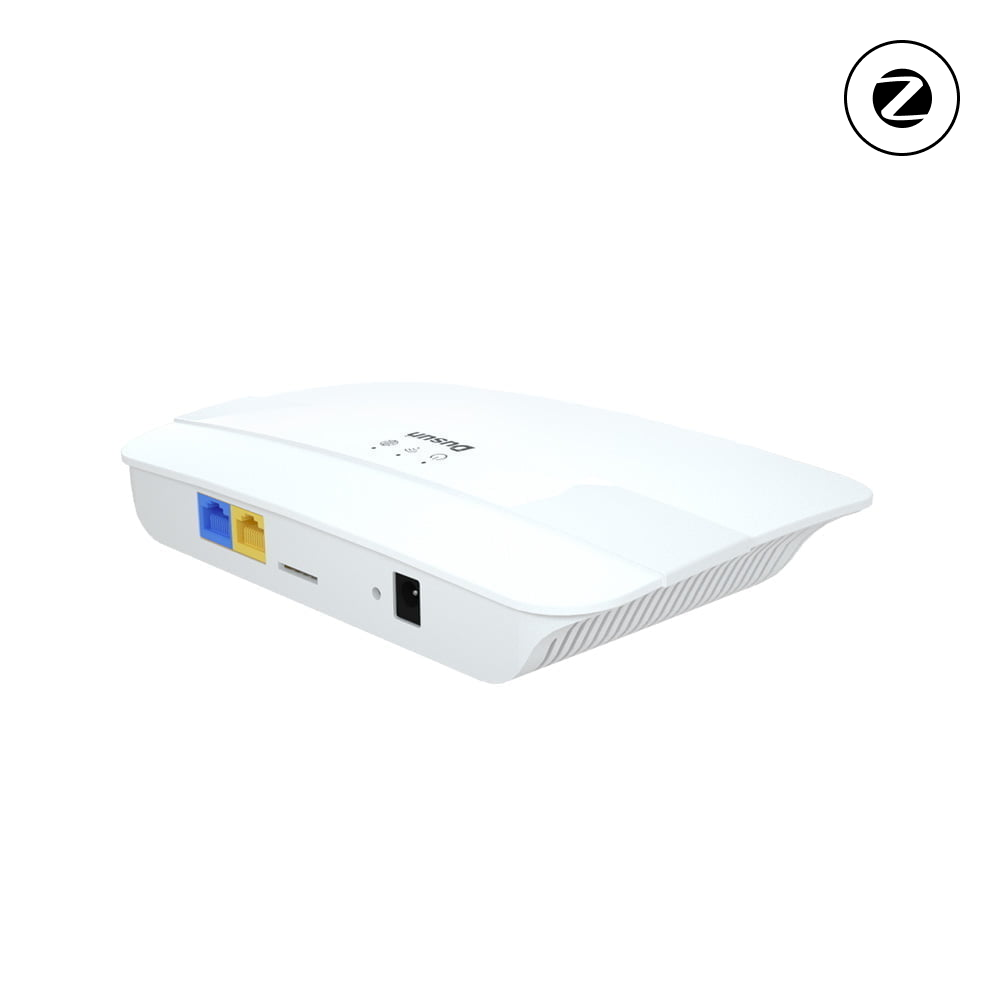

DSGW-040-3 Smart Zigbee WiFi Hub Gateway

Model: DSGW-040-3 Category:

DSGW-040-3 Zigbee smart hub has WiFi 2.4G capability and can be used as a smart hub center to connect and control various Zigbee and WiFi devices, such as smart lamps, smart sockets, smart door locks, etc. By using this Zigbee WiFi hub, users can integrate smart devices of Zigbee and WiFi protocols into a unified hardware platform, and centrally control and manage them through an app or platform, bringing convenience to life.

  • CPU: MT7620 580MHz MIPS® 24KEc™ Wi-Fi 2.4G
  • Operating System (OS): Linux@ OpenWrt
  • DC 5V power supply
  • IEEE802.11n, IEEE802.11g, IEEE 802.11b protocols
  • Supports Wi-Fi2.4G, Zigbee3.0
  • RAM: 128MB (Free Space 80MB)
  • Flash: 16MB. Free Space: 8MB (Development space for users)
  • One LAN, One WAN network port

$49.00

Quick View of DSGW-040-3 Smart Zigbee WiFi Hub Gateway

DSGW-040-3 Zigbee Smart Hub acts as the ultimate WiFi Zigbee smart hub, allowing users to step into the future of smart living where Zigbee and WiFi devices come together harmoniously. It bridges the gap between Zigbee and WiFi protocols, allowing you to integrate and control these devices seamlessly.

DSGW-040-3 is also a programmable Zigbee WiFi hub allowing you to customize your smart home automation rules according to your preferences. You can create schedules, scenarios, and interactions that suit your routine and preferences, and take command of your connected world with ease.

Features of DSGW-040-3 Smart Zigbee WiFi Hub

dsgw 040 programmable and certified

Multipe-Protocol (wire and wireless) supported

Connecting various sensors/devices through Zigbee3.0, Wi-Fi 2.4G.

High Programmabler

Develop your custom firmware from the bottom layer of the hardware with a comprehensive set of resources and services to help developers create successful IoT Gateway projects.

Pre-Certified

Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide.

Dimension and Package of DSGW-040-3 Smart Zigbee WiFi Hub

040 Bluetooth-Cellular LTE WiFi Router Gateway dimension
Dimension
040 Bluetooth-Cellular LTE WiFi Router Gateway package
Package List

Parameters of DSGW-040-3 Smart Zigbee WiFi Hub

Category Specifications
CPU MT7620
System OpenWrt
RAM 128MB
Flash 16MB
Network Interface 1 * 10/100 Mbps LAN port, 1 * 10/100 Mbps WAN port
Indicator LEDs • The Zigbee LED flashes when a signal is received.
• The Network LED indicates RED when no establishing a network connection.
• The Network LED indicates GREEN when a network connection is established.
Power Supply DC Input, input voltage range is 4.5V to 5V. The power seat aperture is 3.5mm.
The needle diameter is 1.35mm and is positive. The power adapter: 100-240V 50/60HZ. Output is 5V/2A.
Reset Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds
Installation Flat, Ceiling
Weight TBD
Operating Temperature -10℃~55℃
Storage Temperature -40℃~65℃
Operating humidity 10%~90%
IP Rating IP 22

Use Cases of DSGW-040-3 Smart Zigbee WiFi Hub

smart lock remote management

Smart lock remote management

air quality monitoring

Air quality monitoring

smart cleaning managemet

Smart cleaning managemet

smart warehouse management

Smart warehouse management

Developer Resources of DSGW-040-3 Smart Zigbee WiFi Hub

Development
[QUICK START] DSGW-040 Smart Programmable Gateway SDK Quick Start Guide v1.0 V1.0
[SDK] DSGW-040_sdk_AV4.8.314.4296608 V4.8.314
[Firmware packaging] DSGW-040_AV4.8.308.4145708 V4.8.308
[Zigbee module firmware] DSI-0134-Amber-Zigbee_RV6 Version:ezsp ver 0x06 V ezsp ver 0x06
[Ble module firmware] DSI-0177-Amber-BLE-NCP_AV3.2.4.0129 Version:3.2.4.297 V3.2.4.297

Model List of DSGW-040-3 Smart Zigbee WiFi Hub

Category B (Built by Order)
Model Wi-Fi 2.4G Bluetooth 5.2 Zigbee 3.0 LTE Cat M1
DSGW-040-3

FAQs of DSGW-040-3 Zigbee WiFi Hub

DSGW-040-3 Zigbee WiFi hub can serves as a network coordinator, enabling connectivity with multiple Zigbee devices. As a default configuration, it can support up to 30 Zigbee end devices, while providing the capability to accommodate a maximum of 64 Zigbee devices in total.

You may want to know whether we are manufacture Zigbee compatible gateways. The answer is yes. We produce universal Zigbee gateways, which means as long as your device is Zigbee 3.0 device, our DSGW-040-3 Zigbee WiFi Hub should be able to pair with it.

Additional information

Product Type

IoT Gateway

Chip Platform

MediaTek

CPU Name

MT7620A

RAM

128MB

Flash

16MB

Back-up Battery

None

Interface

RJ45

System support

OpenWrt

Operating Temperature

-10℃~55℃

Install

Ceiling, Flat
